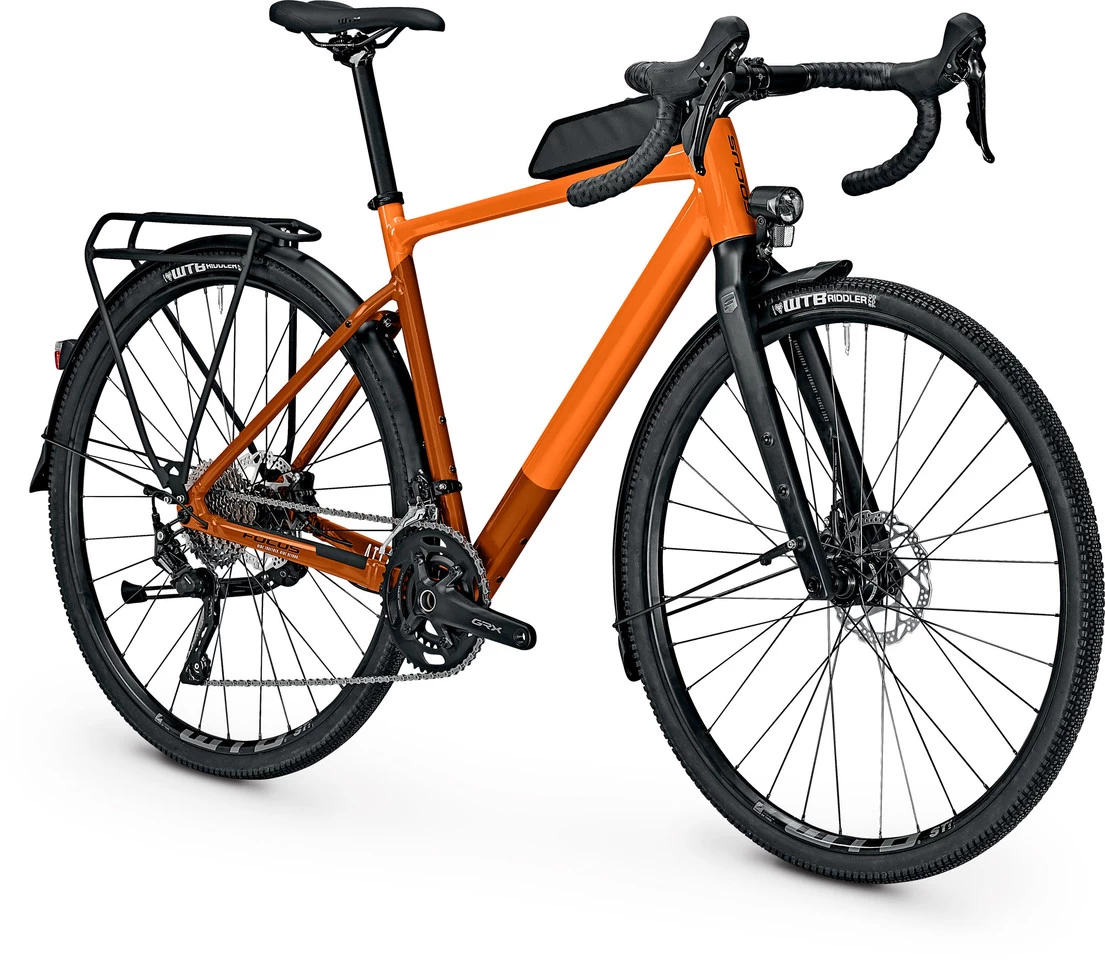

Focus ATLAS 6.7 EQP 28″ Gravel Bike – 2023 Model

FOCUS ATLAS 6.7 EQP 28″ Gravel Bike – Fully equipped for bikepacking
The FOCUS ATLAS 6.7 EQP is a gravel bike with an aluminium frame and carbon fork, which has a hub dynamo light system, pannier rack and fenders. The GRX 2×10-speed groupset from Shimano is responsible for propulsion. Disc brakes, Boost hubs, the 37 mm wide tyres and handlebars with 10° flare ensure full control during bikepacking adventures.
Specifications:Application:Gravel, City & TouringWheel Size:28″Sizes:XS, S, M, L, XLFrame Material:aluminiumFork Material:CarbonComponents:Frame:FOCUS ATLAS, aluminium, flat mount disc, BSA, 12 x 148 mm thru-axle (Boost), internal cable routingFork:FOCUS ATLAS Carbon, flat mount disc, 12 x 110 mm thru-axle (Boost), 425 mm axle to crown length, 50 mm offset, internal brake hose guide, with mounting pointsStem:FOCUS, aluminium, 31.8 mm, 6°Handlebars:FOCUS JD RA85, 31.8 mm, 116 mm drop, 74 mm reach, 10° flareHeadset:Acros IS52/28,6-IS52/40 (ICR), FOCUS integrated C.I.S.Seatpost:FOCUS, aluminium, 27.2 mm, 350 mm, 0 mm setbackSaddle:WTB SL8Crank:Shimano GRX FC-RX600, 10-speed, 30-46 T, BSA bottom bracketPedals:noneBrakes:Shimano GRX BR-RX400, 160 mm/160 mmShift/Brake lever:Shimano GRX ST-RX400Rear Derailleur:Shimano GRX RD-RX400Front Derailleur:Shimano GRX FD-RX400Cassette:Shimano CS-HG50-10, 10-speed, 11-34 toothChain:Shimano Tiagra CN-4601, 10-speedWheels:WTB ST i23 TCS rims, tubeless ready, 700 x 37C, Shutter Precision PL-7 hub dynamo, 12 x 110 mm, Novatec D982TSB rear hub, 12 x 148 mmTyres:WTB Riddler, 700 x 37CApproved For:Weight Limit:120 kg (system weight)Rotor Size (max.):180 mmTyre Size (max.):27.5″ : 53-584, 28″ : 47-622, with fenders 28″ : 40-622Chainrings:2-speed, 1-speedChainring Size (max.):1-speed 42 T (chainline 49.7 mm (Shimano)), 1-speed 40 T (chainline 45 mm (SRAM)), 2-speed 30-46 T (chainline 47 mm (Shimano)), 2-speed 30-43 T (chainline 47.5 mm (SRAM))Features:fully equipped gravel bike with aluminium frame for adventures and bikepackingEndurance geometry2-legged pannier rack made of aluminium with 20 kg load capacityHerrmans H-Black MR8 LED front lightHerrmans H-Trace Mini LED rear lightfenders from Büchel, plastic, 51 mmkickstand (18 mm attachment)extremely large tyre clearance of up to 47 mm (without fenders)650B compatibleShimano GRX 2×10-speed gears, Novatec hub dynamo and WTB rimsaffords you control on different surfaces and in all weather conditionswide flared handlebars and disc brakes offer a high degree of safety and comfortEN classification 2: Bicycle for leisure riding with moderate effort, for paved surfaces and unpaved roads or gravel roads of moderate classification, drops of no more than 15 cm, average speed 15 to 25 km/hTechnology:Road Boost
The FOCUS hub standard Road Boost ensures optimum shifting characteristics thanks to a perfect chainline and a minimum level of wear and noise. At the same time, the wider hubs increase the rigidity of the wheels, resulting in reliable handling characteristics and high durability.
Geometry:XS:
Frame Size:48 cmStack:568 mmReach:370 mmSeat Tube Length:450 mmEffective Top Tube Length:532 mmHead Tube Length:114 mmChainstay Length:425 mmWheelbase:1015 mmBB Drop:75 mmSeat Tube Angle:74°Head Tube Angle:70.5°Standover Height:765 mmStem Length:70 mmHandlebar Width:42 cmCrank Arm Length:170.0 mm
S:
Frame Size:51 cmStack:582 mmReach:380 mmSeat Tube Length:490 mmEffective Top Tube Length:552 mmHead Tube Length:129 mmChainstay Length:425 mmWheelbase:1030 mmBB Drop:75 mmSeat Tube Angle:73.5°Head Tube Angle:70.5°Standover Height:789 mmStem Length:70 mmHandlebar Width:42 cmCrank Arm Length:170.0 mm
M:
Frame Size:54 cmStack:596 mmReach:395 mmSeat Tube Length:520 mmEffective Top Tube Length:571 mmHead Tube Length:144 mmChainstay Length:425 mmWheelbase:1051 mmBB Drop:75 mmSeat Tube Angle:73.5°Head Tube Angle:70.5°Standover Height:809 mmStem Length:80 mmHandlebar Width:44 cmCrank Arm Length:172.5 mm
L:
Frame Size:57 cmStack:615 mmReach:410 mmSeat Tube Length:550 mmEffective Top Tube Length:592 mmHead Tube Length:164 mmChainstay Length:425 mmWheelbase:1072 mmBB Drop:75 mmSeat Tube Angle:73.5°Head Tube Angle:70.5°Standover Height:830 mmStem Length:90 mmHandlebar Width:44 cmCrank Arm Length:172.5 mm
XL:
Frame Size:60 cmStack:643 mmReach:420 mmSeat Tube Length:577 mmEffective Top Tube Length:610 mmHead Tube Length:194 mmChainstay Length:425 mmWheelbase:1092 mmBB Drop:75 mmSeat Tube Angle:73.5°Head Tube Angle:70.5°Standover Height:862 mmStem Length:90 mmHandlebar Width:44 cmCrank Arm Length:175.0 mmManufacturer Numbers:XS:663019430S:663019431M:663019432L:663019433XL:663019434Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x FOCUS ATLAS 6.7 EQP Gravel Bike
