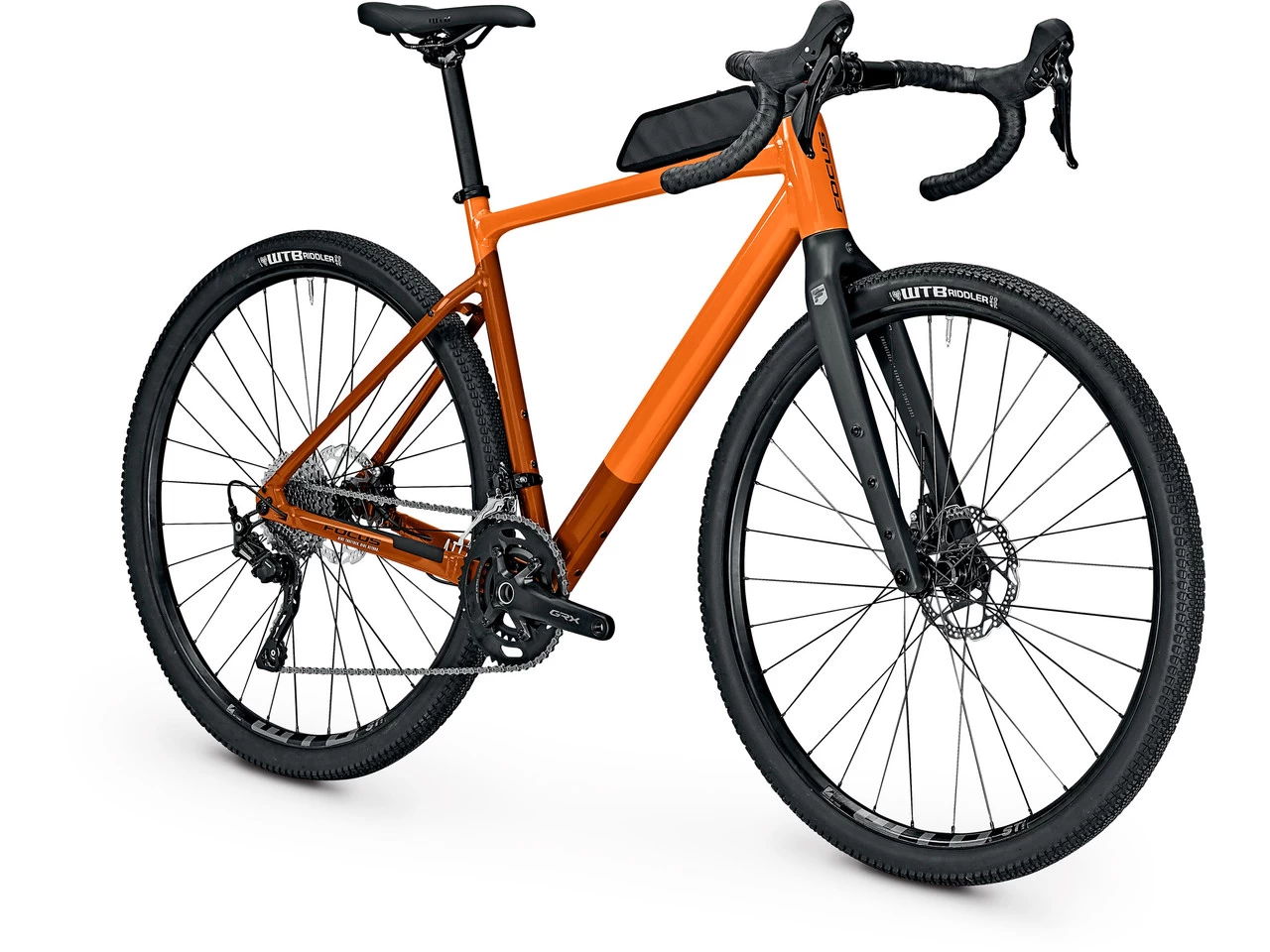

Focus ATLAS 6.7 28″ Gravel Bike – 2023 Model

The FOCUS ATLAS 6.7 28″ gravel bike for limitless gravel adventures
The ATLAS 6.7 is a versatile gravel bike with an aluminium frame and carbon fork, equipped by FOCUS with a Shimano GRX 2×10-speed groupset. Disc brakes, Boost hubs, the 45 mm-wide tyres and handlebars with 10° flare ensure full control during gravel road adventures. The extensive mounting options also make the ATLAS great for bikepacking.
Specifications:Application:GravelWheel Size:28″Sizes:XS, S, M, L, XLFrame Material:aluminiumFork Material:CarbonComponents:Frame:FOCUS ATLAS, aluminium, flat mount disc, BSA, 12 x 148 mm thru-axle (Boost), internal cable routingFork:FOCUS ATLAS Carbon, flat mount disc, 12 x 110 mm thru-axle (Boost), 425 mm axle to crown length, 50 mm offset, internal brake hose guide, with mounting pointsStem:FOCUS, aluminium, 31.8 mm, 6°Handlebars:FOCUS JD RA85, 31.8 mm, 116 mm drop, 74 mm reach, 10° flareHeadset:Acros IS52/28,6-IS52/40 (ICR), FOCUS integrated C.I.S.Seatpost:FOCUS, aluminium, 27.2 mm, 350 mm, 0 mm setbackSaddle:WTB SL8Crank:Shimano GRX FC-RX600, 10-speed, 30-46 T, BSA bottom bracketPedals:noneBrakes:Shimano GRX BR-RX400, 160 mm/160 mmShift/Brake lever:Shimano GRX ST-RX400Rear Derailleur:Shimano GRX RD-RX400Front Derailleur:Shimano GRX FD-RX400Cassette:Shimano CS-HG50-10, 10-speed, 11-34 toothChain:Shimano Tiagra CN-4601, 10-speedWheels:WTB ST i23 TCS rims, Tubeless Ready, Novatec D041 front hub, 12 x 110 mm, Novatec D982TSB rear hub, 12 x 148 mmTyres:WTB Riddler, 700 x 45CApproved For:Weight Limit:120 kg (system weight)Rotor Size (max.):180 mmTyre Size (max.):27.5″ : 53-584, 28″ : 47-622, with fenders 28″ : 40-622Chainrings:2-speed, 1-speedChainring Size (max.):1-speed 42 T (chainline 49.7 mm (Shimano)), 1-speed 40 T (chainline 45 mm (SRAM)), 2-speed 30-46 T (chainline 47 mm (Shimano)), 2-speed 30-43 T (chainline 47.5 mm (SRAM))Features:fast gravel bike with aluminium frame for adventures and bikepackingEndurance geometrynumerous mounting options for equipmentextremely large tyre clearance of up to 47 mm650B compatibleShimano GRX 2×10-speed gears, Novatec hubs and WTB rimsaffords you control on different surfaces and in all weather conditionswide flared handlebars and disc brakes offer a high degree of safety and comfortEN classification 2: Bicycle for leisure riding with moderate effort, for paved surfaces and unpaved roads or gravel roads of moderate classification, drops of no more than 15 cm, average speed 15 to 25 km/hTechnology:Road Boost
The FOCUS hub standard Road Boost ensures optimum shifting characteristics thanks to a perfect chainline and a minimum level of wear and noise. At the same time, the wider hubs increase the rigidity of the wheels, resulting in reliable handling characteristics and high durability.
Geometry:XS:
Frame Size:48 cmStack:568 mmReach:370 mmSeat Tube Length:450 mmEffective Top Tube Length:532 mmHead Tube Length:114 mmChainstay Length:425 mmWheelbase:1015 mmBB Drop:75 mmSeat Tube Angle:74°Head Tube Angle:70.5°Standover Height:765 mmStem Length:70 mmHandlebar Width:42 cmCrank Arm Length:170.0 mm
S:
Frame Size:51 cmStack:582 mmReach:380 mmSeat Tube Length:490 mmEffective Top Tube Length:552 mmHead Tube Length:129 mmChainstay Length:425 mmWheelbase:1030 mmBB Drop:75 mmSeat Tube Angle:73.5°Head Tube Angle:70.5°Standover Height:789 mmStem Length:70 mmHandlebar Width:42 cmCrank Arm Length:170.0 mm
M:
Frame Size:54 cmStack:596 mmReach:395 mmSeat Tube Length:520 mmEffective Top Tube Length:571 mmHead Tube Length:144 mmChainstay Length:425 mmWheelbase:1051 mmBB Drop:75 mmSeat Tube Angle:73.5°Head Tube Angle:70.5°Standover Height:809 mmStem Length:80 mmHandlebar Width:44 cmCrank Arm Length:172.5 mm
L:
Frame Size:57 cmStack:615 mmReach:410 mmSeat Tube Length:550 mmEffective Top Tube Length:592 mmHead Tube Length:164 mmChainstay Length:425 mmWheelbase:1072 mmBB Drop:75 mmSeat Tube Angle:73.5°Head Tube Angle:70.5°Standover Height:830 mmStem Length:90 mmHandlebar Width:44 cmCrank Arm Length:172.5 mm
XL:
Frame Size:60 cmStack:643 mmReach:420 mmSeat Tube Length:577 mmEffective Top Tube Length:610 mmHead Tube Length:194 mmChainstay Length:425 mmWheelbase:1092 mmBB Drop:75 mmSeat Tube Angle:73.5°Head Tube Angle:70.5°Standover Height:862 mmStem Length:90 mmHandlebar Width:44 cmCrank Arm Length:175.0 mmManufacturer Numbers:XS:663019420S:663019421M:663019422L:663019423XL:663019424Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x FOCUS ATLAS 6.7 Gravel Bike
