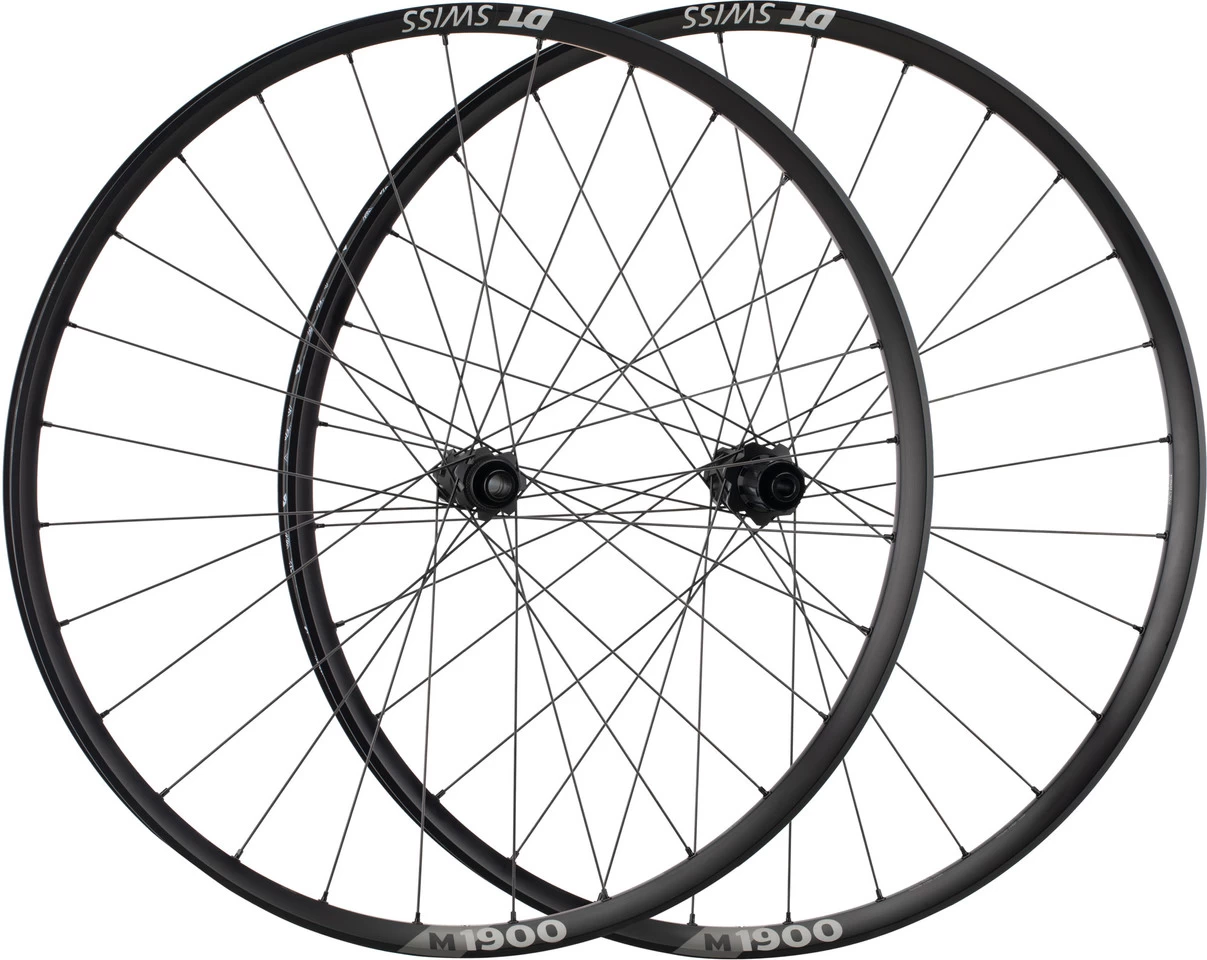

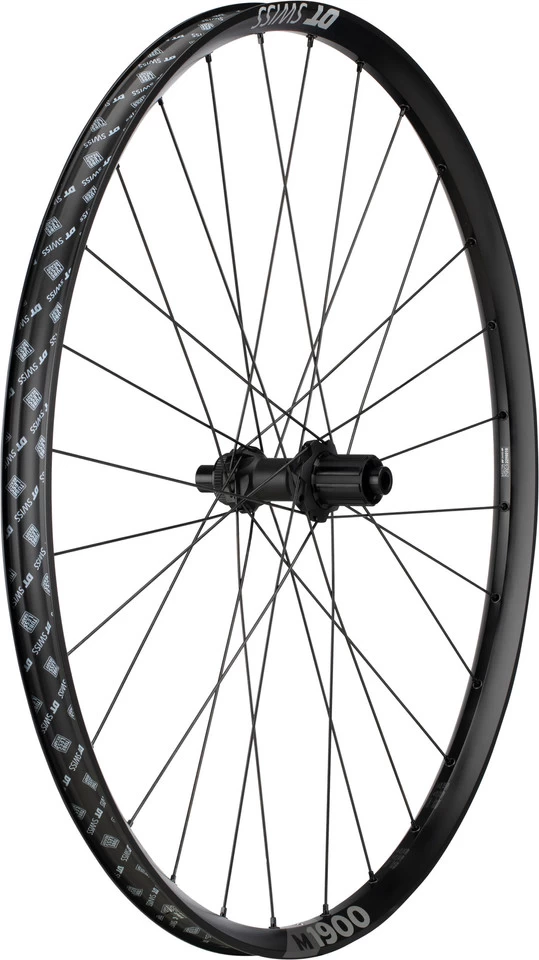

Dt-swiss M 1900 SPLINE 30 Center Lock Disc 29″ Wheelset

DT Swiss M 1900 SPLINE 30 Center Lock Disc 29″ Wheelset for entry-level mountain bikes

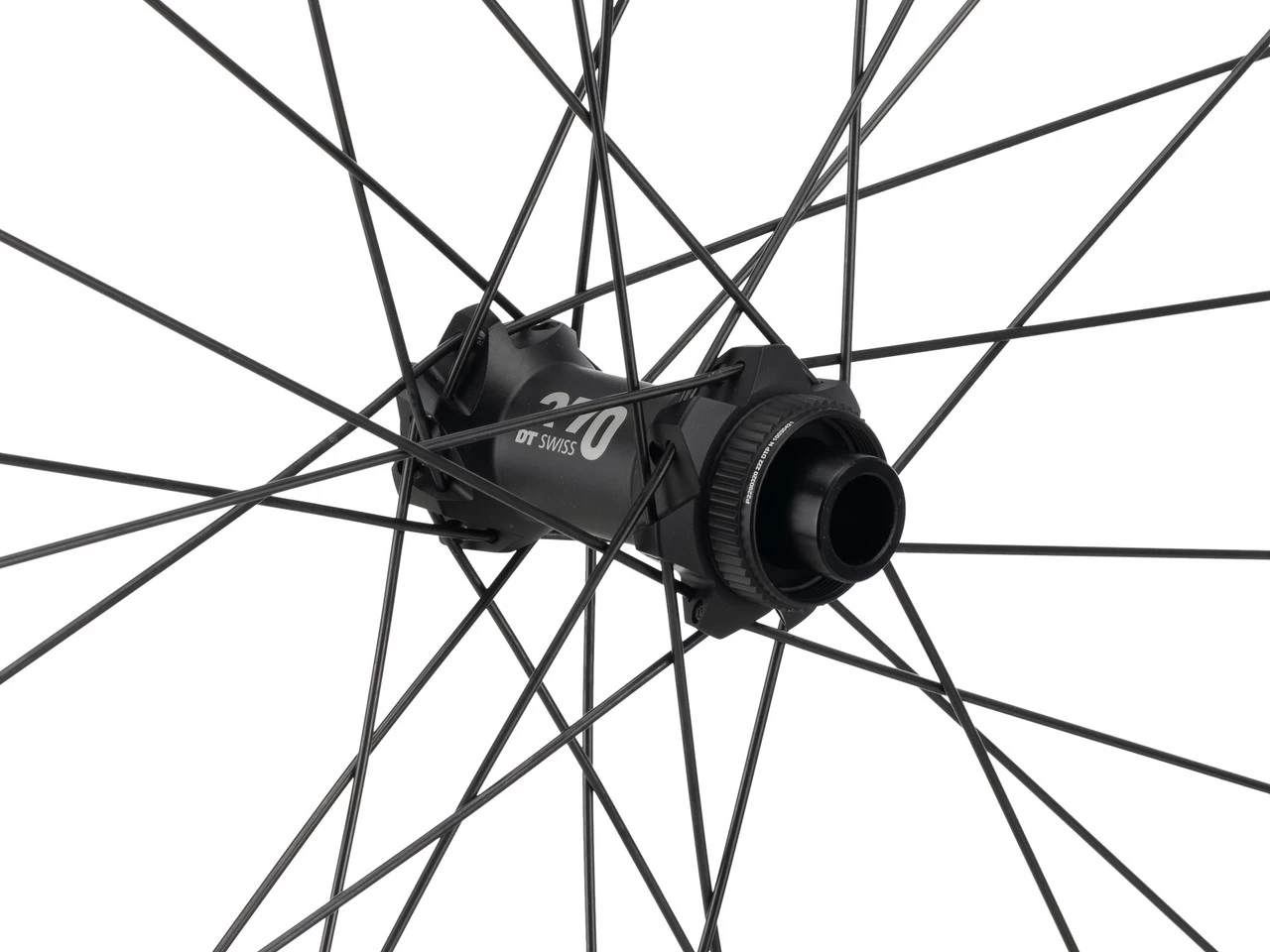

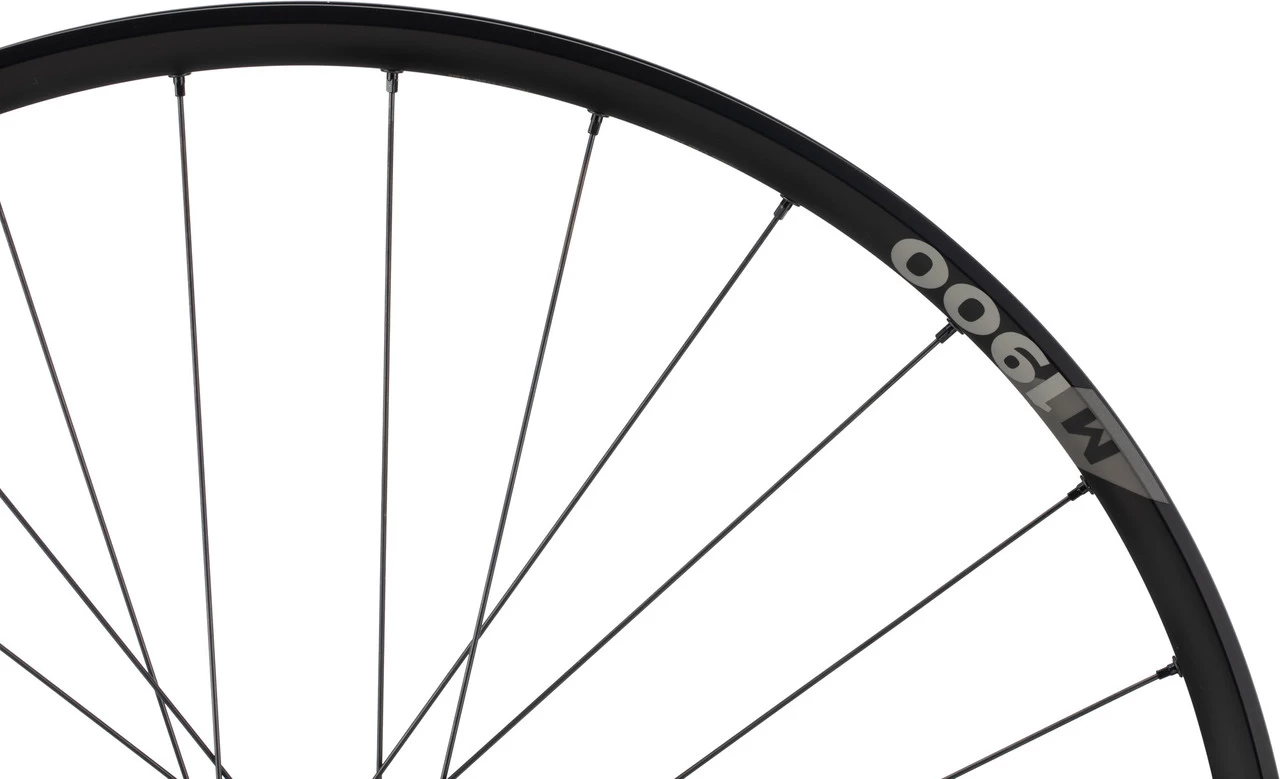

The M 1900 SPLINE 29″ wheelset from DT Swiss is exactly the right choice if you want to make your first experiences on an MTB or only ride occasionally. The rims have an inner width of 30 mm, which makes them ideal for wide tubeless tyres. The 370 SPLINE hub is designed for center lock brake rotors and has a Ratchet LN ratchet freehub. Thanks to 18 teeth, the pressure angle is only 20°, which makes wear particularly low and minimises unwanted idling. The straight pull spokes are combined with Pro-Lock Squorx nipples, which, in conjunction with the Sleeved Joint rim, results in stable wheels. This means nothing stands in the way of long days on MTB tours or in the bike park.
Specifications:Application:All MountainWheel Size:29″Tyre Type:clincher tyreNumber of Spokes:28Brake Type:Center Lock DiscTubeless System:Tubeless ReadyTechnical Information – Rim:Type:M 502Rim Flange:with hookDimensions (ETRTO):30-622Inner Width:30 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Type:370 SPLINEOver Locknut Dimension:15 x 100 mm thru-axleBody Material:aluminiumTechnical Information – Rear Hub:Type:370 SPLINEOver Locknut Dimension:12 x 142 mm thru-axleBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:Ratchet LN 18Technical Information – Lacing:Front Lacing Pattern:3-crossRear Lacing Pattern:3-crossSpoke Type:DT Champion, straight pullSpoke Material:steelNipple Type:DT Pro Lock SquorxNipple Material:aluminiumApproved For:Weight Limit:120 kg (system weight)Air Pressure (max.):see manufacturer’s specificationsRecommended Tyre Width:see manufacturer’s specificationsTechnology:Intended use – Category 4
Suitable for use in very rough terrain with jumps of up to approx. 120 cm in height and speeds of up to 40 km/h. Very good riding technique is required. The components must be checked for damage after each ride.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Ratchet LN
The Ratchet LN freehub is used to convert DT Swiss 370 hubs with pawls to a ratchet freehub. The advantage, compared to pawls, is the significantly larger contact surface with improved frictional connection. The seal attached to the freehub body, and not to the hub shell as usual, makes the freehub body easily replaceable. The modular design allows free selection of the engagement angle (18, 24, 36 or 54 teeth) and of the freehub body.

SPLINE
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.
Colour Info:black:
Rims: black with grey decalsHubs: blackSpokes: blackNipples: blackModels:29″ set (front 15×100 + rear 12×142) Shimano:
Freehub:Shimano MTBGearing:8-/9-/10-/11-speedManufacturer Numbers:W0M1900AEIXSA18988 (front) + W0M1900NEDLSA18989 (rear)
29″ set (front 15×100 + rear 12×142) SRAM XD:

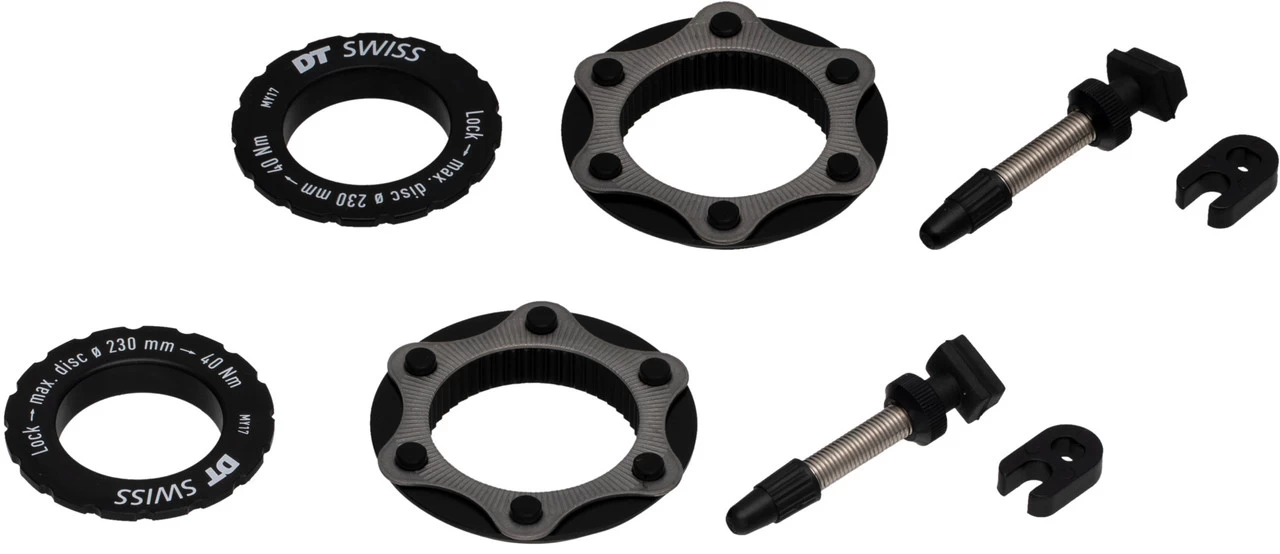

Freehub:SRAM XDGearing:11-/12-speedManufacturer Numbers:W0M1900AEIXSA18988 (front) + W0M1900NEDRSA20531 (rear)Contents:1 x DT Swiss M 1900 SPLINE 29″ 30 Center Lock Disc wheelset (front and rear wheel)2 x DT Swiss tubeless valves2 x rolls DT Swiss tubeless rim tape
