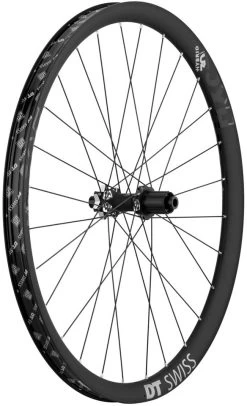

Dt-swiss HXC 1200 SPLINE® 30 Boost 6-Bolt Disc Hybrid 27.5″ Wheel

The best of the best: the HXC 1200 SPLINE® Wheel by DT Swiss
Where to begin? Best in the middle: A super reliable straight pull spoke interface. Light, eMTB-stable spokes. A stiff, high-precision full carbon rim. But the whole HXC 1200 SPLINE® is even better than the sum of its parts – a wheel that accelerates like no other, offers traction like no other and is precise like no other. On the trail it is simply a rocket.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:All MountainWheel Size:27.5″ (650B)Tyre Type:clincher tyreNumber of Spokes:28Brake Type:6-bolt discTubeless System:Tubeless ReadyFreehub Compatibility:Shimano Freehub:8/9/10-speed Shimano/SRAM; 11-speed Shimano MTB, 11-speed SRAM NXNote:To convert to 11-/12-speed SRAM XD, an XD freehub body is required.Technical Information – Rim:Rim Flange:

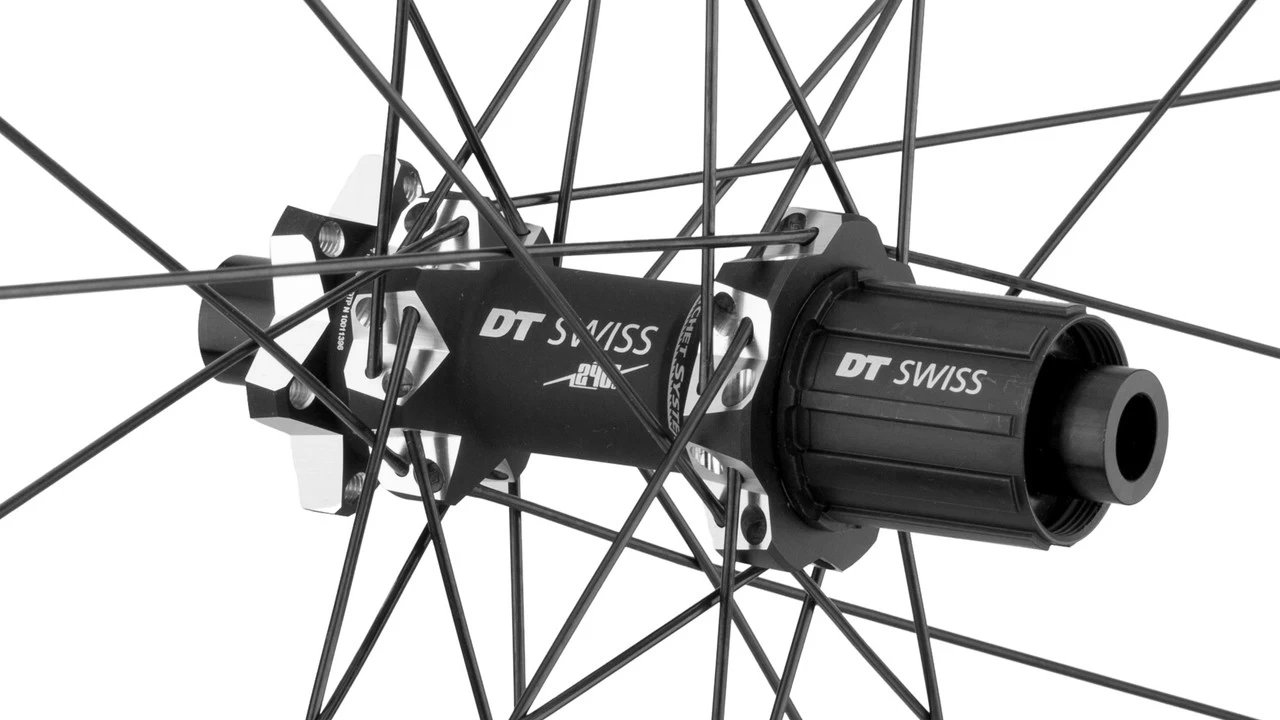

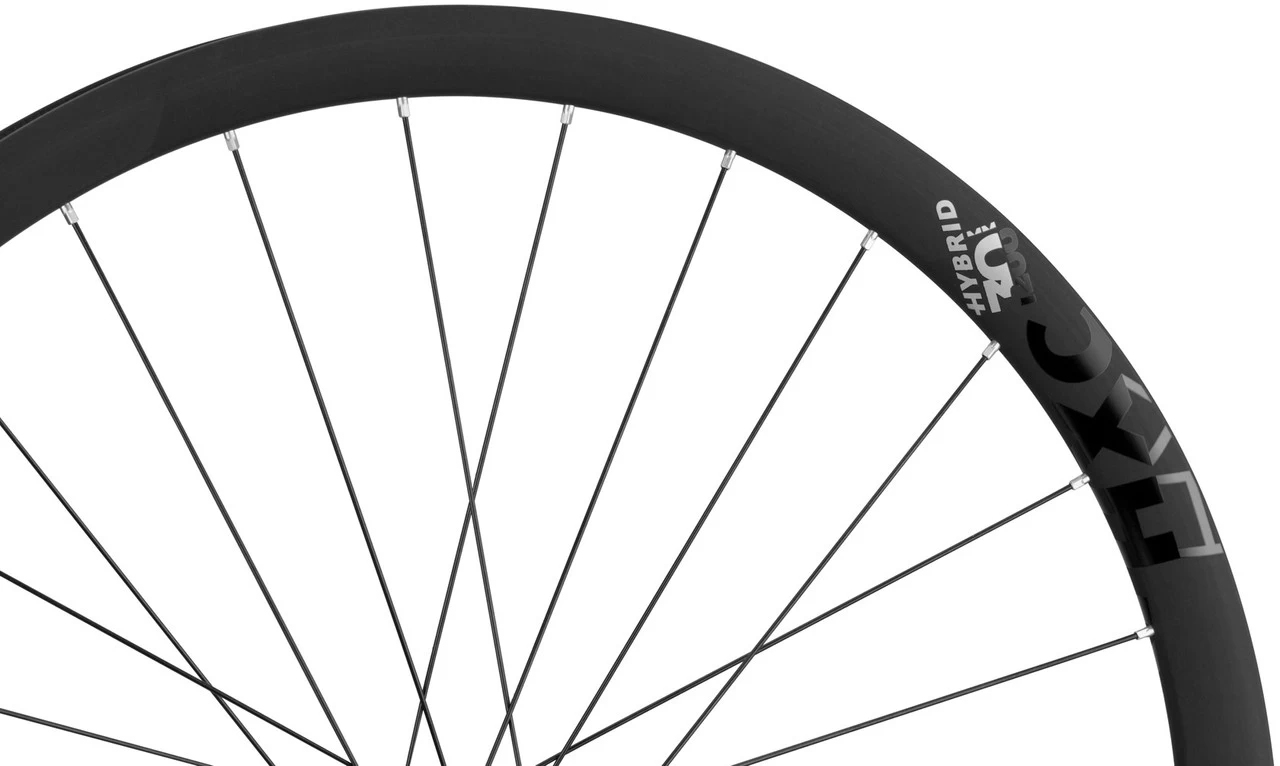

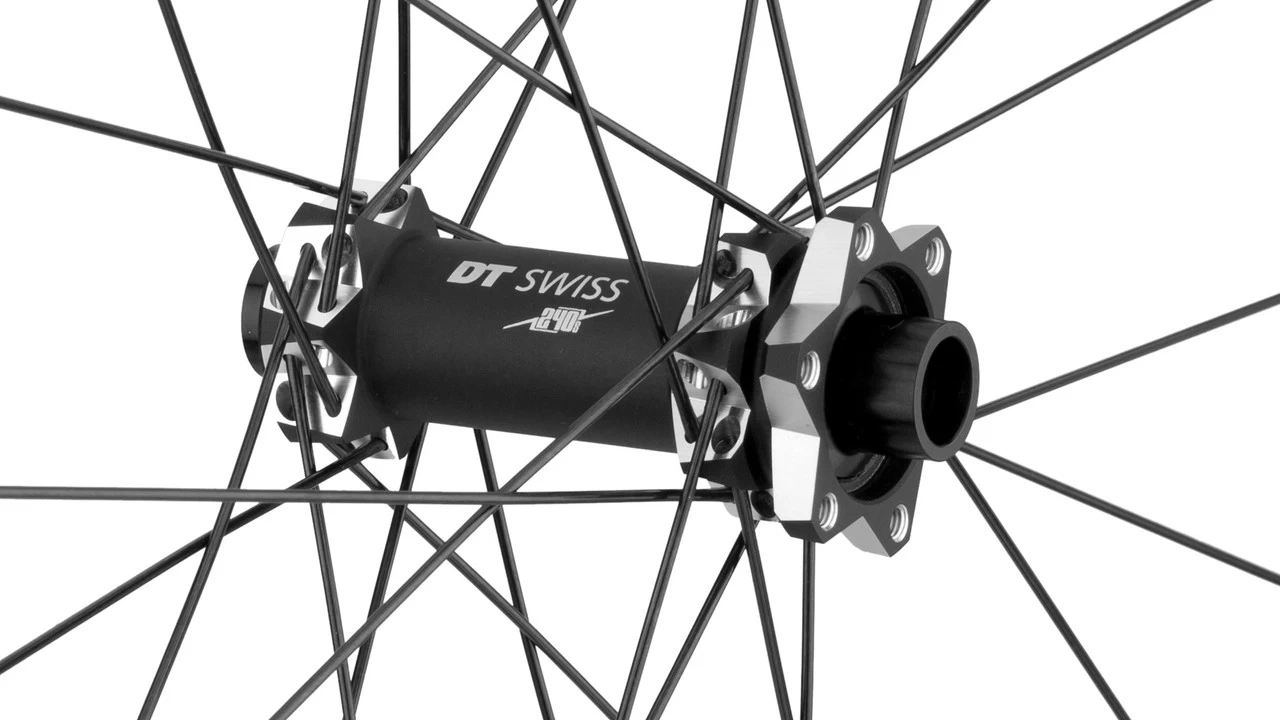

Dimensions (ETRTO):30-584Inner Width:30.0 mmOuter Width:36.0 mmValve Hole Diameter:SV / Presta (6.5 mm)Rim Material:CarbonTechnical Information – Front Hub:Type:DT Swiss 240Over Locknut Dimension:15 x 110 mm thru-axleBody Material:aluminiumTechnical Information – Rear Hub:Type:DT Swiss 240Over Locknut Dimension:12 x 148 mm thru-axleBody Material:aluminiumFreehub Body:DT Swiss Ratchet System® (24 T)Technical Information – Lacing:Front Lacing Pattern:3-crossRear Lacing Pattern:3-crossSpoke Type:DT Hybrid 2Spoke Material:steelNipple Type:DT Pro Lock® SquorxNipple Material:aluminiumApproved For:Weight Limit:120 kg system weight (rider + bike + gear)Air Pressure (max.):4.7 barsRecommended Tyre Width:1.85 – 3.5″Technology:Double Butted:
These spokes have two different diameters. The spoke is partially butted by cold forging. As a result, the diameter is smaller and thus enables a reduction in weight while at the same time improving the strain values.

Pro Lock®:
The screw-locking system injected into the nipples enables the construction of extremely durable wheels.

Ratchet System®:
The patented freehub system with high-precision star ratchets guarantees maximum load capacity and reliability. Thanks to the no-tool concept, the system is very easy and quick to maintain.

E-Bike:
This product has been specially developed to meet the higher loads of e-bikes.

SPLINE®:
The SPLINE® line features new and lightweight straight pull hubs with well-known DT Swiss technology, straight spokes as well as stable rims. The combination of reliable and ideally matched components makes every SPLINE® wheel the perfect training and competition partner.

Tubeless Ready:
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

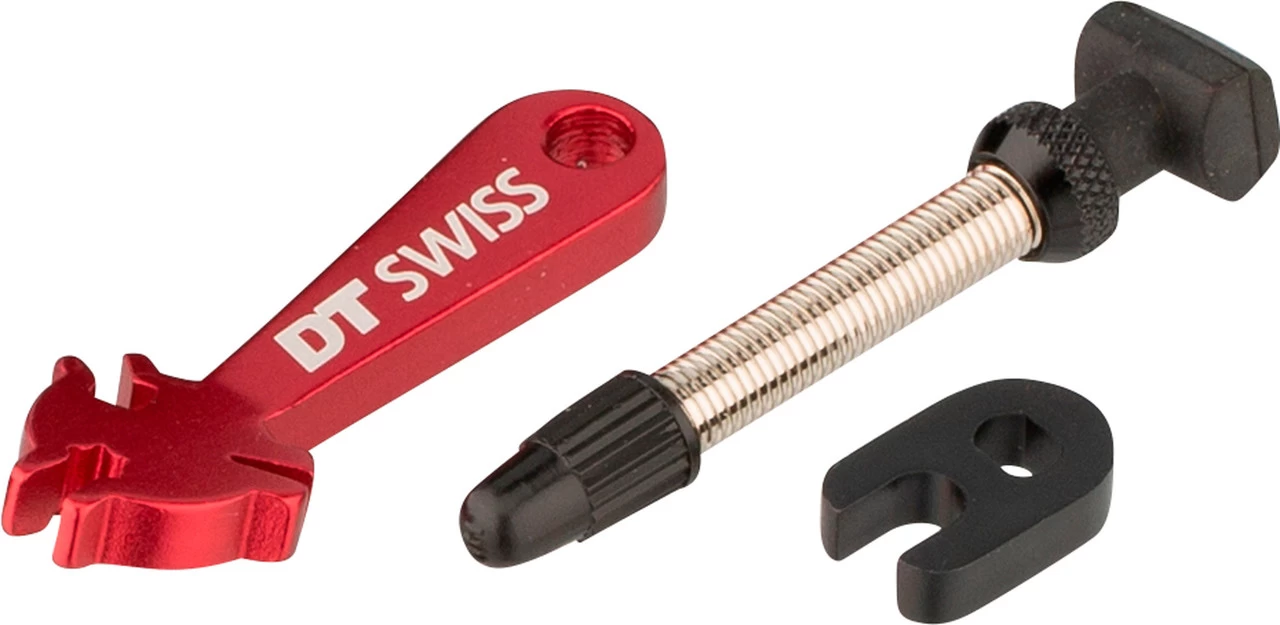

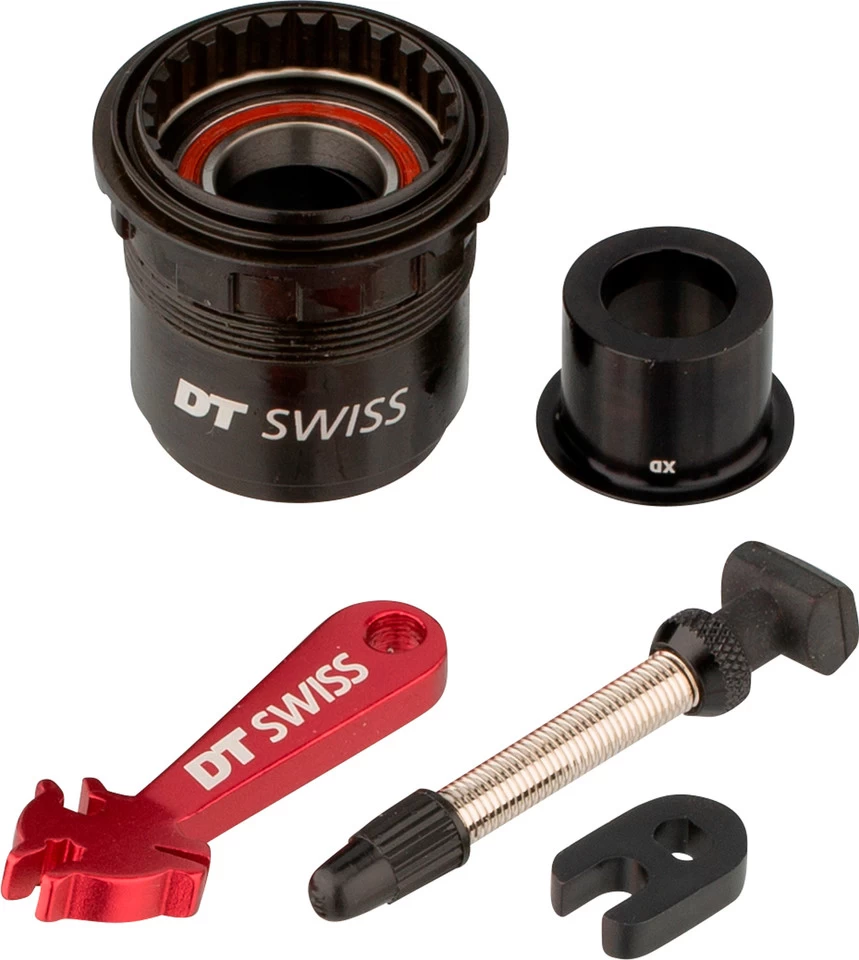

Manufacturer Numbers:27.5″ front 15×110 / Boost:WHXC120BHIXCA0077227.5″ rear 12×148 / Boost:WHXC120THDBCA00773Contents:1 x DT Swiss HXC 1200 SPLINE® 30 Boost wheel (front or rear wheel)1 x DT Swiss 11-/12-speed SRAM XD conversion kit (rear only)1 x DT Swiss wheel bag1 x DT Swiss tubeless valve
