Dt-swiss H 1900 SPLINE 29″ 30 6-Bolt Boost Disc Hybrid Wheelset

The DT Swiss H 1900 SPLINE 29″ 30 6-Bolt Boost Disc Hybrid Wheelset – Now with ratchet freehub

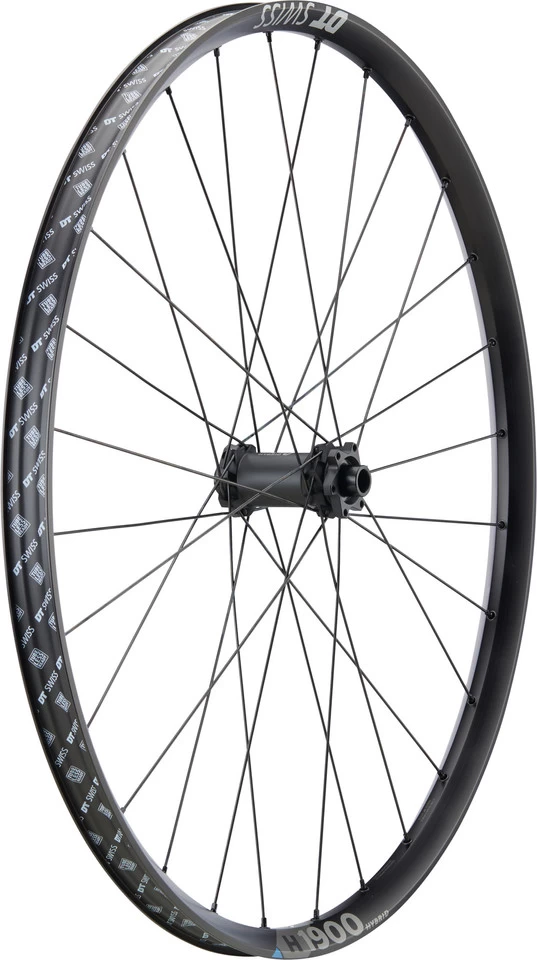

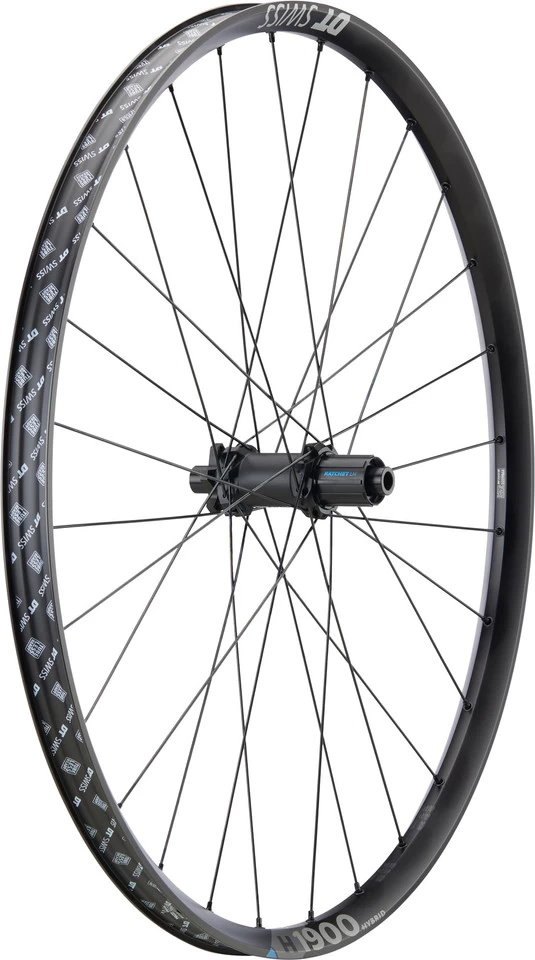

With the DT Swiss H 1900 SPLINE wheelset in 29″ you equip your e-bike with a durable, robust chassis. Thanks to the 30 mm rim width, you can ride wide tyres and low air pressures, which means you benefit from a lot of traction. The 370 Boost hubs for 6-bolt brake rotors are firmly connected to the rims via straight pull spokes and Pro-Lock nipples. This ensures stiff, durable and low-maintenance wheels. In addition, the rear hub has a Ratchet LN freehub with 18 teeth. This results in improved power transmission and more propulsion compared to the previous model.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:All MountainWheel Size:29″Tyre Type:clincher tyreNumber of Spokes:28Brake Type:6-bolt disc (Boost)Wheel Standard:BoostTubeless System:Tubeless ReadyTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):30-622Inner Width:30 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Type:370 straight pullOver Locknut Dimension:15 x 110 mm thru-axleBody Material:aluminiumTechnical Information – Rear Hub:Type:370 straight pullOver Locknut Dimension:12 x 148 mm thru-axleBody Material:aluminiumFreehub Body Material:steelFreehub Body:Ratchet LN 18Technical Information – Lacing:Front Lacing Pattern:3-crossRear Lacing Pattern:3-crossSpoke Type:DT Hybrid 1, straight pullSpoke Material:steelNipple Type:DT Pro Lock Squorx Pro HeadNipple Material:aluminiumApproved For:Weight Limit:150 kg (system weight)Air Pressure (max.):see manufacturer’s specificationsRecommended Tyre Width:see manufacturer’s specificationsFeatures:boost wheels for E-MTBswith Ratchet LN freehubincreased stability due to straight pull spokes and Pro-Lock nipple threadTechnology:Intended use – Category 4
Suitable for use in very rough terrain with jumps of up to approx. 120 cm in height and speeds of up to 40 km/h. Very good riding technique is required. The components must be checked for damage after each ride.

HYBRID

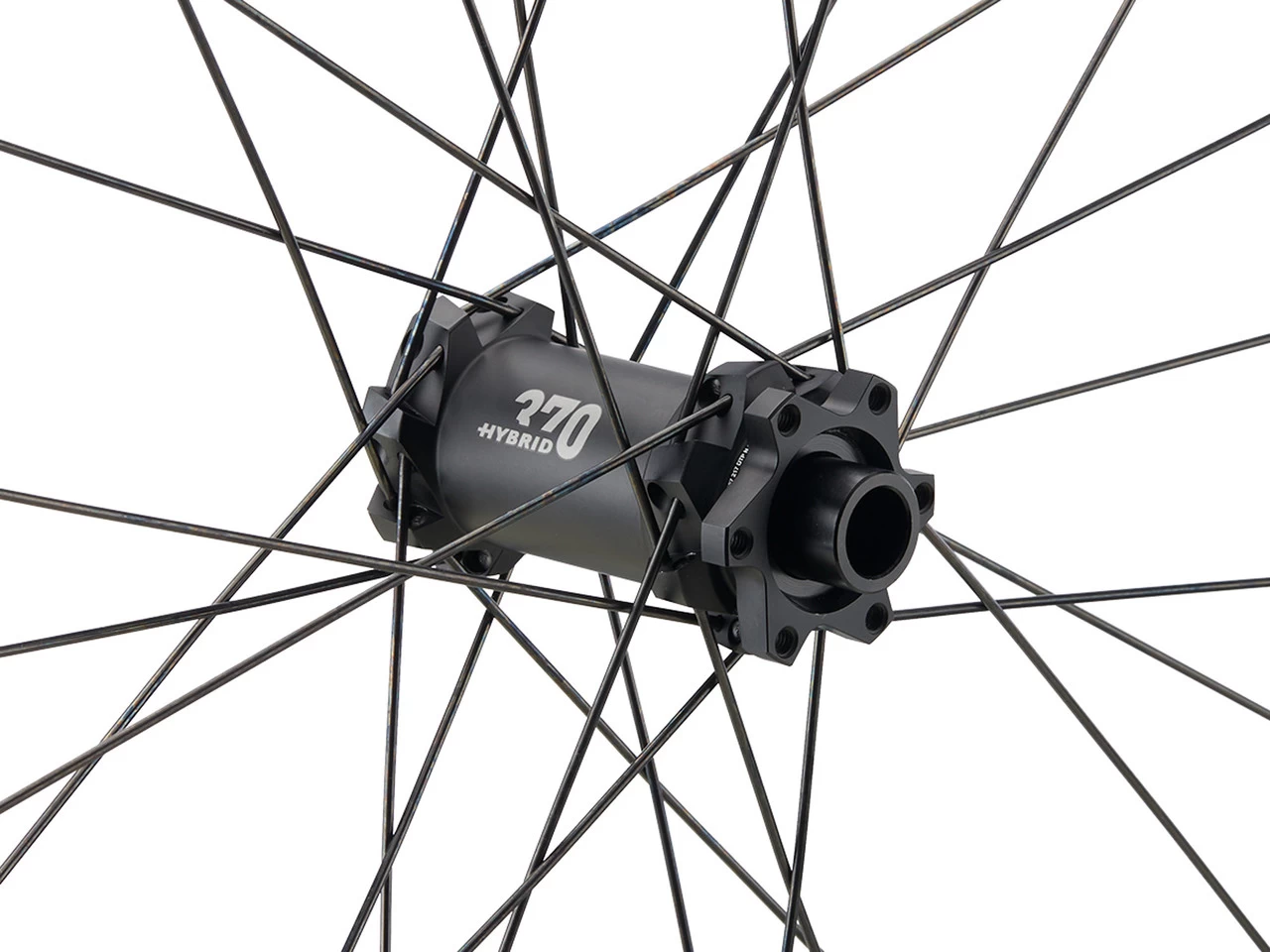

To cope with the higher loads on e-bikes, the hubs, as the heart of the wheel, have a higher wall thickness and larger housings than usual hubs. The spoke holes have been additionally reinforced. The freehub rotor is made from steel and is equipped with 24-tooth ratchets, which are made from special hardened steel. Heavy-duty axles and oversized hubs allow the wheels to work while bearing high loads. The rims have thicker rim walls and offer plenty of traction. The connecting element between rim and hub, the spokes, have reinforced spoke heads and are made of special steel alloys in order to withstand stronger external forces.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

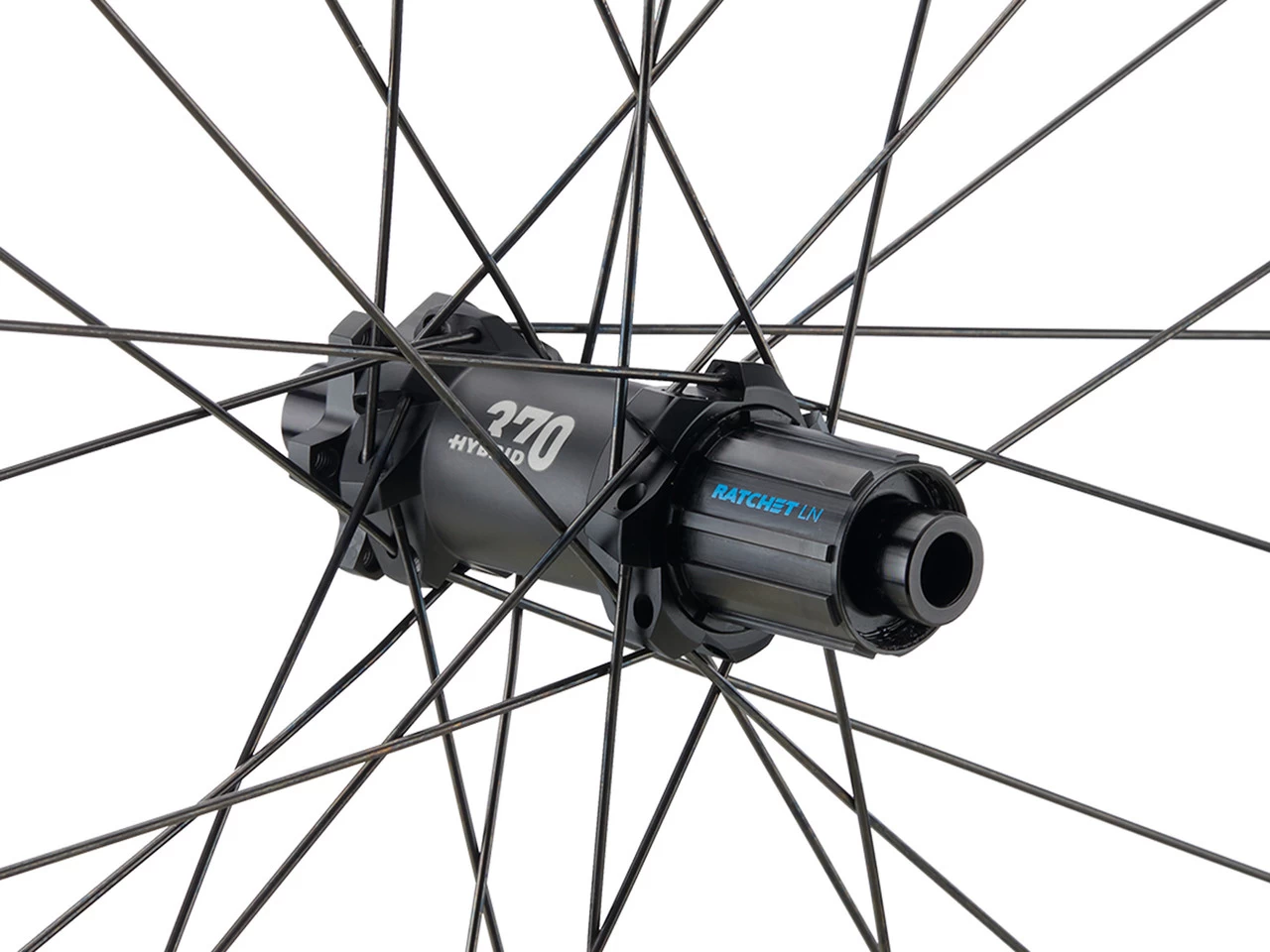

Ratchet LN
The Ratchet LN freehub is used to convert DT Swiss 370 hubs with pawls to a ratchet freehub. The advantage, compared to pawls, is the significantly larger contact surface with improved frictional connection. The seal attached to the freehub body, and not to the hub shell as usual, makes the freehub body easily replaceable. The modular design allows free selection of the engagement angle (18, 24, 36 or 54 teeth) and of the freehub body.

SPLINE
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.
Colour Info:black:
Rims: black with grey decalsHubs: blackSpokes: blackNipples: blackModels:29″ set (front 15×110 Boost + rear 12×148 Boost) Shimano:
Freehub:Shimano MTBGearing:8-/9-/10-/11-speedManufacturer Numbers:W0H1900BFIXSA18345 (front) + W0H1900TFDSSA18347 (rear)
29″ set (front 15×110 Boost + rear 12×148 Boost) Shimano Micro Spline:
Freehub:Shimano Micro SplineGearing:12-speedManufacturer Numbers:W0H1900BFIXSA18345 (front) + W0H1900TFD3SA18346 (rear)
29″ set (front 15×110 Boost + rear 12×148 Boost) SRAM XD:

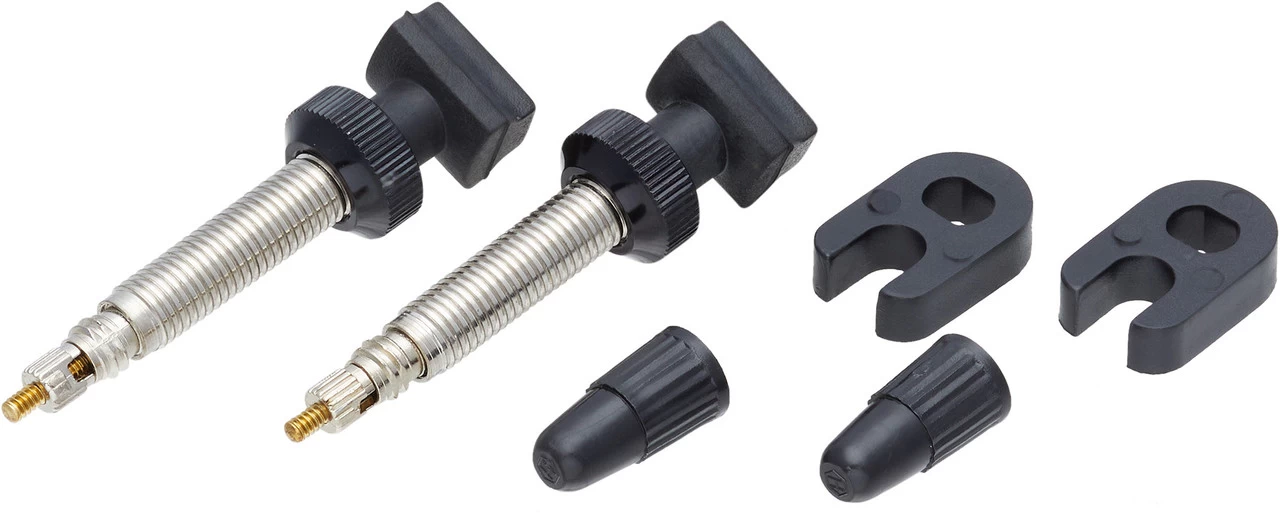

Freehub:SRAM XDGearing:11-/12-speedManufacturer Numbers:W0H1900BFIXSA18345 (front) + W0H1900TFDNSA18348 (rear)Contents:1 x DT Swiss H 1900 SPLINE 29″ 30 6-bolt Boost Disc Hybrid wheelset (front and rear wheel)2 x DT Swiss tubeless valves2 x rolls DT Swiss tubeless rim tape
