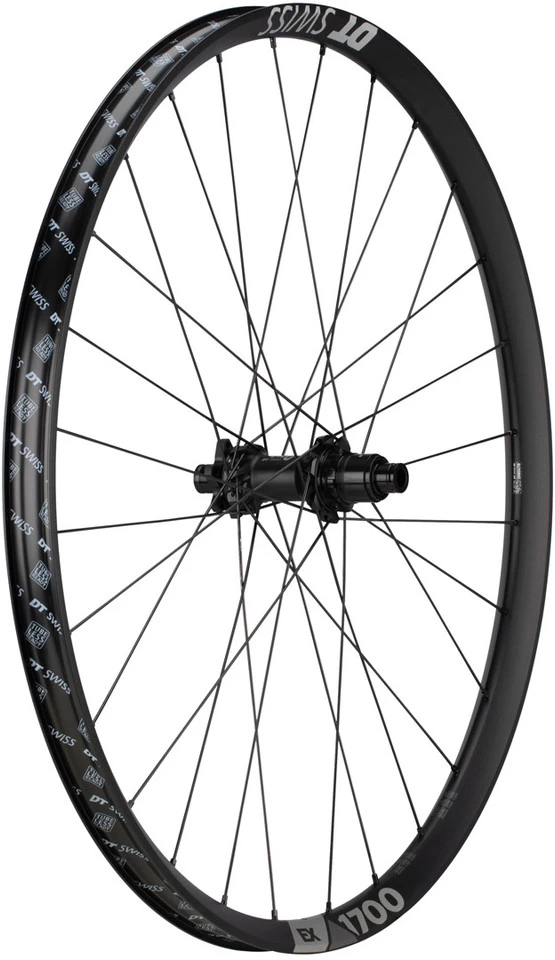

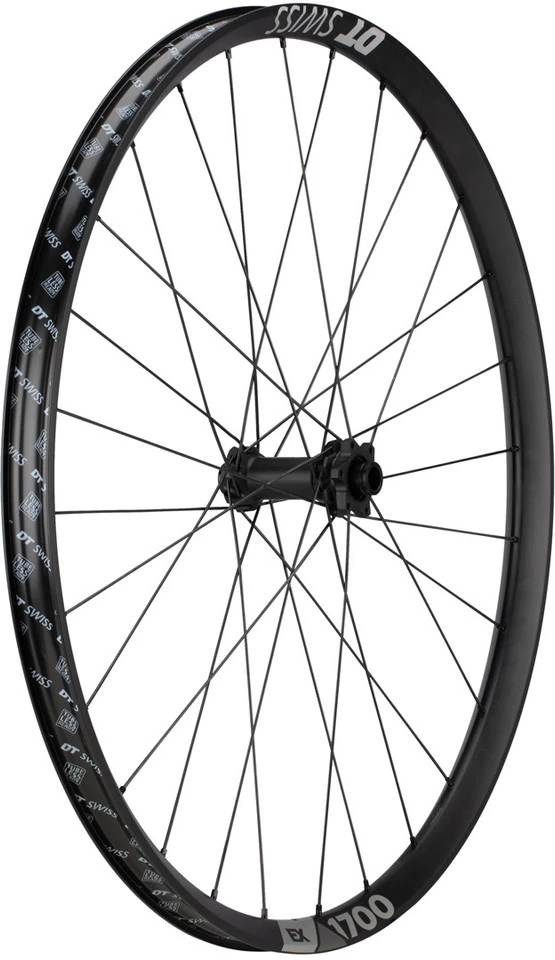

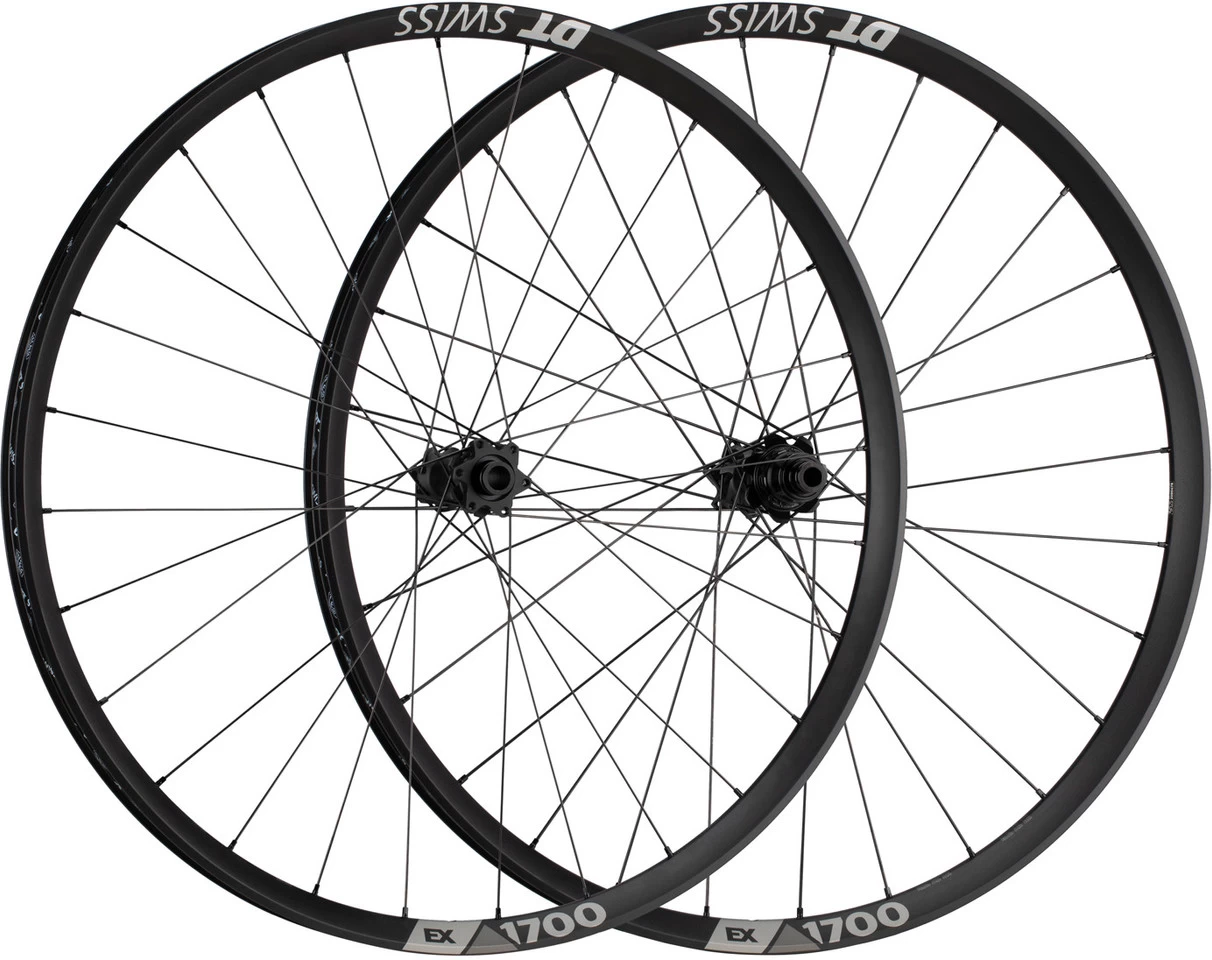

Dt-swiss EX 1700 SPLINE 30 Boost 6-Bolt Disc 27.5″ Wheelset

DT Swiss EX 1700 SPLINE 30 Boost 6-bolt disc 27.5″ wheelset – for the toughest situations

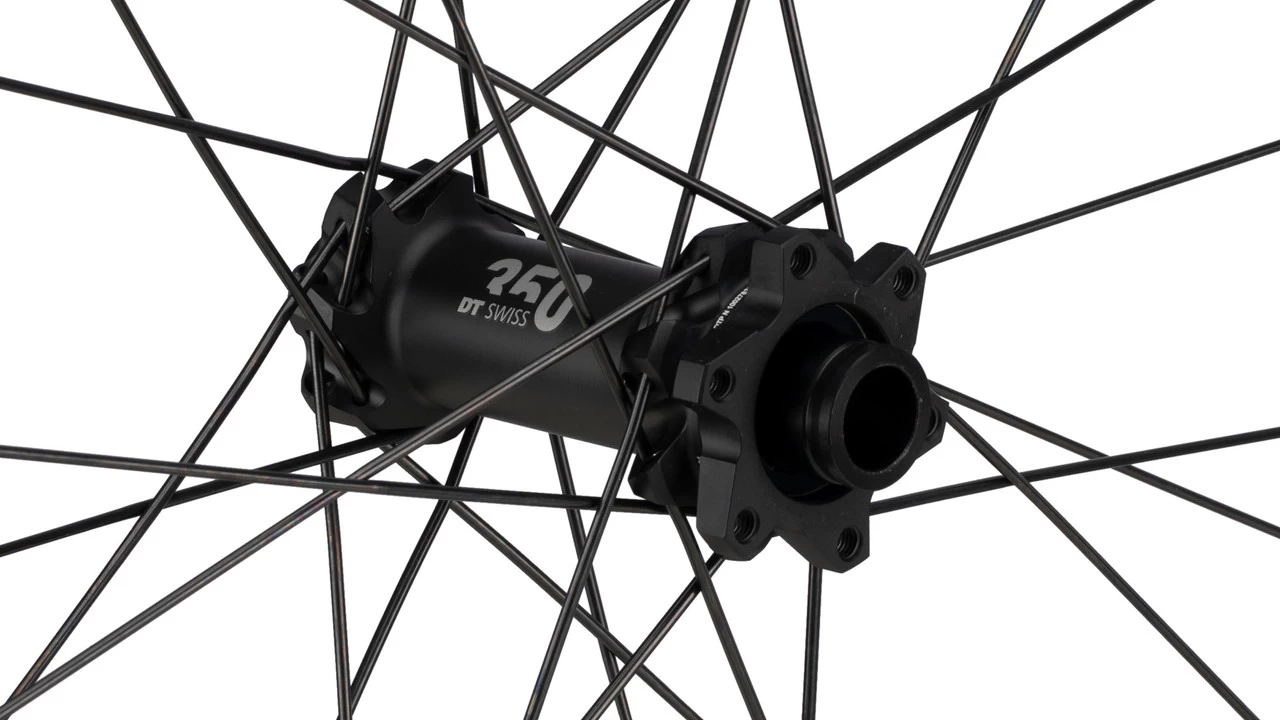

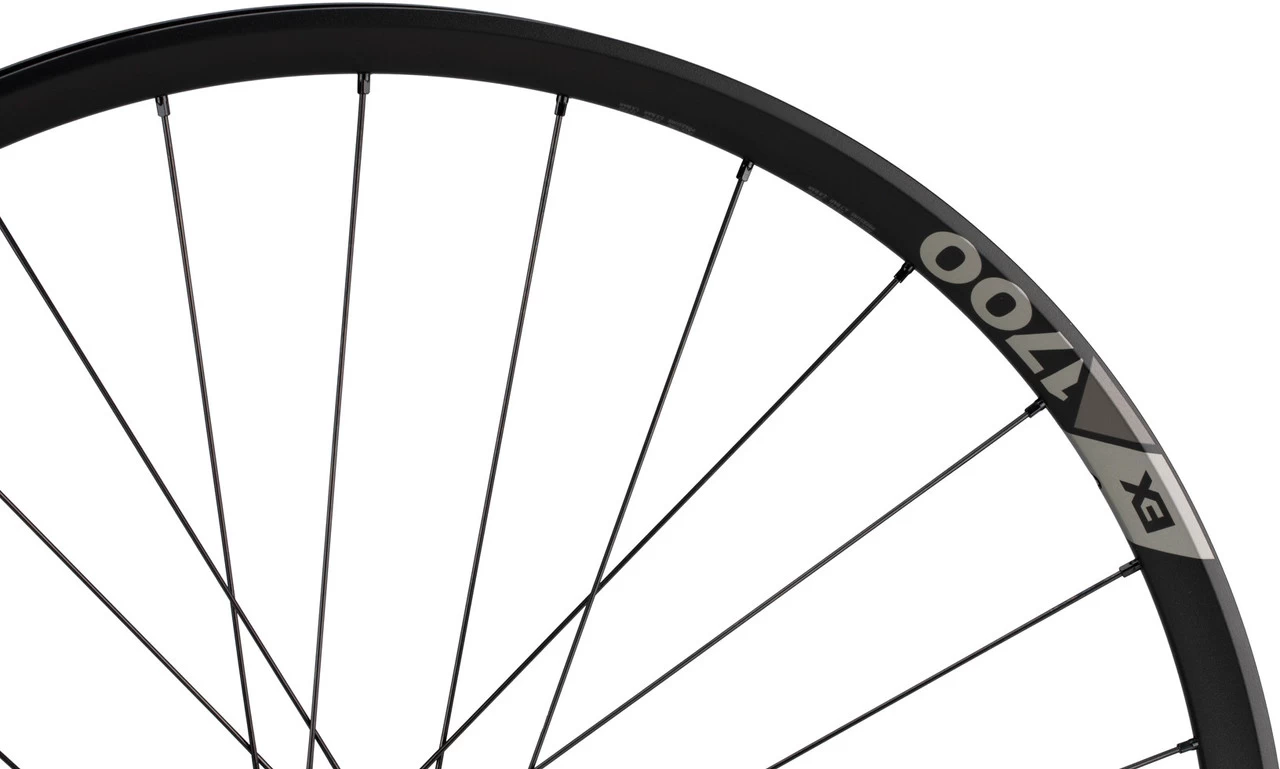

With the EX 1700 SPLINE wheelset from DT Swiss, your 27.5″ Enduro bike is equipped for hard trails. At the centre of the reinforced aluminium rims is the robust 350 straight pull hub. The 30 mm inner rim width and the strong Boost hub offer plenty of room for wide tyres and allow you to ride with particularly low tyre pressure. The proven freehub Ratchet System has 36 teeth. As a result, the two ratchets have a large contact surface, which ensures very good power transmission. So you get propulsion without much loss of power. With 6-bolt brake rotors, the wheelset withstands even the harsher braking manoeuvres on your MTB. This way you always retain control over your bike.
Specifications:Application:EnduroWheel Size:27.5″ (650B)Tyre Type:clincher tyreNumber of Spokes:28Brake Type:6-bolt discWheel Standard:BoostTubeless System:Tubeless ReadyTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):30-584Inner Width:30 mmOuter Width:35 mmDepth:21 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Type:350 straight pullOver Locknut Dimension:15 x 110 mm thru-axleBearings:steel bearingsBody Material:aluminiumTechnical Information – Rear Hub:Type:350 straight pullOver Locknut Dimension:12 x 148 mm thru-axleBearings:steel bearingsBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:Ratchet 36 SLTechnical Information – Lacing:Front Lacing Pattern:3-crossRear Lacing Pattern:3-crossSpoke Type:DT Competition / straight pullSpoke Material:stainless steelNipple Type:DT Pro Lock Squorx Pro HeadNipple Size:15 mm (length) / 2 mm (diameter)Nipple Material:aluminiumApproved For:Weight Limit:130 kg (system weight)Air Pressure (max.):see manufacturer’s specificationsRecommended Tyre Width:see manufacturer’s specificationsTechnology:Intended use – Category 4:
Suitable for use in very rough terrain with jumps of up to approx. 120 cm in height and speeds of up to 40 km/h. Very good riding technique is required. The components must be checked for damage after each ride.

SPLINE:
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Ratchet System:

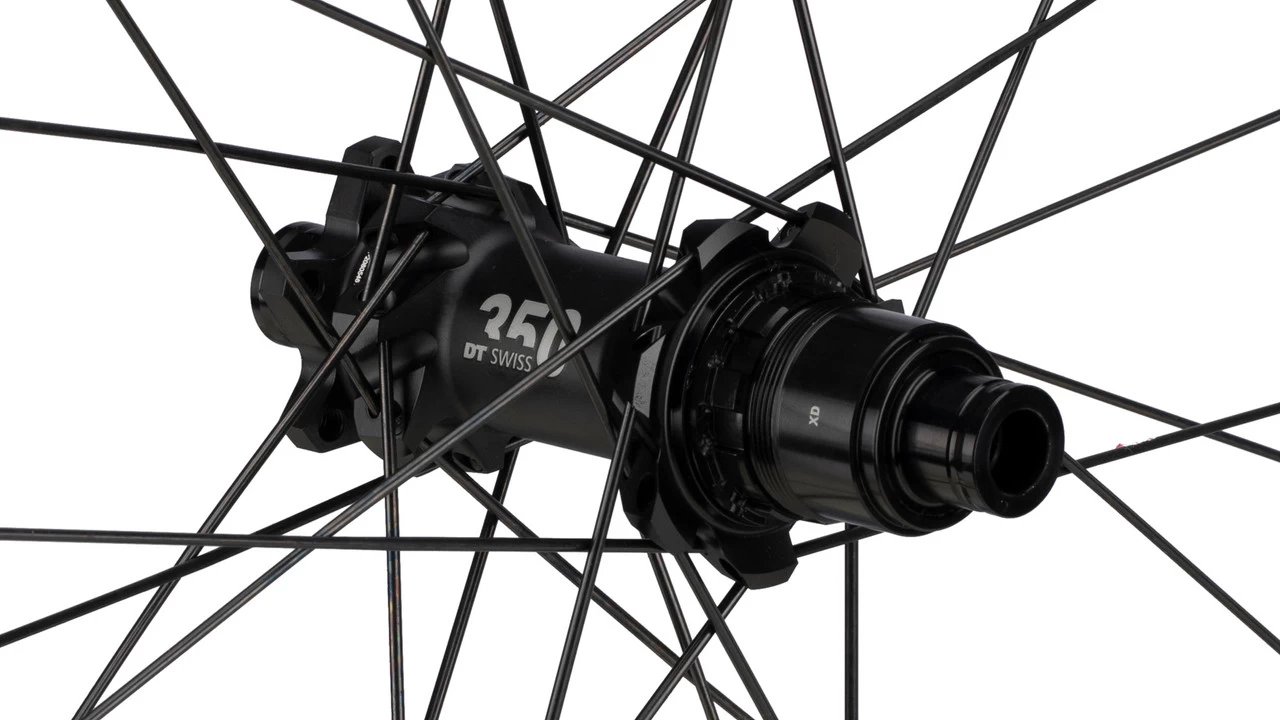

The robust and reliable star ratchets freehub system can be maintained easily and quickly. The no-tool concept contributes to this, because it allows disassembly without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

Pro Lock:
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.
Colour Index:black:
Rims: black with grey decalsHubs: black with grey decalsSpokes: blackNipples: blackModels:27.5″ set (front 15×110 Boost + rear 12×148 Boost) Shimano:
Freehub:Shimano MTBGearing:8-/9-/10-/11-speedManufacturer Numbers:WEX1700BHIXSA11688 + WEX1700THDBSA13809
27.5″ set (front 15×110 Boost + rear 12×148 Boost) Shimano Micro Spline:
Freehub:Shimano Micro SplineGearing:12-speedManufacturer Numbers:WEX1700BHIXSA11688 + WEX1700THD2SA11689
27.5″ set (front 15×110 Boost + rear 12×148 Boost) SRAM XD:

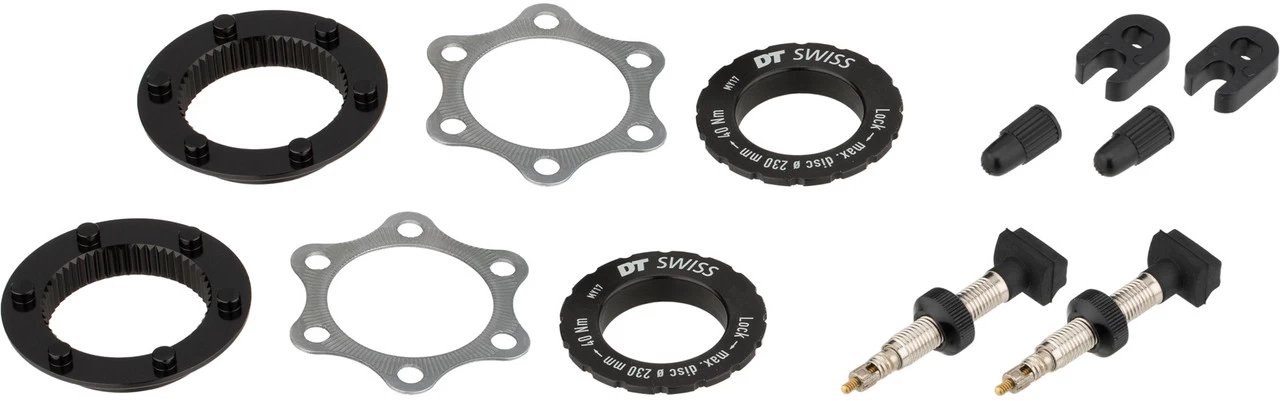

Freehub:SRAM XDGearing:11-/12-speedManufacturer Numbers:WEX1700BHIXSA11688 + WEX1700THDRSA11690Contents:1 x DT Swiss EX 1700 SPLINE wheelset (front and rear wheel)2 x DT Swiss tubeless valves2 x rolls DT Swiss tubeless rim tape
