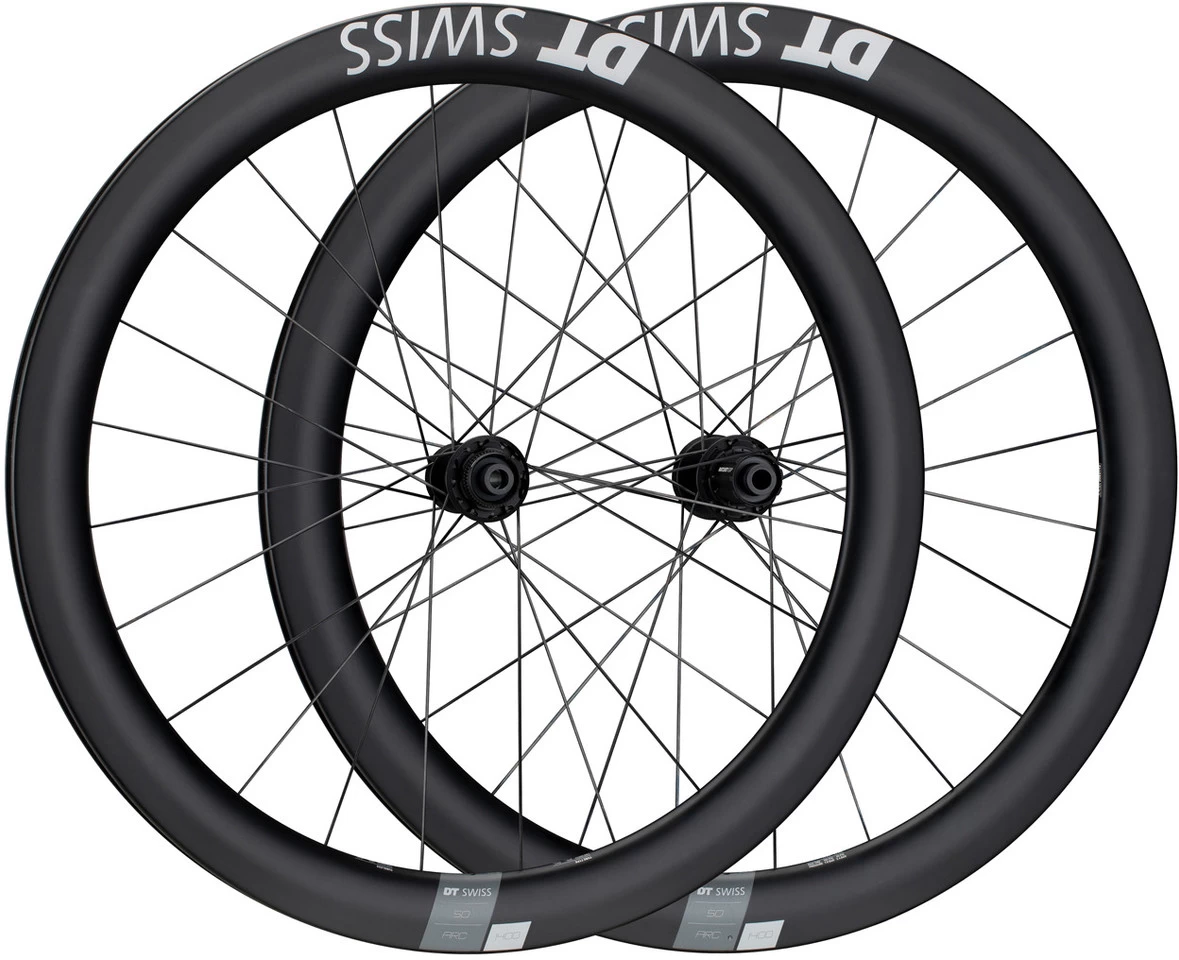

Dt-swiss ARC 1400 DICUT 50 Carbon Center Lock Disc 27.5″ Wheelset

DT Swiss ARC 1400 DICUT 50 Carbon Disc Centre Lock 27.5″ wheelset – aerodynamic wheels for small frames

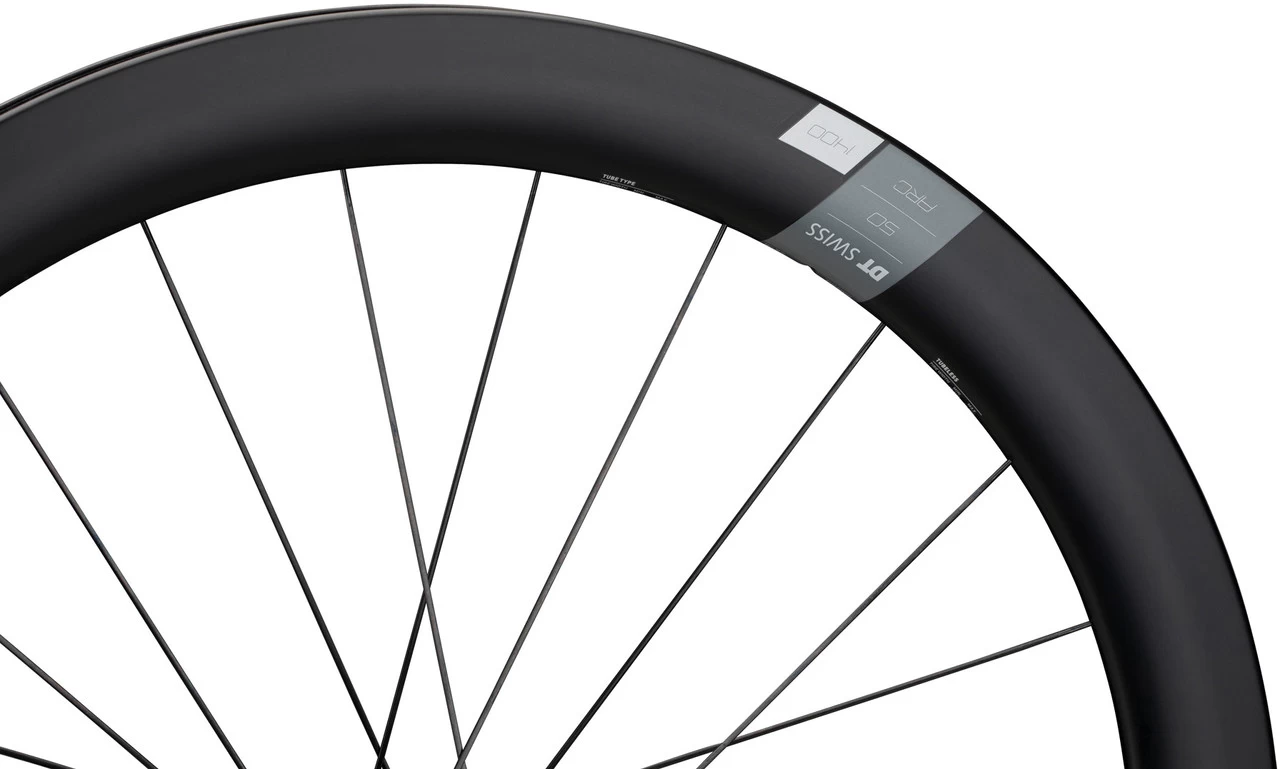

With the ARC 1400 DICUT wheelset in 27.5″ from DT Swiss, you can also make small racing, aero or time trial bikes even more aerodynamic. The smaller wheel diameter prevents, among other things, ” toe-overlapping” , i.e. contact between the front foot and the wheel when the handlebars are turned into tight corners. The redesign of the 50 mm deep DICUT carbon rim also allows the use of wider and more comfortable 25 to 28 mm tyres on the road bike, because the rim width has been increased. The rolling resistance remains as low as usual. The new 240 hub is more streamlined. The newly developed Aero Comp II straight pull spokes have a T-shaped spoke head which ensures a particularly secure connection. This contributes to the stability of the entire system. The frontal drag of the wheels is low and in crosswind conditions you even benefit from a light sailing effect. Due to the advanced Ratchet EXP freehub, unwanted idling when at the start is reduced. Your leg power is converted into propulsion through a direct transmission.
Specifications:Application:Road, Triathlon & Time TrialWheel Size:27.5″ (650B)Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock DiscTubeless System:Tubeless ReadyTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):20-584Inner Width:20 mmOuter Width:26.5 mmDepth:50 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:CarbonTechnical Information – Front Hub:Type:240 straight pullOver Locknut Dimension:12 x 100 mm thru-axle, convertible to 9 x 100 mm quick releaseBearings:steel bearingsBody Material:aluminiumTechnical Information – Rear Hub:Type:240 straight pullOver Locknut Dimension: 12 x 142 mm thru-axle, convertible to 10 x 135 mm quick release Bearings:steel bearingsBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:Ratchet EXP 36Technical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:DT Aero Comp T-HeadSpoke Material:stainless steelNipple Type:DT Pro Lock HiddenNipple Size:12 mm (length) / 2 mm (diameter)Nipple Material:aluminiumApproved For:Weight Limit:110 kg (system weight)Air Pressure (max.):8.5 barsRecommended Tyre Width:25 – 34 mmTechnology:Intended use – Category 1
Suitable for predominantly paved surfaces.

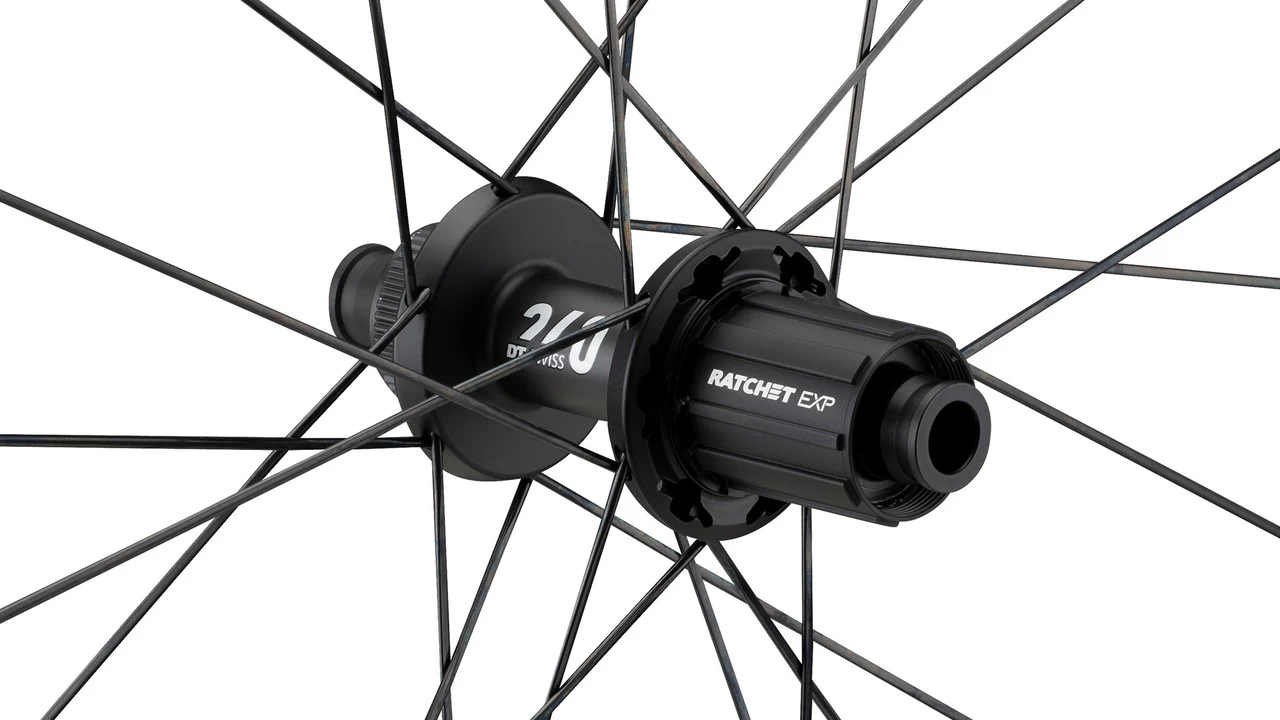

Ratchet EXP
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.
Colour Info:black:
Rim: blackHubs: blackSpokes: blackNipples: blackModels:27.5″ set (front 12×100 + rear 12×142) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.Manufacturer Numbers:WARC140AJDXCA12598 + WARC140NJDICA12599Contents:1 x DT Swiss ARC 1400 DICUT carbon wheelset (front and rear wheel)1 x DT Swiss SRAM XDR freehub body2 x DT Swiss tubeless valves2 x rolls DT Swiss tubeless rim tape
