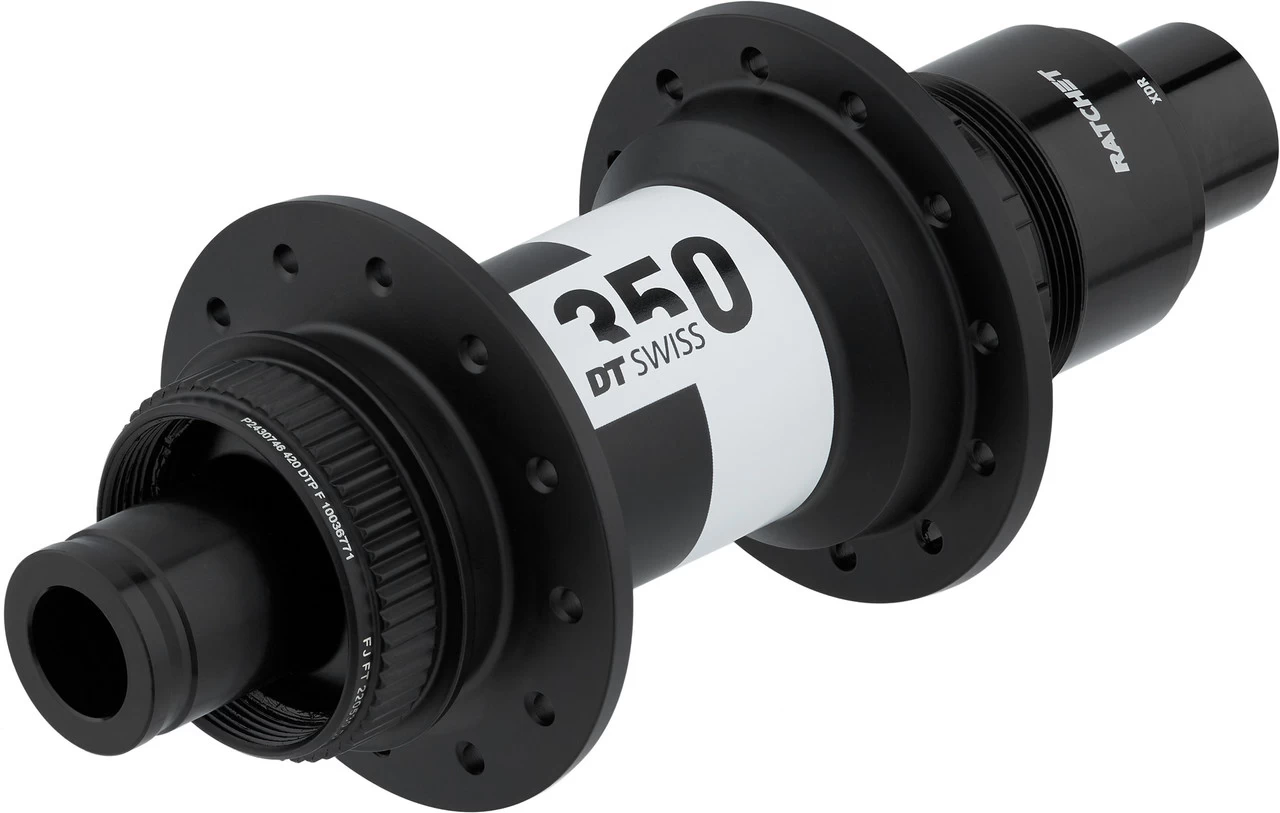

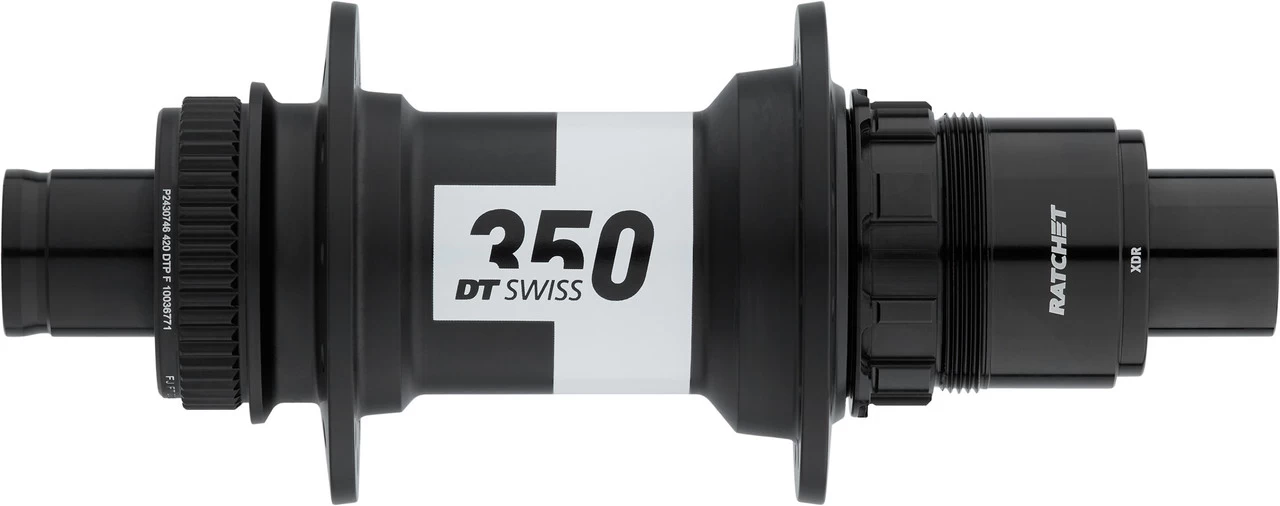

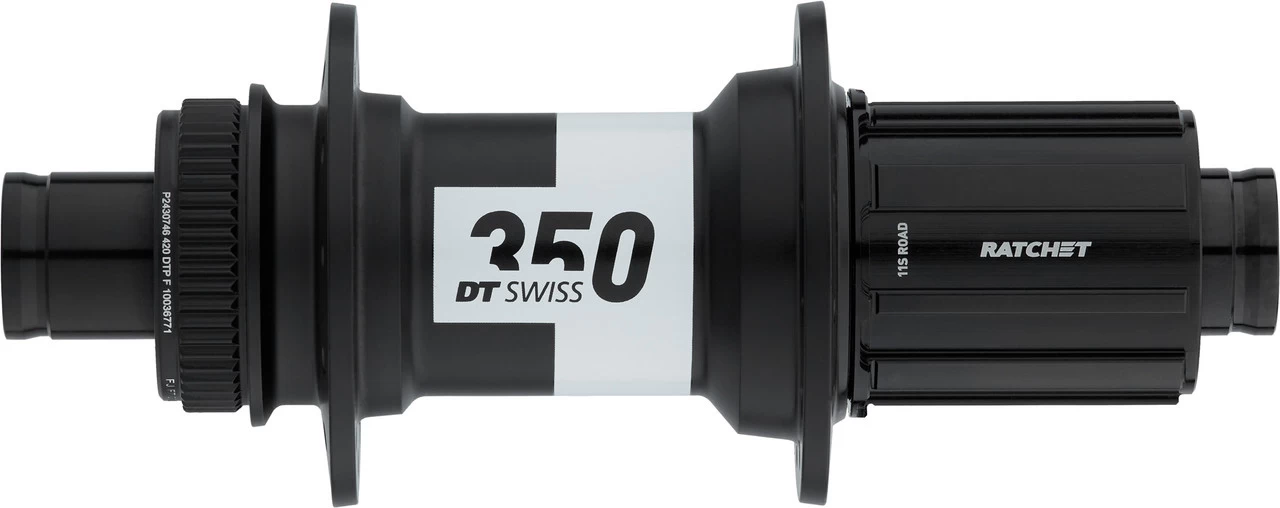

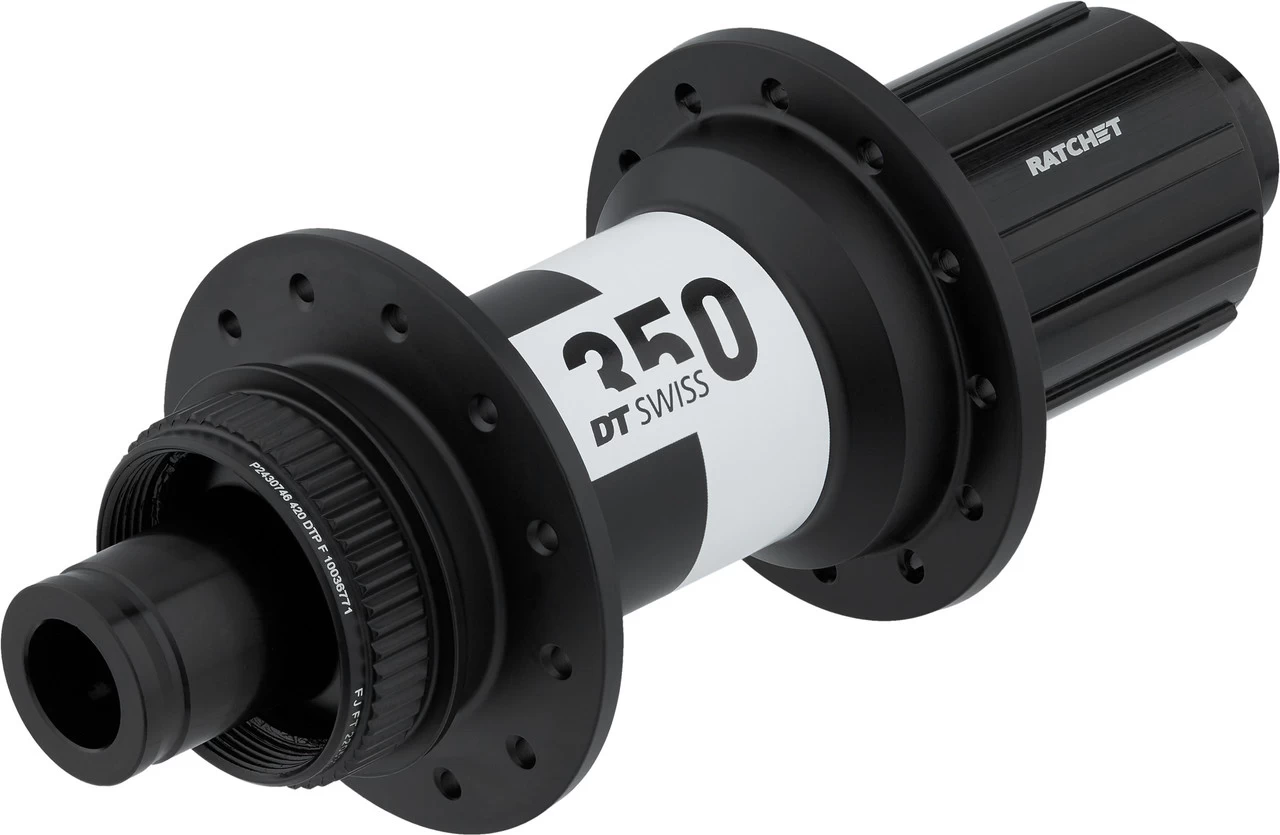

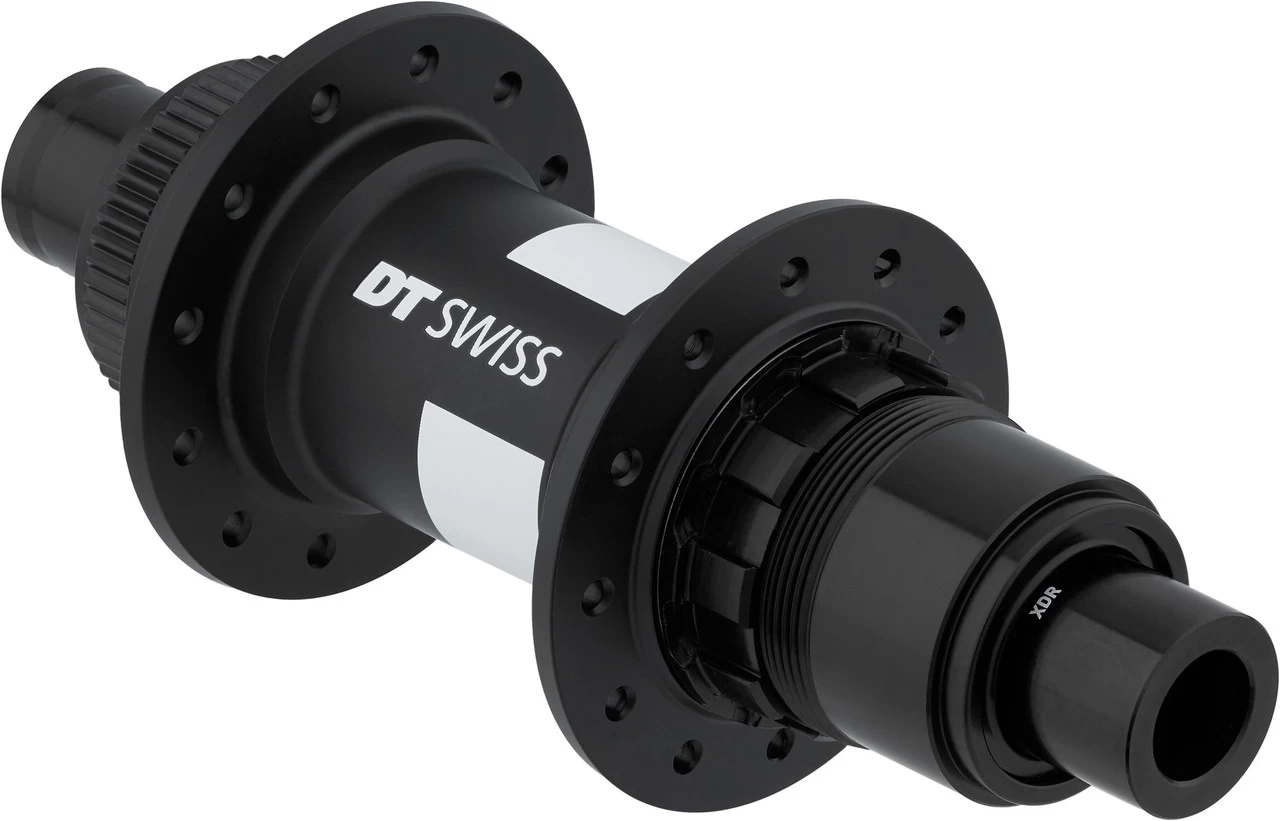

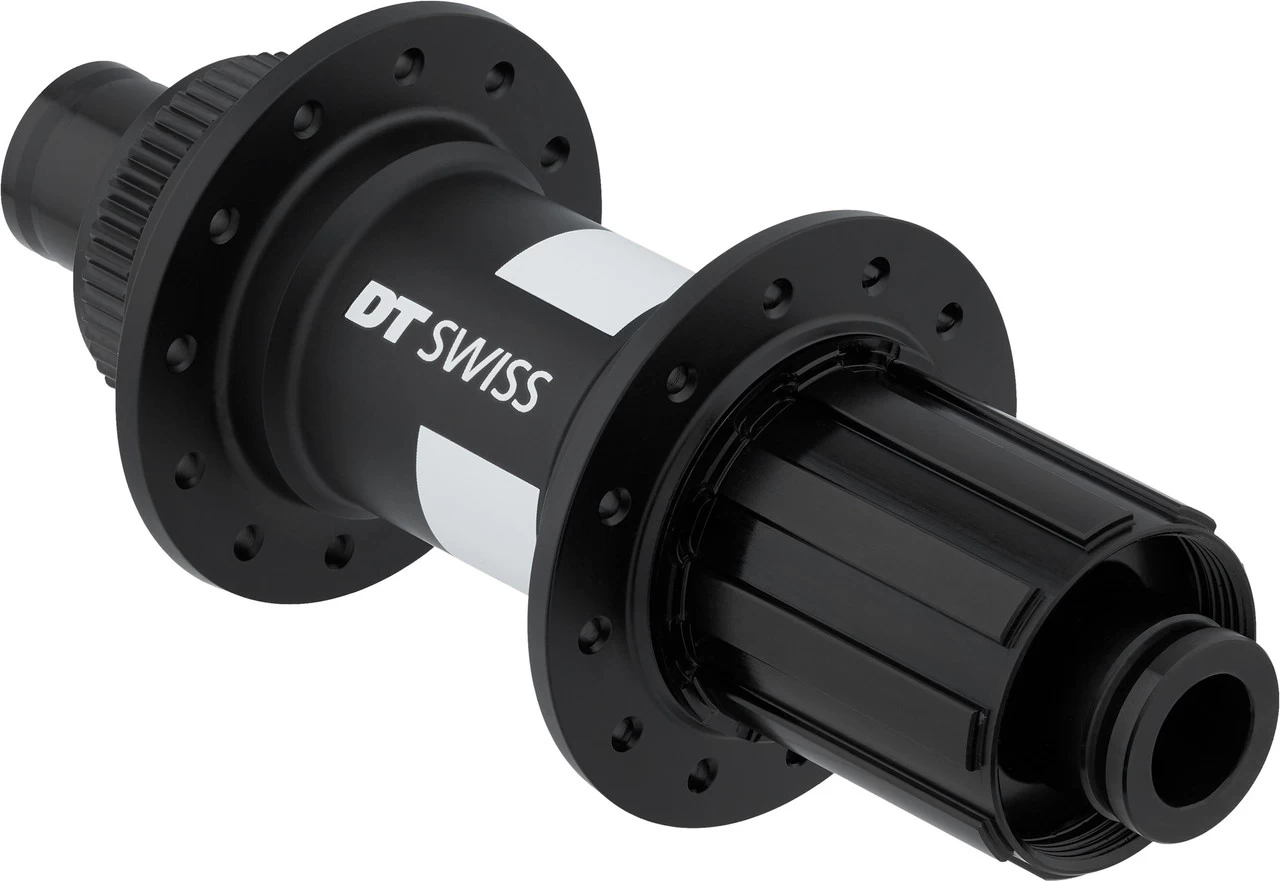

Dt-swiss 350 Classic Road Center Lock Disc Rear Hub

The 350 Classic Center Lock Disc rear hub by DT Swiss for road wheels
This 350 Road rear hub from DT Swiss is designed for J-bend spokes and a center lock brake rotor. Its core is a resilient freehub with Ratchet 36 System and precision star ratchets. Thanks to the no-tool concept, the hub can be easily maintained without the use of tools. The end caps are shaped in such a way that uncomplicated and, above all, quick disassembly of the hub is possible. This is an advantage especially during races, but easy wheel removal is also an asset if you have a second wheelset that you use depending on the course or conditions. The sturdy aluminium hub body ensures a long service life, as do the steel bearings. The bearing play has been minimised and optimised. This is made possible by preloading the bearings before the hub is not clamped in the frame. Once fastened with the thru-axle, the preload is released and the bearings are maximally slidable. Thanks to the precision seals, they are also excellently protected against moisture and dirt.
Specifications:Application:Road, Gravel, CyclocrossBrake Type:Center Lock DiscFreehub Body Type:Ratchet System 36Technical Information:Body Material:aluminiumBearings:steel bearingsSeals:precision sealFeatures:rear hub for road bikes with Ratchet 36 freehubfor J-bend spokes and center lock brake rotorsno-tool concept for tool-free maintenancequick disassembly possible thanks to the special shape of the end capsoptimised bearing clearance due to preloading before the hub is installedaluminium freehub bodydurable steel bearings100% Swiss-madeTechnology:Ratchet System®
The patented freehub system with high-precision star ratchets guarantees maximum load capacity and reliability. Thanks to the no-tool concept, the system is very easy and quick to maintain.
Models:12 x 142 mm / 24 hole / Shimano:
Over Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:24 holeFreehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:The assembly of 8-/9-/10-speed cassettes on a Shimano road rotor requires a 1.85 mm spacer.Manufacturer Number:H350NCDIR24SA6771S
12 x 142 mm / 28 hole / Shimano:
Over Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:28 holeFreehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:The assembly of 8-/9-/10-speed cassettes on a Shimano road rotor requires a 1.85 mm spacer.Manufacturer Number:H350NCDIR28SA6771S
12 x 142 mm / 24 hole / SRAM XDR:
Over Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:24 holeFreehub:SRAM XDRGearing:11-/12-speedNote:To mount XD cassettes on an XDR rotor, a 1.8 mm spacer is required.Manufacturer Number:H350NCD1R24SA6770S
12 x 142 mm / 28 hole / SRAM XDR:
Over Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:28 holeFreehub:SRAM XDRGearing:11-/12-speedNote:To mount XD cassettes on an XDR rotor, a 1.8 mm spacer is required.Manufacturer Number:H350NCD1R28SA6770SContents:1 x DT Swiss 350 Classic Road Center Lock Disc rear hub
