Dt-swiss 180 Straight Pull Road Rear Hub

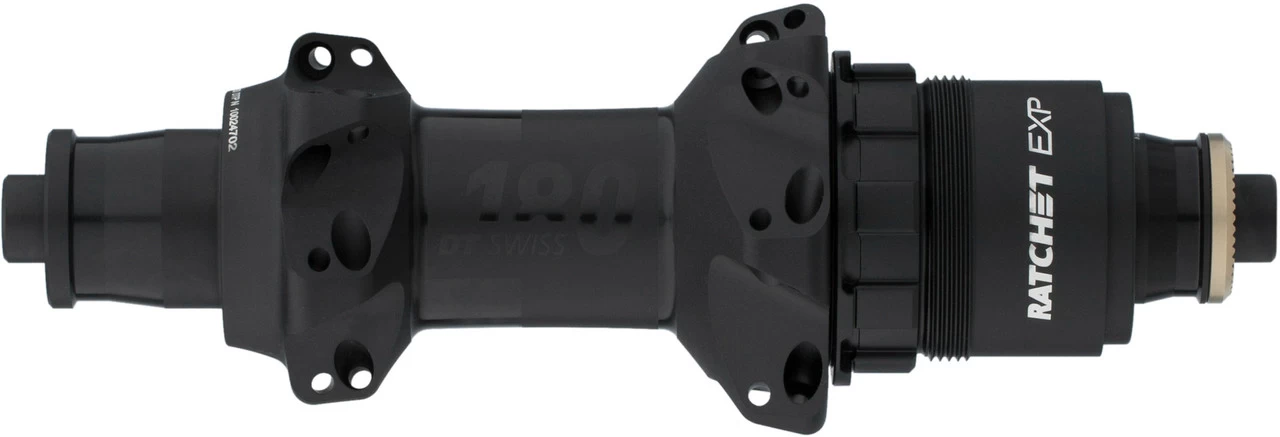

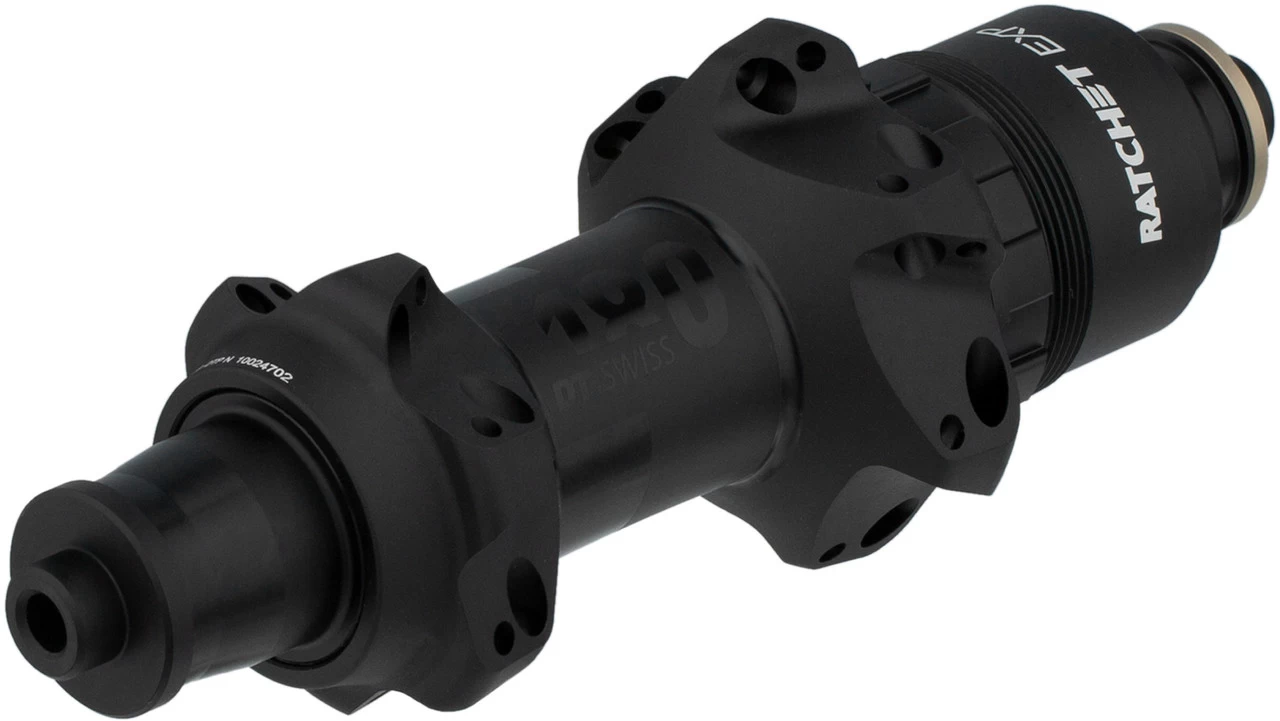

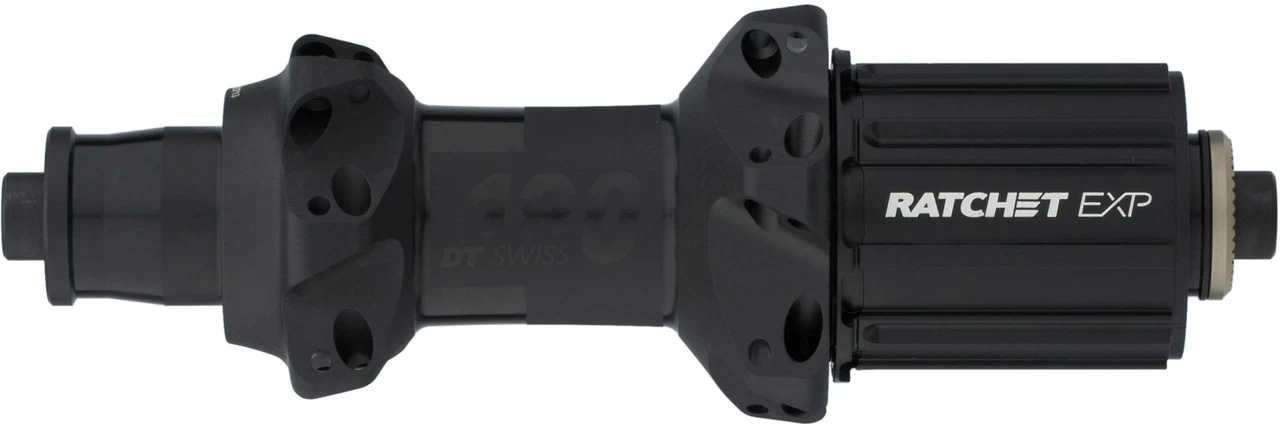

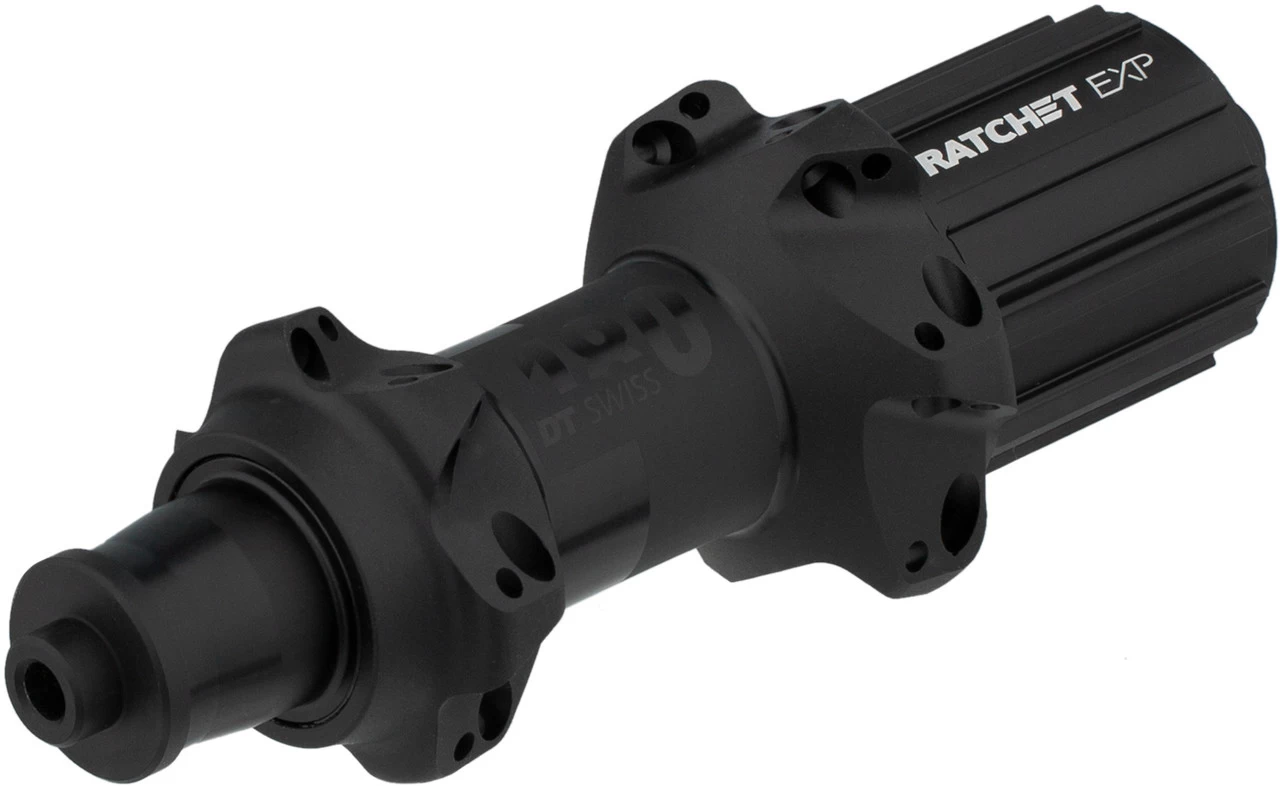

DT Swiss 180 Straight Pull Road rear hub – precise rear hub for road bikes
The 180 Straight Pull rear hub from DT Swiss helps classic road wheels with rim brakes to achieve more stiffness without adding too much weight. It is equipped with the new Ratchet EXP freehub. This has 36 teeth, which results in an optimal engagement angle of 10°. Unpleasant idling can thus be avoided. It also effectively converts your pedalling power into propulsion. Due to the SINC ball bearings made of ceramic and steel, the 180 runs extremely smoothly, requires little maintenance and has a long durability.
Specifications:Application:Road, Triathlon & Time TrialBrake Type:rim brakeFreehub Body Type:Ratchet EXP 36Technical Information:Body Material:aluminiumBearings:Ceramic bearings (SINC)Seals:precision sealTechnology:Ratchet EXP:
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

SINC:
Robust steel bearing rings are combined with ceramic balls. This means that the rolling resistance is low. The rolling resistance is further reduced by the seal on the outside and a protective ring on the inside. Furthermore, the combination of materials prevents corrosion between the ring and balls. This increases the durability of the ball bearings.
Models:10 x 130 mm / 24 hole / Shimano:
Over Locknut Dimension:10 x 130 mm quick releaseSpoke Hole Count:24Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:The assembly of 8-/9-/10-speed cassettes on a Shimano Road freehub body requires a 1.85 mm spacer ring.Flange Distance (L/R):48.7 mm (33.3 mm/15.4 mm)Partial Bolt Circle Diameter (L/R):35.7 mm/42.3 mmManufacturer Number:H18PHRQJR24SA3713S
10 x 130 mm / 24 hole / Campy:
Over Locknut Dimension:10 x 130 mm quick releaseSpoke Hole Count:24Freehub:CampagnoloGearing:9-/10-/11-/12-speedFlange Distance (L/R):48.7 mm (33.3 mm/15.4 mm)Partial Bolt Circle Diameter (L/R):35.7 mm/42.3 mmManufacturer Number:H18PHRQCR24SA4801S

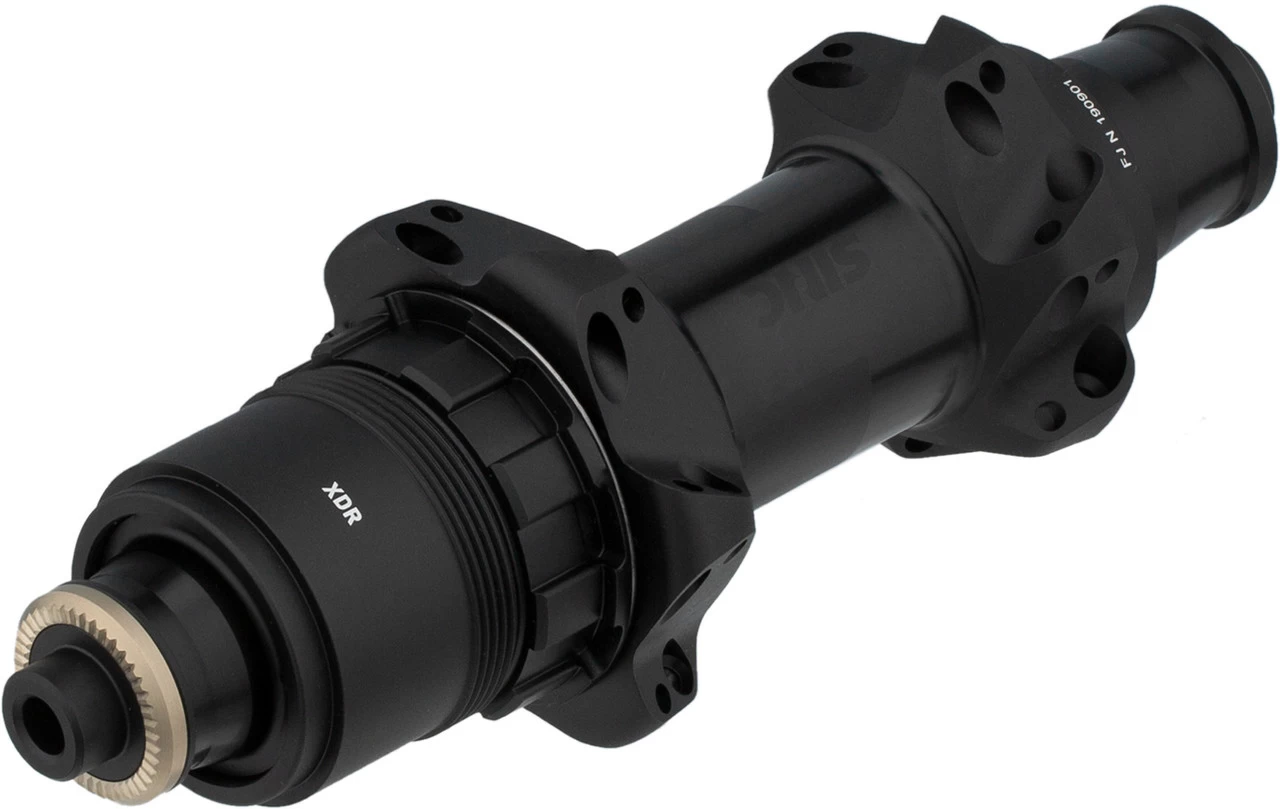

10 x 100 mm / 24 hole / SRAM XDR:
Over Locknut Dimension:10 x 130 mm quick releaseSpoke Hole Count:24Freehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.Flange Distance (L/R):48.7 mm (33.3 mm/15.4 mm)Partial Bolt Circle Diameter (L/R):35.7 mm/42.3 mmManufacturer Number:H18PHRQ1R24SA4702SContents:1 x DT Swiss 180 Straight Pull Road rear hub
