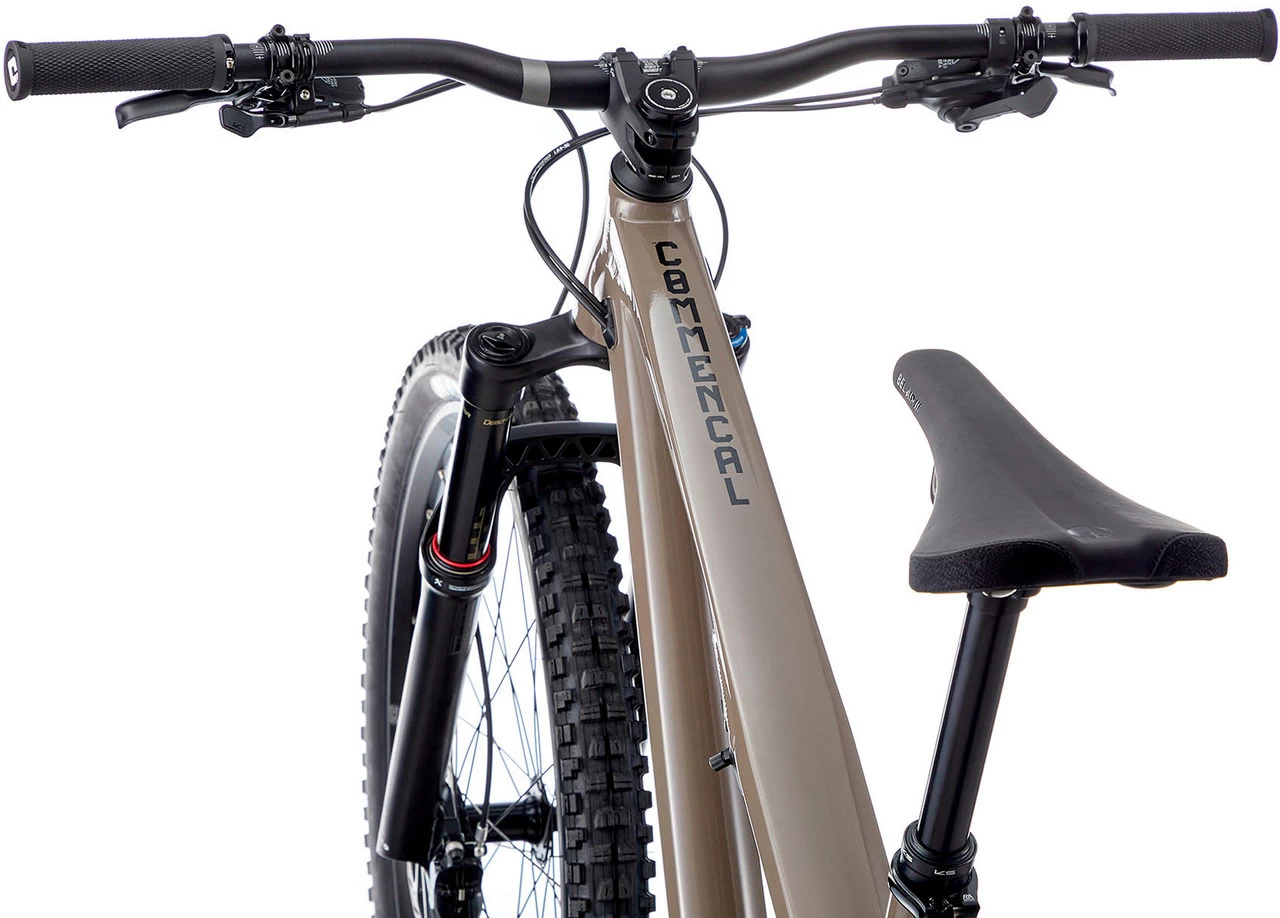

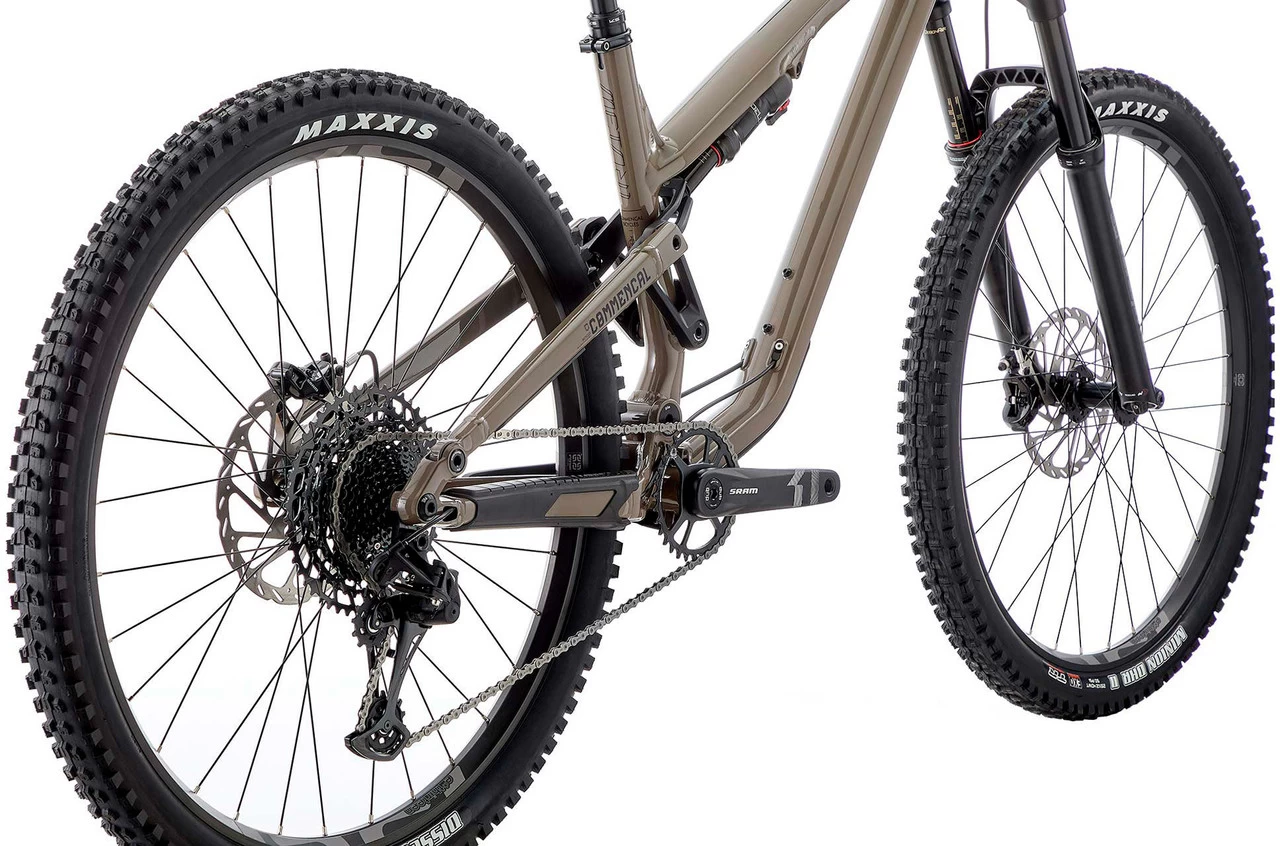

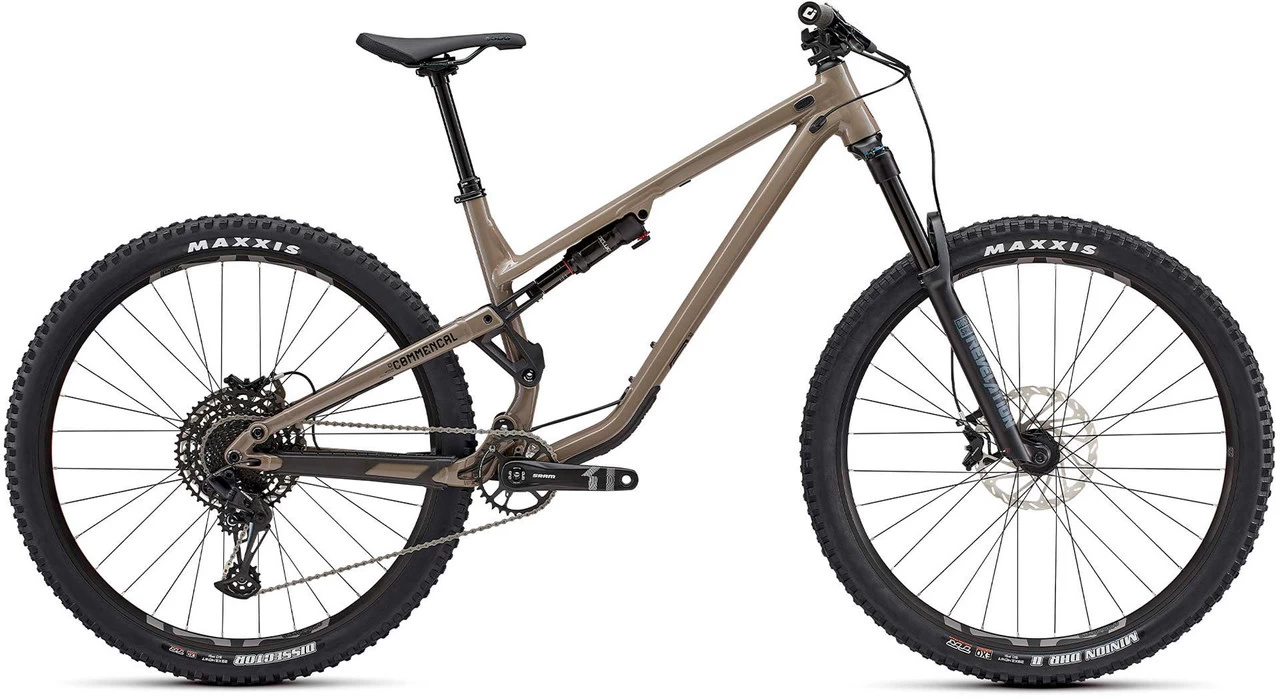

Commencal Meta TR Ride 29″ Mountain Bike

The Meta TR Ride 29″ Mountain Bike by COMMENCAL with RockShox and SRAM components
The COMMENCAL Meta TR Ride 29″ mountain bike offers fun and dynamic riding on trails with SRAM SX Eagle 12-speed drivetrain, Guide T brakes and RockShox suspension. With the help of the Flip Chip on the shock mount, you can adjust the geometry to the road ahead, your preferences and your riding style in no time at all. and the dropper seatpost makes it easier to switch between uphill and downhill. The playful linkage design makes the Meta TR dynamic, while double-row bearings on the frame prevent the loss of rigidity at the joints. All of this results in a bike that can deliver high performance on any terrain, and won’t let you down on difficult passages.
Specifications:Application:All Mountain, EnduroWheel Size:29″Front Travel:150 mmRear Travel:140 mmSizes:S, M, L, XLFront Triangle Material:aluminium (6066)Rear Triangle Material:aluminium (6066)Components:Frame:COMMENCAL 2022 Meta TR 29, triple butted, 12 x 148 mm (Boost)Fork:RockShox Revelation RC, 1 token, 42 mm offset, 15 x 110 mm (Boost)Stem:Ride Alpha Freeride 40, 40 mm, 31,8 mmHandlebars:Ride Alpha R20, 20 mm Rise (S), R27, 27 mm Rise (M-XL), 31.8 mm, aluminium (6061)Grips:ODI Elite MotionRear Shock:RockShox Deluxe Select+, 2 Token, Rebound, Threshold Adjustment, 210 x 55 mmRemote System:noneHeadset:Acros ZS44 – ZS56, sealed bearingsSeatpost:Kind Shock Rage-I, 34.9 mm, Stroke: 125 mm (S), 150 mm (M), 170 mm (L), 190 mm (XL), with SouthPaw RemoteSaddle:SDG Bel Air V3, steel railsCrank:SRAM X1 1000 Eagle, 170 mm, 32 teeth, DUB, Boost, with SRAM DUB Pressfit bottom bracketPedals:noneBrakes:SRAM Guide T 4-piston, compatible with Matchmaker, with SRAM G2 CleanSweep brake rotors, 6-bolt, 200 mm/200 mmShift Lever:SRAM SX Eagle, 12-speedRear Derailleur:SRAM SX Eagle, 12-speedCassette:SRAM PG-1210, 11-51 tooth, 12-speedChain:SRAM NX Eagle, 12-speedRims:e*thirteen LG1 EN Base, 32-bolt, 30 mm jaw widthSpokes:Sapim Race, J-Bend, 2.0 – 1.8 – 2.0 mm, double butted, stainless steel, with NylokFront Hub:Formula DC-711, 32-bolt, sealed bearingsRear Hub:Formula DCL-348A, 32-bolt, sealed bearingsFront Tyre:Maxxis DHR II, 29 x 2.4″ , WT, EXO, Dual Compound, Tubeless ReadyRear Tyre:Maxxis Dissector, 29 x 2.4″ , WT, EXO, Dual Compound, Tubeless ReadyApproved For:Rotor Size (max.):220 mm (rear)Tyre Size (max.):29 x 2.5″ (rear)Chainrings:1xFork Axle to Crown Size (max.):571 mmFeatures:with flip chip on the damper mount to adjust the geometrydynamic linkage designtriple butted frame tubes1 bottle cagerather steep seat tube angle for a good uphill riding positionenduro bearings for high rigidity and performancewith ISCG-05 mount for a chain guideGeometry:(based on a fork axle to crown length of 561 mm)
S:
Recommended Height:158 – 170 cmStack:626 mm (low), 623 mm (high)Reach:440 mm (low), 444 mm (high)Seat Tube Length:380 mmEffective Top Tube Length:566 mm (low), 565 mm (high)Head Tube Length:110 mmChainstay Length:435 mm (low), 434 mm (high)Wheelbase:1203 mm (low), 1202 mm (high)BB Drop:33 mm (low), 29 mm (high)Seat Tube Angle:78.6° (low), 79° (high)Head Tube Angle:64.5° (low), 65° (high)Handlebar Width:760 mm
M:
Recommended Height:168 – 180 cmStack:630 mm (low), 627 mm (high)Reach:465 mm (low), 469 mm (high)Seat Tube Length:420 mmEffective Top Tube Length:592 mm (low), 591 mm (high)Head Tube Length:115 mmChainstay Length:435 mm (low), 434 mm (high)Wheelbase:1230 mm (low), 1229 mm (high)BB Drop:33 mm (low), 29 mm (high)Seat Tube Angle:78.6° (low), 79° (high)Head Tube Angle:64.5° (low), 65° (high)Handlebar Width:780 mm
L:
Recommended Height:178 – 190 cmStack:634 mm (low), 631 mm (high)Reach:490 mm (low), 494 mm (high)Seat Tube Length:440 mmEffective Top Tube Length:618 mm (low), 617 mm (high)Head Tube Length:120 mmChainstay Length:435 mm (low), 434 mm (high)Wheelbase:1257 mm (low), 1256 mm (high)BB Drop:33 mm (low), 29 mm (high)Seat Tube Angle:78.6° (low), 79° (high)Head Tube Angle:64.5° (low), 65° (high)Handlebar Width:780 mm
XL:
Recommended Height:188 – 210 cmStack:638 mm (low), 635 mm (high)Reach:515 mm (low), 519 mm (high)Seat Tube Length:460 mmEffective Top Tube Length:644 mm (low), 643 mm (high)Head Tube Length:125 mmChainstay Length:435 mm (low), 434 mm (high)Wheelbase:1284 mm (low), 1283 mm (high)BB Drop:33 mm (low), 29 mm (high)Seat Tube Angle:78.6° (low), 79° (high)Head Tube Angle:64.5° (low), 65° (high)Handlebar Width:800 mmManufacturer Number:22METATRRI
Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x COMMENCAL Meta TR Ride 29″ Mountain BikeOrder Together:MTB Pedals
