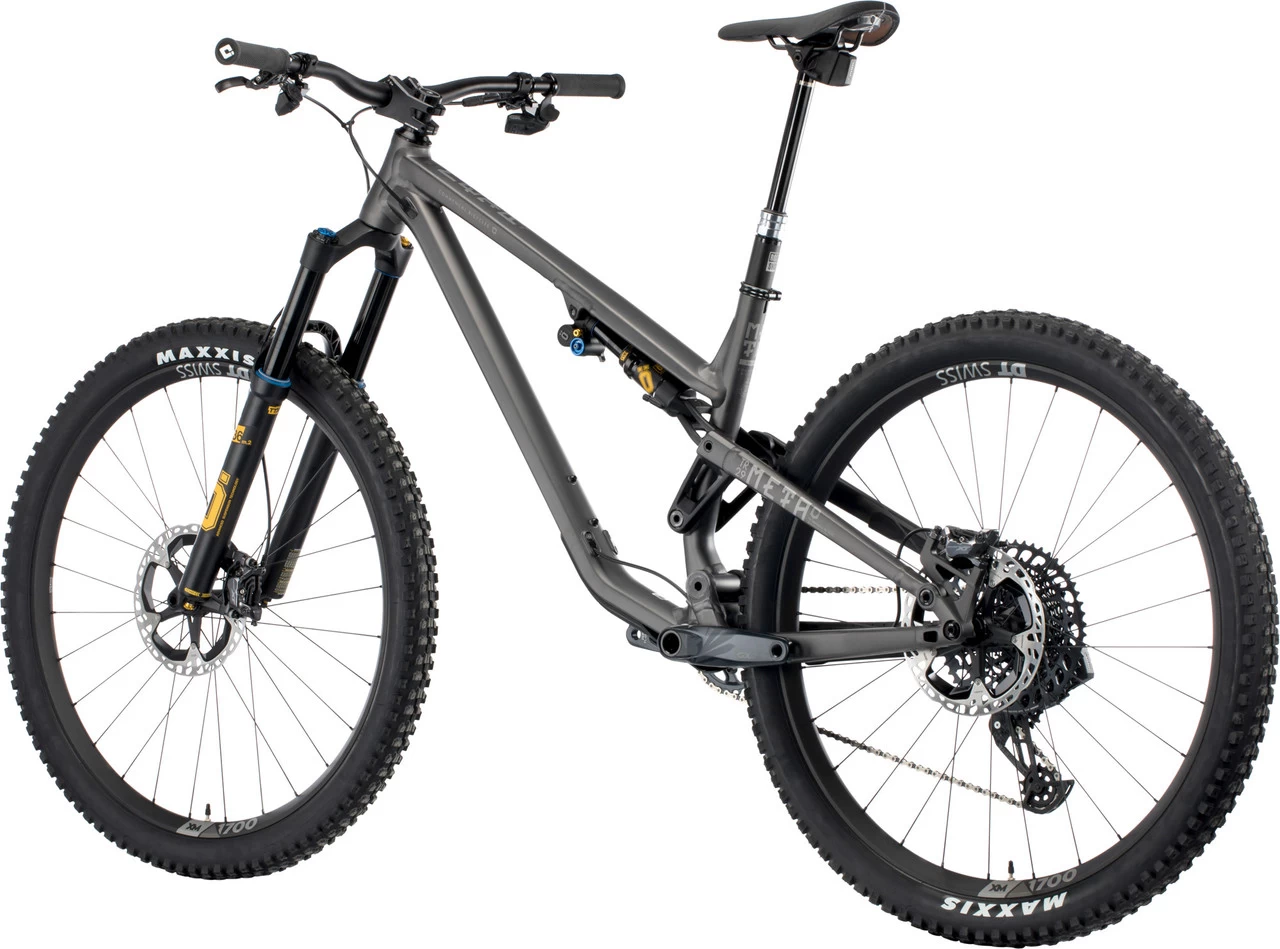

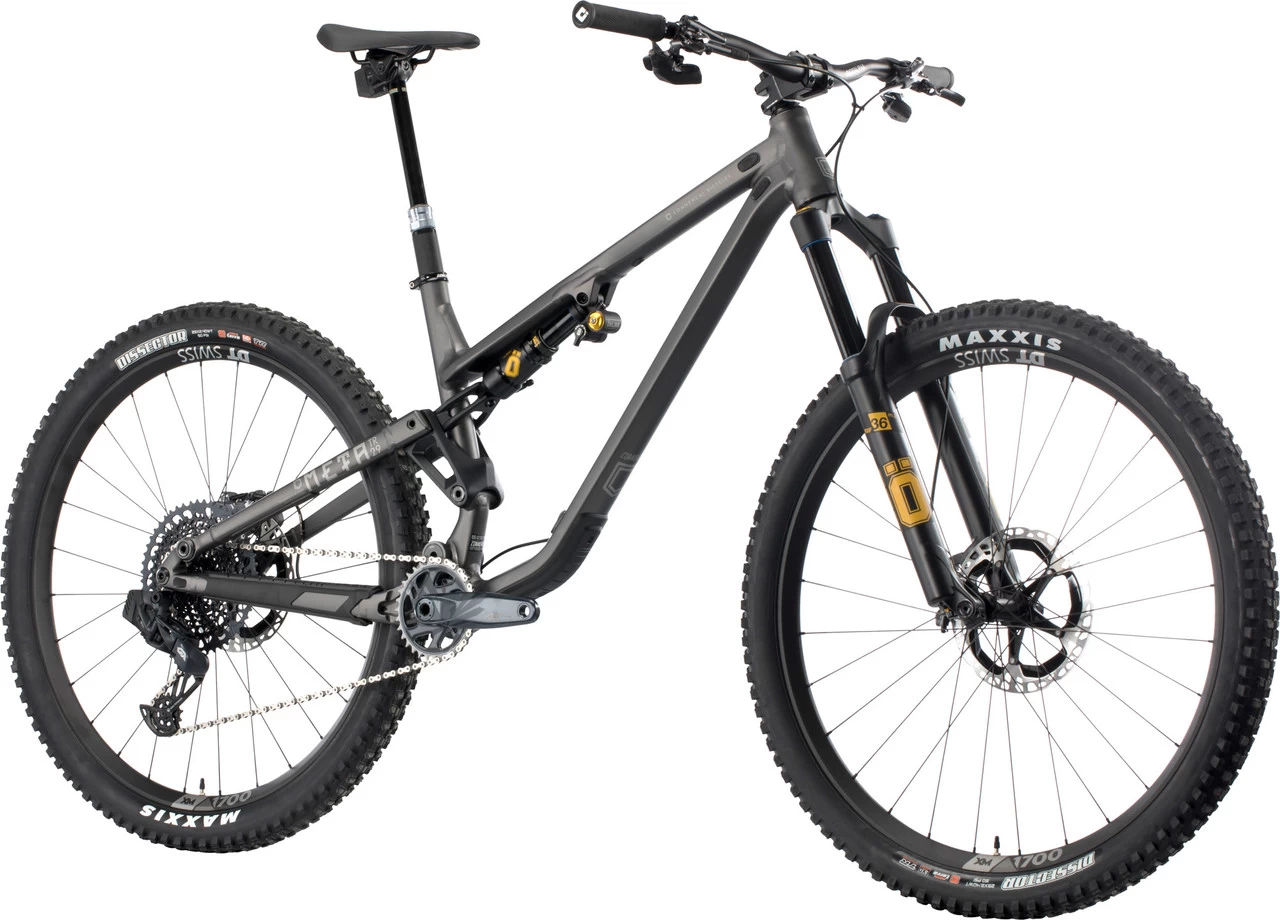

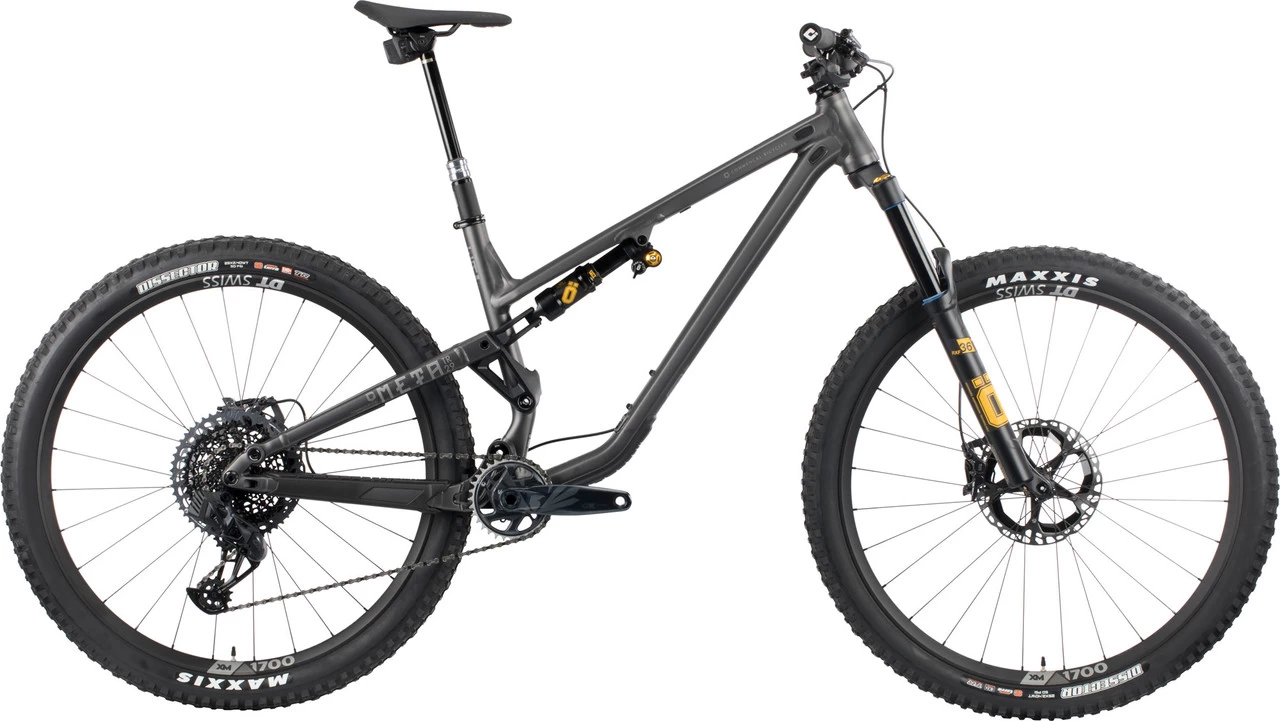

Commencal Meta TR ÖHLINS AXS 29″ Mountain Bike

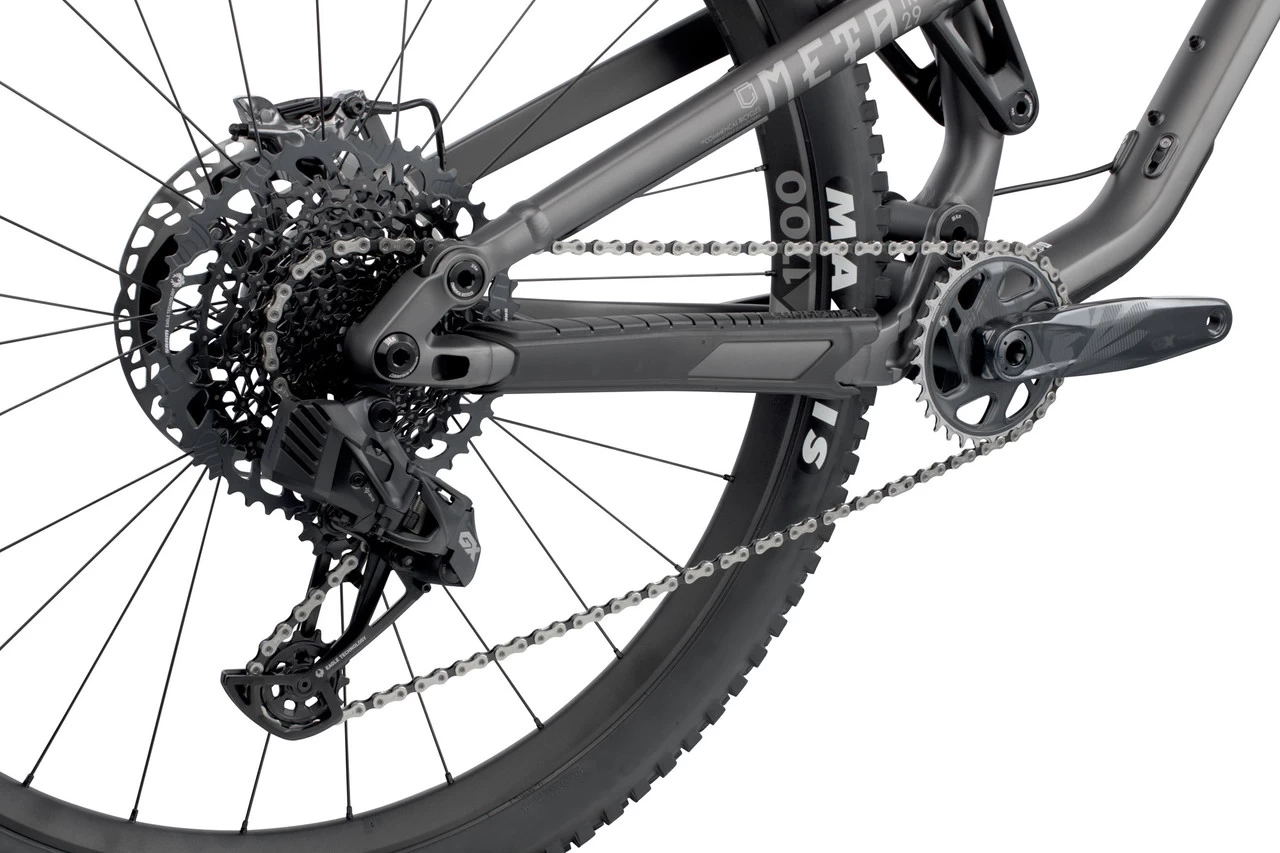

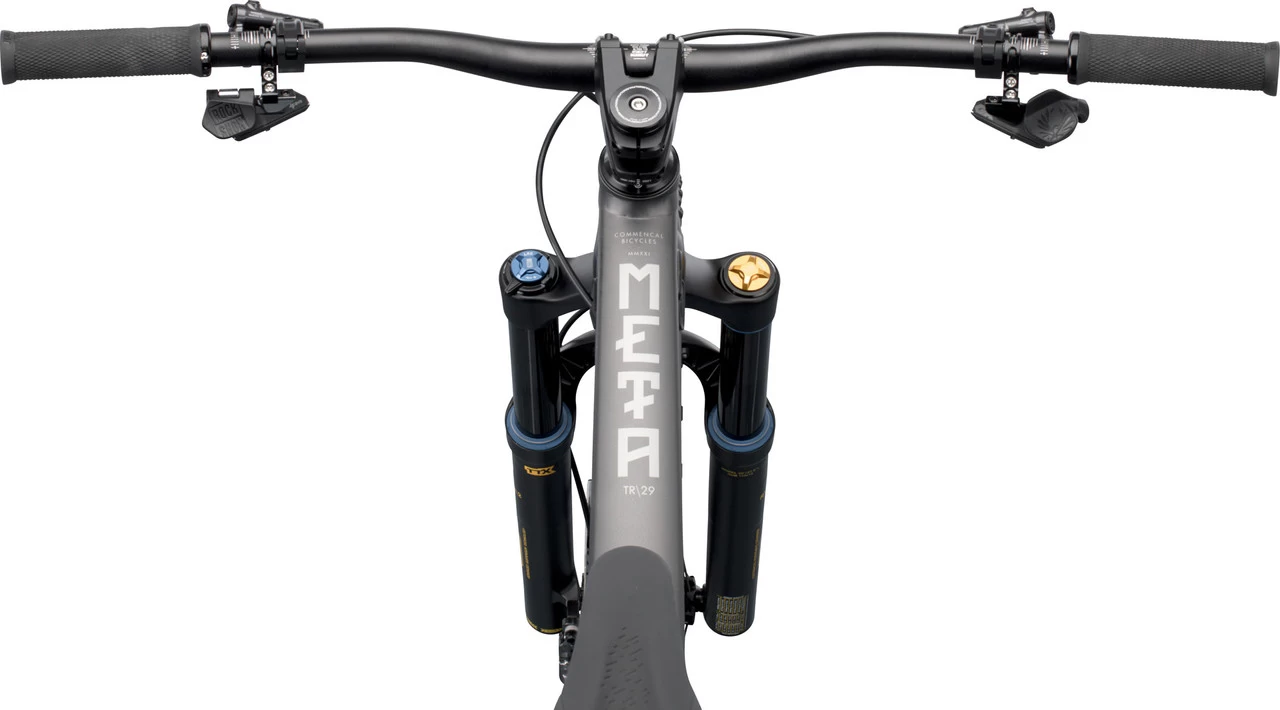

The COMMENCAL Meta TR ÖHLINS AXS 29″ mountain bike with ÖHLINS suspension elements and an electronic SRAM GX Eagle AXS drivetrain is the right bike for sporty trail and enduro rides. The ÖHLINS TTX1 Air shock and the RXF36 suspension fork with 150 mm travel score with a wide range of adjustment options and sensitive, precise damping response. The electronic drivetrain with wireless control not only provides a clean look, but also offers fast shifting, easy maintenance as well as personalisation and provides analysis of your usage. The RockShox Reverb AXS dropper post is also electronically controlled and does not require cables. The playful linkage design makes the Meta TR dynamic, while double-row bearings on the frame prevent the loss of rigidity at the joints. All of this results in a bike that can deliver high performance on any terrain, and won’t let you down on difficult passages.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here.

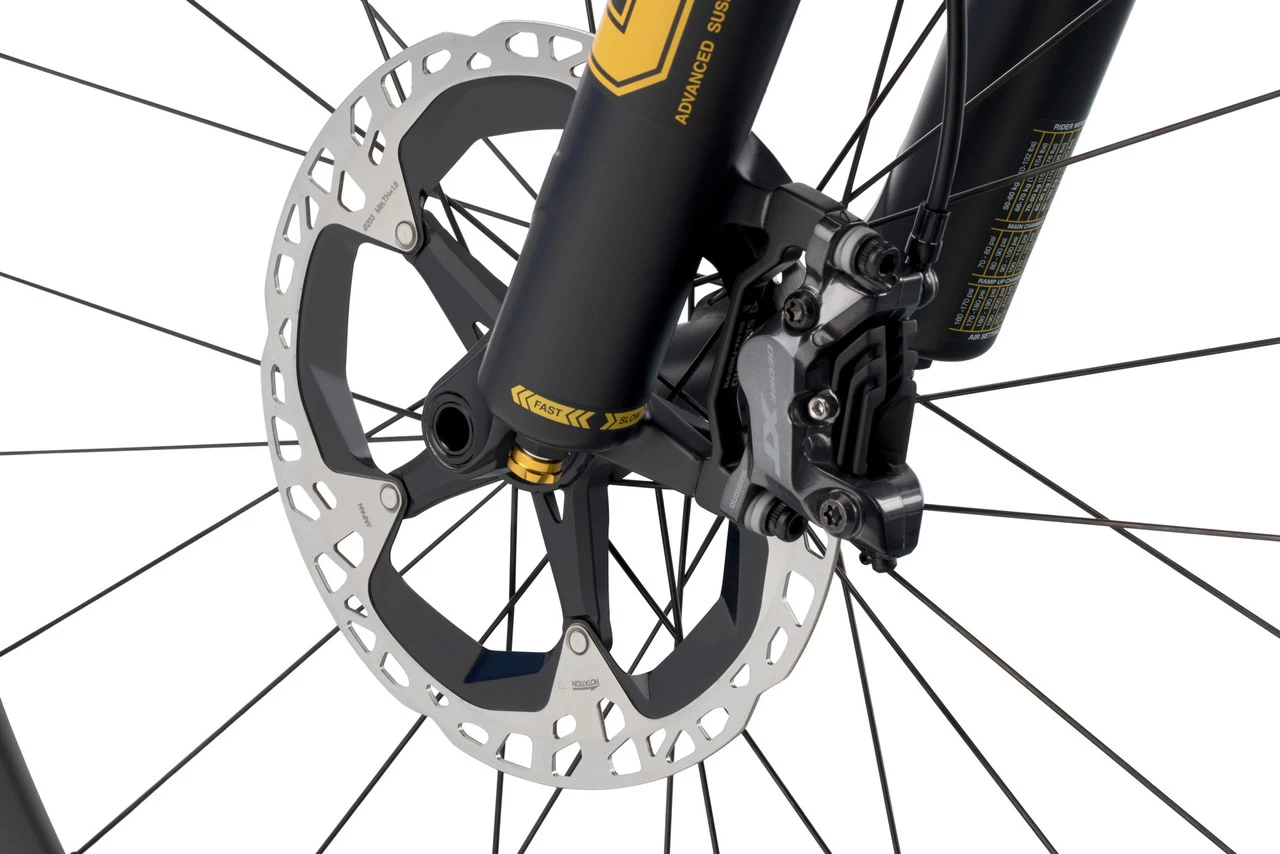

Specifications:Application:All Mountain, EnduroWheel Size:29″Front Travel:150 mmRear Travel:140 mmSizes:S, M, L, XLFront Triangle Material:aluminium (6066)Rear Triangle Material:aluminium (6066)Components:Frame:COMMENCAL 2021 Meta TR 29, triple butted, 12 x 148 mm (Boost)Fork:ÖHLINS RXF36 m.2 Air, TTX 18 cartridge, 3 positions high speed compression, low speed compression, rebound, 44 mm Offset, 15 x 110 mm (Boost)Stem:Ride Alpha Freeride 50Handlebars:Ride Alpha R27, 31.8 mm diameter, 780 mm width, 27 mm rise, aluminium (7050)Grips:ODI Elite MotionRear Shock:ÖHLINS TTX1 Air, 210 x 55 mm, Climb Mode, adjustable High- and low speed compression, adjustable reboundRemote System:noneHeadset:Acros ZS44/ZS56Seatpost:RockShox Reverb AXS, 31.6 mm, travel: 125 mm (S), 150 mm (M), 170 mm (L, XL)Saddle:Fizik Terra Alpaca X5Crank:SRAM GX Eagle, 170 mm, DUB, Boost, 32-tooth Narrow-Wide chainringPedals:noneBrakes:Shimano XT 4-piston, I-Spec EV compatible with Shimano RT-MT900 Centre Lock Ice Technology Freeza brake rotors, 203 mm/203 mmShift Lever:SRAM GX Eagle AXS,12-speedRear Derailleur:SRAM GX Eagle AXS, 12-speedCassette:SRAM GX Eagle, 12-speed, 10-52 teethChain:SRAM GX Eagle, 12-speedRims:DT Swiss XM 1700 SPLINE, 28 holes, 30 mm jaw widthSpokes:DT Swiss Competition, straight pull, 2.0 – 1.8 – 2.0 mm, double butted, stainless steel, with Nylok, blackFront Hub:DT Swiss 350, 28-bolt, sealed bearingsRear Hub:DT Swiss 350, 28 holes, ratchet 36-tooth disc freehub, sealed bearingsFront Tyre:Maxxis Dissector, 29 x 2.4″ , 3C, MaxxTerra, EXO+ Tubeless ReadyRear Tyre:Maxxis Dissector, 29 x 2.4″ , 3C, MaxxTerra, EXO+, Tubeless ReadyApproved For:Rotor Size (max.):220 mm (rear)Tyre Size (max.):65 mm (rear)Chainrings:1xFork Axle to Crown Size (max.):571 mmFeatures:optimised linkage design for less fatiguecompact chainstays for heel clearanceoptimised cable routingsimple bottle holder assemblyhigh manoeuvrability thanks to a short stem and flatter steering anglestability through longer reachshort fork travel and steeper seat angle for good seated position on uphillenduro bearings for high rigidity and performanceGeometry:(based on a fork axle to crown length of 561 mm)
S:
Recommended Height:160 – 171 cmStack:626 mmReach:440 mmSeat Tube Length:380 mmEffective Top Tube Length:566 mmHead Tube Length:110 mmChainstay Length:435 mmWheelbase:1203 mmBB Drop:33 mmSeat Tube Angle:78.6°Head Tube Angle:64.5°Stem Length:50 mmHandlebar Width:780 mmCrank Arm Length:170 mm
M:
Recommended Height:170 – 181 cmStack:630 mmReach:465 mmSeat Tube Length:420 mmEffective Top Tube Length:592 mmHead Tube Length:115 mmChainstay Length:435 mmWheelbase:1230 mmBB Drop:33 mmSeat Tube Angle:78.6°Head Tube Angle:64.5°Stem Length:50 mmHandlebar Width:780 mmCrank Arm Length:170 mm
L:
Recommended Height:180 – 191 cmStack:634 mmReach:490 mmSeat Tube Length:440 mmEffective Top Tube Length:618 mmHead Tube Length:120 mmChainstay Length:435 mmWheelbase:1257 mmBB Drop:33 mmSeat Tube Angle:78.6°Head Tube Angle:64.5°Stem Length:50 mmHandlebar Width:780 mmCrank Arm Length:170 mm
XL:
Recommended Height:190 – 203 cmStack:638 mmReach:515 mmSeat Tube Length:460 mmEffective Top Tube Length:644 mmHead Tube Length:125 mmChainstay Length:435 mmWheelbase:1284 mmBB Drop:33 mmSeat Tube Angle:78.6°Head Tube Angle:64.5°Stem Length:50 mmHandlebar Width:780 mmCrank Arm Length:170 mmManufacturer Number:21METATR29RISR
Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

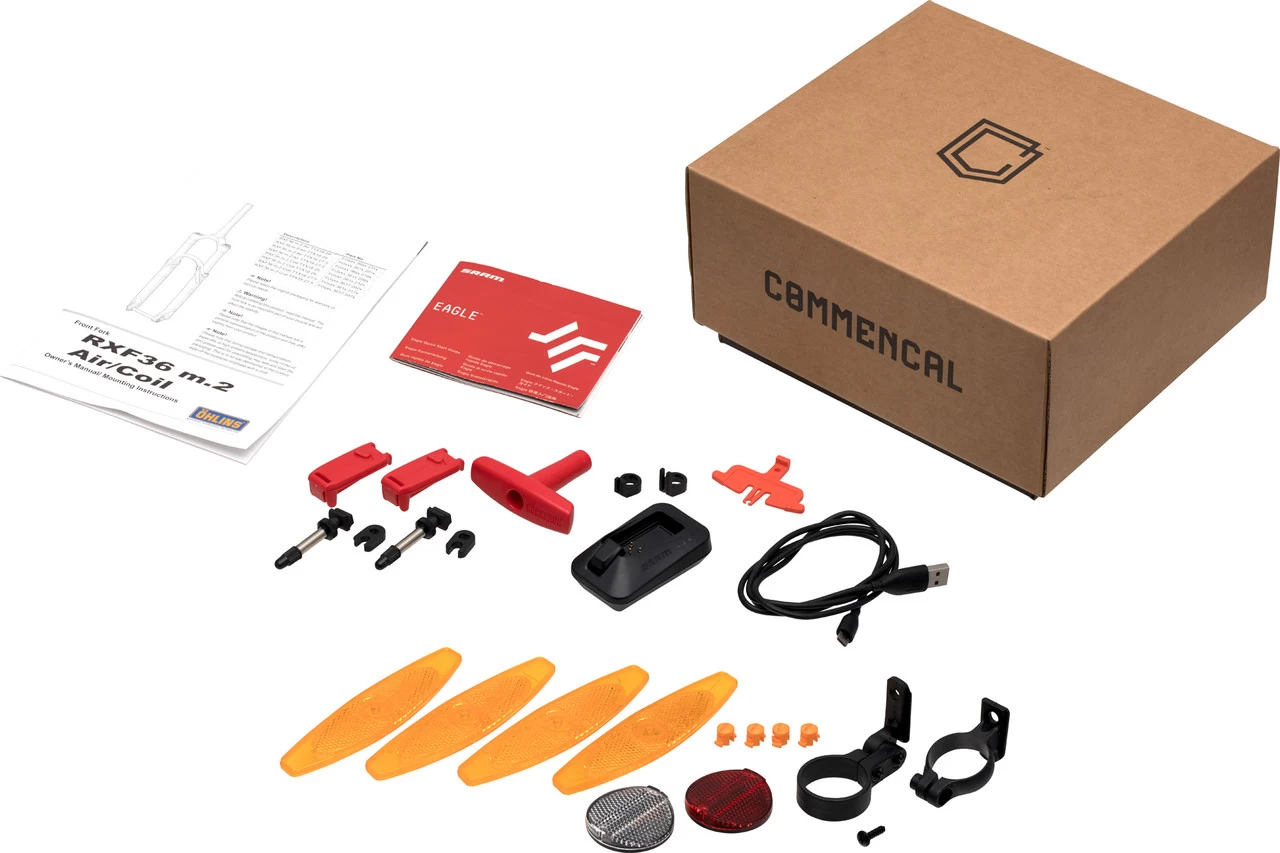

Contents:1 x COMMENCAL Meta TR ÖHLINS AXS 29″ Mountain BikeOrder Together:MTB Pedals
