Commencal Meta SX ÖHLINS Edition 29″ / 27.5″ Mountain Bike

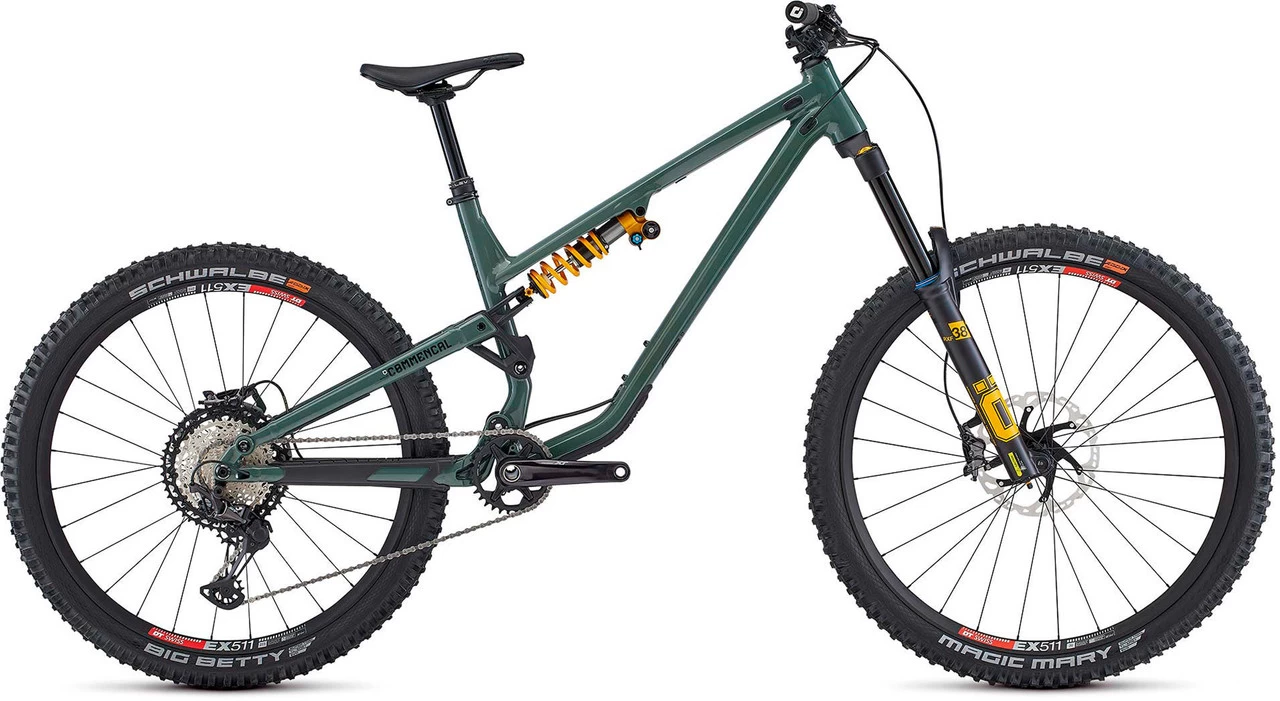

The Meta SX 29″ /27.5″ mountain bike by COMMENCAL in the ÖHLINS Edition
This COMMENCAL Meta SX mountain bike with a 29-inch front wheel and 27.5-inch rear wheel for enduro trails is equipped with a suspension fork and steel coil shock from ÖHLINS as well as 1×12-speed drivetrain and brakes from the Shimano XT series. This mullet bike combines the high traction and good rollover of 29ers with the manoeuvrability and agility of 27.5-inch wheels. A flip chip allows you to quickly and easily adjust the geometry in two settings.
Specifications:Application:EnduroWheel Size:Scaled SizingFront Travel:170 mmRear Travel:160 mmSizes:S, M, L, XLFront Triangle Material:aluminium (6066)Rear Triangle Material:aluminium (6066)Components:Frame:COMMENCAL 2022 Meta SX, triple butted, 12 x 148 mm (Boost)Fork:ÖHLINS RXF38 m.2 Air, TTX-18 damping, Ramp Up Chamber, HSC, LSC, rebound, 44 mm offset, 15 x 110 mm (Boost)Stem:Ride Alpha Freeride 40, 31.8 mmHandlebars:Ride Alpha R20 with 20 mm rise (S), Ride Alpha R27 Power with 27 mm rise (M-XL), 31.8 mm diameter, aluminium (6061)Grips:ODI Elite Motion, soft pro rubber compound, blackRear Shock:ÖHLINS TTX22M, 230 x 62,5 mm, HSC, LSC, rebound, spring rate: 343 lbs (S), 388 lbs (M), 434 lbs (L), 480 lbs (XL)Remote System:noneHeadset:Acros ZS 44 – ZS 56, sealed bearingsSeatpost:KindShock LEV Integra, 34.9 mm, with SouthPaw Remote, stroke: 125 mm (S), 150 mm (M), 175 mm (L), 200 mm (XL)Saddle:SDG Bel Air V3 Atmos, Lux Alloy StrutsCrank:Shimano XT, with Shimano XT chainring, 32 teeth, Dynamic Chain Engagement+Pedals:noneBrakes:Shimano XT 4 piston, compatible with I-Spec EVShift Lever:Shimano XT, 12-speedRear Derailleur:Shimano XT, 12-speedCassette:Shimano XT, 10-51 toothChain:Shimano XT, 12-speedRims:DT Swiss EX511 SPLINE, 28-bolt, 30 mm jaw widthSpokes:DT Swiss Competition, straight pull, 2.0 – 1.8 – 2.0 mm, double butted, stainless steel, Pro Lock, blackFront Hub:DT Swiss 350, 28-bolt, sealed bearingsRear Hub:DT Swiss 350, Shimano Micro SPLINE, 28 holes, sealed bearingsFront Tyre:Schwalbe Magic Mary, 29 x 2.4″ , Super Trail, ADDIX Soft, Tubeless EasyRear Tyre:Schwalbe Big Betty, 27.5 x 2.4″ , Super Trail, ADDIX Soft, Tubeless EasyApproved For:Rotor Size (max.):220 mm (rear)Tyre Size (max.):68-584 (rear)Chainrings:1xFork Axle to Crown Size (max.):596 mmFeatures:full-suspension enduro bike with ÖHLINS suspension and Shimano XT componentswith flip chip on the shock mount for adjusting the geometry29″ front wheel for smooth running and fun climbs27.5″ rear wheel for responsive handlingcentral riding position1 bottle cagedouble row Enduro Bearings for high stiffness and reliabilitywith ISCG-05 mount for a chain guideGeometry:(based on a fork axle to crown length of 586 mm)
S:
Recommended Height:158 – 170 cmStack:633 mm (low), 630 mm (high)Reach:436 mm (low), 440 mm (high)Seat Tube Length:380 mmEffective Top Tube Length:570 mm (low), 569 mm (high)Head Tube Length:115 mmChainstay Length:443 mm (low), 442 mm (high)Wheelbase:1232 mm (low), 1231 mm (high)BB Drop:-1.5 mm (low), +4 mm (high)Seat Tube Angle:78.1° (low), 78.5° (high)Head Tube Angle:63.6° (low), 64° (high)Stem Length:40 mmHandlebar Width:760 mmCrank Arm Length:170.0 mm
M:
Recommended Height:168 – 180 cmStack:637 mm (low), 634 mm (high)Reach:456 mm (low), 460 mm (high)Seat Tube Length:420 mmEffective Top Tube Length:591 mm (low), 590 mm (high)Head Tube Length:120 mmChainstay Length:443 mm (low), 442 mm (high)Wheelbase:1254 mm (low), 1253 mm (high)BB Drop:-1.5 mm (low), +4 mm (high)Seat Tube Angle:78.1° (low), 78.5° (high)Head Tube Angle:63.6° (low), 64° (high)Stem Length:40 mmHandlebar Width:780 mmCrank Arm Length:170.0 mm
L:
Recommended Height:178 – 190 cmStack:642 mm (low), 639 mm (high)Reach:481 mm (low), 485 mm (high)Seat Tube Length:440 mmEffective Top Tube Length:617 mm (low), 616 mm (high)Head Tube Length:125 mmChainstay Length:443 mm (low), 442 mm (high)Wheelbase:1286 mm (low), 1285 mm (high)BB Drop:-1.5 mm (low), +4 mm (high)Seat Tube Angle:78.1° (low), 78.5° (high)Head Tube Angle:63.6° (low), 64° (high)Stem Length:40 mmHandlebar Width:780 mmCrank Arm Length:170.0 mm
XL:
Recommended Height:188 – 210 cmStack:647 mm (low), 643 mm (high)Reach:506 mm (low), 510 mm (high)Seat Tube Length:460 mmEffective Top Tube Length:644 mm (low), 643 mm (high)Head Tube Length:130 mmChainstay Length:443 mm (low), 442 mm (high)Wheelbase:1313 mm (low), 1312 mm (high)BB Drop:-1.5 mm (low), +4 mm (high)Seat Tube Angle:78.1° (low), 78.5° (high)Head Tube Angle:63.6° (low), 64° (high)Stem Length:40 mmHandlebar Width:800 mmCrank Arm Length:170.0 mmManufacturer Number:22METAAMOH
Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x COMMENCAL Meta SX ÖHLINS Edition 29″ / 27.5″ mountain bikeOrder Together:MTB Pedals
