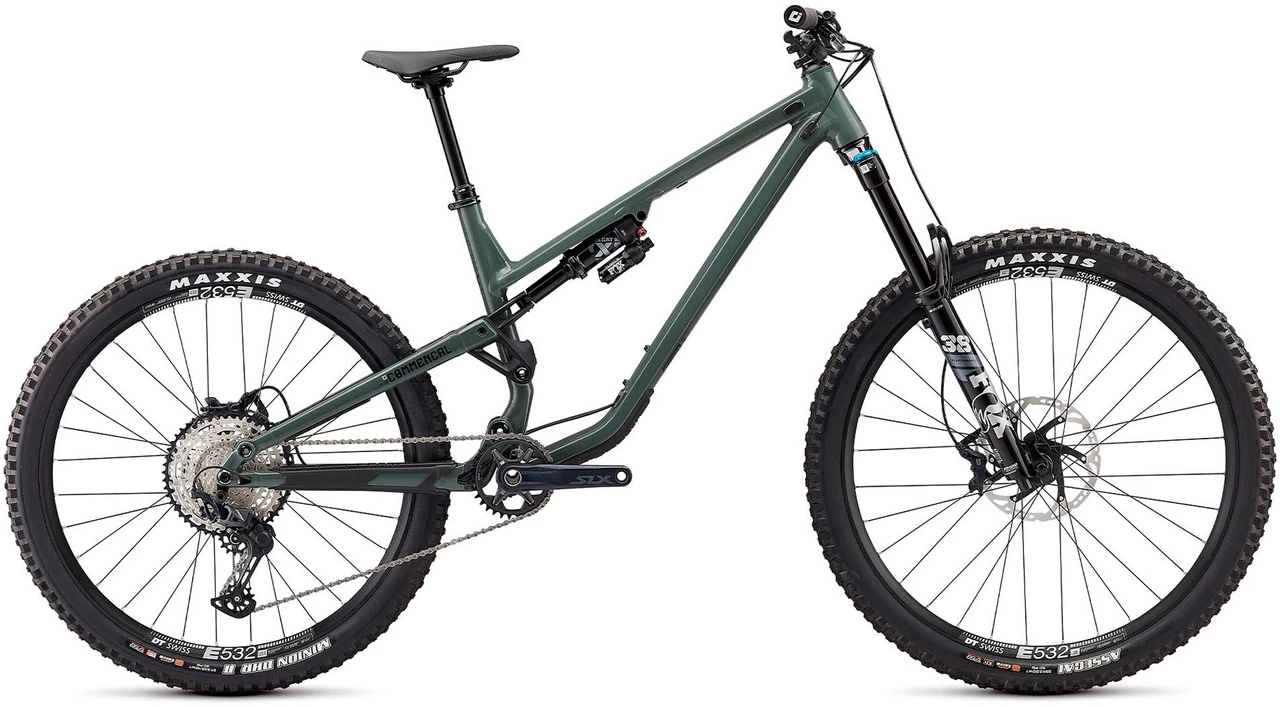

Commencal Meta SX Essential 29″ / 27.5″ Mountain Bike

The Meta SX Essential 29″ /27.5″ Mountain Bike by COMMENCAL with Fox and Shimano components
The COMMENCAL Meta SX Essential mountain bike with 29-inch front wheel and 27.5-inch rear wheel for enduro trails is equipped with Fox suspension and SLX 1×12-speed drivetrain and brakes from Shimano. This mullet bike combines the high traction and good rollover of 29ers with the manoeuvrability and agility of 27.5-inch wheels. A flip chip allows you to quickly and easily adjust the geometry in two settings.
Specifications:Application:EnduroWheel Size:Scaled SizingFront Travel:170 mmRear Travel:160 mmSizes:S, M, L, XLFront Triangle Material:aluminium (6066)Rear Triangle Material:aluminium (6066)Components:Frame:COMMENCAL 2022 Meta SX 29, double butted, 12 x 148 mm (Boost)Fork:Fox Racing Shox Performance, FIT Grip, 3-Position Adjust, 2 tokens, rebound, 44 mm offset, 15 x 110 mm (Boost)Stem:Ride Alpha Freeride 40, 40 mm, 31,8 mmHandlebars:Ride Alpha R20, 20 mm Rise (S), R27, 27 mm Rise (M-XL), 31.8 mmGrips:ODI Elite MotionRear Shock:Fox Racing Shox Float X Performance, 2-Position Adjust, Rebound, 230 x 62.5 mmRemote System:noneHeadset:Acros ZS 44 – ZS 56, sealed bearingsSeatpost:KindShock Rage-I, 34.9 mm, travel: 125 mm (S), 150 mm (M), 170 mm (L), 190 mm (XL), with SouthPaw RemoteSaddle:Fizik Terra Alpaca X5, 145 mm, S-Alloy railsCrank:Shimano SLX, 170 mm, 32-tooth, Dynamic Chain Engagement+, with Shimano BB71-41A bottom bracketPedals:noneBrakes:Shimano SLX 4-piston, compatible with I-Spec EV, with Shimano SM-RT76 brake rotors, 6-bolt, 203 mmShift Lever:Shimano SLX, 12-speedRear Derailleur:Shimano SLX, 12-speedCassette:Shimano SLX, 12-speed, 10-51 teethChain:Shimano SLX, 12-speedRims:DT Swiss E532 SPLINE, 32-bolt, 30 mm jaw widthSpokes:Sapim Race, J-Bend, 2.0 – 1.8 – 2.0 mm, double butted, stainless steel, with Nylok, blackFront Hub:Formula DC-711, 32-bolt, sealed bearingsRear Hub:Formula MSL-148A, Shimano Micro Spline, 32 holes, sealed bearingsFront Tyre:Maxxis Assegai, 29 x 2.5″ , WT, 3C MaxxTerra, EXO, Tubeless ReadyRear Tyre:Maxxis DHR II, 27.5 x 2.4″ , WT, 3C MaxxTerra, EXO+, Tubeless ReadyApproved For:Rotor Size (max.):220 mm (rear)Tyre Size (max.):27.5 x 2.6″ (rear)Chainrings:1xFork Axle to Crown Size (max.):596 mmFeatures:with flip chip on the damper mount to adjust the geometry29″ front wheel for smooth running and fun climbs27.5″ rear wheel for responsive handlingcentral riding position1 bottle cagedouble row Enduro Bearings for high stiffness and reliabilitywith ISCG-05 mount for a chain guideGeometry:(based on a fork axle to crown length of 586 mm)
S:
Recommended Height:158 – 170 cmStack:633 mm (low), 630 mm (high)Reach:436 mm (low), 440 mm (high)Seat Tube Length:380 mmEffective Top Tube Length:570 mm (low), 569 mm (high)Head Tube Length:115 mmChainstay Length:443 mm (low), 442 mm (high)Wheelbase:1232 mm (low), 1231 mm (high)BB Drop:-1.5 mm (low), +4 mm (high)Seat Tube Angle:78.1° (low), 78.5° (high)Head Tube Angle:63.6° (low), 64° (high)Handlebar Width:760 mm
M:
Recommended Height:168 – 180 cmStack:637 mm (low), 634 mm (high)Reach:456 mm (low), 460 mm (high)Seat Tube Length:420 mmEffective Top Tube Length:591 mm (low), 590 mm (high)Head Tube Length:120 mmChainstay Length:443 mm (low), 442 mm (high)Wheelbase:1254 mm (low), 1253 mm (high)BB Drop:-1.5 mm (low), +4 mm (high)Seat Tube Angle:78.1° (low), 78.5° (high)Head Tube Angle:63.6° (low), 64° (high)Handlebar Width:780 mm
L:
Recommended Height:178 – 190 cmStack:642 mm (low), 639 mm (high)Reach:481 mm (low), 485 mm (high)Seat Tube Length:440 mmEffective Top Tube Length:617 mm (low), 616 mm (high)Head Tube Length:125 mmChainstay Length:443 mm (low), 442 mm (high)Wheelbase:1286 mm (low), 1285 mm (high)BB Drop:-1.5 mm (low), +4 mm (high)Seat Tube Angle:78.1° (low), 78.5° (high)Head Tube Angle:63.6° (low), 64° (high)Handlebar Width:780 mm
XL:
Recommended Height:188 – 210 cmStack:647 mm (low), 643 mm (high)Reach:506 mm (low), 510 mm (high)Seat Tube Length:460 mmEffective Top Tube Length:644 mm (low), 643 mm (high)Head Tube Length:130 mmChainstay Length:443 mm (low), 442 mm (high)Wheelbase:1313 mm (low), 1312 mm (high)BB Drop:-1.5 mm (low), +4 mm (high)Seat Tube Angle:78.1° (low), 78.5° (high)Head Tube Angle:63.6° (low), 64° (high)Handlebar Width:800 mmManufacturer Numbers:dark slate:22METAAMEGRkeswick green:22METAAMEGNShipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x COMMENCAL Meta SX Essential 29″ /27.5″ Mountain BikeOrder Together:MTB Pedals
