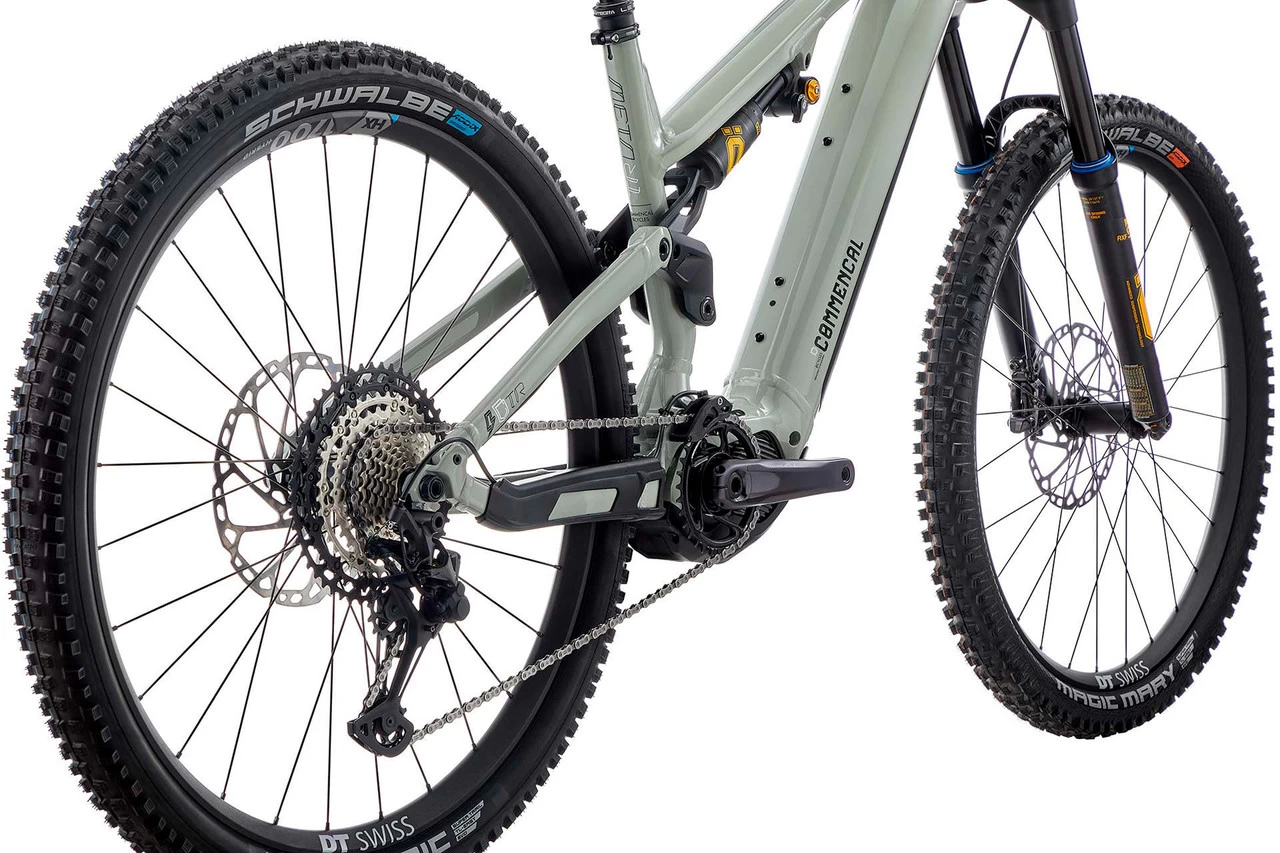

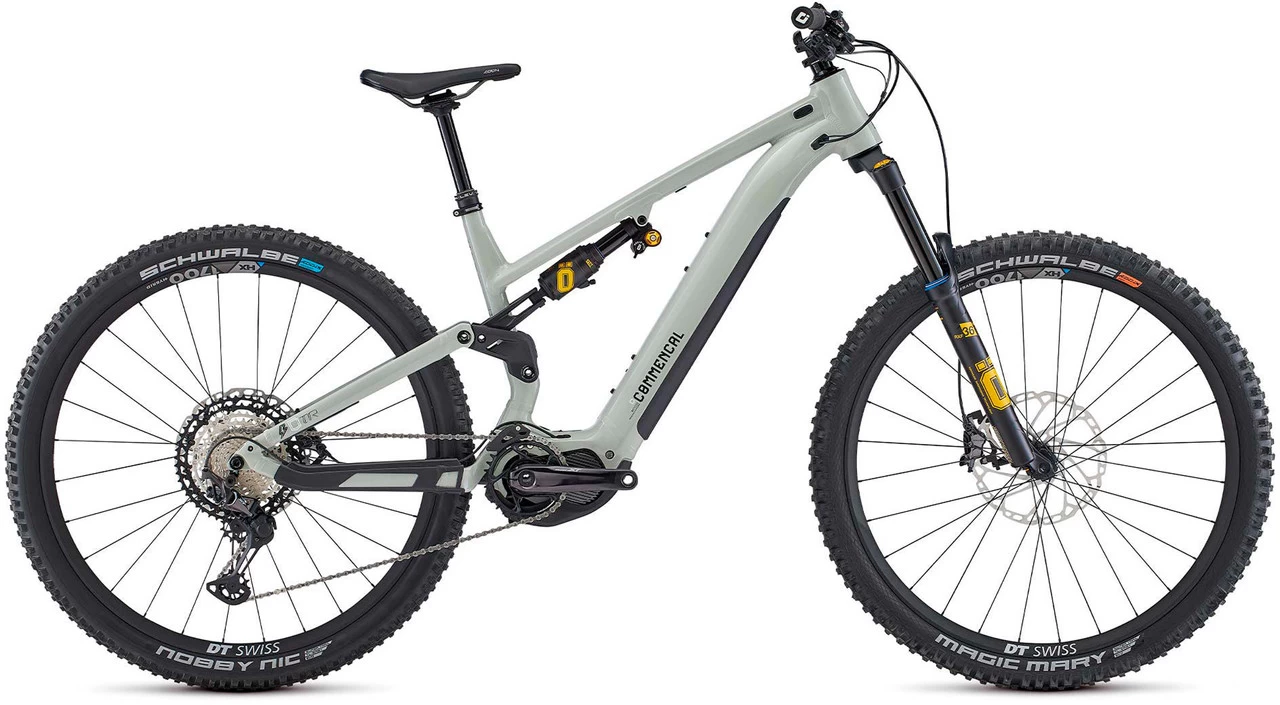

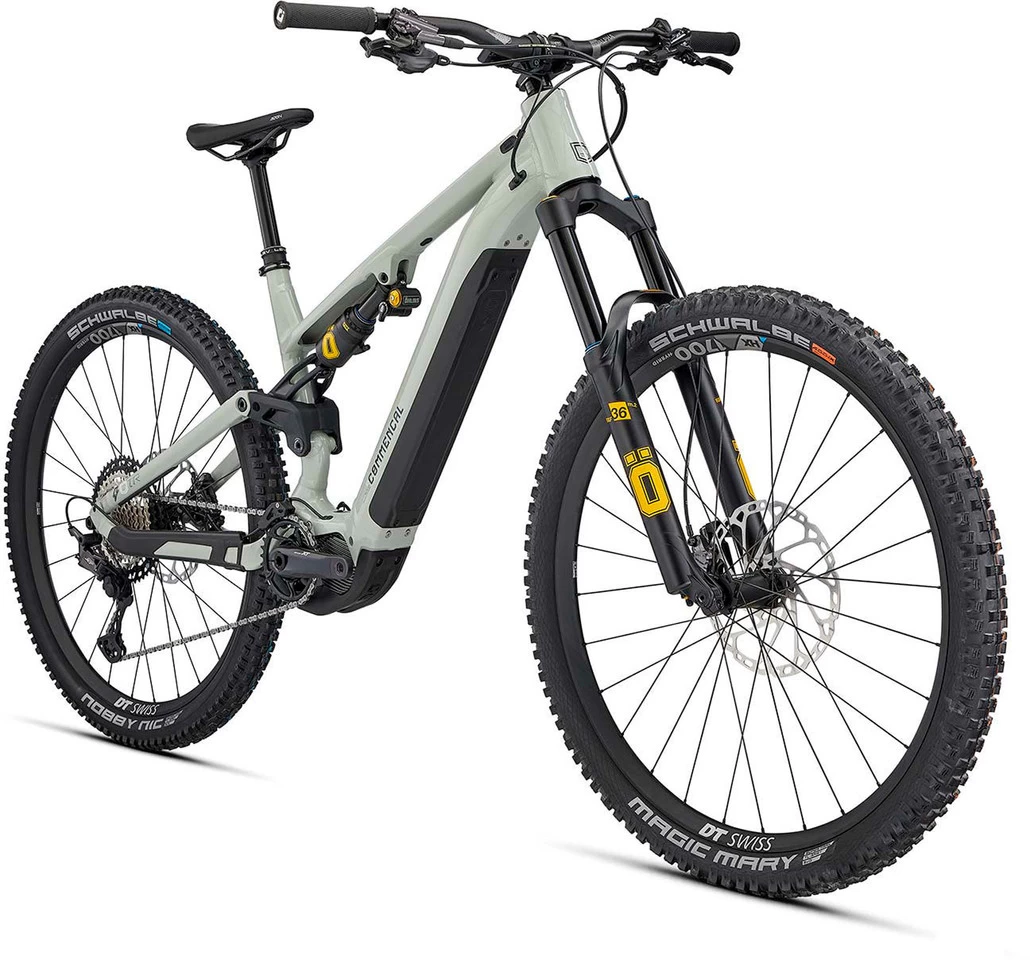

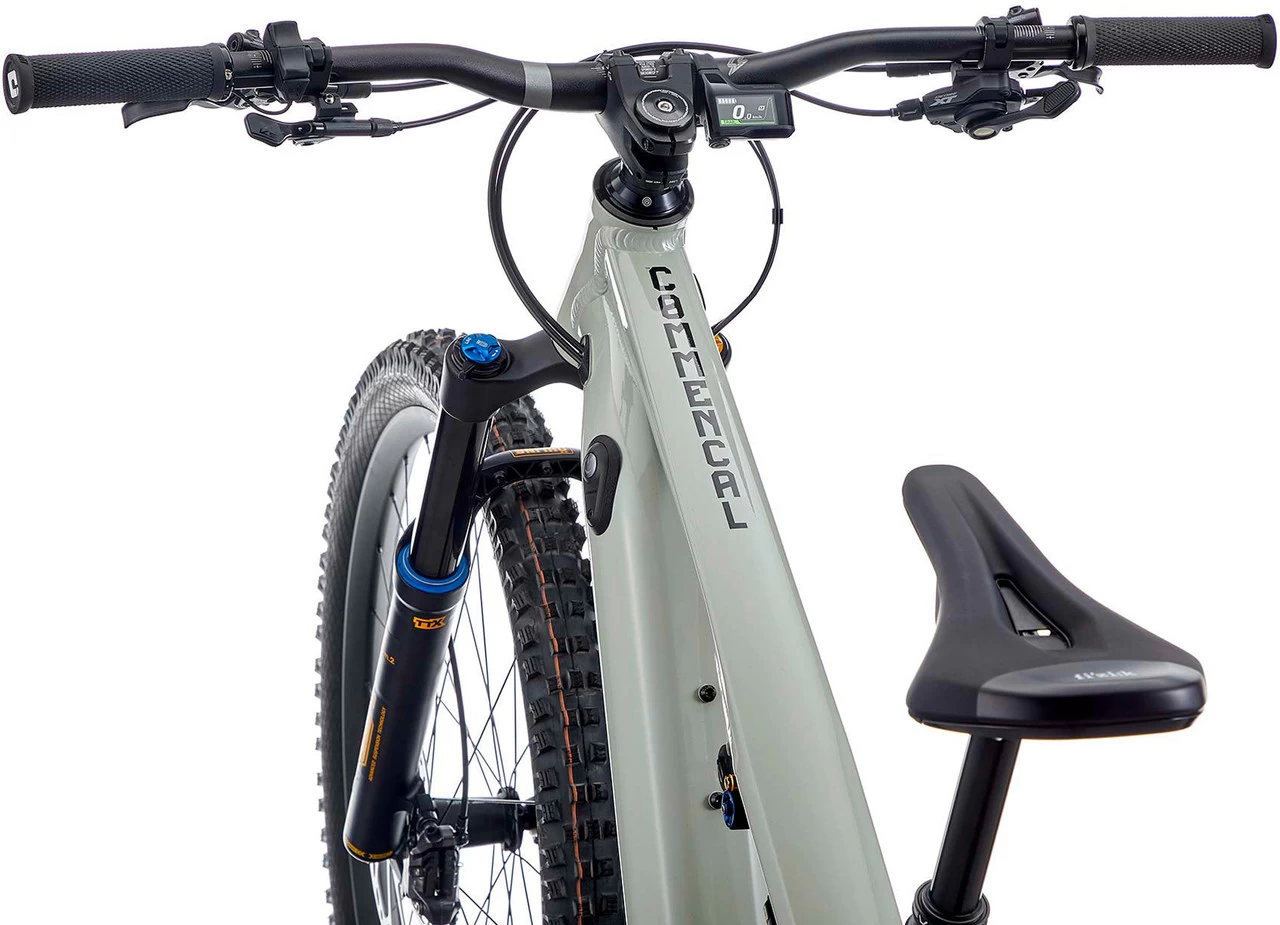

Commencal Meta Power TR ÖHLINS Edition 29″ E-Mountain Bike

The COMMENCAL Meta Power TR 29″ e-mountain bike in the ÖHLINS Edition for trail riding
The Meta Power TR from COMMENCAL in the ÖHLINS Edition is a full-suspension 29-inch e-MTB with suspension parts from ÖHLINS and brakes and 1×12-speed drivetrain from Shimano at XT level. The all-mountain trail bike is agile and playful, the seat and steering angles are relatively steep and suitable for technical climbs. The rear linkage design ensure dynamics and propulsion and offer good grip and comfort at all times. With a flip chip in the rocker that changes the geometry slightly, you can turn the responsive Meta Power TR into a stable bike for wild descents. The EP8 motor from Shimano is compact and powerful and is optimally protected by a protector.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.
Specifications:Application:All MountainWheel Size:29″Front Travel:150 mmRear Travel:140 mmSizes:S, M, L, XLFront Triangle Material:aluminium (6066)Rear Triangle Material:aluminium (6066)E-Motor:Type:mid-drive motorMotor Type:Shimano DU-EP800, 85 NmPedal Assist (max.):25 km/hPower:250 WBattery Type:Shimano BT-E8036Capacity:630 WhDisplay:Shimano SC-EM800 (LCD colour display), display of battery status and various ride data, Bluetooth LE for E-Tube ProjectComponents:Frame:COMMENCAL 2022 Meta Power TR 29, triple-butted, 12 x 148 mm (Boost)Fork:ÖHLINS RXF36 m.2 Air, TTX-18 damping, Ramp Up Chamber, HSC, LSC, rebound, 44 mm offset, 15 x 110 mm (Boost)Stem:Ride Alpha Freeride 40, 31.8 mmHandlebars:Ride Alpha R20 Power with 20 mm rise (S), Ride Alpha R27 Power with 27 mm rise (M-XL), 31.8 mm diameter, aluminium (6061), internal Di2 cable routingGrips:ODI Elite Motion, soft pro rubber compound, blackRear Shock:ÖHLINS TTX2 Air, 210 x 55 mm, HSC, LSC, reboundRemote System:noneHeadset:Acros ZS56/ZS66Seatpost:Kind Shock LEV Integra, 31.6 mm diameter, with SouthPaw Remote, stroke: 125 mm (S), 175 mm (M, L), 200 mm (XL)Saddle:Fizik Terra Aidon X3, Kium Mobius railsCrank:Shimano FC-M8150, with e*thirteen e*spec Plus EP8 chainring, 34 teeth, Narrow-Wide, Direct MountPedals:Ride Alpha CNCBrakes:Shimano XT, 4 pistons, compatible with I-Spec EV, with brake rotors Shimano SM-RT66, 220 mm, 6-bolt, bolt-on magnetShift Lever:Shimano XT, 12-speedRear Derailleur:Shimano XT, 12-speedCassette:Shimano XT, 10-51 toothChain:Shimano XT, 12-speedRims:DT Swiss HX1700 SPLINE, 28 holes, 30 mm jaw width, weldedSpokes:DT Swiss Hybrid 1, straight pull, 2.34 – 1.8 – 2.0 mm, double butted, stainless steel, Pro Lock, blackFront Hub:DT Swiss 350, 28-bolt, sealed bearingsRear Hub:DT Swiss 350, 28 holes, sealed bearings, e-bike specificFront Tyre:Schwalbe Magic Mary, 29 x 2.4″ , Super Trail, ADDIX Soft, Tubeless EasyRear Tyre:Schwalbe Nobby Nic, 27.5×2.4″ , Super Trail, ADDIX SpeedGrip, Tubeless EasyApproved For:Rotor Size (max.):220 mm (rear)Tyre Size (max.):65-622 (rear)Chainrings:1xFork Axle to Crown Size (max.):576 mmFeatures:playful electric full-suspension bike with ÖHLINS suspension elements and Shimano EP8 motorpowerful motor with high torqueflip chip for adjustable positioning of the rockerLCD colour display showing time, assist mode, battery status, speed, top speed, average speed, distance travelled, ride duration, estimated range, cadence, also with calorie settings, maintenance alarm and possible Bluetooth LE connectionwith Ride Alpha EP8 chain guideeasily accessible charging portGeometry:(based on a fork axle to crown length of 566 mm)
S:
Recommended Height:158 – 170 cmStack:607 mm (low), 604 mm (high)Reach:436 mm (low), 440 mm (high)Seat Tube Length:380 mmEffective Top Tube Length:580 mm (low), 579 mm (high)Head Tube Length:120 mmChainstay Length:454 mm (low), 453 mm (high)Wheelbase:1231 mm (low), 1230 mm (high)BB Drop:25.5 mm (low), 21 mm (high)Seat Tube Angle:77.1° (low), 77.5° (high)Head Tube Angle:64.1° (low), 64.5° (high)Stem Length:40 mmHandlebar Width:760 mmCrank Arm Length:160.0 mm
M:
Recommended Height:168 – 180 cmStack:612 mm (low), 609 mm (high)Reach:456 mm (low), 460 mm (high)Seat Tube Length:420 mmEffective Top Tube Length:601 mm (low), 600 mm (high)Head Tube Length:125 mmChainstay Length:446 mm (low), 445 mm (high)Wheelbase:1253 mm (low), 1252 mm (high)BB Drop:25.5 mm (low), 21 mm (high)Seat Tube Angle:77.1° (low), 77.5° (high)Head Tube Angle:64.1° (low), 64.5° (high)Stem Length:40 mmHandlebar Width:780 mmCrank Arm Length:160.0 mm
L:
Recommended Height:178 – 190 cmStack:616 mm (low), 613 mm (high)Reach:481 mm (low), 485 mm (high)Seat Tube Length:440 mmEffective Top Tube Length:627 mm (low), 626 mm (high)Head Tube Lengt
