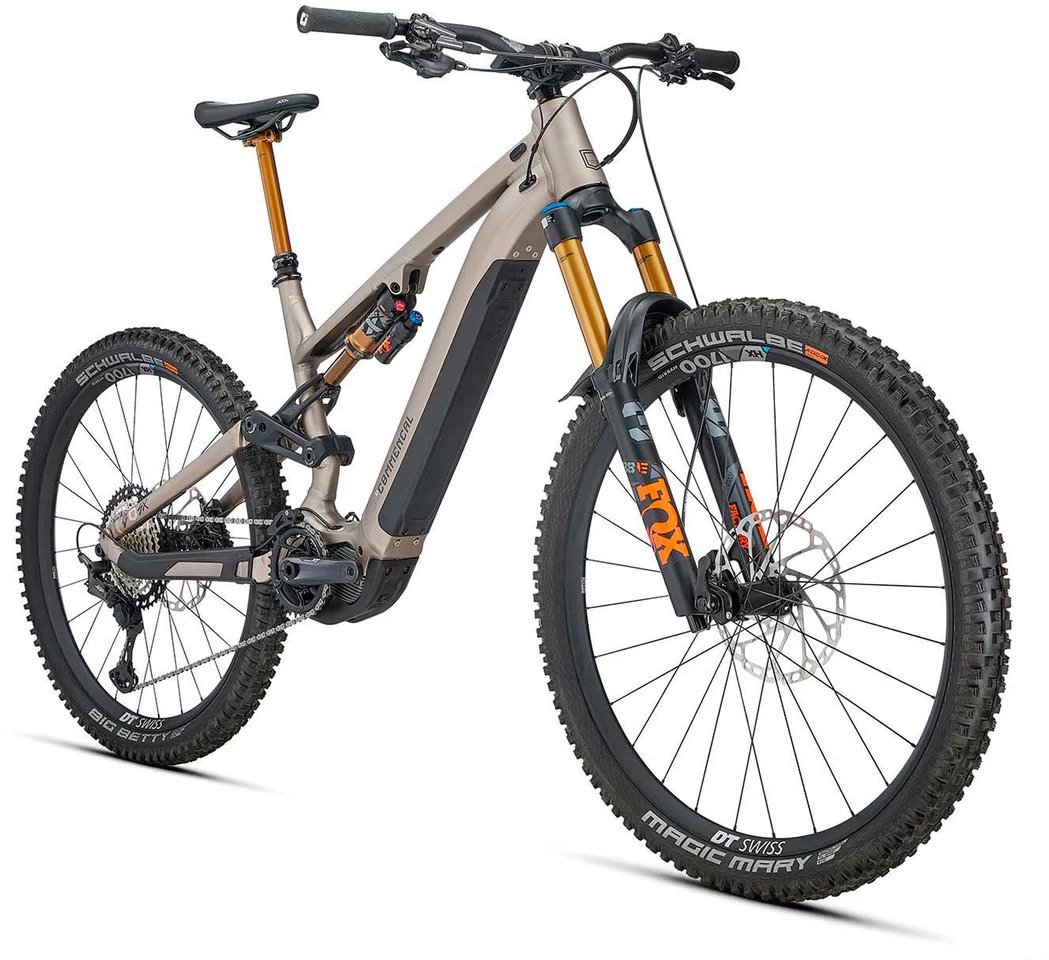

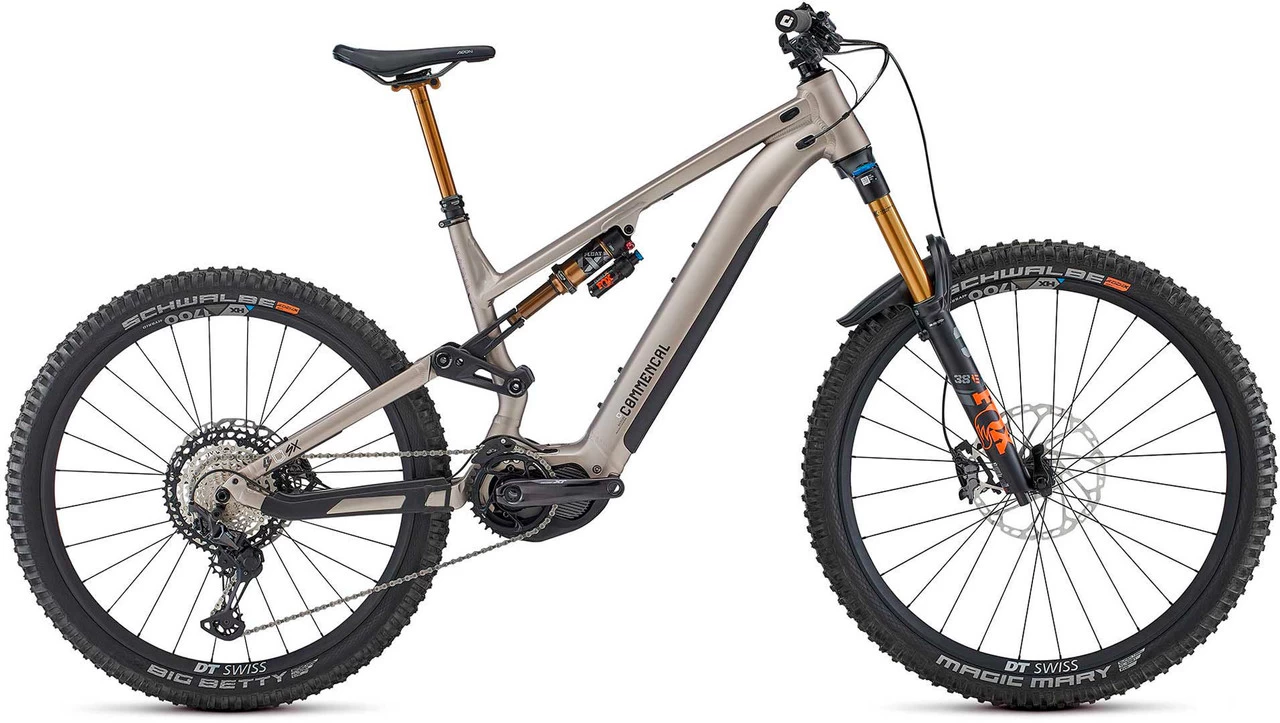

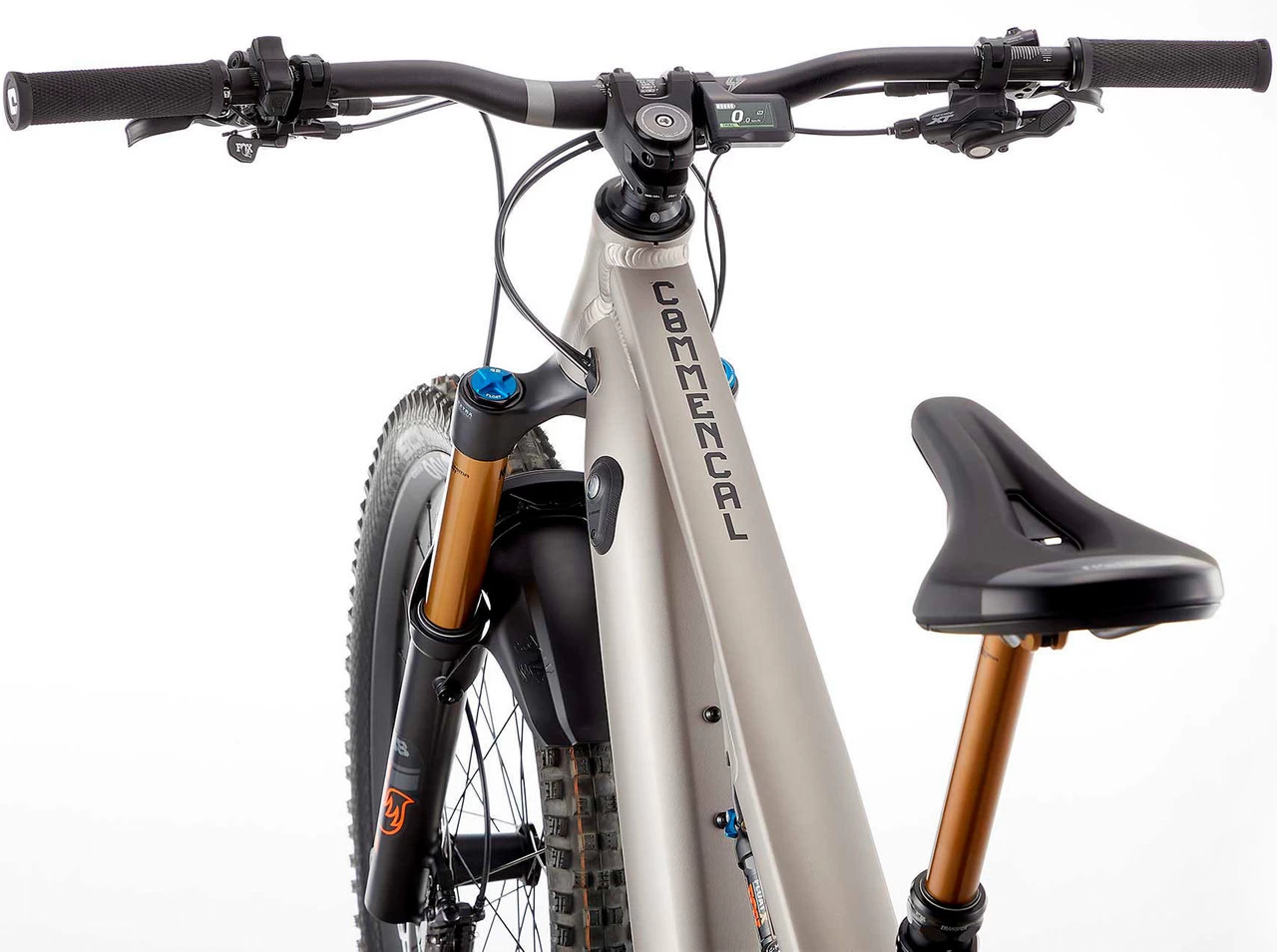

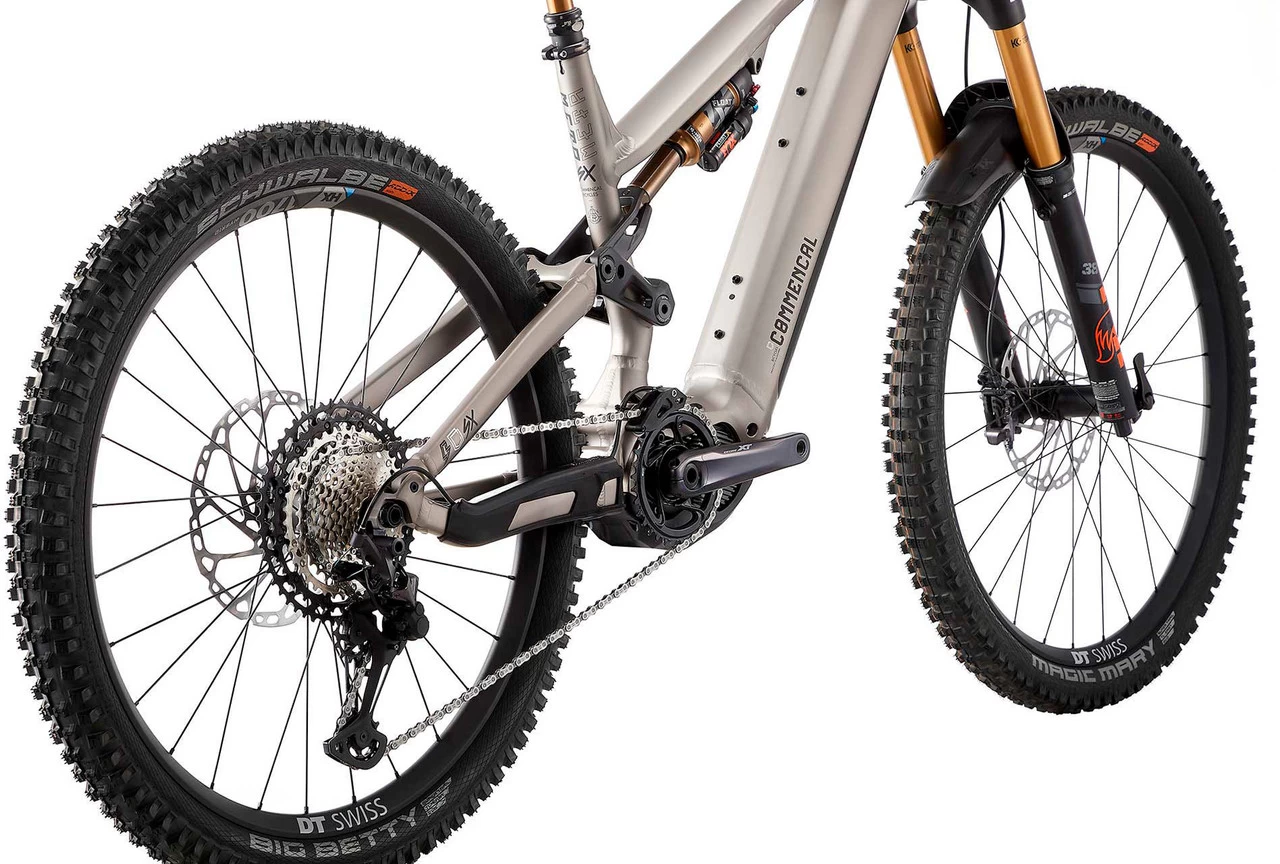

Commencal Meta Power SX Signature 29″ / 27.5″ E-Mountain Bike

The COMMENCAL Meta Power SX Signature 29″ / 27.5″ is a high-quality enduro e-mountain bike
The Meta Power SX Enduro-Fully by COMMENCAL with Shimano EP8 motor features Fox Factory suspension and Shimano XT components and combines a 29-inch front wheel with a 27.5-inch rear wheel. The Mullet construction combines the high traction and good rollover behaviour of 29-inch wheels with the manoeuvrability and agility of 27.5-inch wheels. A flip chip allows you to quickly and easily adjust the geometry in two settings.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.
Specifications:Application:EnduroWheel Size:Scaled SizingFront Travel:170 mmRear Travel:165 mmSizes:S, M, L, XLFront Triangle Material:aluminium (6066)Rear Triangle Material:aluminium (6066)E-Motor:Type:mid-drive motorMotor Type:Shimano DU-EP800, 85 NmPedal Assist (max.):25 km/hPower:250 WBattery Type:Shimano BT-E8036Capacity:630 WhDisplay:Shimano SC-EM800 (LCD colour display), display of battery status and various ride data, Bluetooth LE for E-Tube ProjectComponents:Frame:COMMENCAL 2022 Meta Power 29, triple butted, 12 x 148 mm (Boost)Fork:Fox Racing Shox 38 Factory e-bike, GRIP2, HSC, LSC, HSR, LSR, 44 mm advance, 3 tokens, oversized crown, 15 x 110 mm (Boost)Stem:Ride Alpha Freeride 40, 31.8 mmHandlebars:Ride Alpha R20 Power with 20 mm rise (S), Ride Alpha R27 Power with 27 mm rise (M-XL), 31.8 mm diameter, aluminium (6061), internal Di2 cable routingGrips:ODI Elite Motion, soft pro rubber compound, blackRear Shock:Fox Racing Shox Float X Factory, 230 x 65 mm, HSC, LSC, HSR, LSR, 2-position adjustmentRemote System:noneHeadset:Acros ZS56/ZS66Seatpost:Fox Racing Shox Transfer Factory, 31.6 mm diameter, with Shimano SL-MT500 remote, stroke: 125 mm (S), 175 mm (M, L), 200 mm (XL)Saddle:Fizik Terra Aidon X3, Kium Mobius railsCrank:Shimano FC-M8150, 160 mmPedals:Ride Alpha CNCBrakes:Shimano XT, 4 pistons, compatible with I-Spec EV, with brake rotors Shimano SM-RT66, 220 mm, 6-bolt, bolt-on magnetShift Lever:Shimano XT, 12-speedRear Derailleur:Shimano XT, 12-speedCassette:Shimano XT, 10-51 toothChain:Shimano XT, 12-speedRims:DT Swiss HX1700 SPLINE, 28 holes, 30 mm jaw width, weldedSpokes:DT Swiss Hybrid 1, straight pull, 2.34 – 1.8 – 2.0 mm, double butted, stainless steel, Pro Lock, blackFront Hub:DT Swiss 350, 28-bolt, sealed bearingsRear Hub:DT Swiss 350, 28 holes, sealed bearings, e-bike specificFront Tyre:Schwalbe Magic Mary, 29 x 2.4″ , Super Trail, ADDIX Soft, Tubeless EasyRear Tyre:Schwalbe Big Betty, 27.5×2.4″ , Super Trail, ADDIX Soft, Tubeless EasyApproved For:Rotor Size (max.):220 mm (rear)Tyre Size (max.):65-584 (rear)Chainrings:1xFork Axle to Crown Size (max.):593 mmFeatures:enduro e-bike with Fox suspension elements and Shimano XT components29″ front wheel for smooth running27.5″ rear wheel for responsive handlingpowerful motor with high torqueflip chip for adjustable positioning of the rockerLCD colour display showing time, assist mode, battery status, speed, top speed, average speed, distance travelled, ride duration, estimated range, cadence, also with calorie settings, maintenance alarm and possible Bluetooth LE connectionwith Ride Alpha EP8 chain guideGeometry:(based on a fork axle to crown length of 586 mm)
S:
Recommended Height:158 – 170 cmStack:634 mm (low), 631 mm (high)Reach:436 mm (low), 440 mm (high)Seat Tube Length:390 mmEffective Top Tube Length:577 mm (low), 576 mm (high)Head Tube Length:120 mmChainstay Length:446 mm (low), 445 mm (high)Wheelbase:1242 mm (low), 1241 mm (high)BB Drop:-1.5 mm (low), +4 mm (high)Seat Tube Angle:77.6° (low), 78° (high)Head Tube Angle:63.6° (low), 64° (high)Stem Length:40 mmHandlebar Width:760 mmCrank Arm Length:160.0 mm
M:
Recommended Height:168 – 180 cmStack:639 mm (low), 636 mm (high)Reach:456 mm (low), 460 mm (high)Seat Tube Length:440 mmEffective Top Tube Length:598 mm (low), 597 mm (high)Head Tube Length:125 mmChainstay Length:446 mm (low), 445 mm (high)Wheelbase:1264 mm (low), 1263 mm (high)BB Drop:-1.5 mm (low), +4 mm (high)Seat Tube Angle:77.6° (low), 78° (high)Head Tube Angle:63.6° (low), 64° (high)Stem Length:40 mmHandlebar Width:780 mmCrank Arm Length:160.0 mm
L:
Recommended Height:178 – 190 cmStack:643 mm (low), 640 mm (high)Reach:481 mm (low), 485 mm (high)Seat Tube Length:465 mmEffective Top Tube Length:627 mm (low), 626 mm (high)Head Tube Length:130 mmChainstay Length:446 mm (low), 445 mm (high)Wheelbase:1288 mm (low), 1287 mm (high)BB Drop:-1.5 mm (low), +4 mm (high)Seat Tube Angle:77.6° (low), 78° (high)Head Tube Angle:63.6° (low), 64° (high)Stem Length:40 mm
