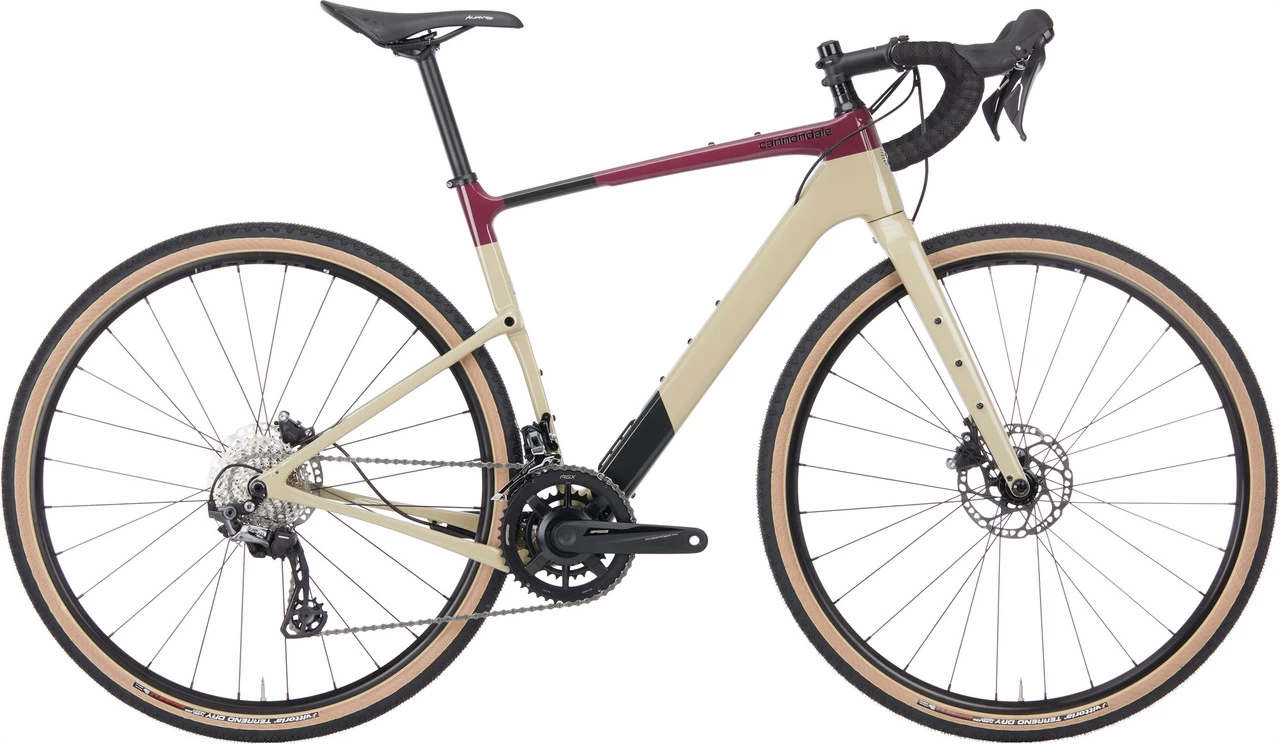

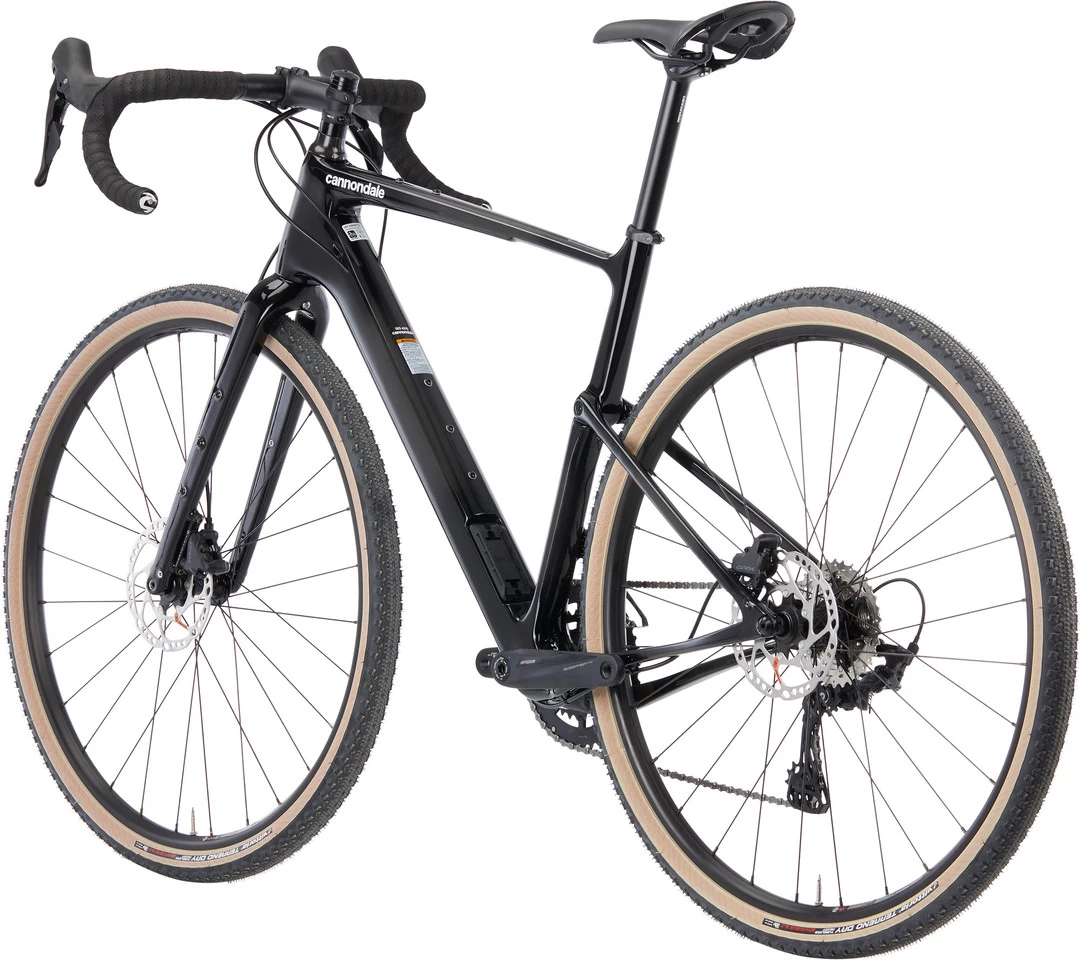

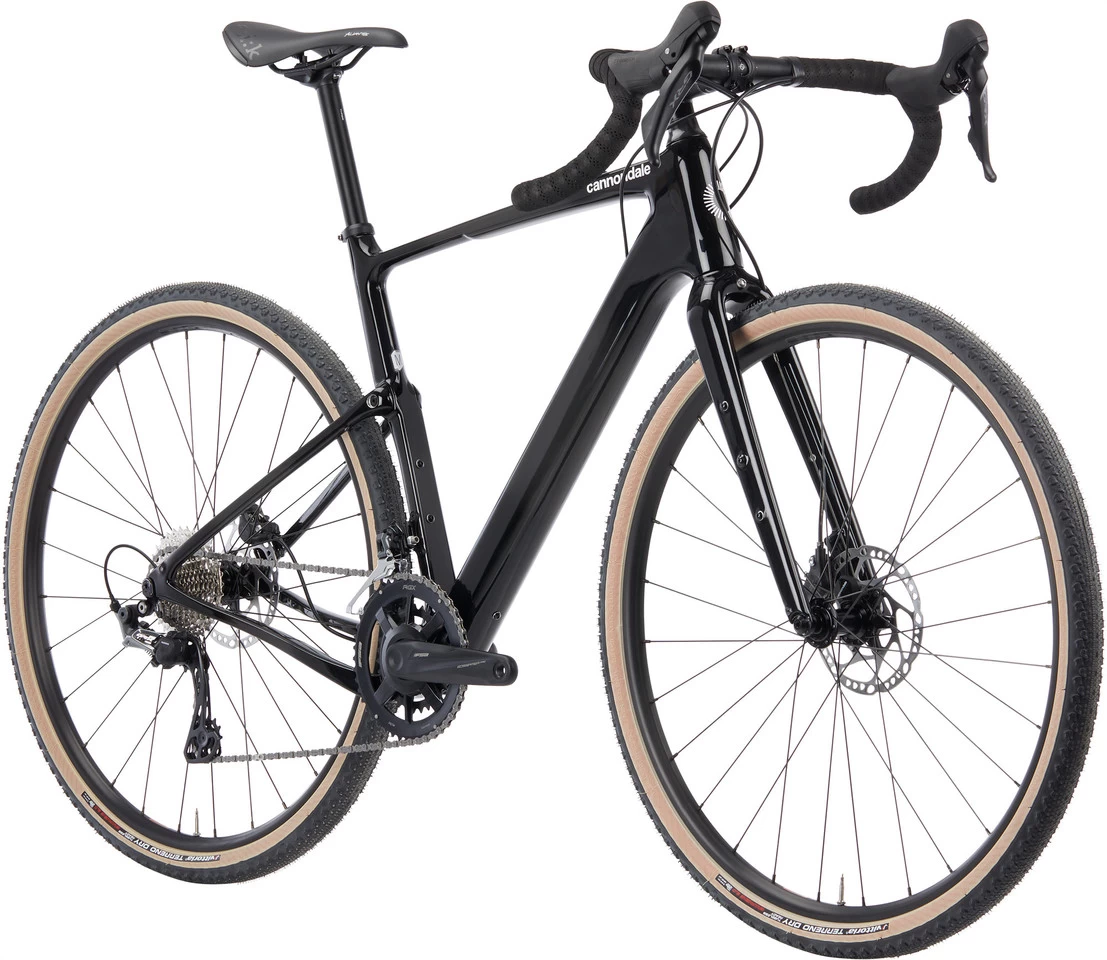

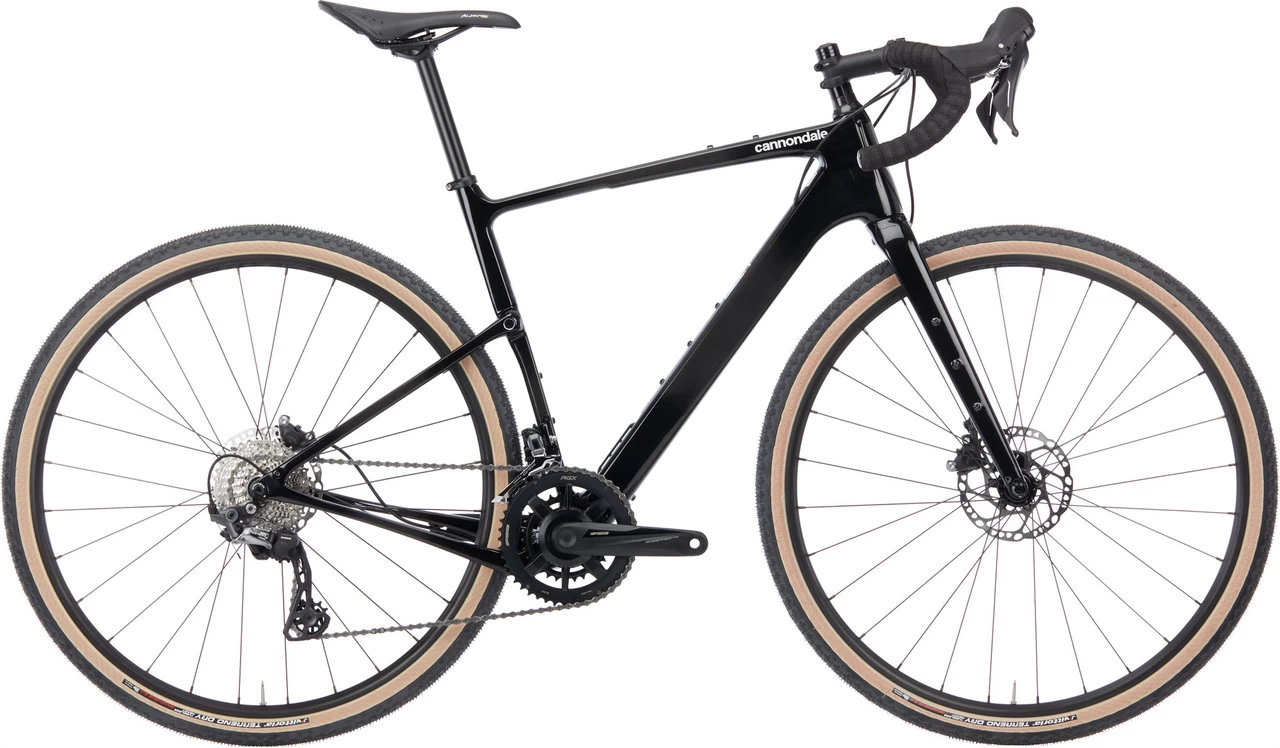

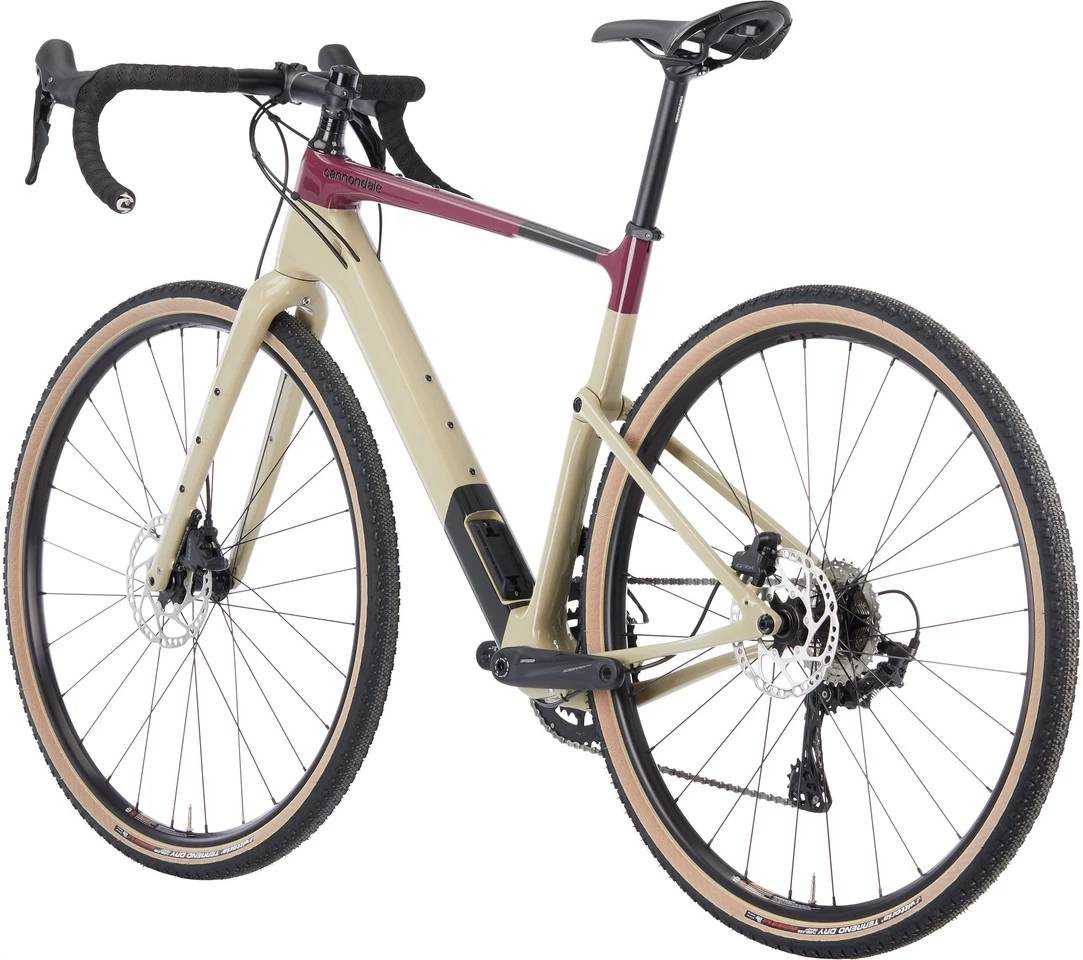

Cannondale Topstone Carbon 3 28″ Gravel Bike

The Topstone Carbon 3 28″ Gravel Bike by Cannondale bike with rear suspension without shocks
The Cannondale Topstone Carbon 3 28″ is a gravel bike with carbon fork, innovative Kingpin suspension and Shimano GRX 2×11-speed drivetrain. The geometry, which has been adjusted separately for each frame size, is designed for stability on challenging surfaces and dynamic steering behaviour. With Kingpin, you benefit from up to 30 mm of rear travel on bumpy trails, without the need for heavy, high-maintenance shocks. The wheel sensor allows you to track your speed and connect your bike to the Cannondale app. It is SmartSense compatible and can be supplemented with the connected lighting and radar system. Equipped with numerous mounts for luggage and accessories (even on the fork) as well as a high degree of tyre clearance, the Topstone will make you want to veer off the beaten track and set off on an adventure.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here.

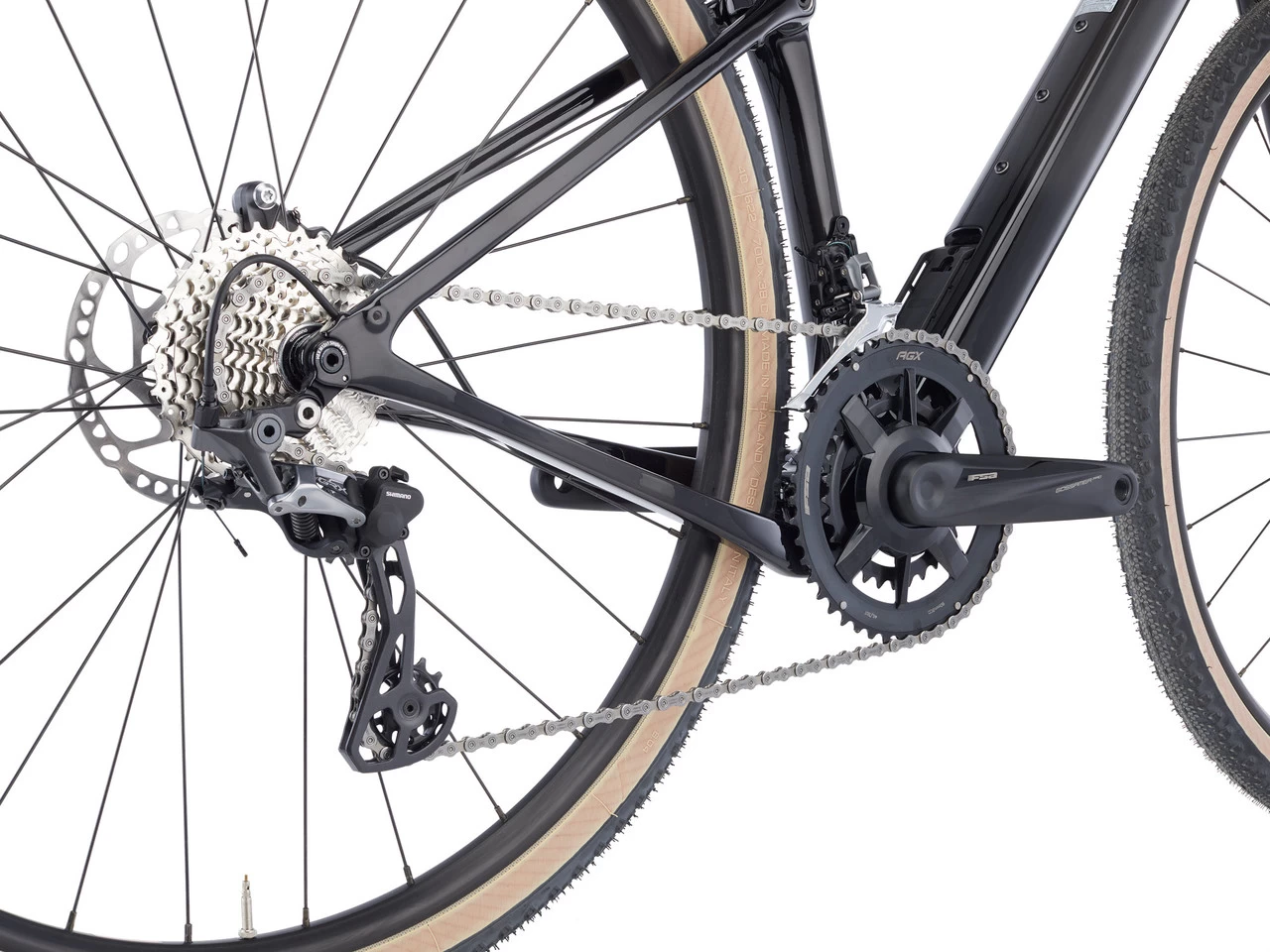

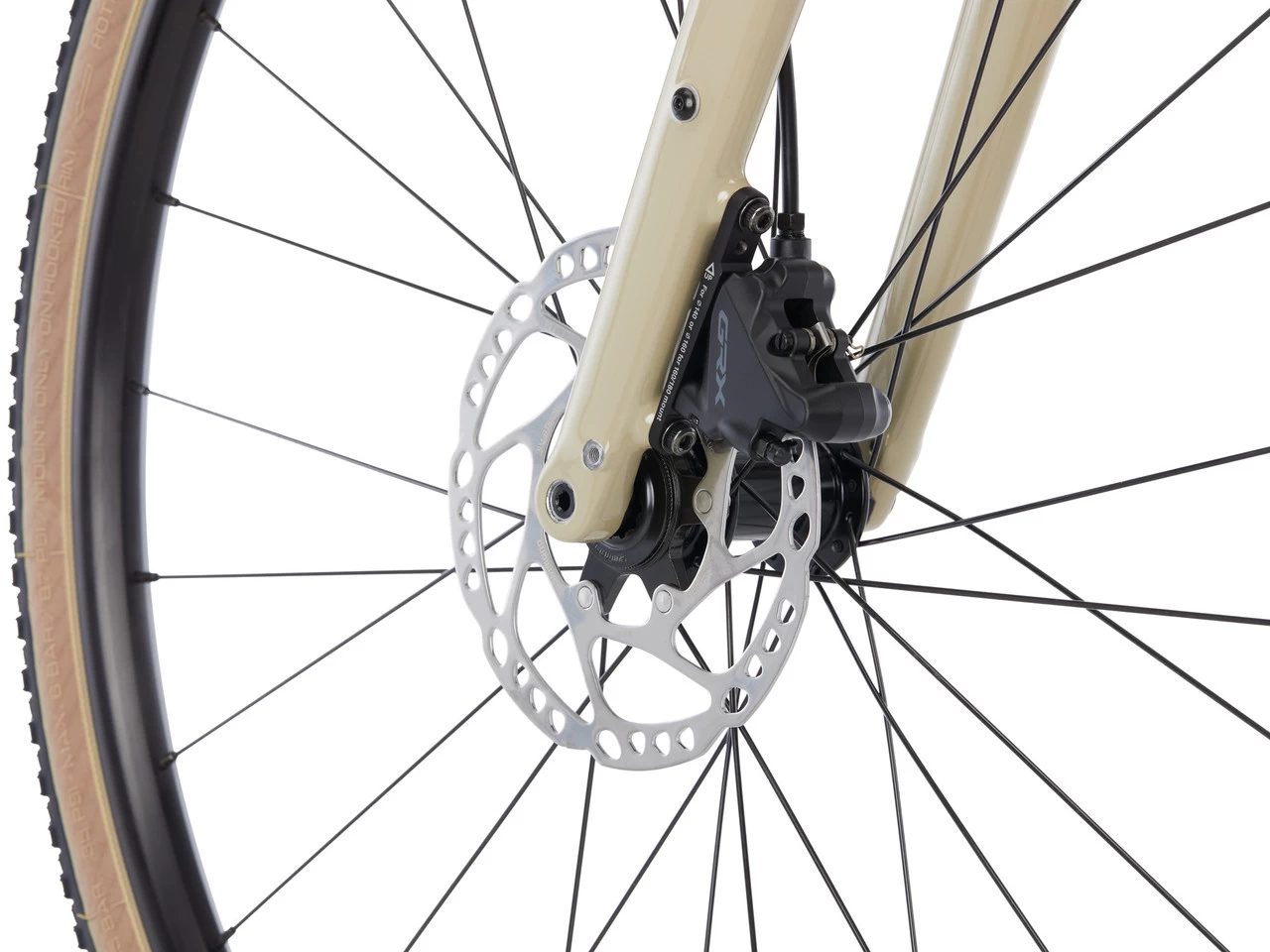

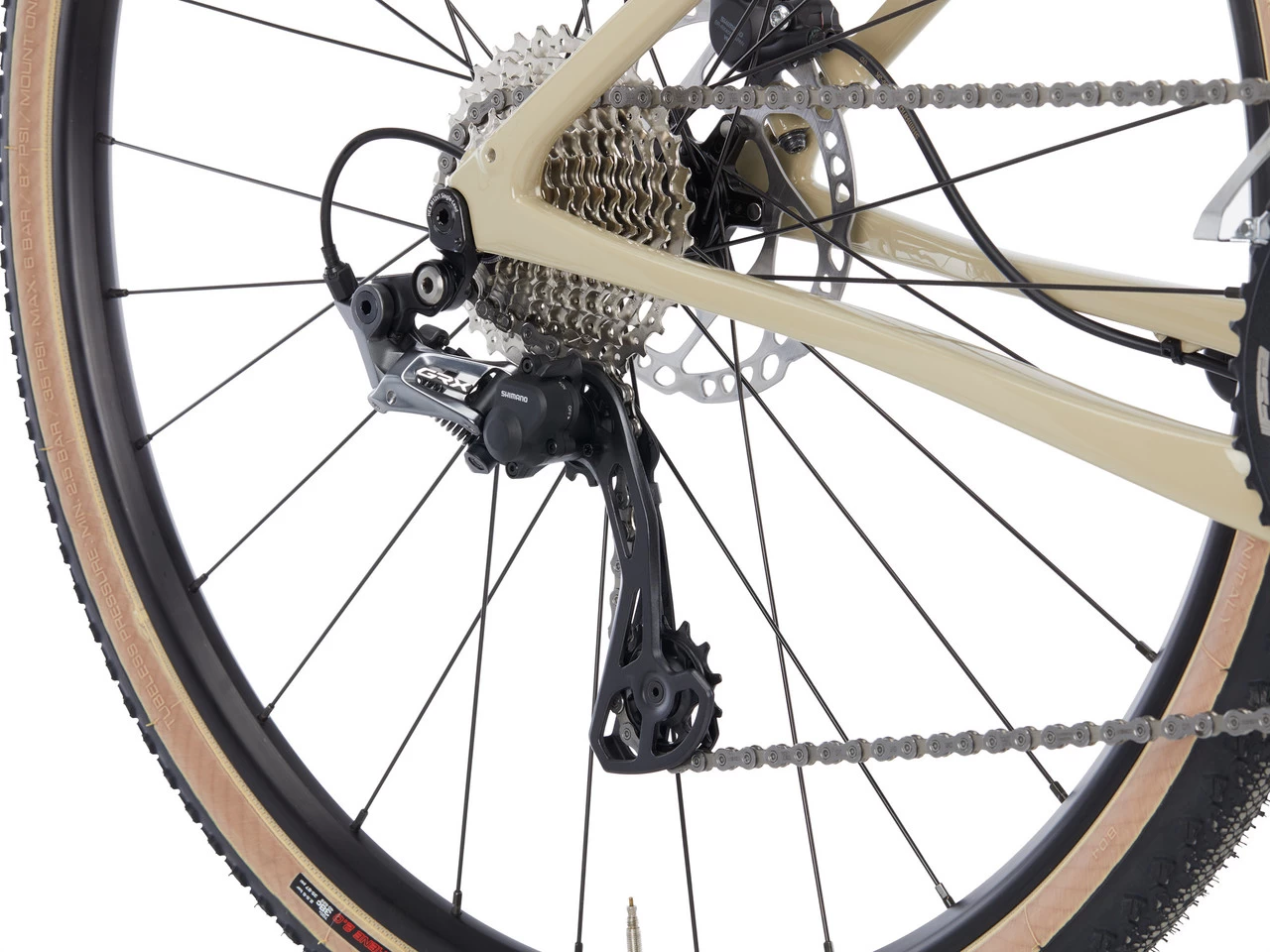

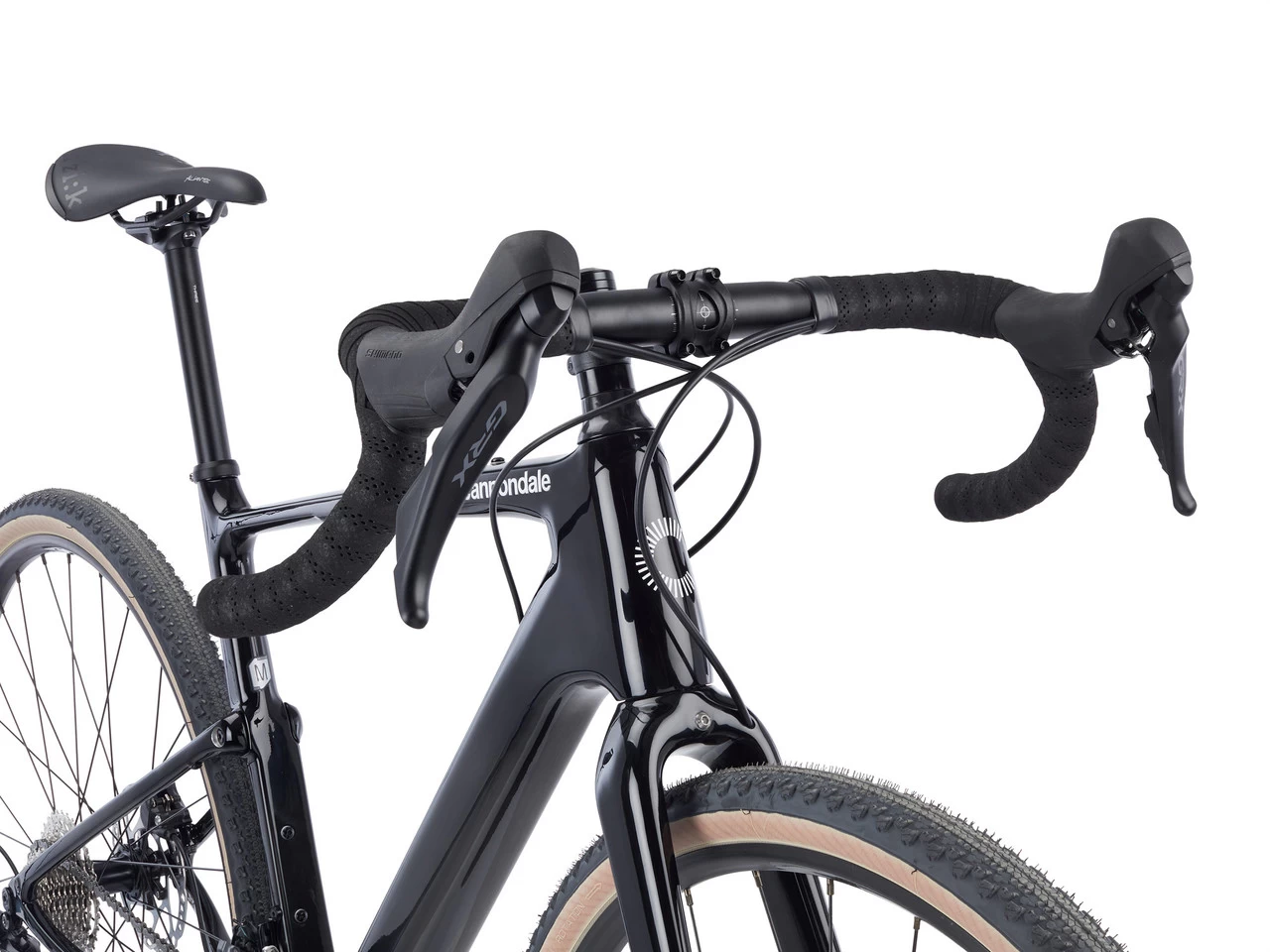

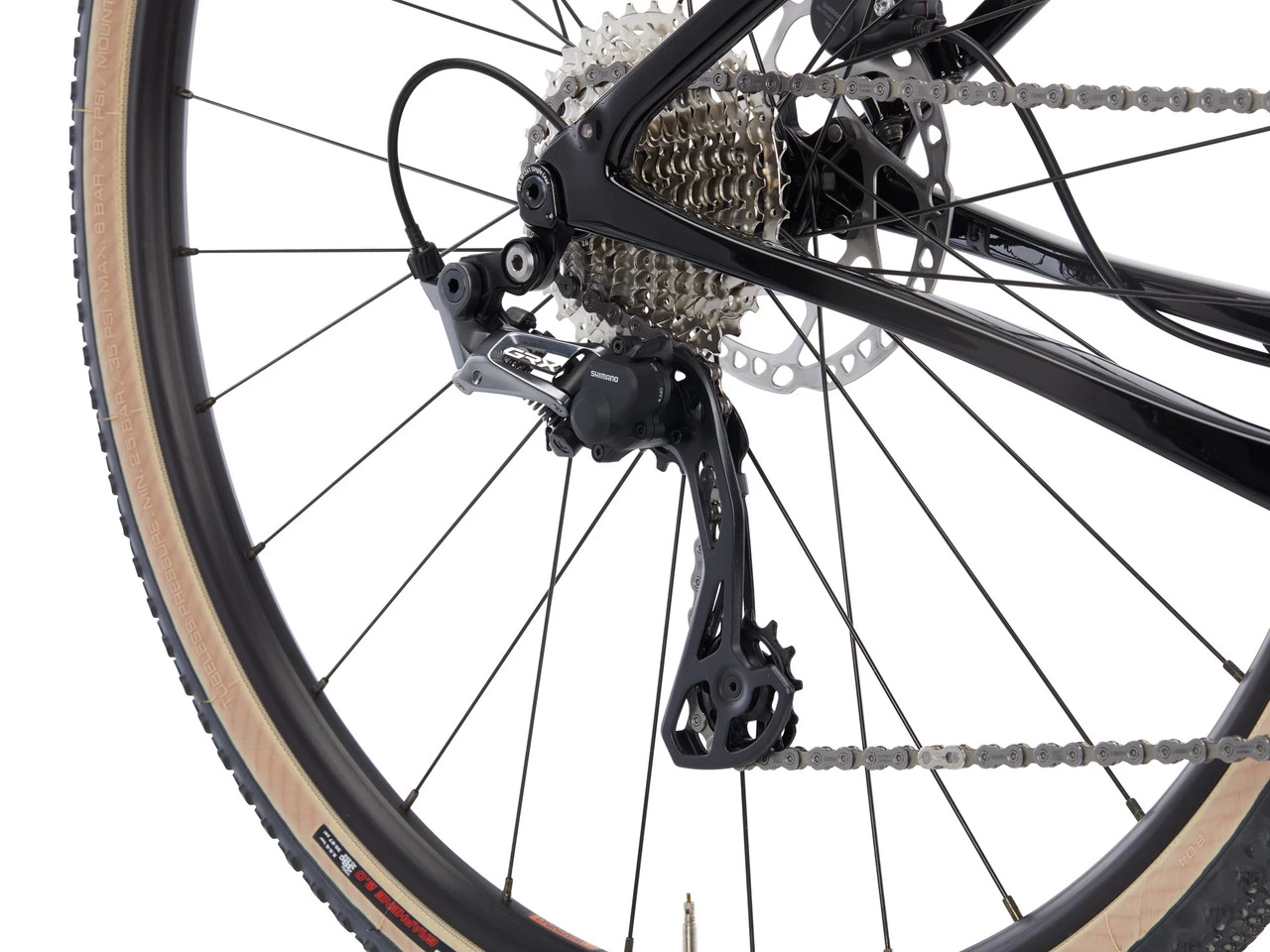

Specifications:Application:GravelWheel Size:28″Sizes:XS, S, M, L, XLFrame Material:CarbonFork Material:CarbonComponents:Frame:Cannondale Topstone Carbon, Kingpin suspension, SmartSense compatible, 12 x 142 mm, DirectLine internal cable routingFork:Cannondale Topstone Carbon, 55 mm OutFront offset, flat mount, internal cable routing, 12 x 100 mm, fender and threaded screw mountsStem:Cannondale 3, 6061 aluminium, 31.8 mm, 7°Handlebars:Cannondale 3, 6061 aluminium, 16° flareHeadset:Integrated, 1 1/8″ – 1.5″Seatpost:Cannondale 3, 6061 aluminium, 27.2 mm, 350 mmSaddle:Fizik Aliante Delta, S-Alloy railsCrank:FSA Gossamer, 46-30 TPedals:noneBrakes:Shimano GRX 600 hydraulic, RT64 brake rotors, 160 mm (front / rear)Shift Lever:Shimano GRX 600, 2×11-speedRear Derailleur:Shimano GRX 810, Shadow RD+, 11-speedFront Derailleur:Shimano GRX 800, braze-on, 2-speedCassette:Shimano HG700, 11-34 tooth, 11-speedChain:Shimano HG601, 11-speedWheels:WTB ST i23 TCS, 28 holes, tubeless ready, with Formula Cartridge Bearing CL hubsTyres:Vittoria Terreno Dry, 40-622Approved For:Weight Limit:138 kg (rider + gear)Rotor Size (max.):160 mmTyre Size (max.):700 x 45c, 27.5 x 2.1″Chainrings:2xFeatures:Proportional Response geometry concept: chainstay lengths, frame design and damping behaviour are matched to frame sizeOutFront geometry with long fork offset for stability and confidence in difficult terrain with agile handling at the same timewith minimalist Kingpin rear suspensionhigh tyre clearance due to low-set chainstaysStrap Rack Tool Carrier on the down tube for direct mounting of small items of equipment, e.g. a spare tube or the SmartSense battery (not included)space for accessories on threaded screw mounts on seat, down and top tube as well as on the forkcompatible with SmartSense equipment such as lights or radar to increase visibility and safety as an integrated system (not included)integrated ANT+/Bluetooth wheel sensor for tracking speed and distance travelled, can be paired with Cannondale app, operates with 1 x CR2032 batterysuitable for fenders and mudguardssuitable for lowerable seatposts with internal cable routingTechnology:Kingpin
Kingpin is a minimalist suspension system without shocks, based on a pivot point between the saddle rail and seat tube and flexible areas on the top tube, seat tube and chainstays. It allows you up to 30 mm of suspension travel and thus significantly increases comfort on gravel paths.
Geometry:XS:
Recommended Height:152 cm – 165 cmStack:534 mmReach:371 mmSeat Tube Length:410 mmTop Tube Length:533 mmHead Tube Length:105 mmChainstay Length:420 mmWheelbase:1010 mmBottom Bracket Height:278 mmBB Drop:74 mmSeat Tube Angle:73.1°Head Tube Angle:70°Standover Height:704 mmStem Length:80 mmHandlebar Width:420 mmCrank Arm Length:165 mm
S:
Recommended Height:162 cm – 175 cmStack:551 mmReach:377 mmSeat Tube Length:458 mmTop Tube Length:544 mmHead Tube Length:123 mmChainstay Length:420 mmWheelbase:1013 mmBottom Bracket Height:283 mmBB Drop:69 mmSeat Tube Angle:73.1°Head Tube Angle:71.2°Standover Height:745 mmStem Length:80 mmHandlebar Width:420 mmCrank Arm Length:170 mm
M:
Recommended Height:170 cm – 185 cmStack:574 mmReach:383 mmSeat Tube Length:505 mmTop Tube Length:557 mmHead Tube Length:150 mmChainstay Length:420 mmWheelbase:1029 mmBottom Bracket Height:285 mmBB Drop:67 mmSeat Tube Angle:73.1°Head Tube Angle:71.2°Standover Height:785 mmStem Length:90 mmHandlebar Width:440 mmCrank Arm Length:172.5 mm
L:
Recommended Height:180 cm – 193 cmStack:600 mmReach:390 mmSeat Tube Length:553 mmTop Tube Length:572 mmHead Tube Length:177 mmChainstay Length:420 mmWheelbase:1044 mmBottom Bracket Height:285 mmBB Drop:67 mmSeat Tube Angle:73.1°Head Tube Angle:71.2°Standover Height:823 mmStem Length:100 mmHandlebar Width:460 mmCrank Arm Length:172.5 mm
XL:
Recommended Height:190 cm – 203 cmStack:624 mmReach:397 mmSeat Tube Length:590 mmTop Tube Length:587
