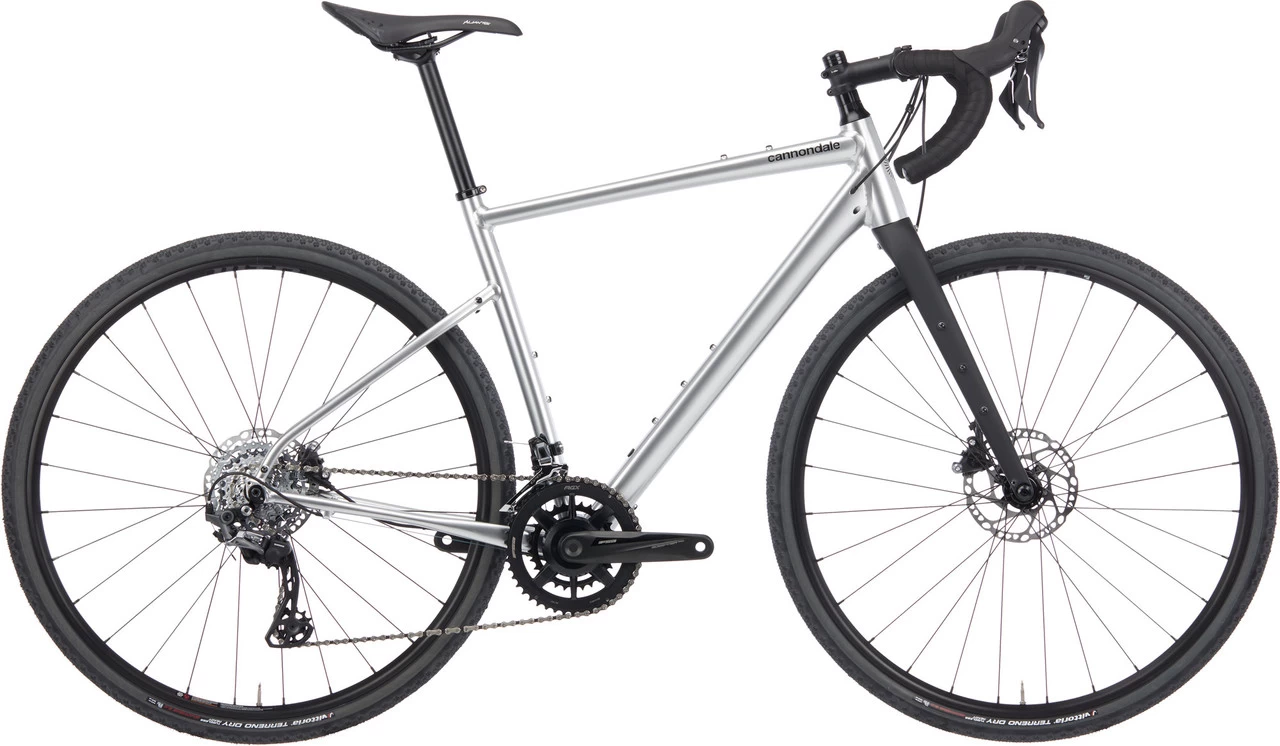

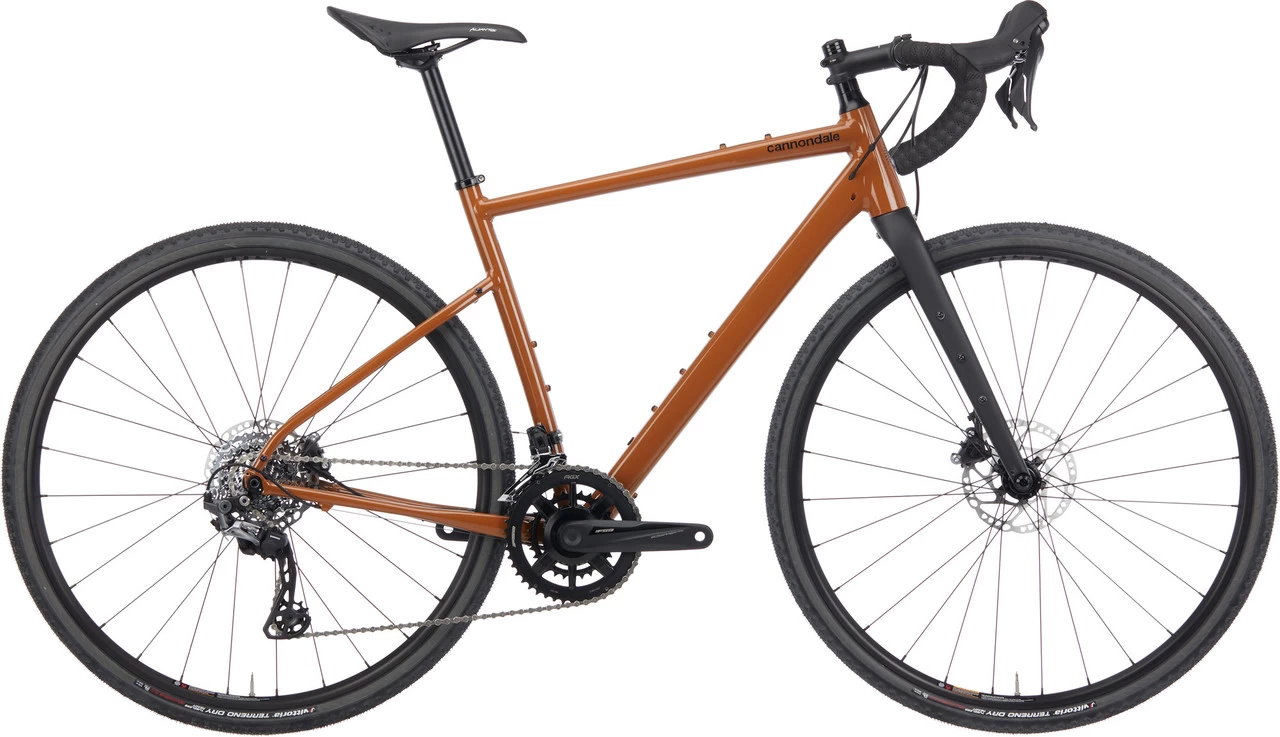

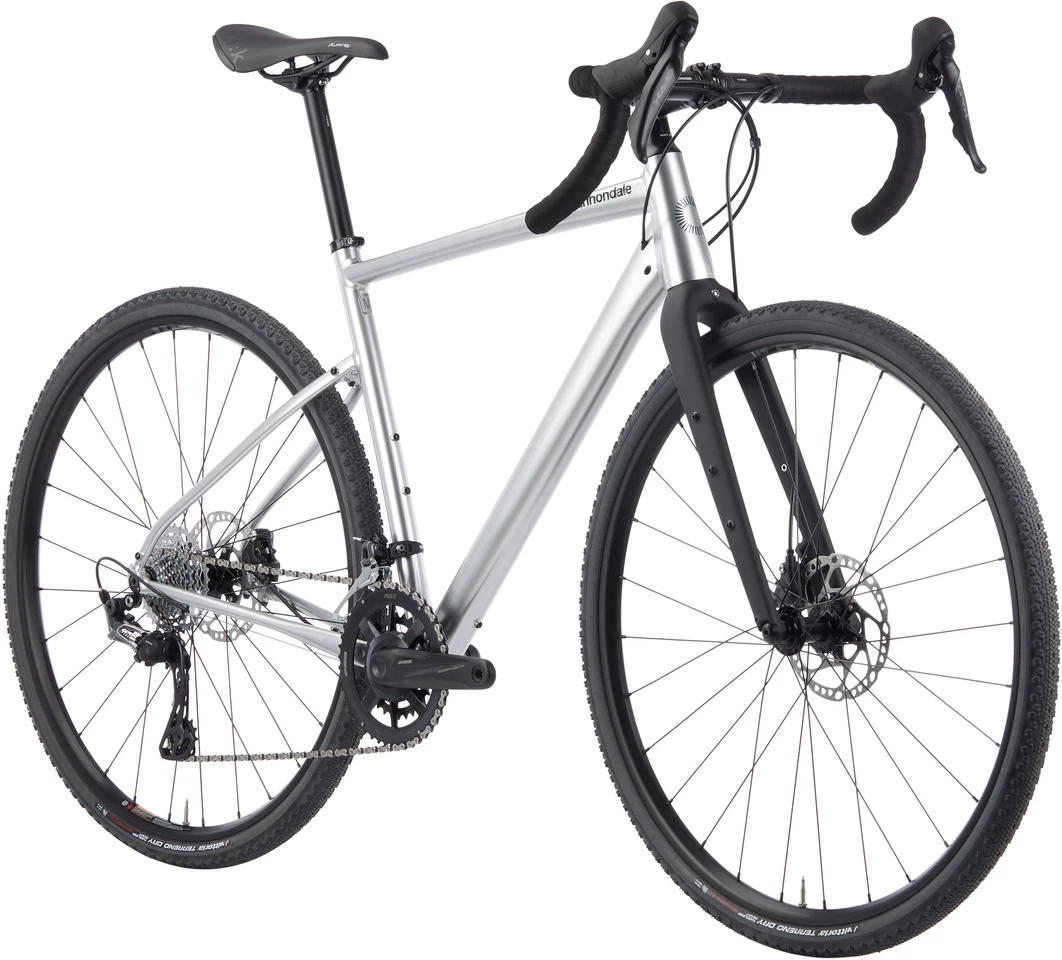

Cannondale Topstone 1 28″ Gravel Bike – 2022 Model

The Topstone 1 28″ Aluminium Gravel Bike by Cannondale with Shimano GRX

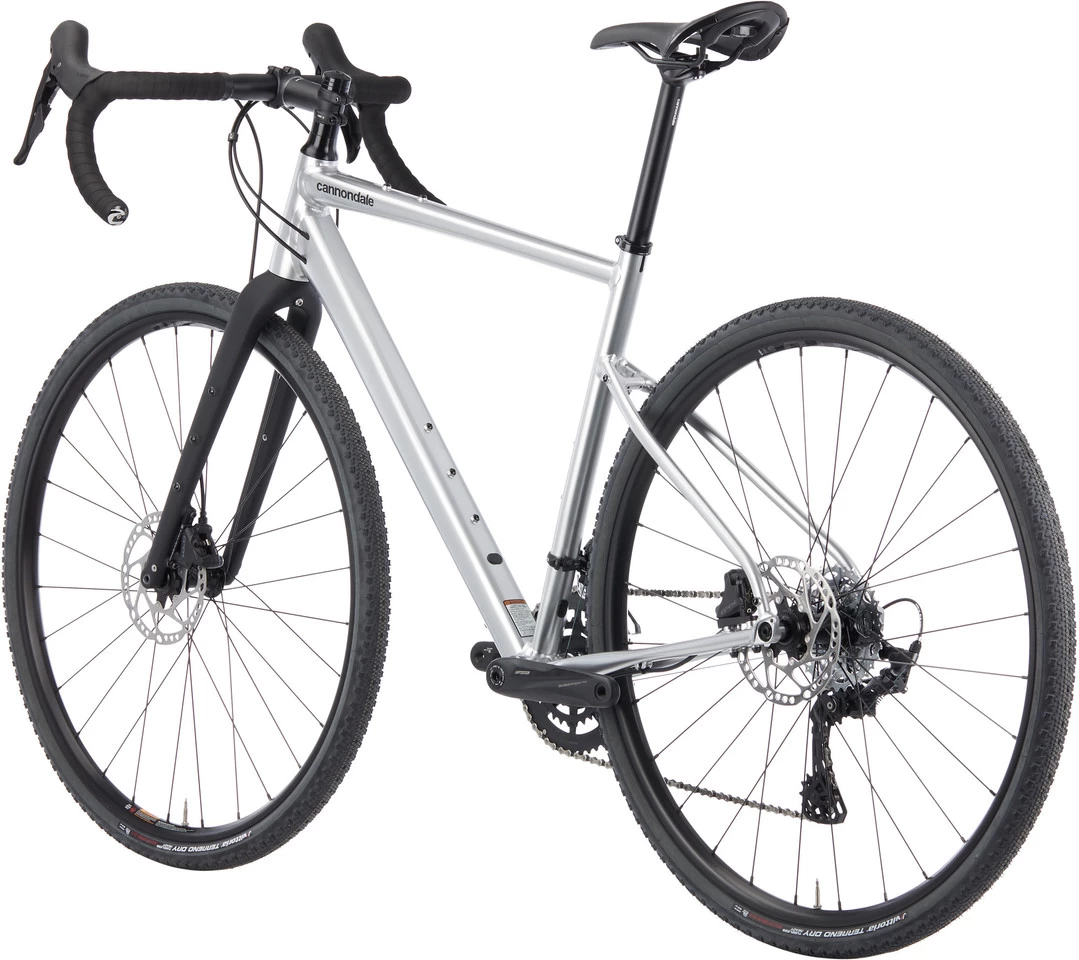

The Cannondale Topstone 1 28″ is a gravel bike with carbon fork, FSA crank and Shimano GRX 2×11-speed drivetrain that stands out with its comfortable, lively handling. The SmartForm C2 aluminium construction makes it light and robust. The geometry is designed for stability on challenging surfaces and dynamic steering behaviour. Equipped with numerous mounts for luggage and accessories (even on the fork) as well as a high degree of tyre clearance, the Topstone will make you want to veer off the beaten track and set off on an adventure.

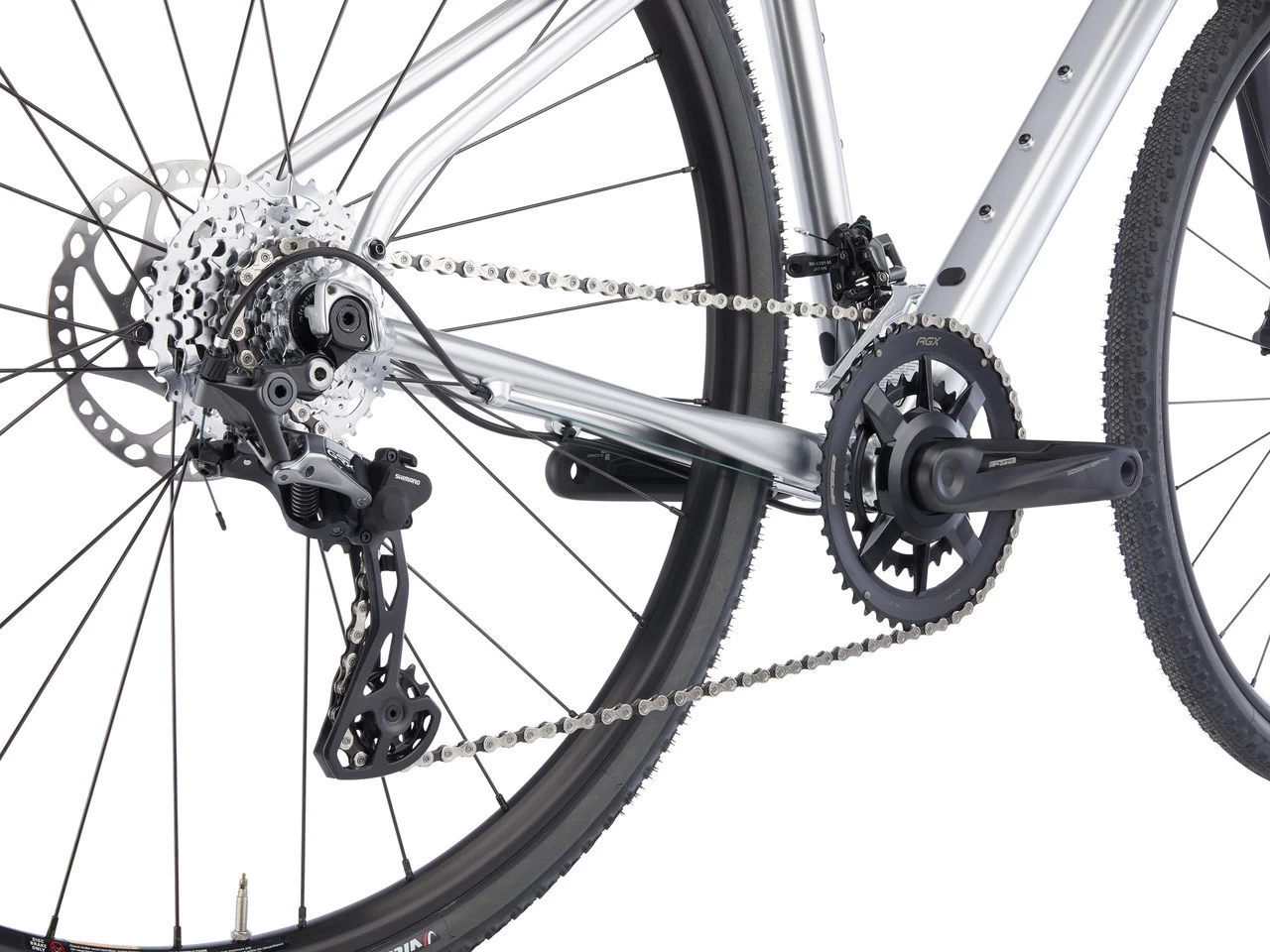

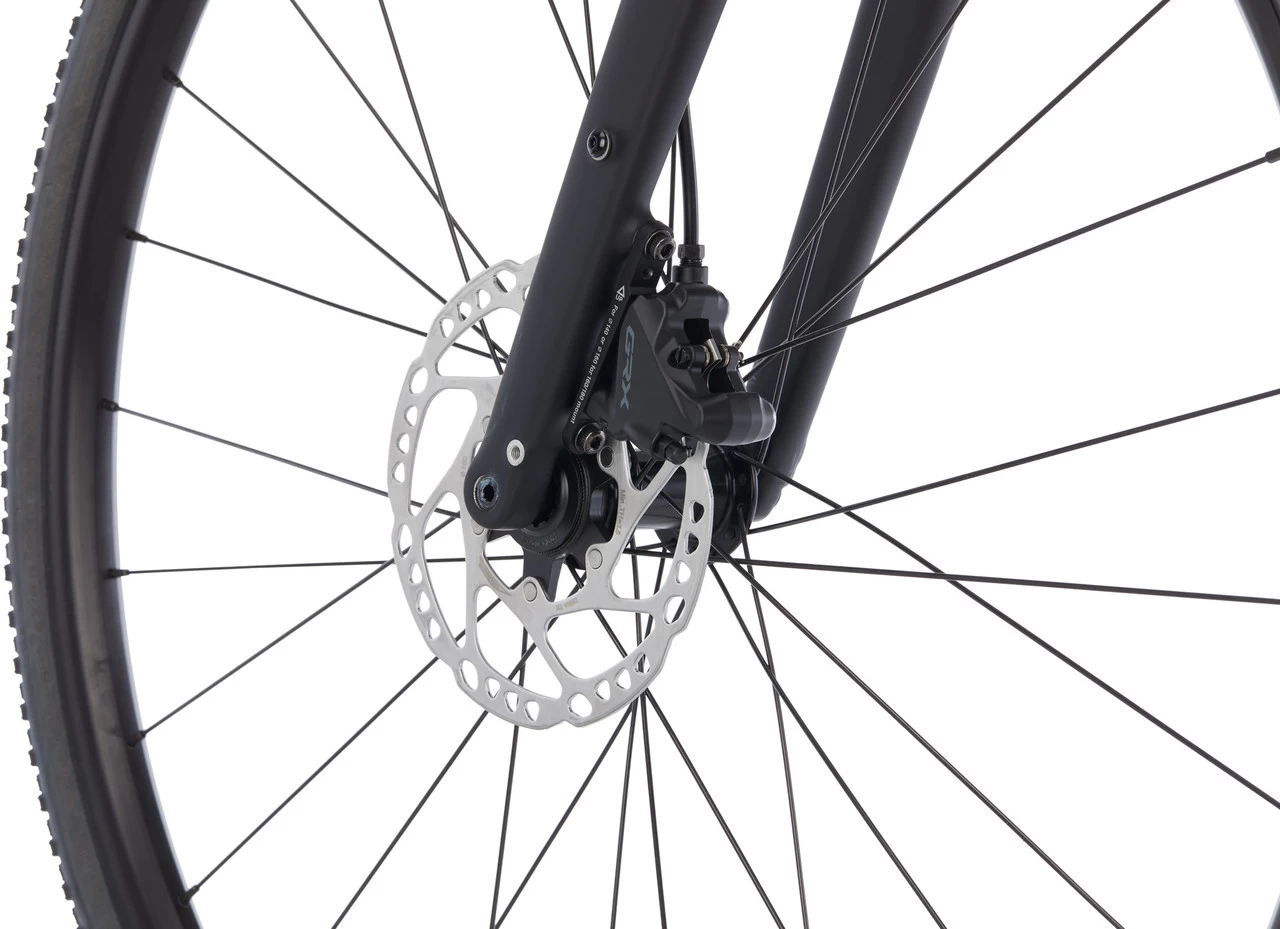

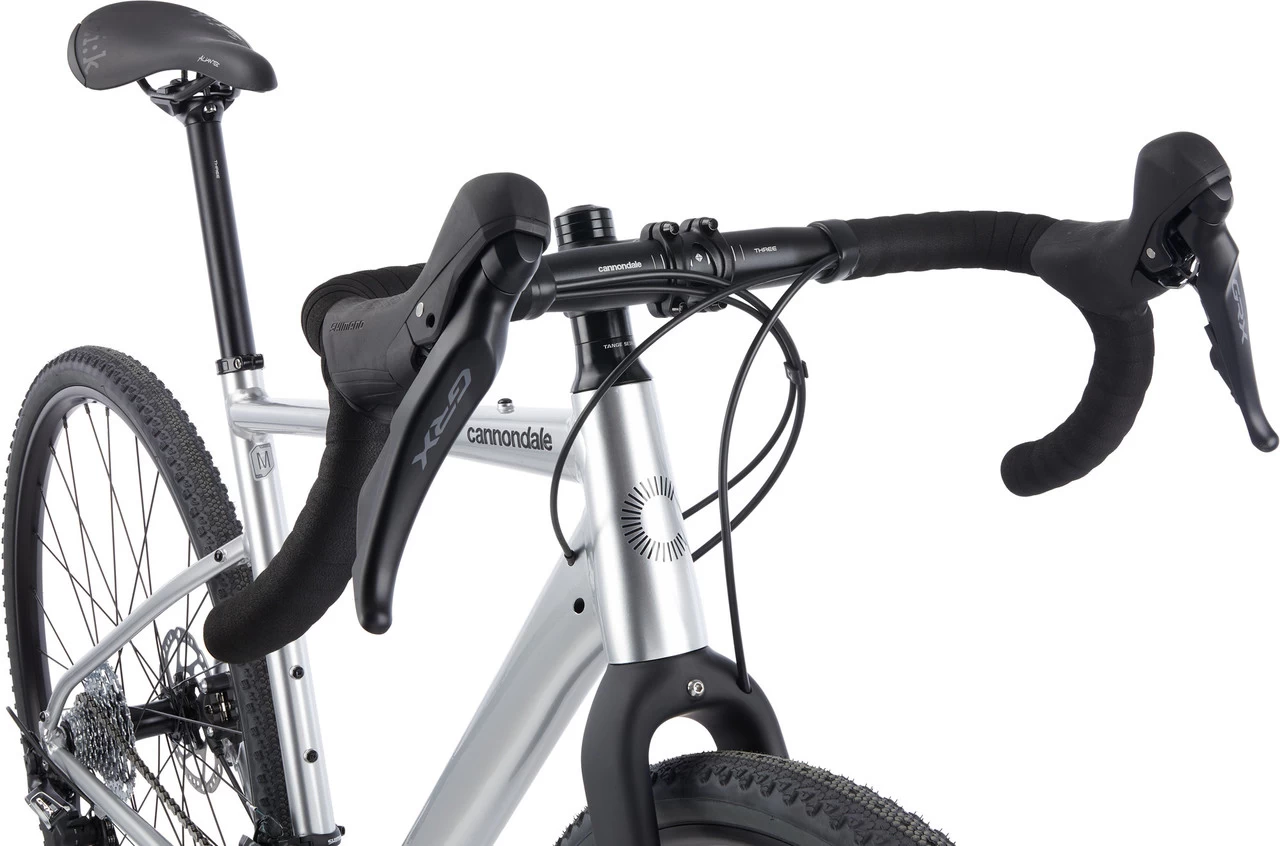

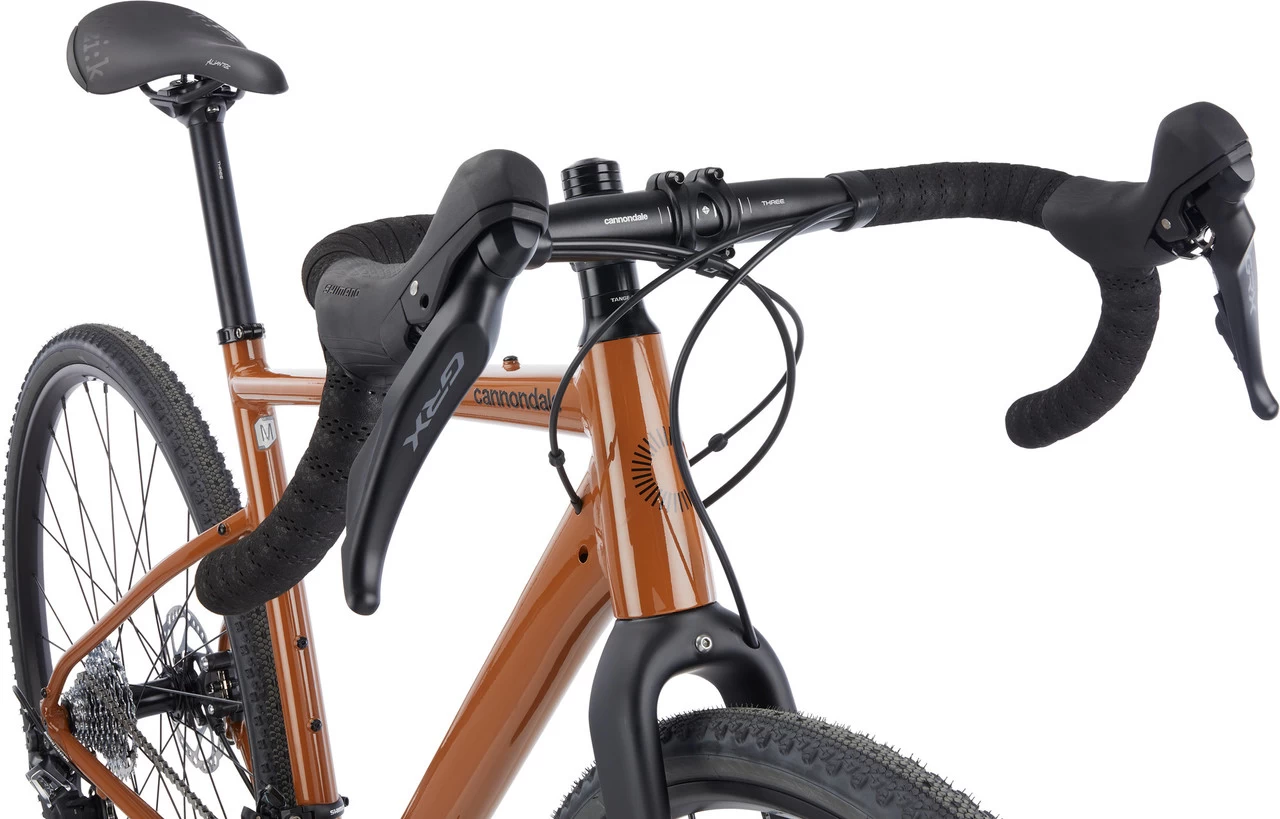

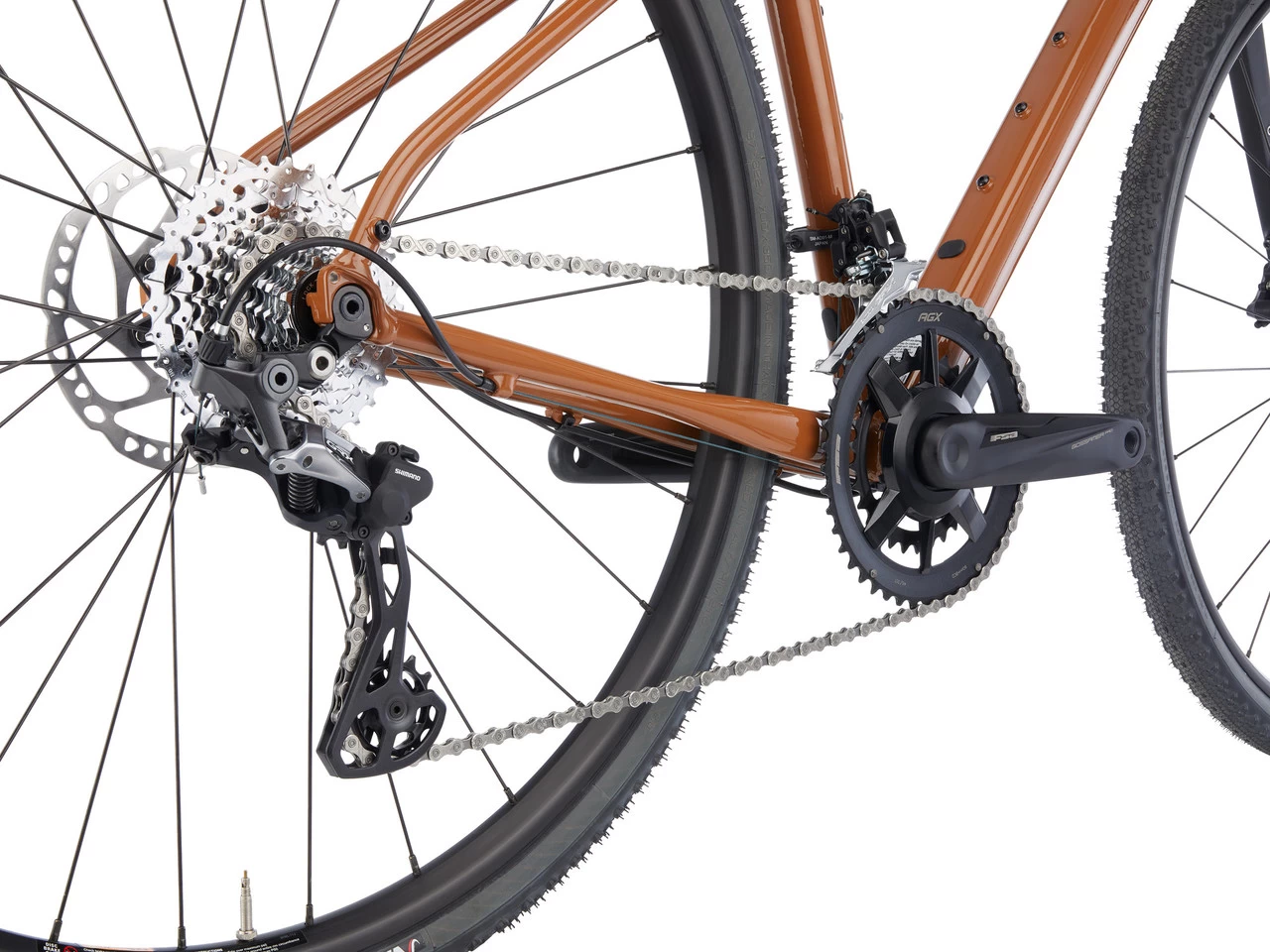

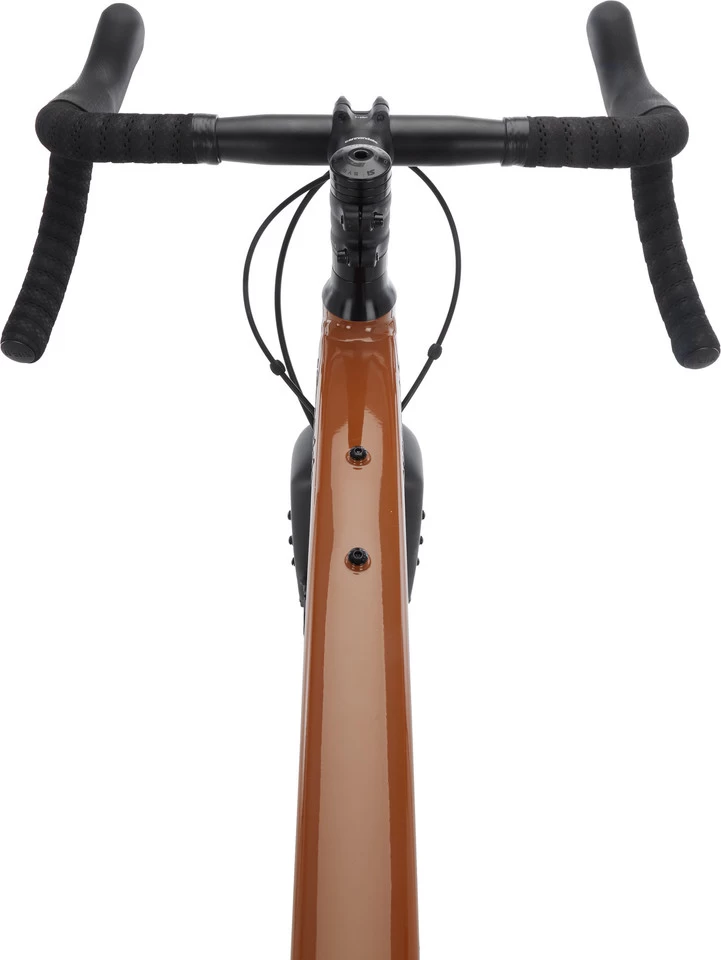

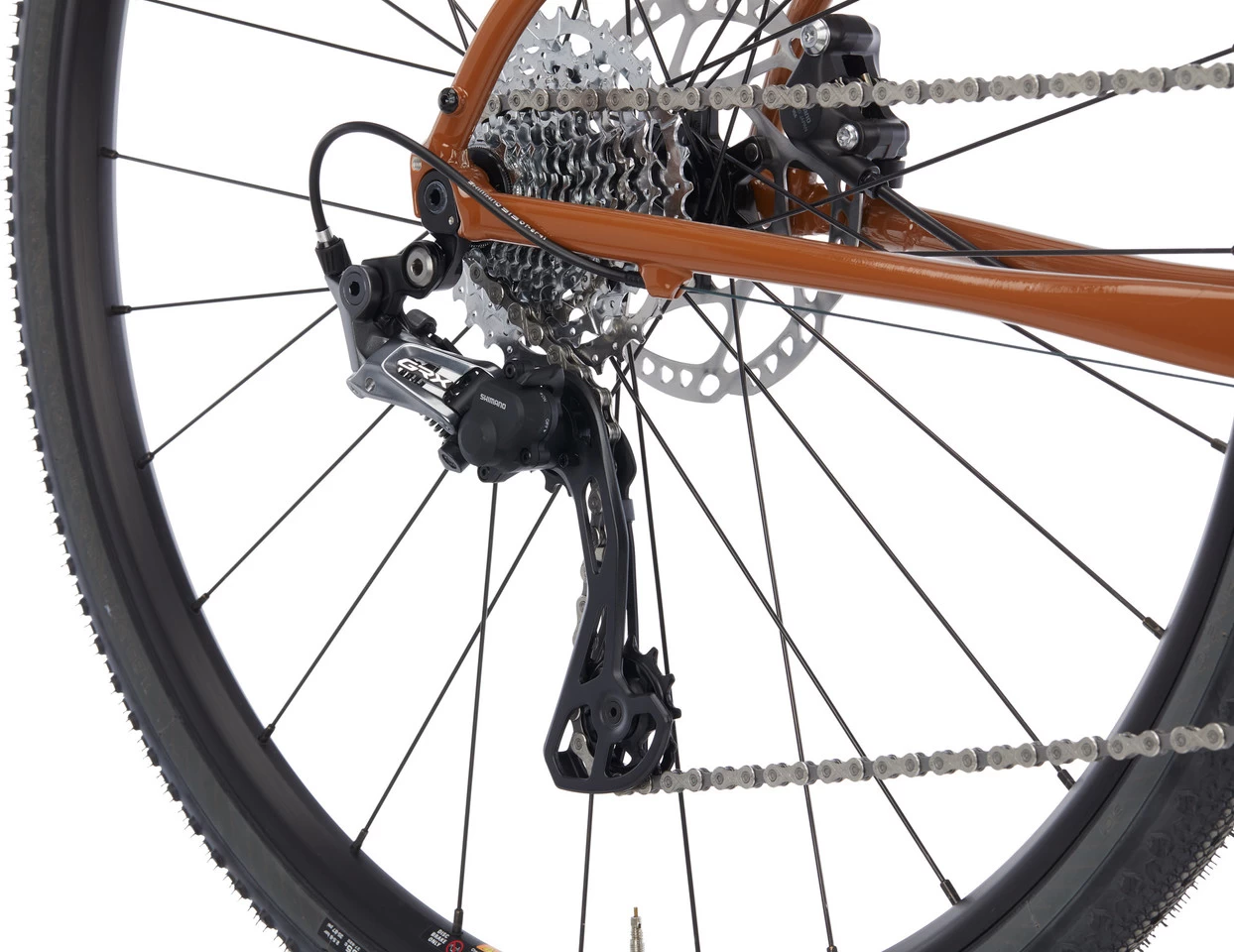

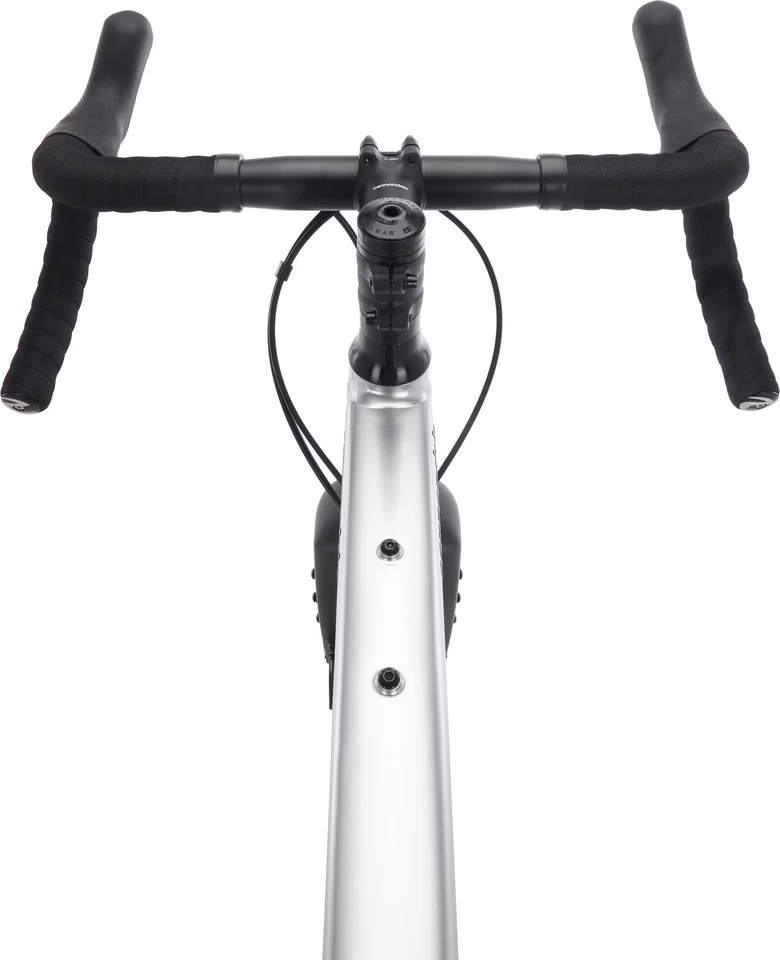

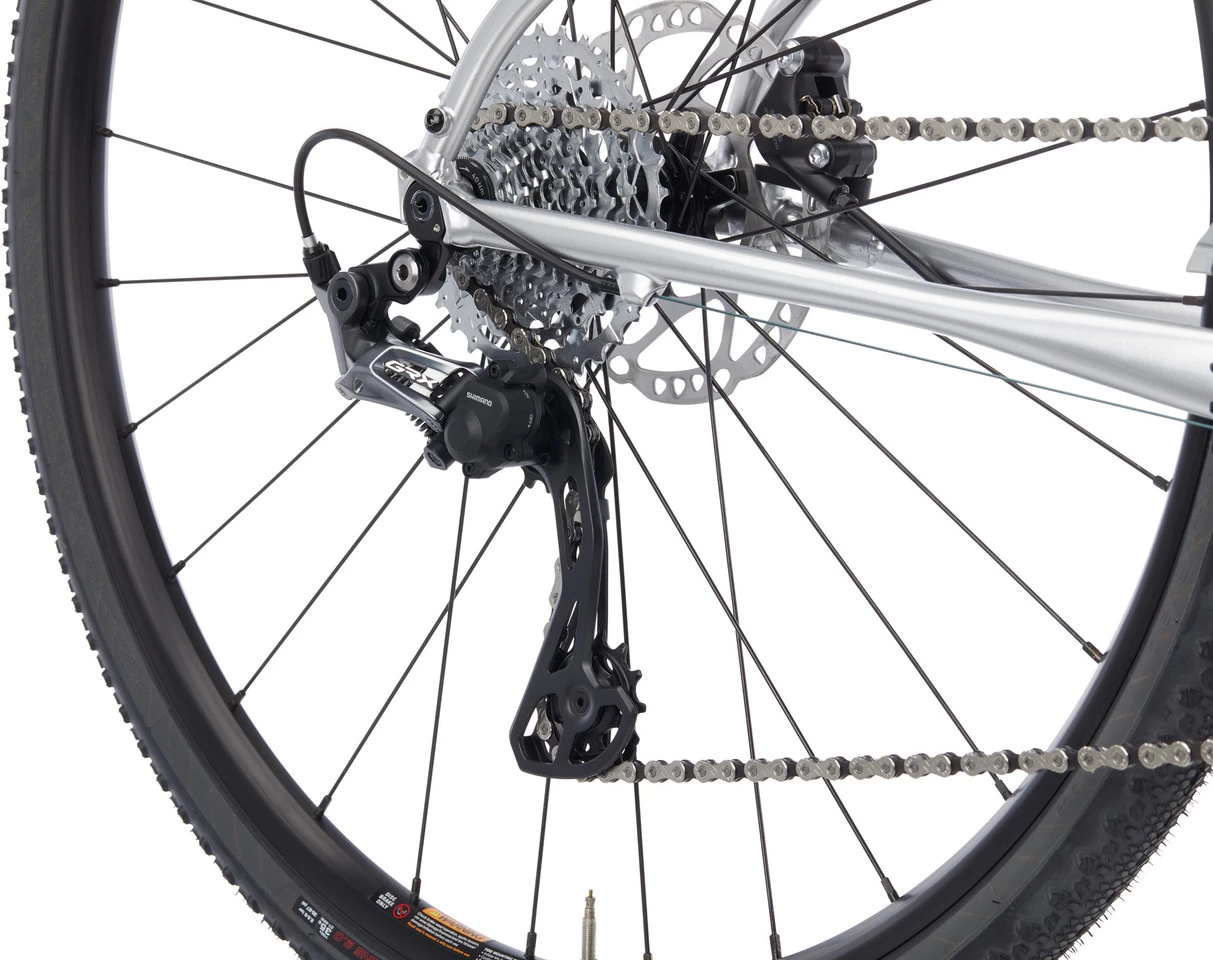

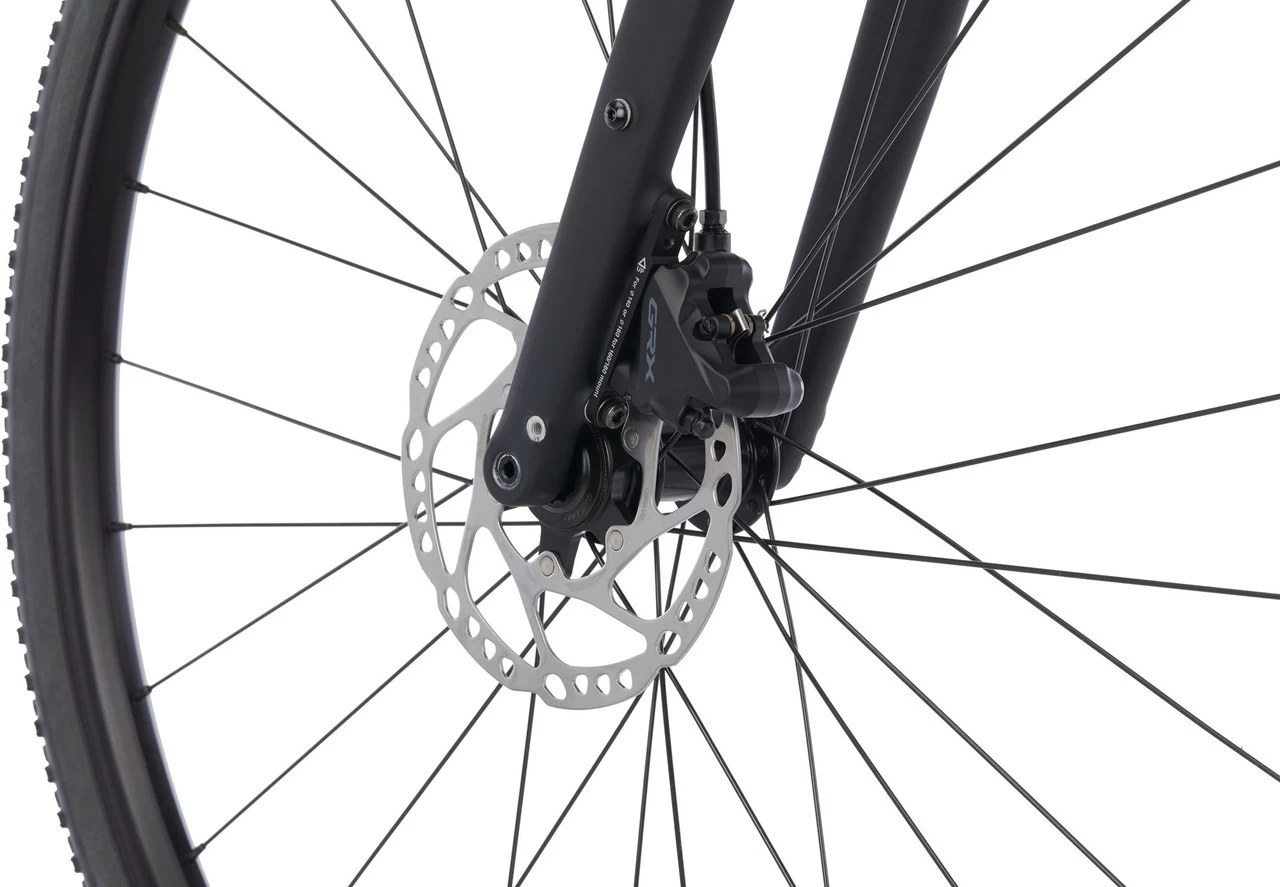

Specifications:Application:GravelWheel Size:28″Sizes:XS, S, M, L, XLFrame Material:AluminiumFork Material:CarbonComponents:Frame:Cannondale Lightweight SmartForm C2 aluminium, 12 x 142 mm, StraightShot internal cable routingFork:Cannondale Topstone Carbon, 55 mm OutFront offset, flat mount, internal cable routing, 12 x 100 mm, fender and threaded screw mountsStem:Cannondale 3, 6061 aluminium, 31.8 mm, 7°Handlebars:Cannondale 3, 6061 aluminium, 16° flareHeadset:Integrated, 1 1/8″ – 1.5″Seatpost:Cannondale 3, 6061 aluminium, 27.2 mm, 350 mmSaddle:Fizik Aliante Delta, S-Alloy railsCrank:FSA Gossamer Pro Modular AGX+, 30-46 TPedals:noneBrakes:Shimano GRX 400 hydraulic, RT54 brake rotors, 160 mm (front / rear)Shift Lever:Shimano GRX 600, 2×11-speedRear Derailleur:Shimano GRX 810, Shadow RD+, 11-speedFront Derailleur:Shimano GRX 800, 2-speedCassette:Shimano 105, 11-34 teeth, 11-speedChain:KMC X11, 11-speedWheels:WTB ST i23 TCS, 28 holes, tubeless ready, with Formula Cartridge Bearing CL hubsTyres:Vittoria Terreno Dry, 700 x 35c, tubeless readyApproved For:Weight Limit:138 kg (rider + gear)Rotor Size (max.):160 mmChainrings:2-speedFeatures:full carbon forkOutFront geometry with long fork offset for stability and confidence in difficult terrain with agile handling at the same timespace for accessories on threaded screw mounts on seat, down and top tube as well as on the forksuitable for lowerable seatposts with internal cable routingGeometry:XS:
Recommended Height:152 cm – 165 cmStack:518 mmReach:368 mmSeat Tube Length:410 mmTop Tube Length:525 mmHead Tube Length:86 mmChainstay Length:435 mmWheelbase:1016 mmBottom Bracket Height:280 mmBB Drop:75 mmSeat Tube Angle:71.8°Head Tube Angle:70°Standover Height:703 mmStem Length:80 mmHandlebar Width:400 mmCrank Arm Length:170 mm
S:
Recommended Height:162 cm – 175 cmStack:549 mmReach:377 mmSeat Tube Length:458 mmTop Tube Length:544 mmHead Tube Length:115 mmChainstay Length:435 mmWheelbase:1027 mmBottom Bracket Height:284 mmBB Drop:75 mmSeat Tube Angle:71.8°Head Tube Angle:71°Standover Height:744 mmStem Length:90 mmHandlebar Width:400 mmCrank Arm Length:170 mm
M:
Recommended Height:170 cm – 185 cmStack:579 mmReach:385 mmSeat Tube Length:505 mmTop Tube Length:561 mmHead Tube Length:147 mmChainstay Length:435 mmWheelbase:1045 mmBottom Bracket Height:284 mmBB Drop:75 mmSeat Tube Angle:71.8°Head Tube Angle:71°Standover Height:784 mmStem Length:90 mmHandlebar Width:420 mmCrank Arm Length:172.5 mm
L:
Recommended Height:180 cm – 193 cmStack:610 mmReach:394 mmSeat Tube Length:553 mmTop Tube Length:579 mmHead Tube Length:180 mmChainstay Length:435 mmWheelbase:1065 mmBottom Bracket Height:284 mmBB Drop:75 mmSeat Tube Angle:71.8°Head Tube Angle:71°Standover Height:824 mmStem Length:100 mmHandlebar Width:440 mmCrank Arm Length:175 mm
XL:
Recommended Height:190 cm – 203 cmStack:640 mmReach:402 mmSeat Tube Length:600 mmTop Tube Length:596 mmHead Tube Length:212 mmChainstay Length:435 mmWheelbase:1083 mmBottom Bracket Height:280 mmBB Drop:75 mmSeat Tube Angle:71.8°Head Tube Angle:71°Standover Height:864 mmStem Length:100 mmHandlebar Width:440 mmCrank Arm Length:175 mmManufacturer Number:C15602U
Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x Cannondale Topstone 1 28″ Gravel Bike
