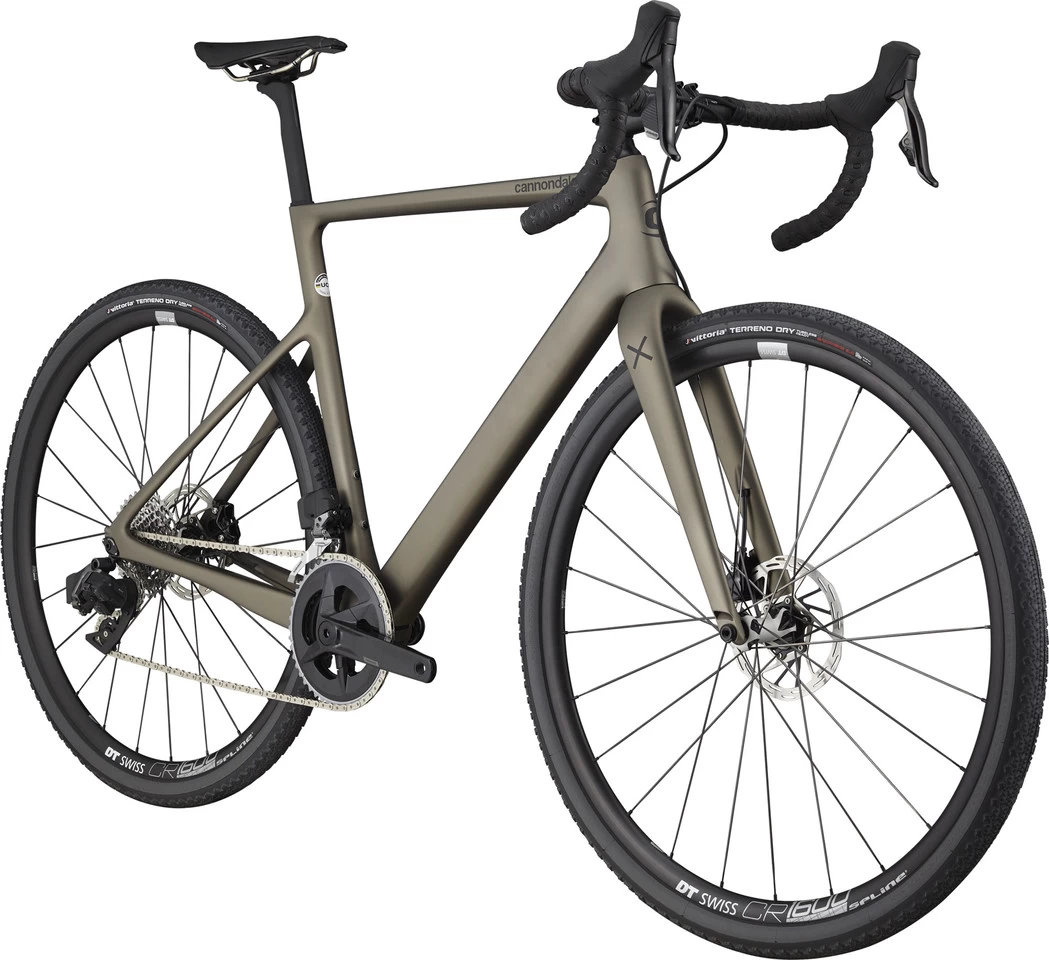

Cannondale SuperSix EVO SE Carbon Gravel Bike

The Cannondale SuperSix EVO SE Carbon Gravel Bike for high-speed gravel experiences
Cannondale’s SuperSix EVO SE gravel bike in lightweight carbon combines the SuperSix EVO’s excellent racing characteristics with a more terrain-oriented geometry, high tyre clearance and durable frame. Short chainstays provide good traction and, thanks to Ai Offset, still permit wide tyres and the installation of a front derailleur. The SRAM Rival AXS electronic shifting system does not require cables. The combination of SAVE technology, deep seat stays and HollowGram KNØT carbon seatpost creates a high level of comfort.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here.
Specifications:Application:GravelWheel Size:28″Sizes:51 cm, 54 cm, 56 cm, 58 cmFrame Material:CarbonFork Material:CarbonComponents:Frame:Cannondale SuperSix EVO CX, internal cable routing with switchplate, 12 x 142 mm, SAVE, integrated seatpost clamp, Ai OffsetFork:Cannondale SuperSix EVO CX Carbon, SAVE, integrated crown race, 12 x 100 mm, flat mount, internal cable routing, 55 mm offsetStem:Cannondale 2, 6061 aluminium, 31.8 mm, 7°Handlebars:Cannondale 2, 6061 aluminium, compactHeadset:Integrated, 1 1/8″ – 1.5″Seatpost:Cannondale HollowGram 27 SL KNØT, carbon, 330 mm, 15 mm setbackSaddle:Prologo Dimension AGX, Tirox railsCrank:SRAM Rival DUB X-Range, 33-46 T, with SRAM DUB PF30A Road 83 mm bottom bracket, Cannondale Ai OffsetPedals:noneBrakes:SRAM Rival hydraulic, Paceline brake rotors, 160 mm (front / rear)Shift Lever:SRAM Rival eTap AXS HRDRear Derailleur:SRAM Rival eTap AXS, 12-speedFront Derailleur:SRAM Rival eTap AXS, braze-on, 2-speedCassette:SRAM Rival XG-1250, 10-36 teeth, 12-speedChain:SRAM Rival 12-speedWheels:DT Swiss CR-1600 SPLINE, 25 holes, tubeless ready, with DT Swiss 350 straight pull CL hubs, Ai offset (rear)Tyres:Vittoria Terreno Dry TNT, 700 x 40c, tubeless readyApproved For:Weight Limit:150 kg (rider + gear)Rotor Size (max.):160 mmTyre Size (max.):700 x 44cChainrings:2xFeatures:OutFront geometry with long fork offset for stability and confidence in difficult terrain with agile handling at the same timeaerodynamic design with characteristically airfoil-shaped tubes that takes into account airstream in the respective areaKNØT seatpost reduces air turbulenceSpeed-Release thru-axle for easy wheel changeTechnology:Ai Offset

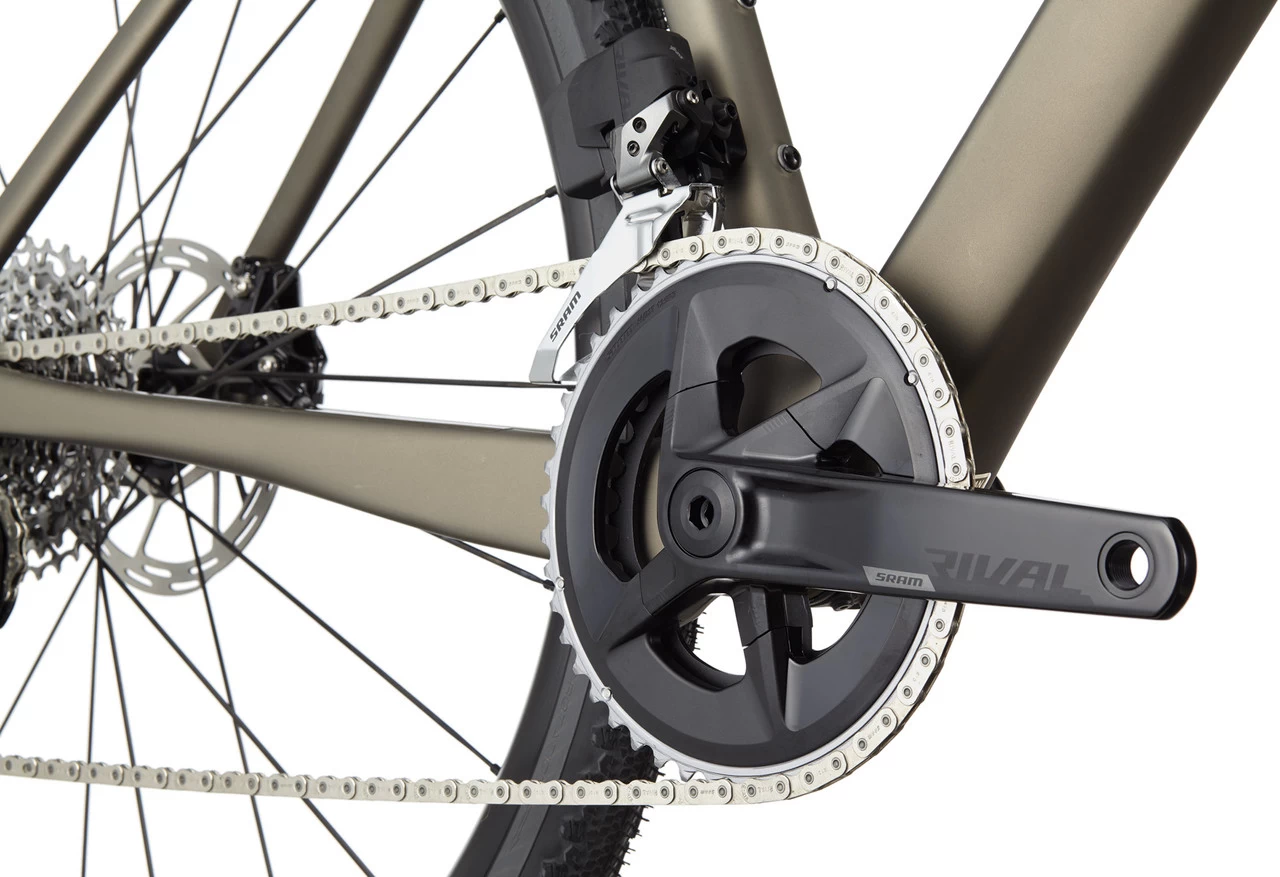

The asymmetric integration (Ai) places the drivetrain 6 mm further out than conventional systems. This is achieved through an asymmetrical rear triangle. This results in increased tyre clearance, not only but also when using a front derailleur. This in turn allows for shorter chainstays, which brings high traction and nimble handling. Furthermore, there are advantages in the rear wheel construction: the spokes on the left and right have the same length, tension and angle, so you benefit from a stiffer wheel without having to compromise. To implement the offset, the chainring is also set further the outside.

SAVE
SAVE components have well thought-out flex areas. These are compliant in the exact direction in which they absorb vibrations and thus increase comfort and efficiency for you. Otherwise, they are characterised by high rigidity. These areas can be recognised by their flat tube shapes. Several SAVE areas work together optimally.
Geometry:51 cm:
Recommended Height:165 cm – 175 cmStack:535 mmReach:371 mmSeat Tube Length:488 mmEffective Top Tube Length:524 mmHead Tube Length:110 mmChainstay Length:422 mmWheelbase:1005 mmBottom Bracket Height:280 mmBB Drop:70 mmSeat Tube Angle:73.1°Head Tube Angle:71°Standover Height:773 mm
54 cm:
Recommended Height:170 cm – 180 cmStack:555 mmReach:378 mmSeat Tube Length:524 mmEffective Top Tube Length:537 mmHead Tube Length:132 mmChainstay Length:422 mmWheelbase:1020 mmBottom Bracket Height:281 mmBB Drop:69 mmSeat Tube Angle:73.1°Head Tube Angle:71°Standover Height:802 mm
56 cm:
Recommended Height:177 cm – 185 cmStack:575 mmReach:385 mmSeat Tube Length:546 mmEffective Top Tube Length:555 mmHead Tube Length:153 mmChainstay Length:422 mmWheelbase:1034 mmBottom Bracket Height:281 mmBB Drop:69 mmSeat Tube Angle:72.7°Head Tube Angle:71°Standover Height:822 mm
58 cm:
Recommended Height:182 cm – 193 cmStack:595 mmReach:392 mmSeat Tube Length:566 mmEffective Top Tube Length:568 mmHead Tube Length:175 mmChainstay Length:422 mmWheelbase:1048 mmBottom Bracket Height:282 mmBB Drop:68 mmSeat Tube Angle:72.7°Head Tube Angle:71°Standover Height:843 mmManufacturer Number:C17102U
Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x Cannondale SuperSix EVO SE Carbon Gravel Bike
