Cannondale Moterra Neo Carbon LT 2 E-Mountain Bike

The Cannondale Moterra Neo Carbon LT 2 E-Mountain Bike for sustained enduro fun

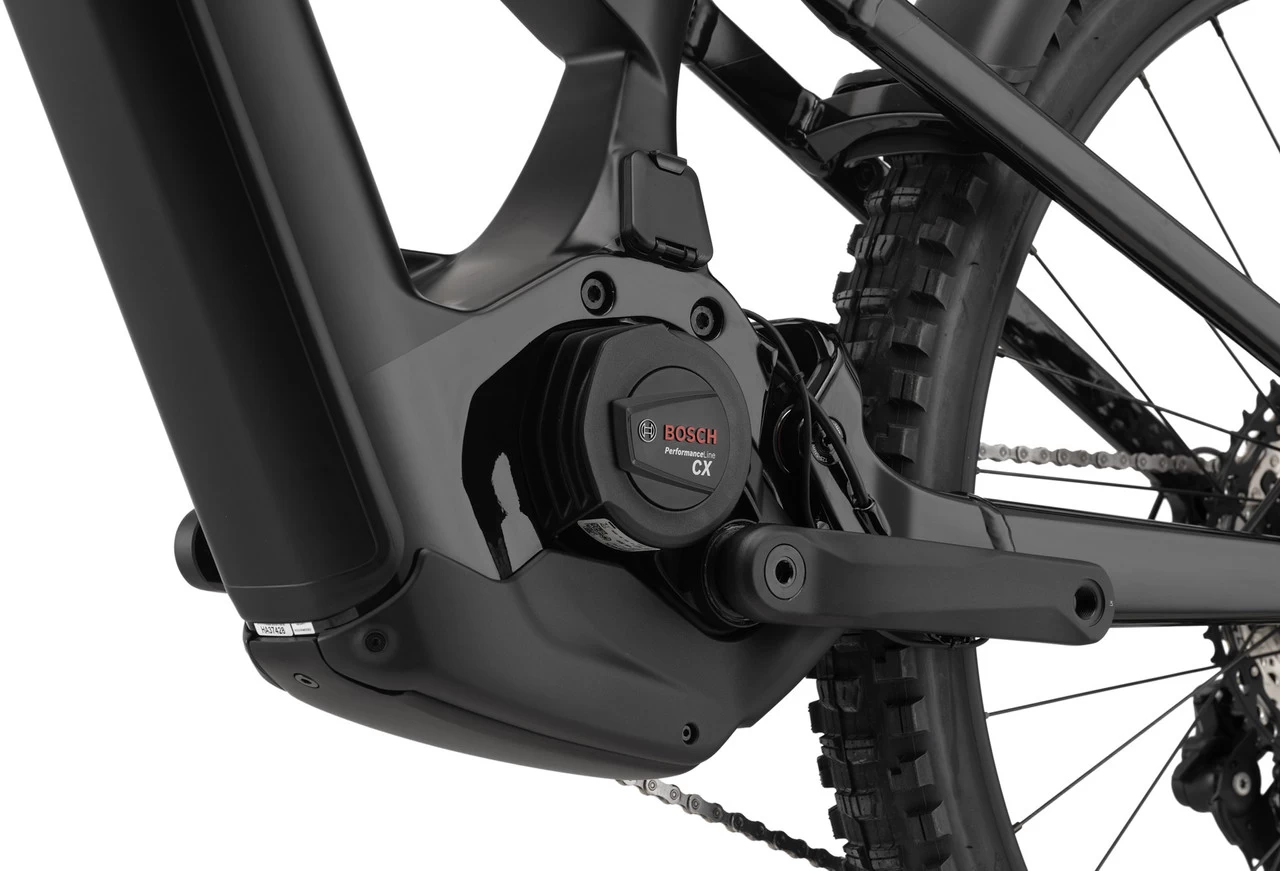

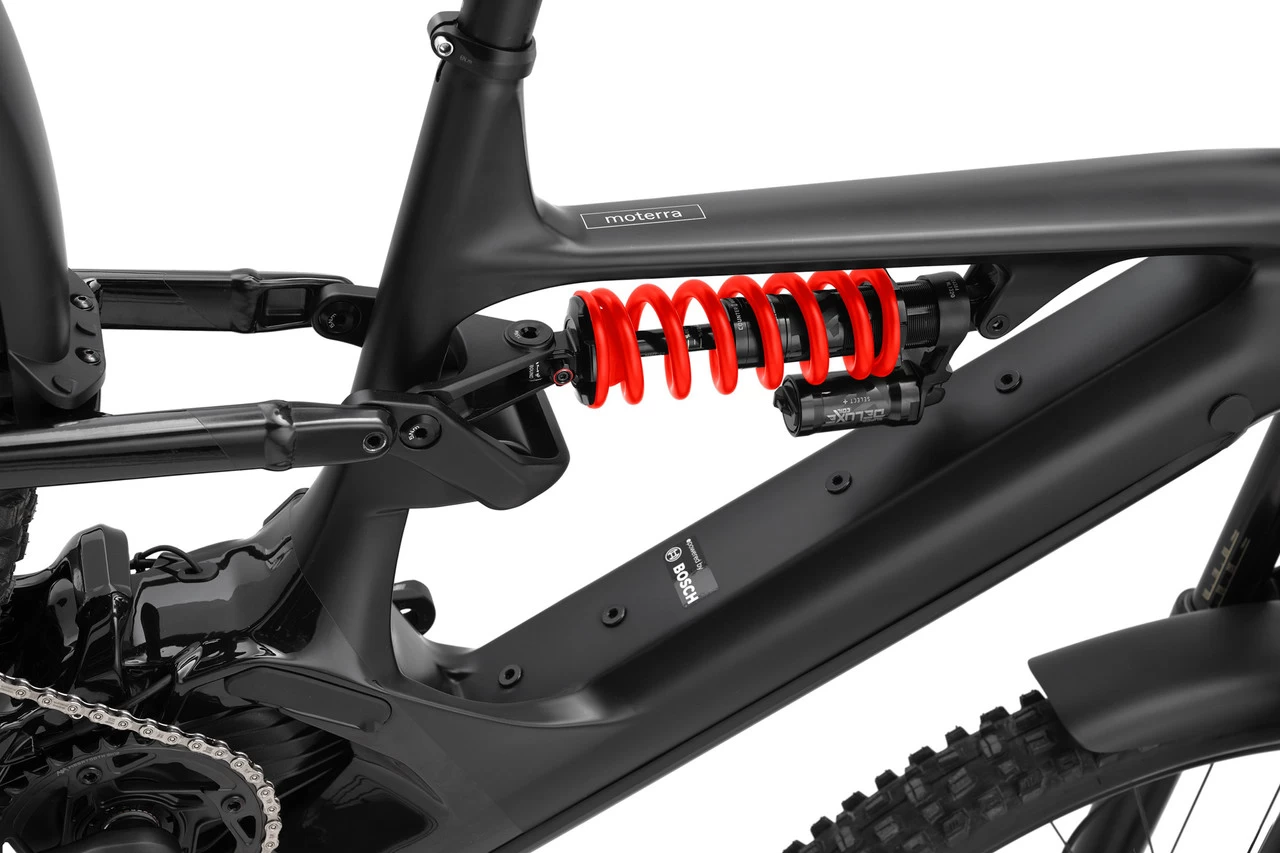

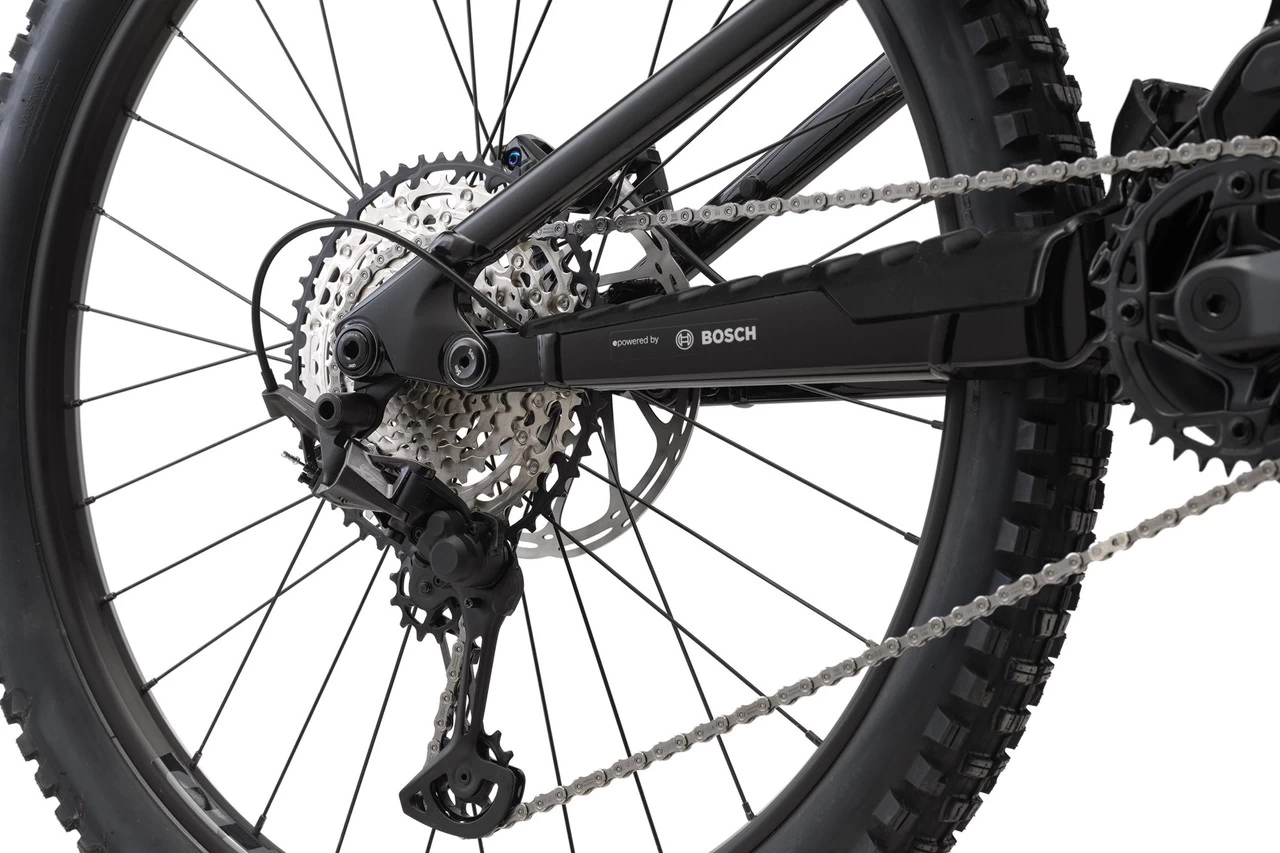

The Moterra Neo Carbon LT 2 from Cannondale is a full-suspension E-mountain bike with 29″ in the front and 27.5″ in the rear that likes to hurtle down enduro trails with 165 mm of suspension travel at the rear. The Bosch motor boosts your own power by up to 340%, but offers you a natural riding experience. The battery is also impressive, with 750 Wh you won’t miss out on any extra hills. A Shimano XT/SLX drivetrain and RockShox suspension elements, including a steel coil shock, stand for reliable performance. With four pistons, the MT5 from brake specialists Magura reliably provide deceleration when it’s needed. Thanks to the Proportional Response approach, which adjusts frame geometry, linkage design and shock tune separately depending on size, you will feel as if the Moterra Neo was tailor-made for you.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.
Specifications:Application:Enduro, All MountainWheel Size:Scaled SizingFront Travel:170 mmRear Travel:165 mmSizes:S, M, L, XLFront Triangle Material:CarbonRear Triangle Material:aluminiumE-Motor:Type:mid-drive motorMotor Type:Bosch Performance Line CXPedal Assist (max.):25 km/hPower:250 WBattery Type:Bosch Power TubeCapacity:750 WhDisplay:Bosch KioxComponents:Frame:Cannondale Moterra Neo carbon main frame, SmartForm C1 aluminium rear triangle, Proportional Response Tuned, internal cable routing, 12 x 148 mmFork:RockShox ZEB Select, Charger RC, DebonAir, 15 x 110 mm (Boost), 51 mm offsetStem:Cannondale 2, 6061 aluminium, 35 mm, 0°Handlebars:Cannondale 3 Riser, 6061 aluminium, 25 mm Rise, 8° Backsweep, 5° Upsweep, 800 mmGrips:fabric FunGuyRear Shock:RockShox Deluxe Coil Select+, 2-Position Adjust, Rebound, 450 lbs (S, M), 500 lbs (L, XL)Remote System:noneHeadset:Acros Integrated Sealed Bearing, TaperedSeatpost:Cannondale DownLow Dropper, internal cable routing, 31.6 mm, travel: 100 mm (S), 125 mm (M, L), 150 mm (XL)Saddle:fabric Scoop Shallow Sport, steel railsCrank:FSA Bosch e-bike, 55 mm chainline, 160 mm, 34-toothPedals:noneBrakes:Magura MT5 hydraulic, Magura MDR-P brake rotors, 220 mm (front) / 203 mm (rear)Shift Lever:Shimano SLX, 12-speedRear Derailleur:Shimano XT, 12-speedCassette:Shimano SLX, 10-51-tooth, 12-speedChain:Shimano SLX, 12-speedRims:WTB ST i30 TCS, 32 hole, tubeless readySpokes:stainless steelFront Hub:Formula, 15 x 110 mmRear Hub:Shimano MT410, 12 x 148 mmFront Tyre:Maxxis Assegai, 29 x 2.6″ , 3C, EXO+, tubeless readyRear Tyre:Maxxis DHR II, 27.5 x 2.6″ , 3C, EXO+, tubeless readyApproved For:Weight Limit:138 kg (rider + gear)Rotor Size (max.):220 mmTyre Size (max.):29 x 2.6″ (front, also rear in M-XL), 27.5″ x 2.6″ (rear)Chainrings:1xFeatures:Proportional Response geometry concept: chainstay lengths, frame design and damping behaviour are matched to frame sizepowerful Bosch Performance Line CX motor with natural riding characteristicspowerful removable battery55 mm chainlineSRAM UDH universal derailleur hangerwith holder for kickstand (not included)pre-assembled lamp cableGeometry:S:
Recommended Height:157 cm – 165 cmStack:623 mmReach:426 mmSeat Tube Length:400 mmTop Tube Length:580 mmEffective Top Tube Length:540 mmHead Tube Length:105 mmChainstay Length:452 mmWheelbase:1217 mmBottom Bracket Height:356 mmBB Drop:11 mmSeat Tube Angle:76.5°Head Tube Angle:64°Standover Height:763 mmStem Length:45 mmHandlebar Width:800 mmCrank Arm Length:160 mm
M:
Recommended Height:162 cm – 175 cmStack:633 mmReach:446 mmSeat Tube Length:460 mmTop Tube Length:602 mmEffective Top Tube Length:555 mmHead Tube Length:115 mmChainstay Length:452 mmWheelbase:1242 mmBottom Bracket Height:356 mmBB Drop:11 mmSeat Tube Angle:76.5°Head Tube Angle:64°Standover Height:763 mmStem Length:45 mmHandlebar Width:800 mmCrank Arm Length:160 mm
L:
Recommended Height:172 cm – 182 cmStack:642 mmReach:476 mmSeat Tube Length:460 mmTop Tube Length:634 mmEffective Top Tube Length:585 mmHead Tube Length:125 mmChainstay Length:452 mmWheelbase:1276 mmBottom Bracket Height:356 mmBB Drop:11 mmSeat Tube Angle:76.5°Head Tube Angle:64°Standover Height:767 mmStem Length:45 mmHandlebar Width:800 mmCrank Arm Length:160 mm
XL:
Recommended Height:180 cm – 195 cmStack:651 mmReach:511 mmSeat Tube Length:490 mmTop Tube Length:671 mmEffective Top Tube Length:621 mmHead Tube Length:135 mmChainstay Length:452 mmWheelbase:1315 mmBottom Bracket Height:356 mmBB Drop:11 mmSeat Tube Angle:76.5°Head Tube Angle:64°Standover Height:777 mmStem Length:45 mmHandlebar Width:800 mmCrank Arm Length:160 mmManufacturer
