Cannondale Jekyll 2 Carbon 29″ Mountain Bike

The Jekyll 2 29″ Mountain Bike by Cannondale with Shimano components and technical highlights

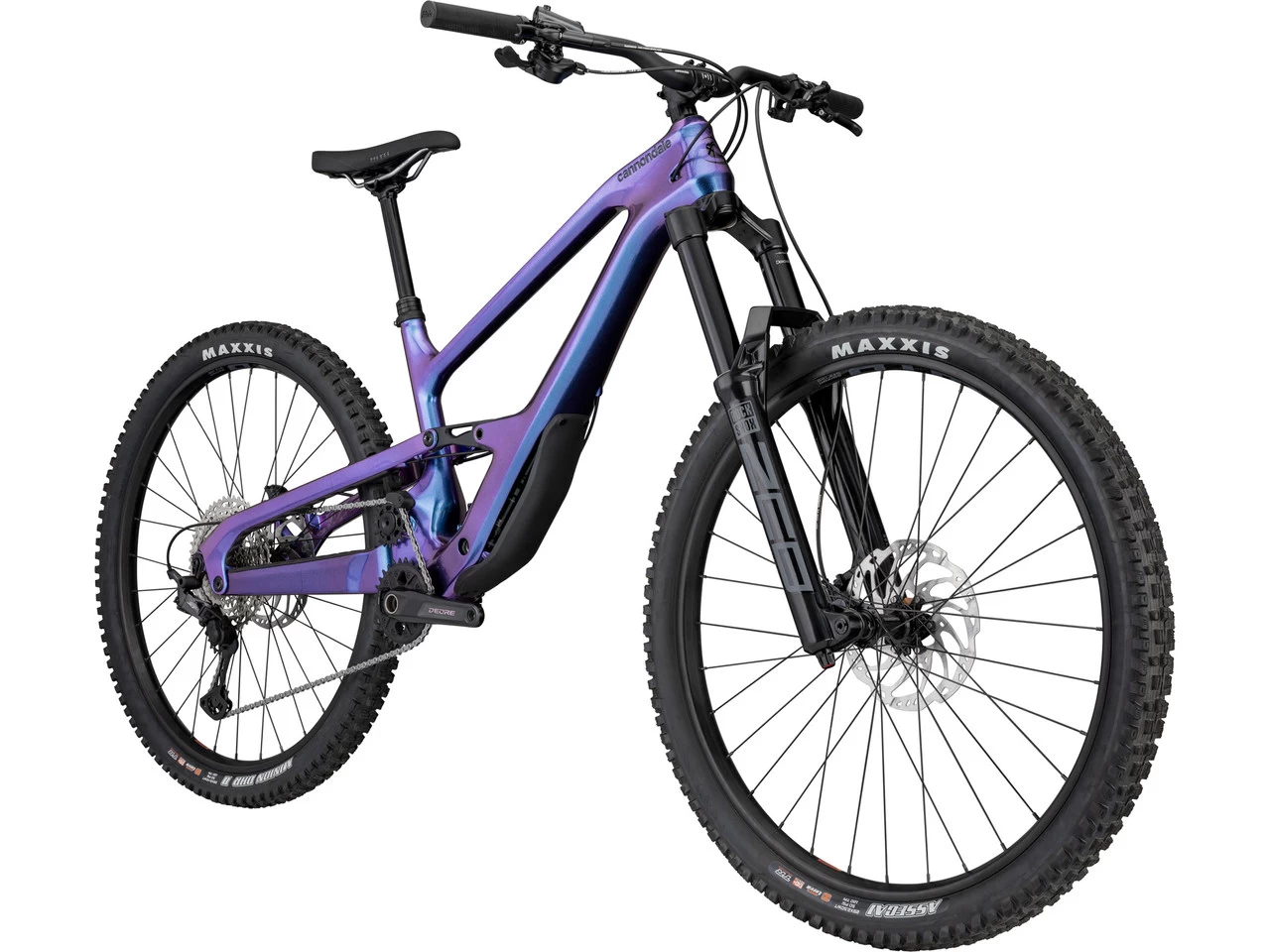

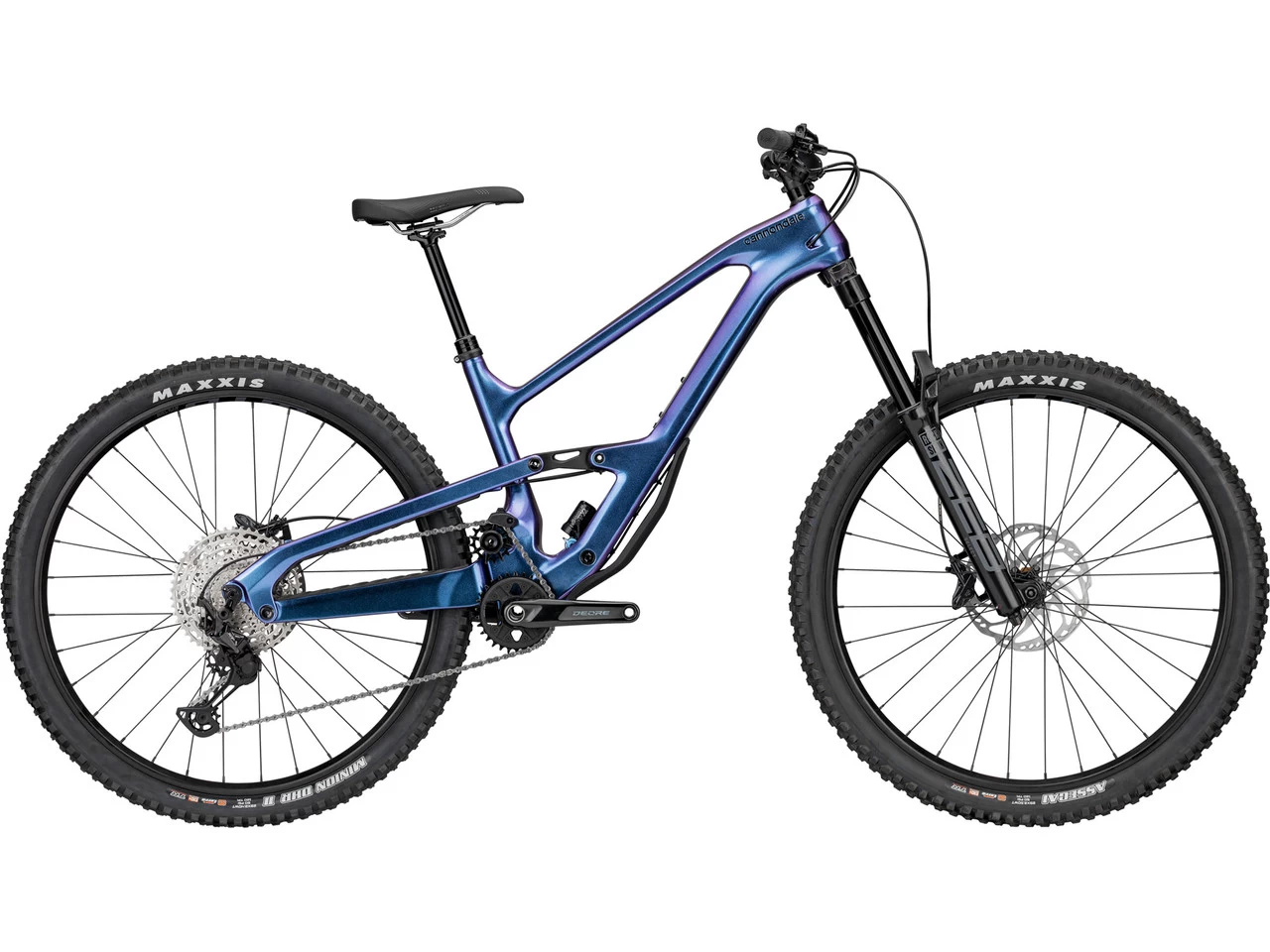

The Cannondale Jekyll 2 29″ carbon mountain bike is a downhill-oriented enduro full-suspension bike with Shimano drivetrain, RockShox suspension fork and Fox shock, which comes up with some technical refinements. The Gravity Cavity, which hides the shock in the down tube for a low centre of gravity, and the Guidler above the chainring, a combination of idler pulley and chain guide, are particularly eye-catching. This prevents chain drop and pedal kickback during compression, which results from the higher main pivot point. The main pivot point is not near the bottom bracket as usual, but clearly above it. This results in a backward axle travel, which in turn causes the rear triangle to glide very smoothly and fluidly over obstacles without slowing you down. Thanks to Proportional Response, the frame design is individually adapted to each frame size, from geometry to chainstay length to linkage design. However, that’s not all: the rear triangle with Ai Offset offers great tyre clearance with rather short chainstays and a stiff rear wheel thanks to even spoking. The result is a bike with outstanding efficiency, strong grip, high smoothness and agility, which makes you want to go downhill again.
Specifications:Application:Enduro, All MountainWheel Size:29″Front Travel:170 mmRear Travel:165 mmSizes:S, M, L, XLFront Triangle Material:CarbonRear Triangle Material:CarbonComponents:Frame:Cannondale Jekyll, Carbon, Proportional Response Tuned, Ai OffsetFork:RockShox ZEB Select, 15 x 110 mm (Boost), 44 mm OffsetStem:Cannondale 3, 6061 aluminium, 31.8 mm, 0°Handlebars:Cannondale 3 Riser, 6061 aluminium, 30 mm Rise, 8° Backsweep, 6° Upsweep, 780 mmGrips:fabric FunGuyRear Shock:Fox Racing Shox Float DPX2 Performance EVOL, 3-Position AdjustRemote System:noneHeadset:Integrated Sealed Bearing, TaperedSeatpost:TranzX Dropper, internal cable routing, 31.6 mm, stroke: 130 mm (S), 150 mm (M-XL)Saddle:Cannondale Stage 3Crank:Shimano Deore 6120, 30-tooth, 55 mm chainlinePedals:noneBrakes:Shimano M6120 hydraulic, RT64 brake rotors, 203 mm (front / rear)Shift Lever:Shimano Deore M6100, 12-speedRear Derailleur:Shimano Deore M6100, 12-speedCassette:Shimano Deore M6100, 10-51 teeth, 12-speedChain:Shimano Deore 6100, 12-speedRims:WTB STX i30 TCS, 32 hole, tubeless readySpokes:stainless steelFront Hub:Shimano MT400, 15 x 110 mmRear Hub:Shimano MT410, 12 x 148 mmFront Tyre:Maxxis Assegai, 29 x 2.5″ , Dual, EXO+, tubeless readyRear Tyre:Maxxis Minion DHR II, 29 x 2.4″ , EXO+, tubeless readyApproved For:Weight Limit:138 kg (rider + gear)Rotor Size (max.):203 mm (rear)Tyre Size (max.):29 x 2.5″Chainrings:1xFork Axle to Crown Size (max.):581 mmFeatures:Proportional Response geometry concept: chainstay lengths, frame design and damping behaviour are matched to frame sizeGravity Cavity: shock position in down tube for low centre of gravity, with down tube protection4-bar linkage design for ideal anti-rise and anti-squat behaviour, thus high braking traction, drive efficiency and high griphigh main pivot point for rearward axle travel, allowing higher speed and greater tyre clearancewith Guidler: combination of idler pulley and chain guide prevents pedal kickback on uneven terrain55 mm chainlineTechnology:Ai Offset

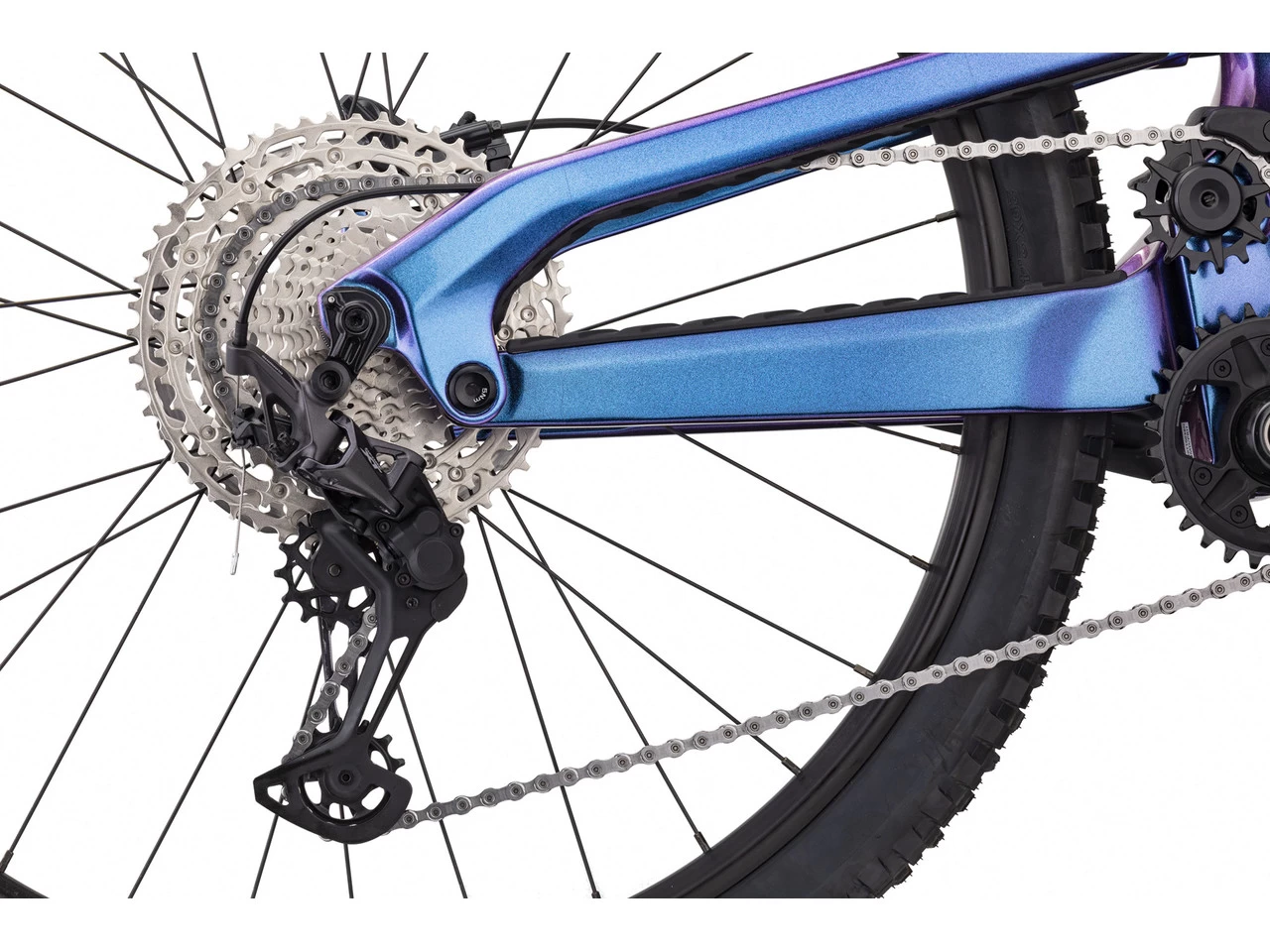

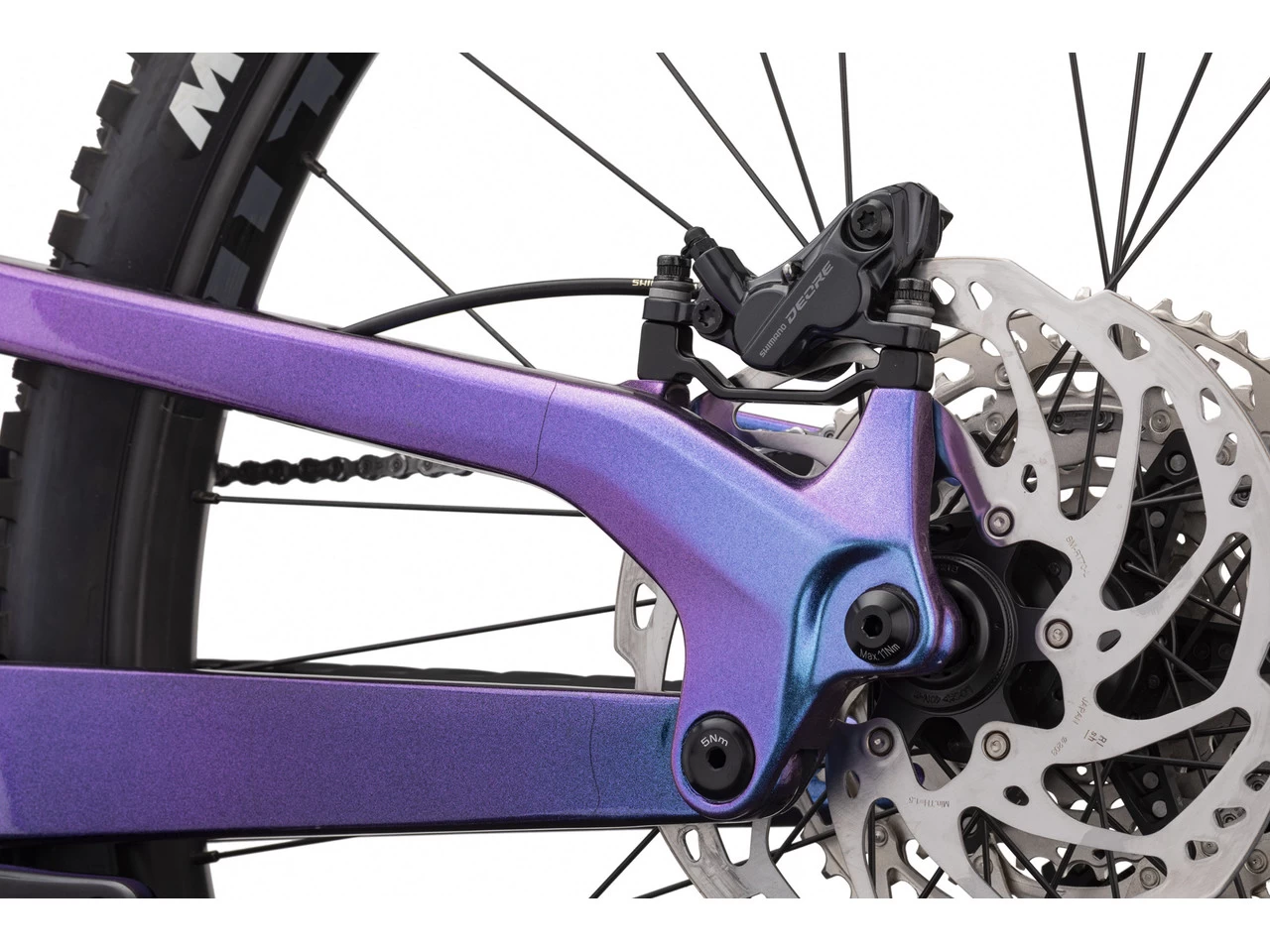

Asymmetric integration (Ai) places the drivetrain 6 mm further out than original drivetrains with 142 mm rear wheel over locknut dimension and 3 mm further out than standard 148 mm configurations. This is achieved through an asymmetrical rear triangle. This results in increased tyre clearance, not only but also when using a front derailleur. This in turn allows for shorter chainstays, which brings high traction and nimble handling. Furthermore, there are advantages in the rear wheel construction: the spokes on the left and right have the same length, tension and angle, so you benefit from a wheel that is up to 60% stiffer without having to compromise. To implement the offset, the chainring is also set further the outside.
Geometry:S:
Recommended Height:157 cm – 165 cmStack:625 mmReach:425 mmSeat Tube Length:390 mmTop Tube Length:569 mmEffective Top Tube Length:541 mmHead Tube Length:100 mmChainstay Length:430 mmWheelbase:1193 mmBottom Bracket Height:348 mmBB Drop:30 mmSeat Tube Angle:77.5°Head Tube Angle:64°Standover Height:750 mmStem Length:35 mmHandlebar Width:780 mmCrank Arm Length:170 mm
M:
Recommended Height:162 cm – 175 cmStack:634 mmReach:450 mmSeat Tube Length:410 mmTop Tube Length:608 mmEffective Top Tube Length:569 mmHead Tube Length:110 mmChainstay Length:435 mmWheelbase:1227 mmBottom Bracket Height:348 mmBB Drop:30 mmSeat Tube Angle:77.5°Head Tube Angle:64°Standover Height:750 mmStem Length:35 mmHandlebar Width:780 mmCrank Arm Length:170 mm
L:
Recommended Height:172 cm – 182 cmStack:643 mmReach:475 mmSeat Tube Length:445 mmTop Tube Length:623 mmEffective Top Tube Length:588 mmHead Tube Length:120 mmChainstay Length:442 mmWheelb
