Bushing Extractor 1701/5

Specifications:Function:frame assemblyTool Type:puller, special toolCompatibility:12 mm, 12.7 mm (bushing diameter)Technical Information:Material:steelFeatures:quick and easy removal/installation of new/old shock bushingsfor bushings with 12 mm and 12.7 mm diameterApplication:To remove bushing, clamp assembled tool (pin depending on bushing diameter) and shock in a vicePress the bushing out of the shock’s housing with even tensionBushing is pushed into a closed area of the tool, can be easily removed from thereTo install a new bushing, place new bushing parallel to the opening on the shock housing and clamp everything in a vicePress the bushing completely into the shock’s housing with even tension

Manufacturer Number:623006

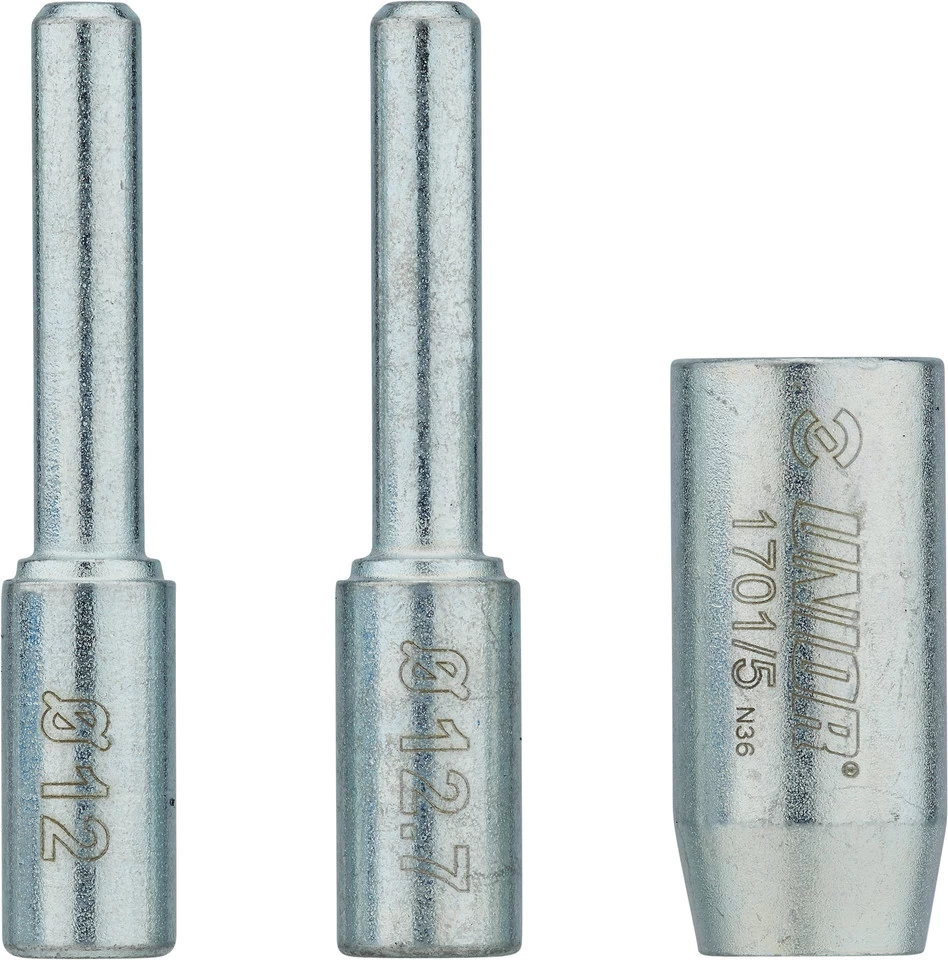

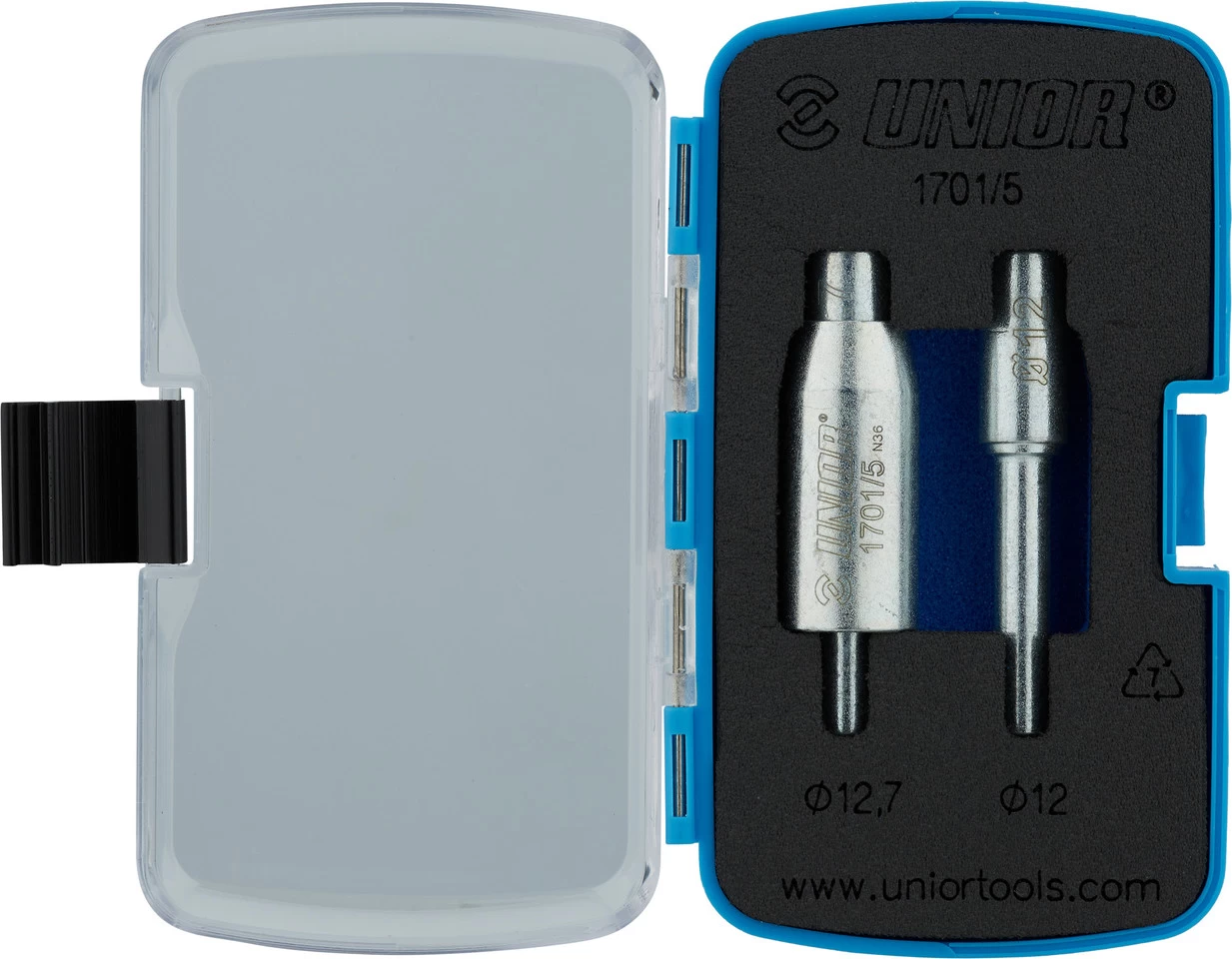

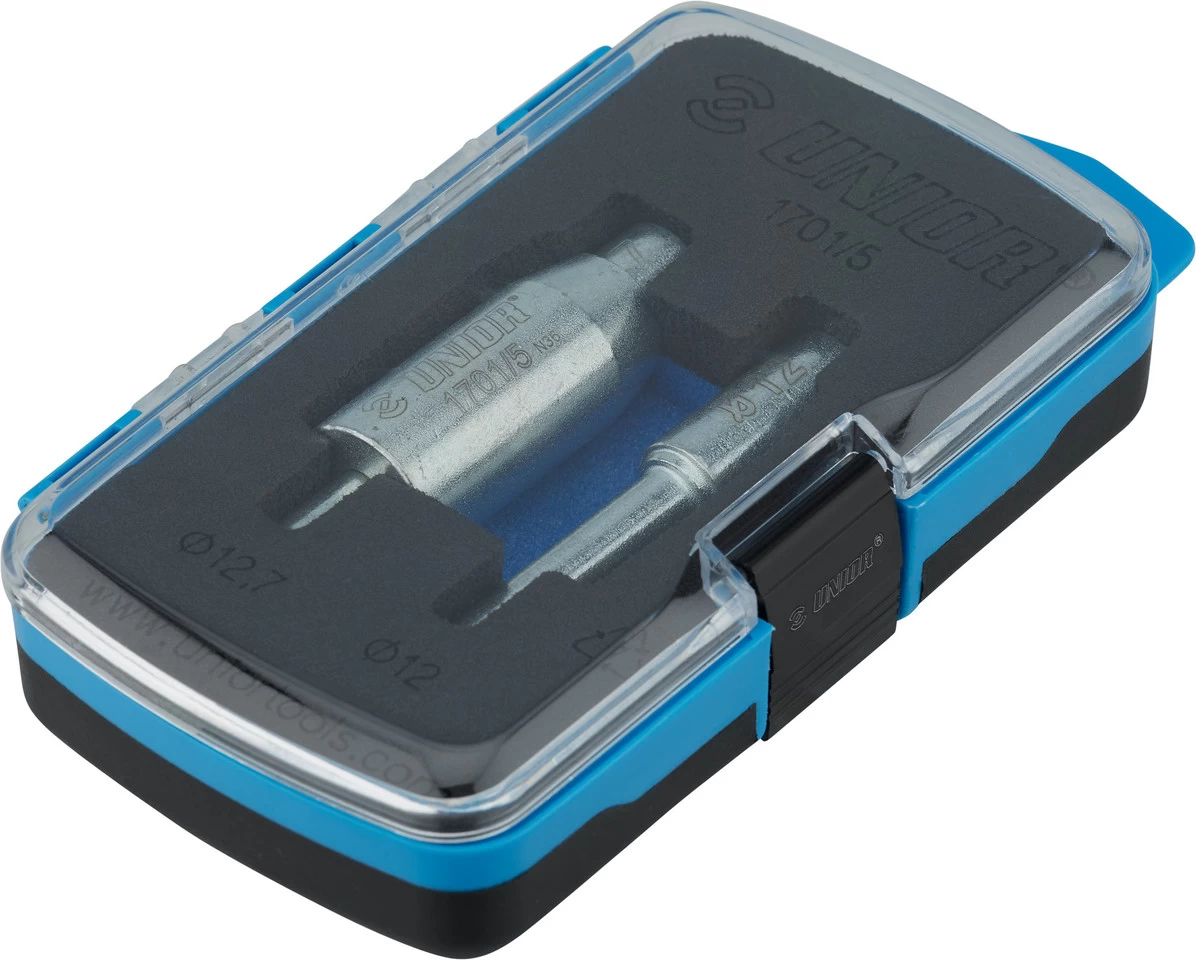

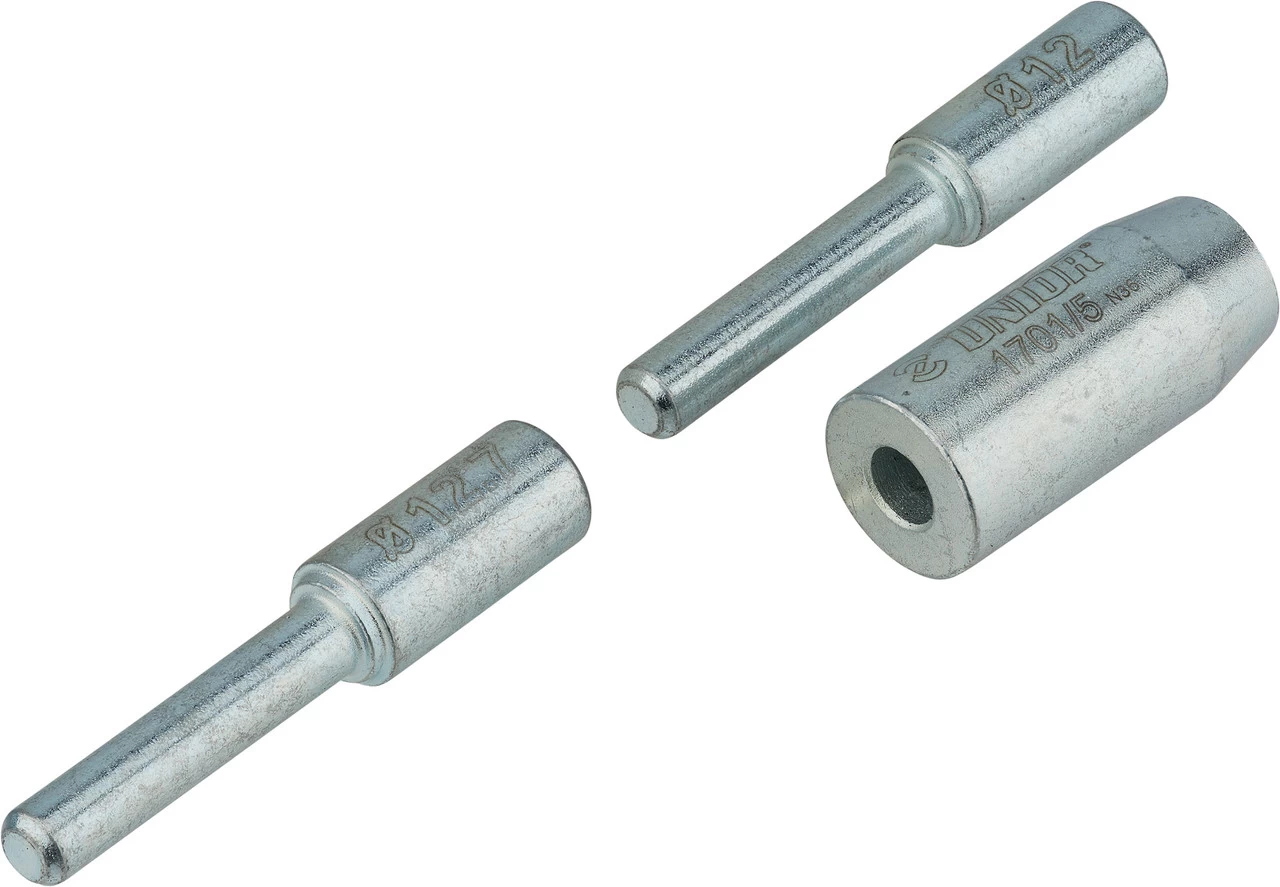

Contents:1 x Unior Bike Tools Bushing Extractor 1701/51 x extractor insert for 12 mm1 x extractor insert for 12.7 mm
