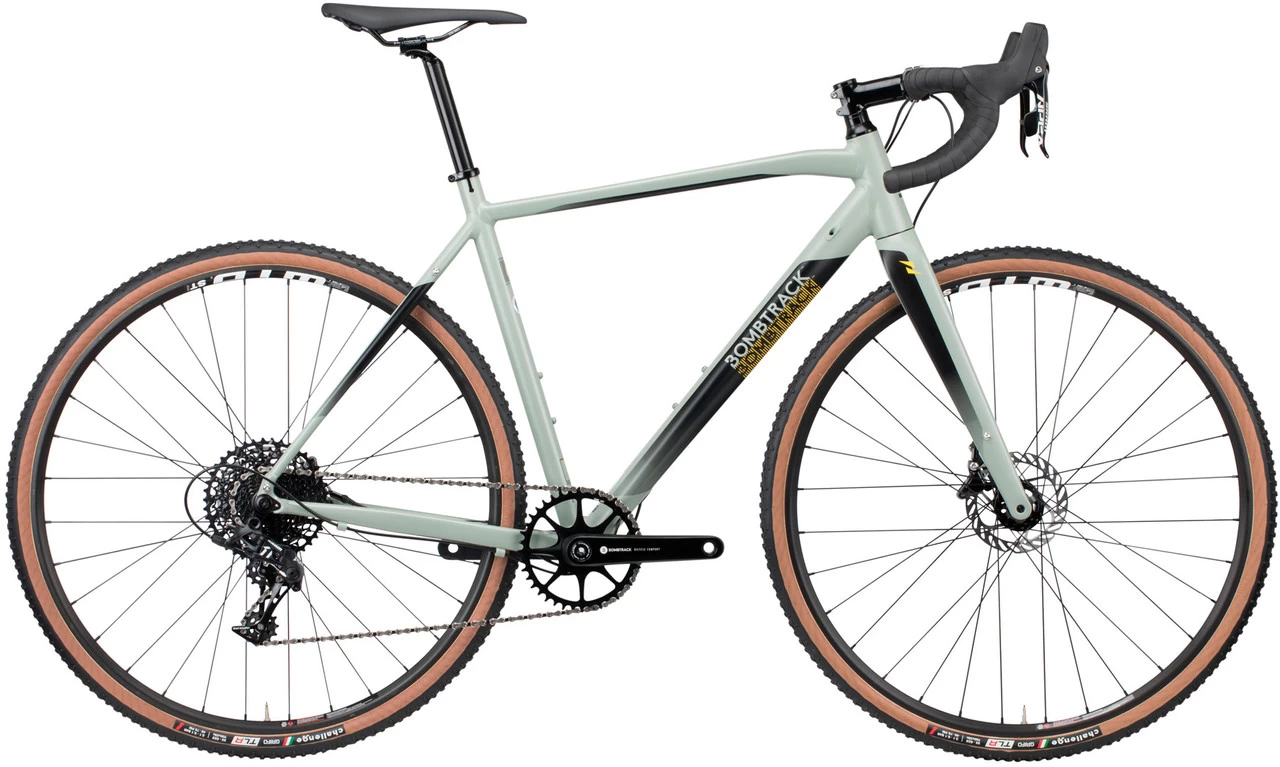

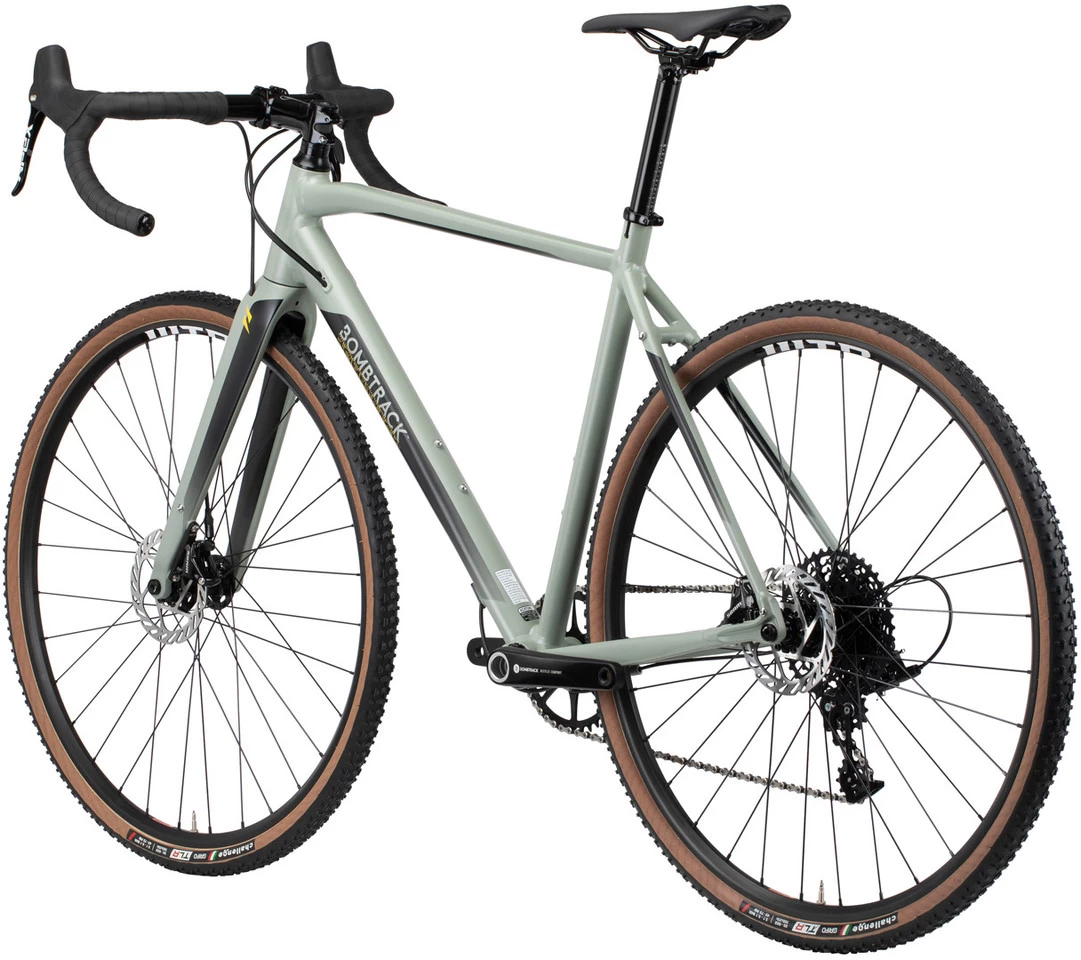

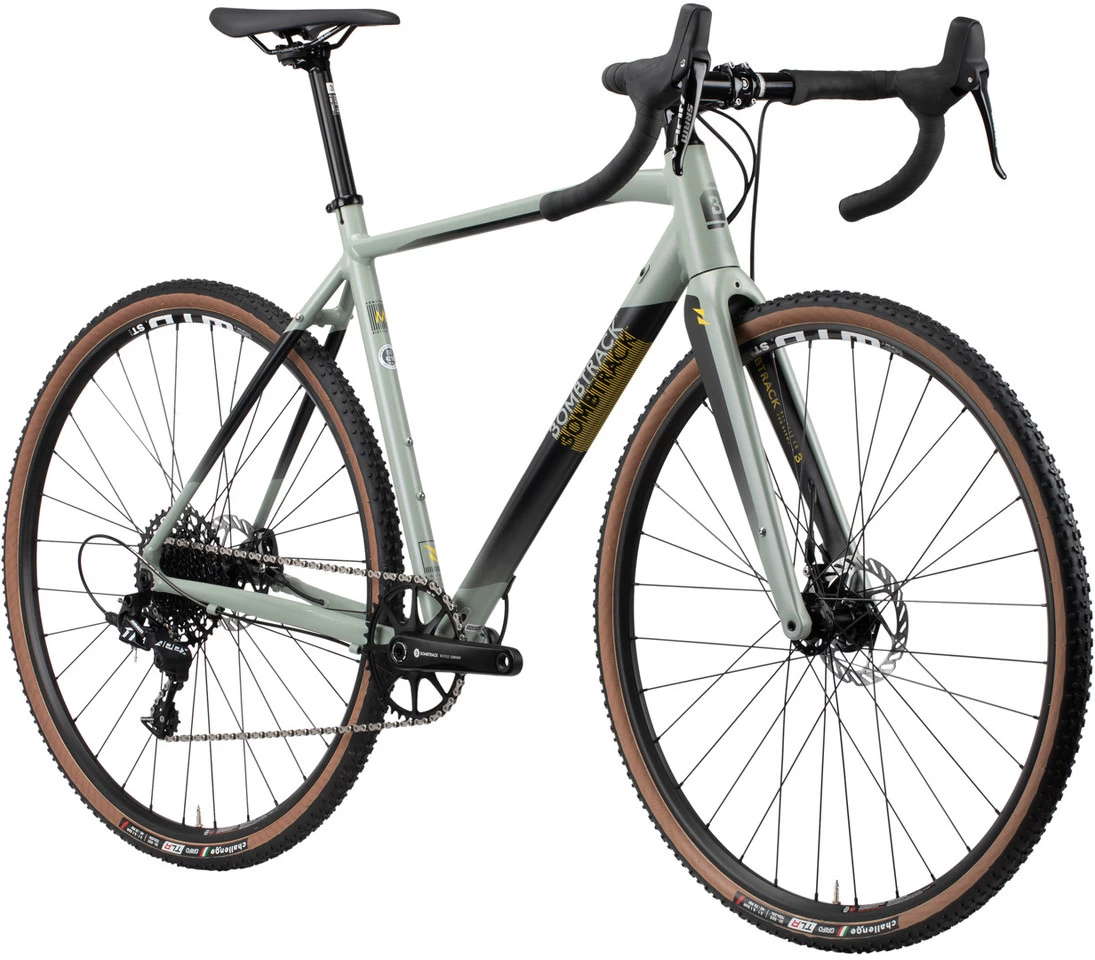

Bombtrack Tension 1 Cyclocross Bike

The Tension 1 cyclocross bike from Bombtrack ensures safe handling on tight cross courses. The lightweight aluminium frame with carbon fork and disc brakes can be steered with agility through courses, even by beginners. With 11 gears and tubeless-ready tyres, this crosser is ready for anything. A generous frame triangle allows you to easily shoulder the approx. 9.4 kg bike across tricky sections. To prevent you and your bike from getting too dirty during training, you can attach mudgaurds or fenders to both the frame and the fork. It’s not the time for cleaning and maintenance that sets the tone for the Tension 1, but your level of fun!

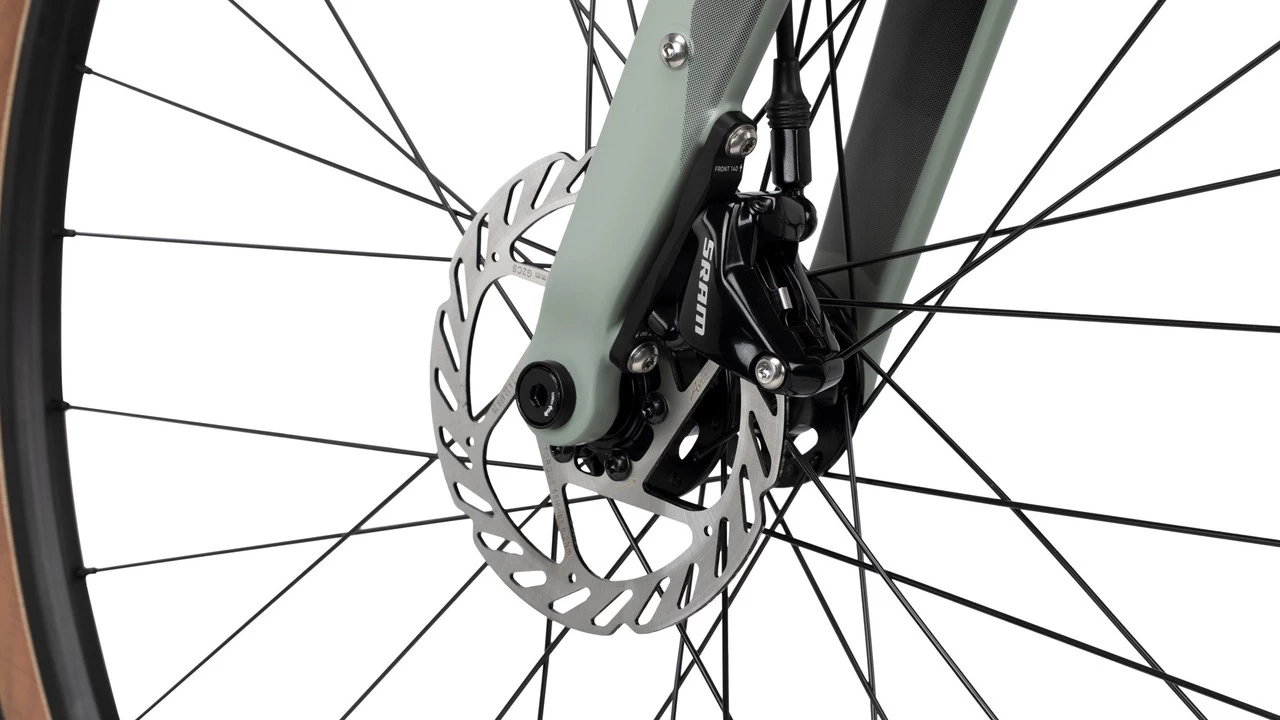

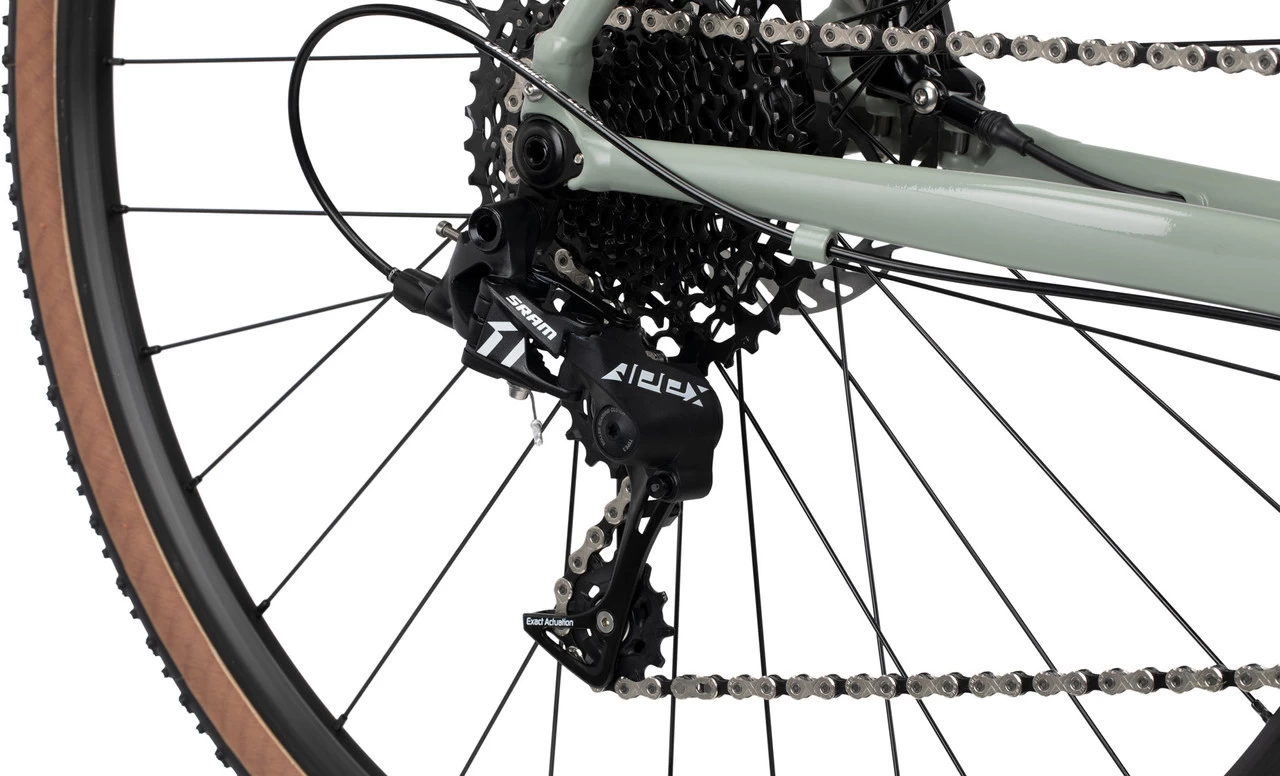

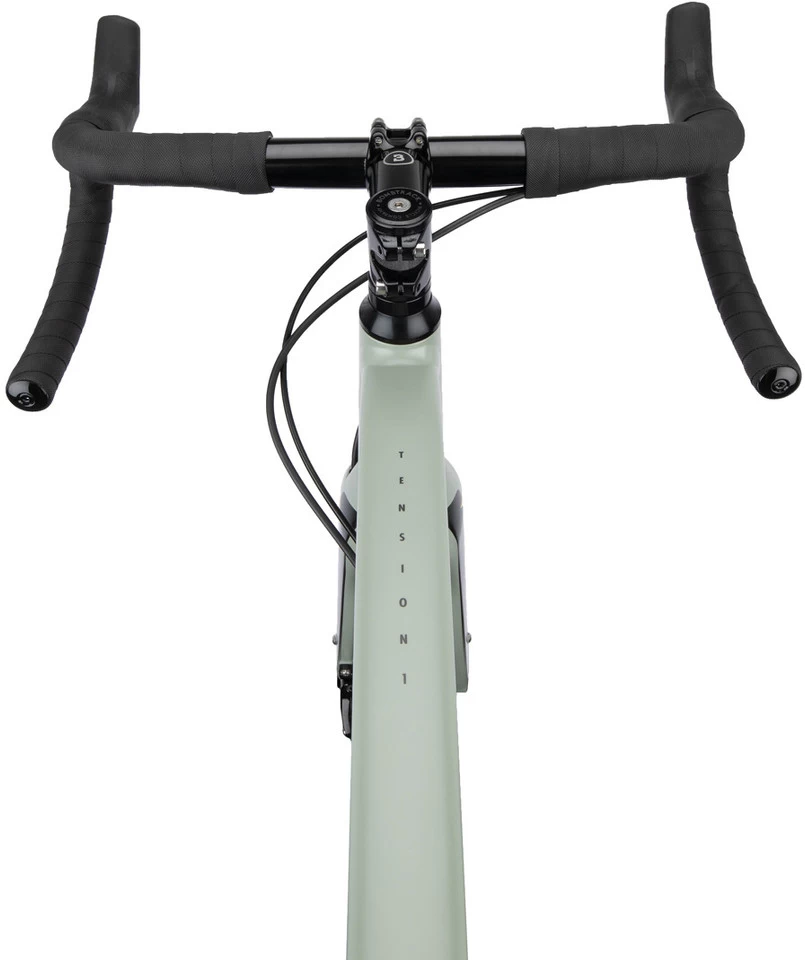

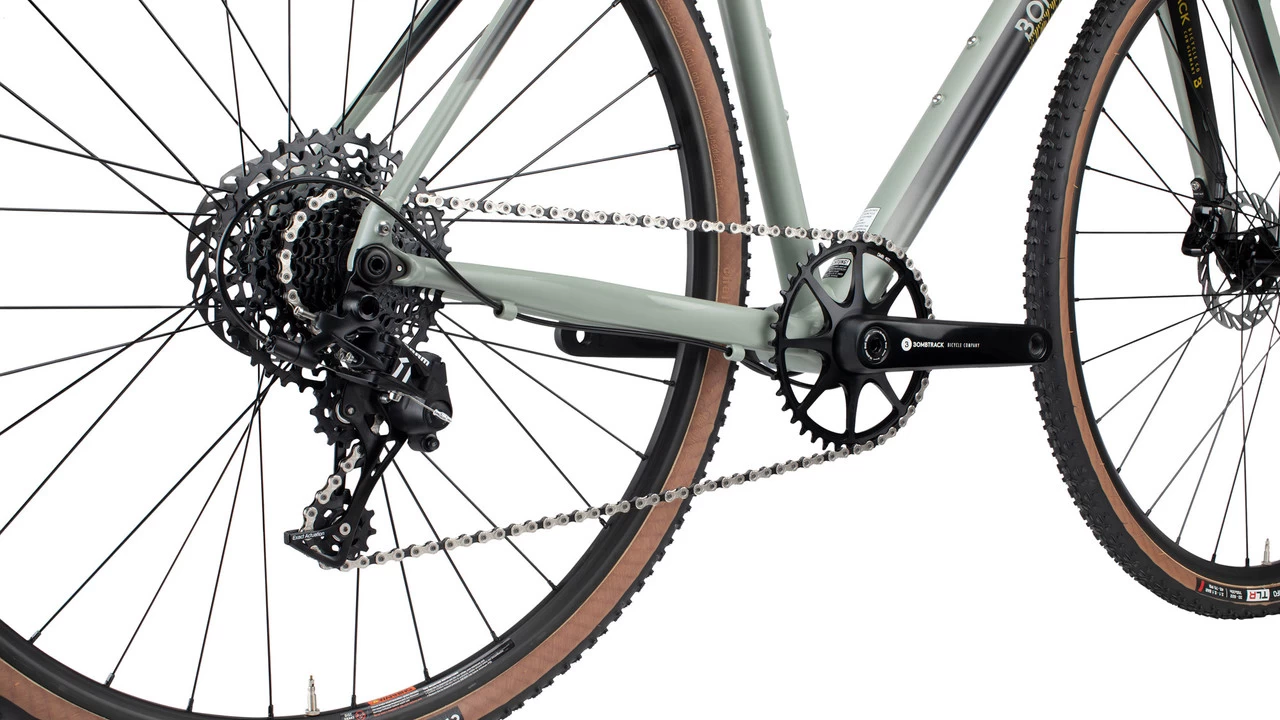

Specifications:Application:CyclocrossWheel Size:27.5 (650B) (S), 28″ (M-XL)Sizes:S, M, L, XLFrame Material:aluminium (6061)Fork Material:CarbonComponents:Frame:6061 Aluminium, double buttedFork:Bombtrack CarbonStem:Bombtrack Roam / Aluminium, -7°Handlebars:Bombtrack CX-10 / 31.8 mm / 10° flareHeadset:IS42/28.6|IS52/40 / 1.5″ – 1 1/8″ / Internal Stack / sealedSeatpost:Bombtrack Beech / aluminium, 27.2 x 300 mmSaddle:Bombtrack CompCrank:Bombtrack Lyer / Aluminium, 40 Tooth / Direct MountPedals:noneBrakes:SRAM Apex / Flat Mount, hydraulic, 140 mmShift/Brake lever:SRAM Apex 1 double tap / hydraulic / 1 x 11Rear Derailleur:SRAM Apex 1 / long cageCassette:SRAM PG-1130 / 11-speed, 11-42 toothChain:KMC X11 / 0.5″ x 11/128″ , 114 linksWheels:WTB ST i19 32mm rim / Bombtrack Arc hub, sealed, front 12 x 100 mm thru-axle, rear 12 x 142 mm thru-axleTyres:Vee XCX 120 tpi 32-584 (S), Challenge Grifo 33-622 (M-XL) / Tubeless ReadyApproved For:Weight Limit:120 kg (system weight)Rotor Size (max.):160 mmTyre Size (max.):650Bx35C (S), 700x37C (M-XL)Chainrings:1x, 2xChainring Size (max.):42 tooth (1-speed), 34-50 tooth (2-speed)Features:size S with 27.5″ wheels, size M-XL with 28″ wheelsframe made of double butted aluminium tubescarbon forkframe with braze-on eyelets for pannier rack and fenders/mudguardsGeometry:S:
Recommended Height:160 – 171 cmStack:530 mmReach:366 mmSeat Tube Length:490 mmEffective Top Tube Length:523 mmHead Tube Length:115 mmChainstay Length:410 mmWheelbase:979 mmBB Drop:55 mmStandover Height:757 mmSeat Tube Angle:73.5°Head Tube Angle:71.5°Stem Length:80 mmHandlebar Width:400 mmCrank Arm Length:165.0 mm
M:
Recommended Height:170 – 181 cmStack:563 mmReach:380 mmSeat Tube Length:530 mmEffective Top Tube Length:552 mmHead Tube Length:139 mmChainstay Length:425 mmWheelbase:1014 mmBB Drop:65 mmStandover Height:799 mmSeat Tube Angle:73°Head Tube Angle:71.5°Stem Length:90 mmHandlebar Width:420 mmCrank Arm Length:170.0 mm
L:
Recommended Height:179 – 190 cmStack:587 mmReach:391 mmSeat Tube Length:560 mmEffective Top Tube Length:570 mmHead Tube Length:162 mmChainstay Length:425 mmWheelbase:1028 mmBB Drop:65 mmStandover Height:825 mmSeat Tube Angle:73°Head Tube Angle:72°Stem Length:100 mmHandlebar Width:440 mmCrank Arm Length:175.0 mm
XL:
Recommended Height:188 – 190 cmStack:603 mmReach:402 mmSeat Tube Length:590 mmEffective Top Tube Length:586 mmHead Tube Length:179 mmChainstay Length:425 mmWheelbase:1044 mmBB Drop:65 mmStandover Height:848 mmSeat Tube Angle:73°Head Tube Angle:72°Stem Length:100 mmHandlebar Width:440 mmCrank Arm Length:175.0 mmManufacturer Numbers:S:1125090221M:1125090321L:1125090421XL:1125090521Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x Bombtrack Tension 1 Cyclocross Bike
