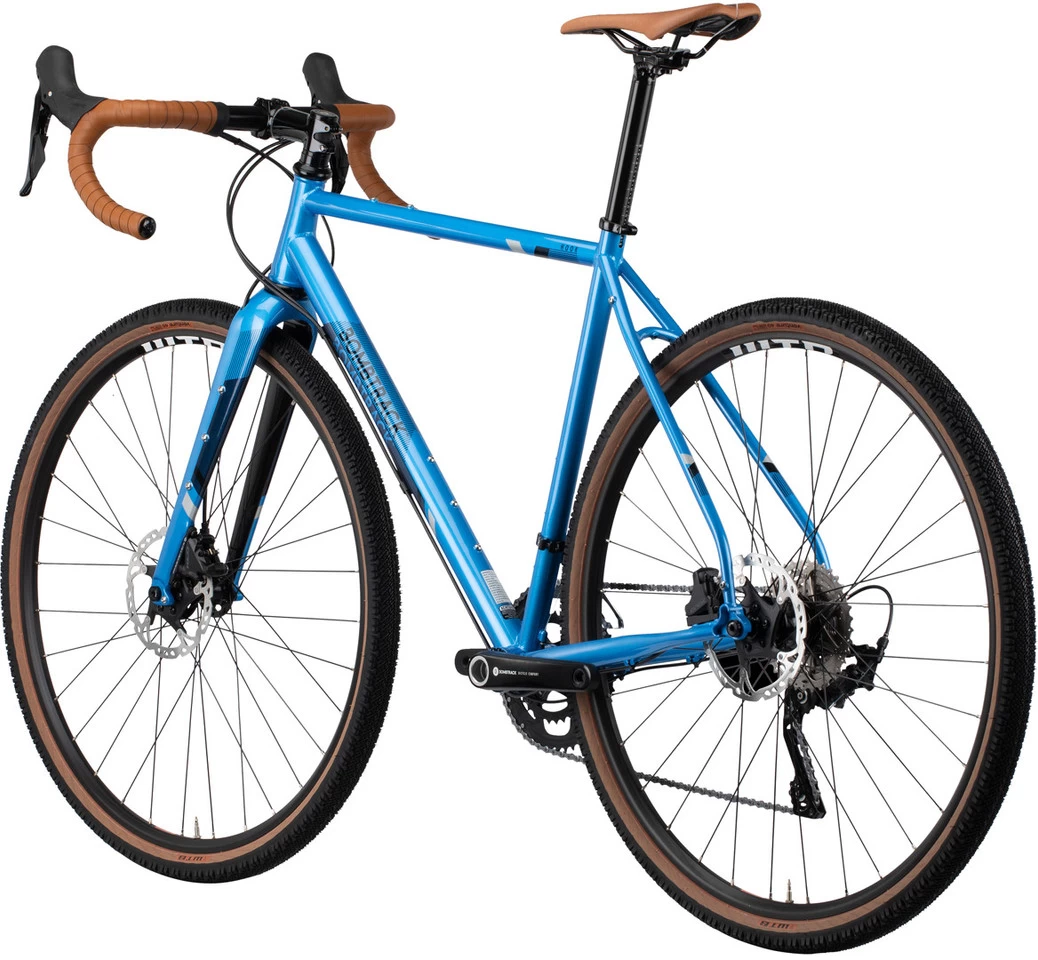

Bombtrack Hook Gravel Bike

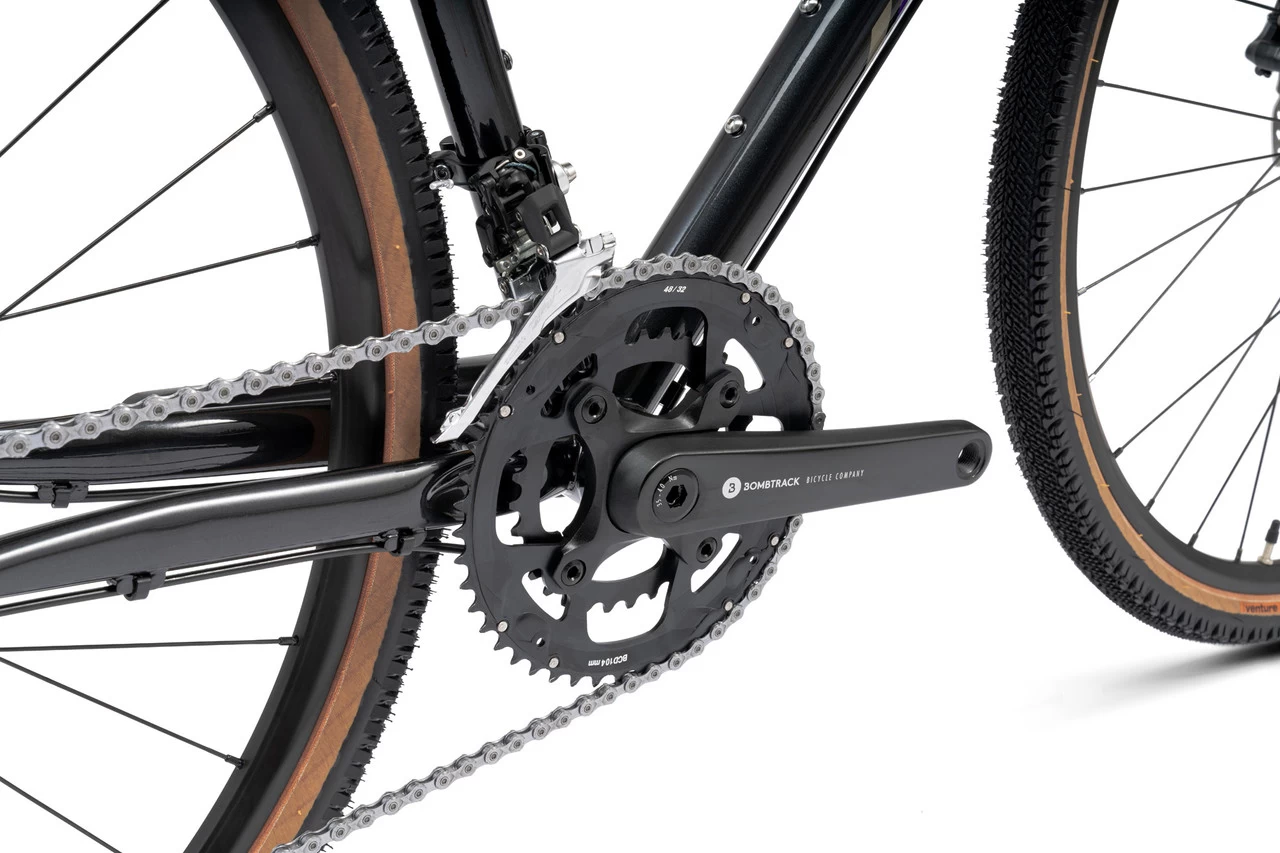

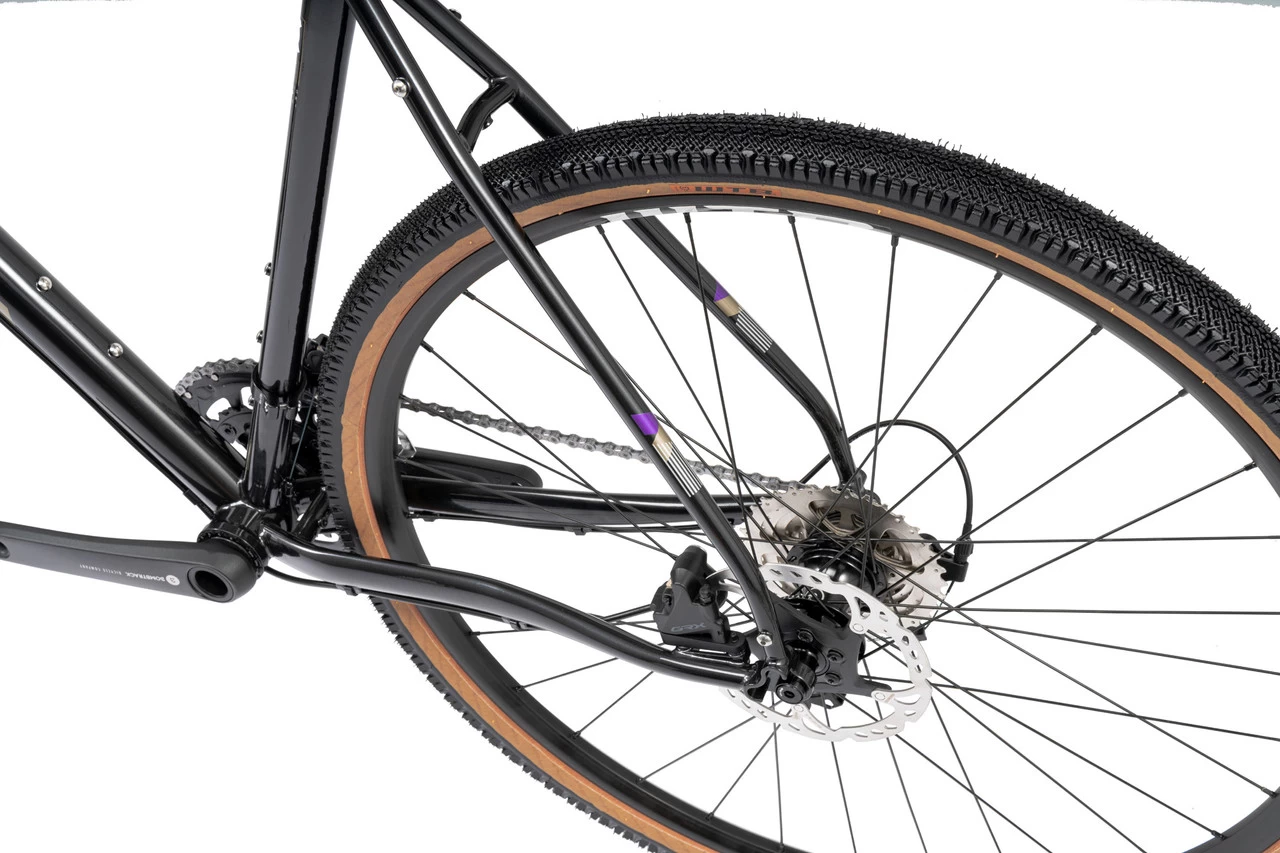

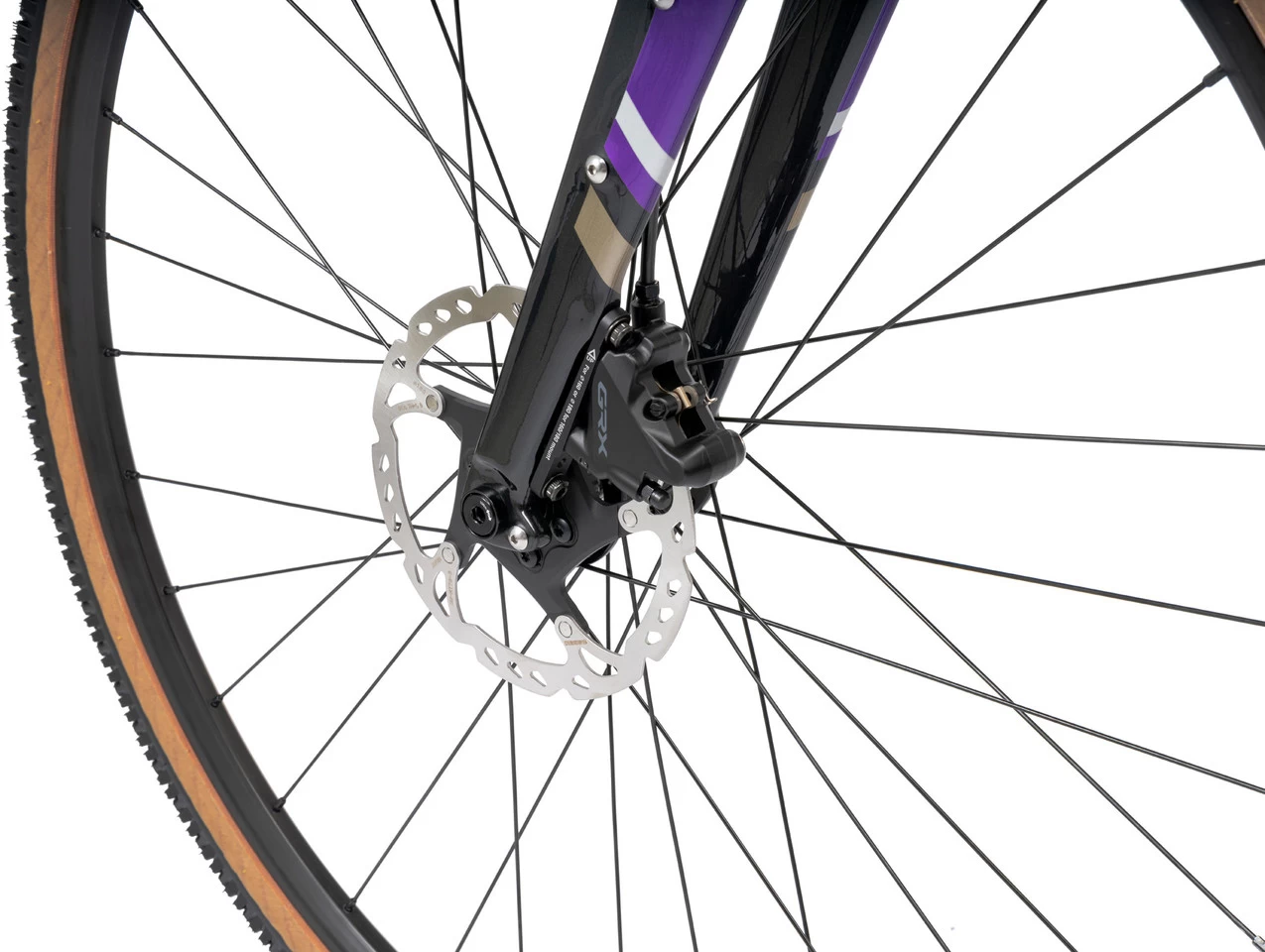

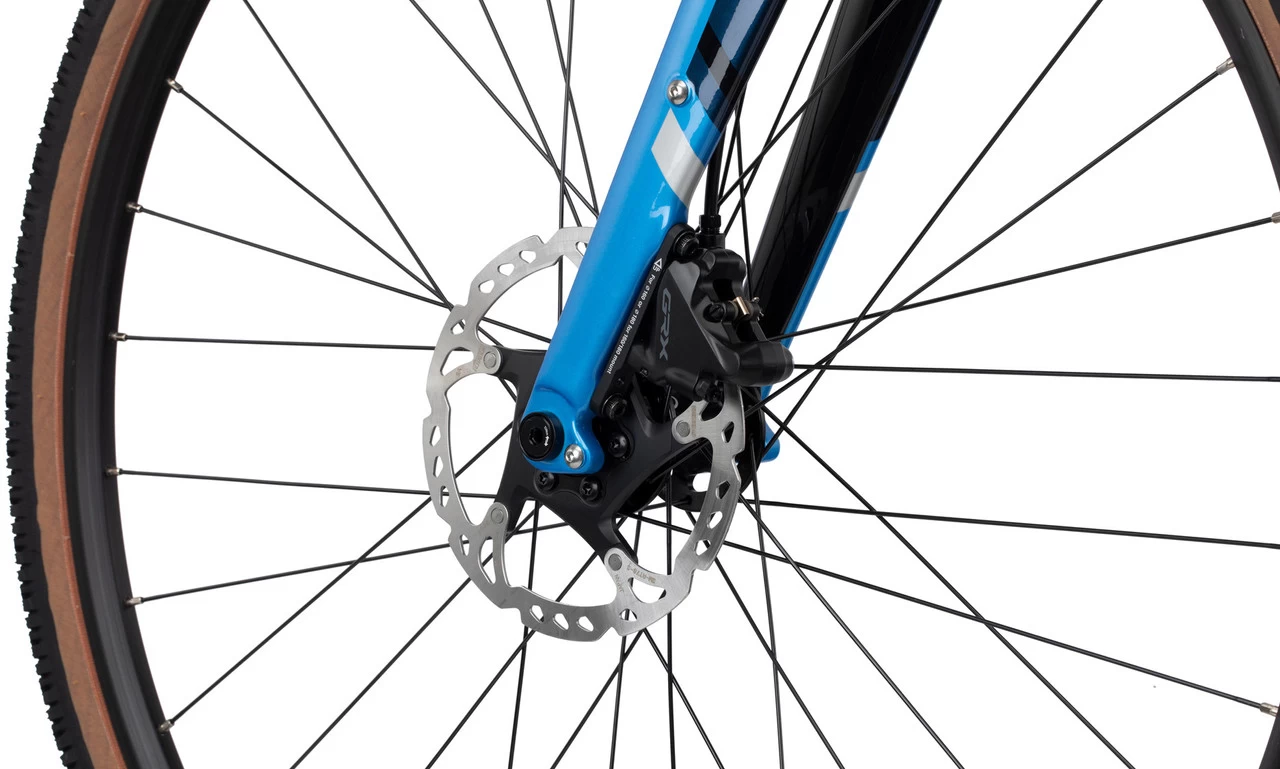

The Hook from Bombtrack is a versatile steel gravel bike which lets you shine on fast tours as well as on bikepacking trips. The vibration-damping, lightweight carbon fork helps to deliver a comfortable ride. The 2 x 10 GRX drivetrain from Shimano let you roll over gravel trails at high speed. You can also master climbs effortlessly: 160 mm disc brakes give you the necessary control in an emergency. Wheels and tyres are tubeless-ready so that you can spend your valuable time riding, not patching busted tubes. For long tours, the frame and fork have braze-on eyelets for bags, bottle cages, fenders and mudguards.

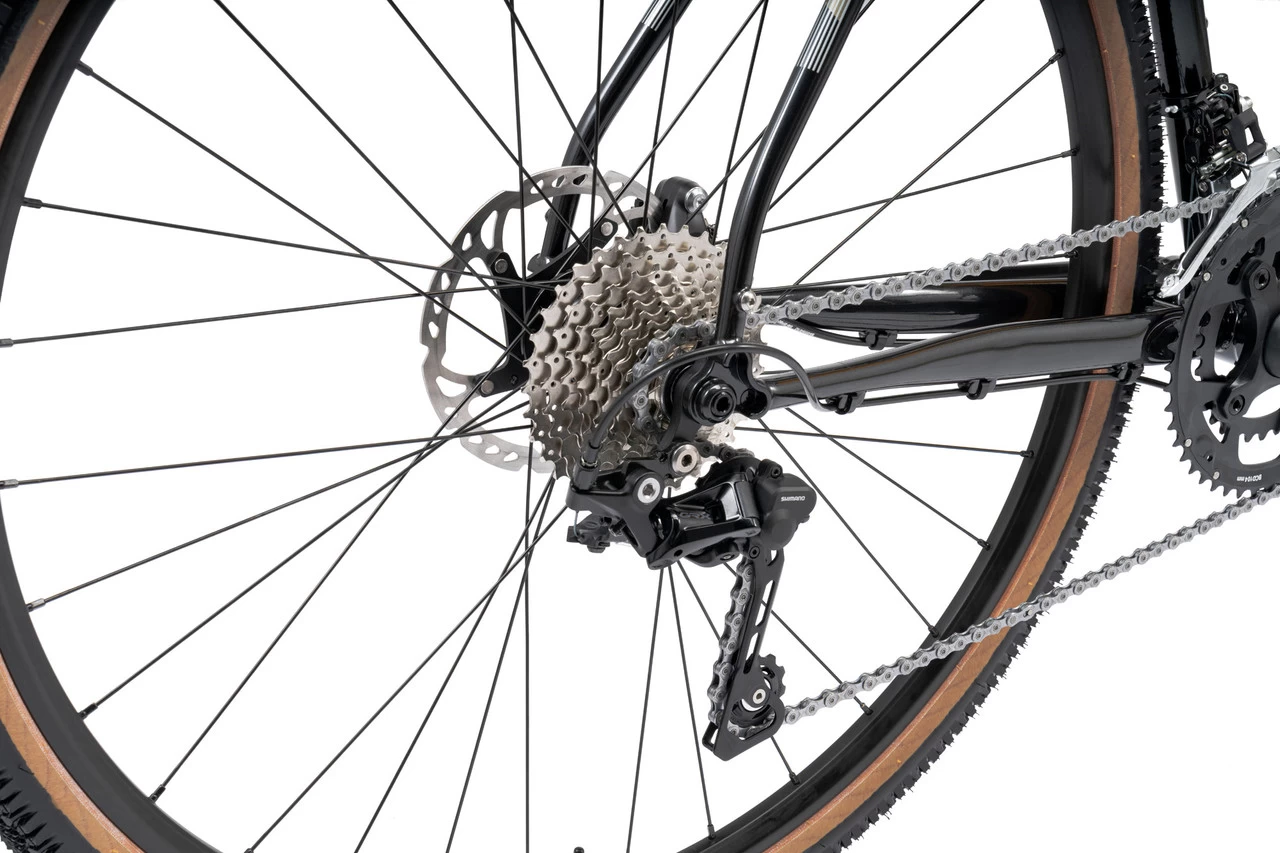

Specifications:Application:GravelWheel Size:27.5 (650B) (XS-S), 28″ (M-XL)Sizes:XS, S, M, L, XLFrame Material:steel (CrMo)Fork Material:CarbonComponents:Frame:Columbus Cromor / double buttedFork:Bombtrack EXT V2Stem:Bombtrack Roam / Aluminium, -7°Handlebars:Bombtrack CX-10 / 31.8 mm / 10° flareHeadset:EC34/28,6|EC44/40 / 1.5″ – 1 1/8″ / External Cup / sealedSeatpost:Bombtrack Beech / aluminium, 27.2 x 300 mmSaddle:Bombtrack CompCrank:Bombtrack Lyer / Aluminium, 32-48 Tooth / Direct MountPedals:noneBrakes:Shimano GRX BR-RX400 / Flat Mount, hydraulic, 160 mmShift/Brake lever:Shimano GRX ST-RX400 STI / hydraulic / 1 x 11Rear Derailleur:Shimano GRX RD-RX400Front Derailleur:Shimano GRX FD-RX400Cassette:Shimano CS-HG50 / 10-speed, 11-36 toothChain:KMC X10 EPT / 0.5″ x 11/128″ , 112 links (XS-S), 114 links (M-XL)Wheels:WTB ST Light i19 32mm rim / Bombtrack Tau hub, sealed, front 12 x 100 mm thru-axle, rear 12 x 142 mm thru-axleTyres:WTB Resolute 42-584 (XS-S), WTB Venture 40-622 (M-XL) / Tubeless ReadyApproved For:Weight Limit:120 kg (system weight)Rotor Size (max.):160 mmTyre Size (max.):front 650Bx52C / 700x45C / rear 650Bx42C / 700x42CChainrings:1x, 2xChainring Size (max.):40 tooth (1-speed), 32-48 tooth (2-speed)Features:steel frame made of double butted CrMo steelcarbon forkframe with braze-on eyelets for pannier rack and fenders/mudguardsTriple Cage eyelets on the forkinternal cable routing for dynamo cableGeometry:XS:
Recommended Height:150 – 161 cmStack:523 mmReach:358 mmSeat Tube Length:460 mmEffective Top Tube Length:508 mmHead Tube Length:100 mmChainstay Length:410 mmWheelbase:975 mmBB Drop:57 mmStandover Height:731 mmSeat Tube Angle:74°Head Tube Angle:71°Stem Length:80 mmHandlebar Width:400 mmCrank Arm Length:165.0 mm
S:
Recommended Height:160 – 171 cmStack:534 mmReach:369 mmSeat Tube Length:490 mmEffective Top Tube Length:522 mmHead Tube Length:110 mmChainstay Length:410 mmWheelbase:985 mmBB Drop:57 mmStandover Height:751 mmSeat Tube Angle:74°Head Tube Angle:71.5°Stem Length:80 mmHandlebar Width:400 mmCrank Arm Length:165.0 mm
M:
Recommended Height:170 – 181 cmStack:565 mmReach:378 mmSeat Tube Length:525 mmEffective Top Tube Length:540 mmHead Tube Length:130 mmChainstay Length:425 mmWheelbase:1010 mmBB Drop:67 mmStandover Height:802 mmSeat Tube Angle:74°Head Tube Angle:72°Stem Length:90 mmHandlebar Width:420 mmCrank Arm Length:170.0 mm
L:
Recommended Height:179 – 190 cmStack:584 mmReach:389 mmSeat Tube Length:545 mmEffective Top Tube Length:562 mmHead Tube Length:150 mmChainstay Length:425 mmWheelbase:1027 mmBB Drop:67 mmStandover Height:820 mmSeat Tube Angle:73.5°Head Tube Angle:72°Stem Length:100 mmHandlebar Width:440 mmCrank Arm Length:175.0 mm
XL:
Recommended Height:188 – 190 cmStack:603 mmReach:400 mmSeat Tube Length:565 mmEffective Top Tube Length:579 mmHead Tube Length:170 mmChainstay Length:425 mmWheelbase:1060 mmBB Drop:67 mmStandover Height:840 mmSeat Tube Angle:73.5°Head Tube Angle:72°Stem Length:100 mmHandlebar Width:440 mmCrank Arm Length:175.0 mmManufacturer Numbers:XS:1125060121S:1125060221M:1125060321L:1125060421XL:1125060521Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x Bombtrack Hook Gravel Bike
