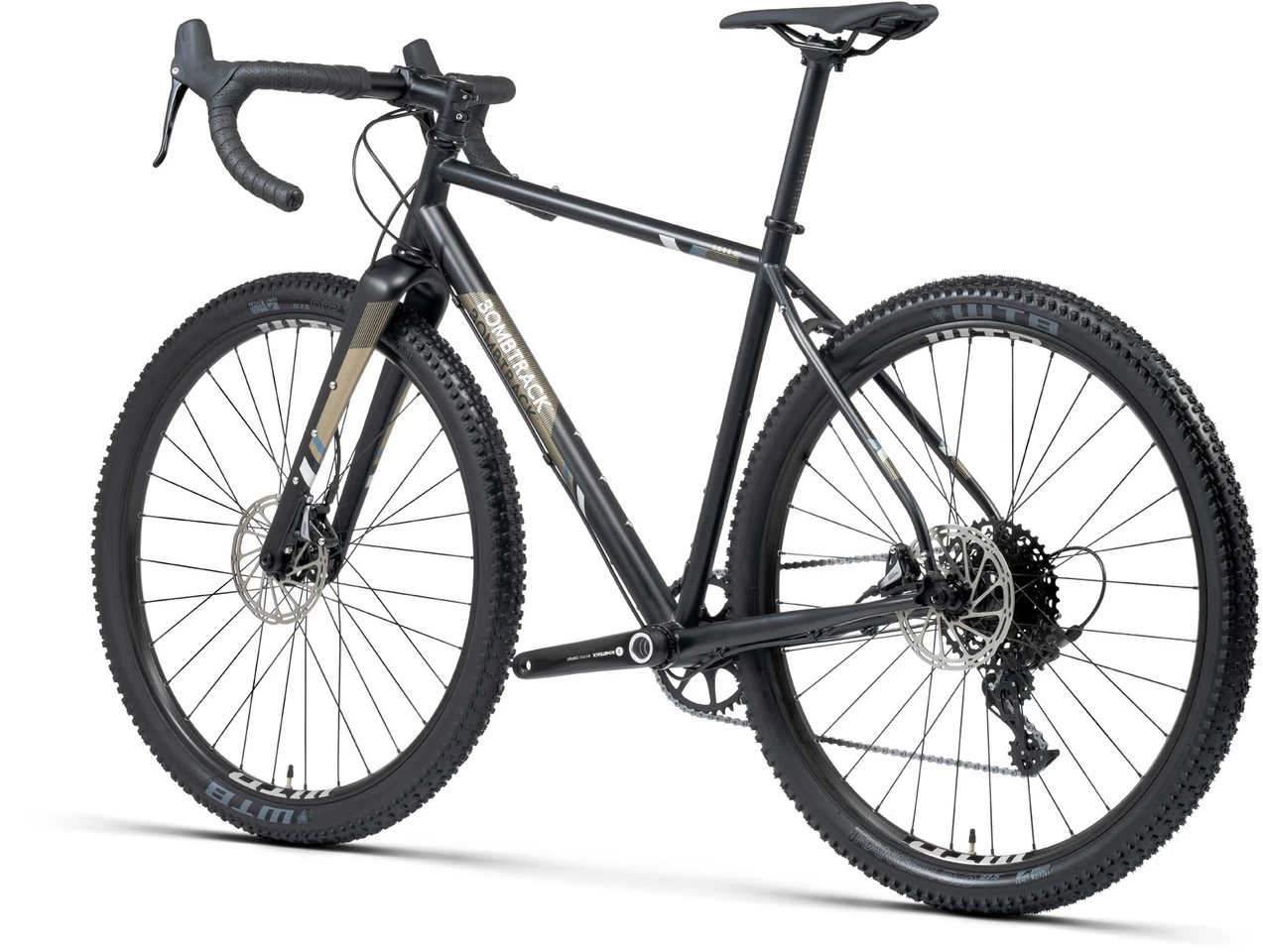

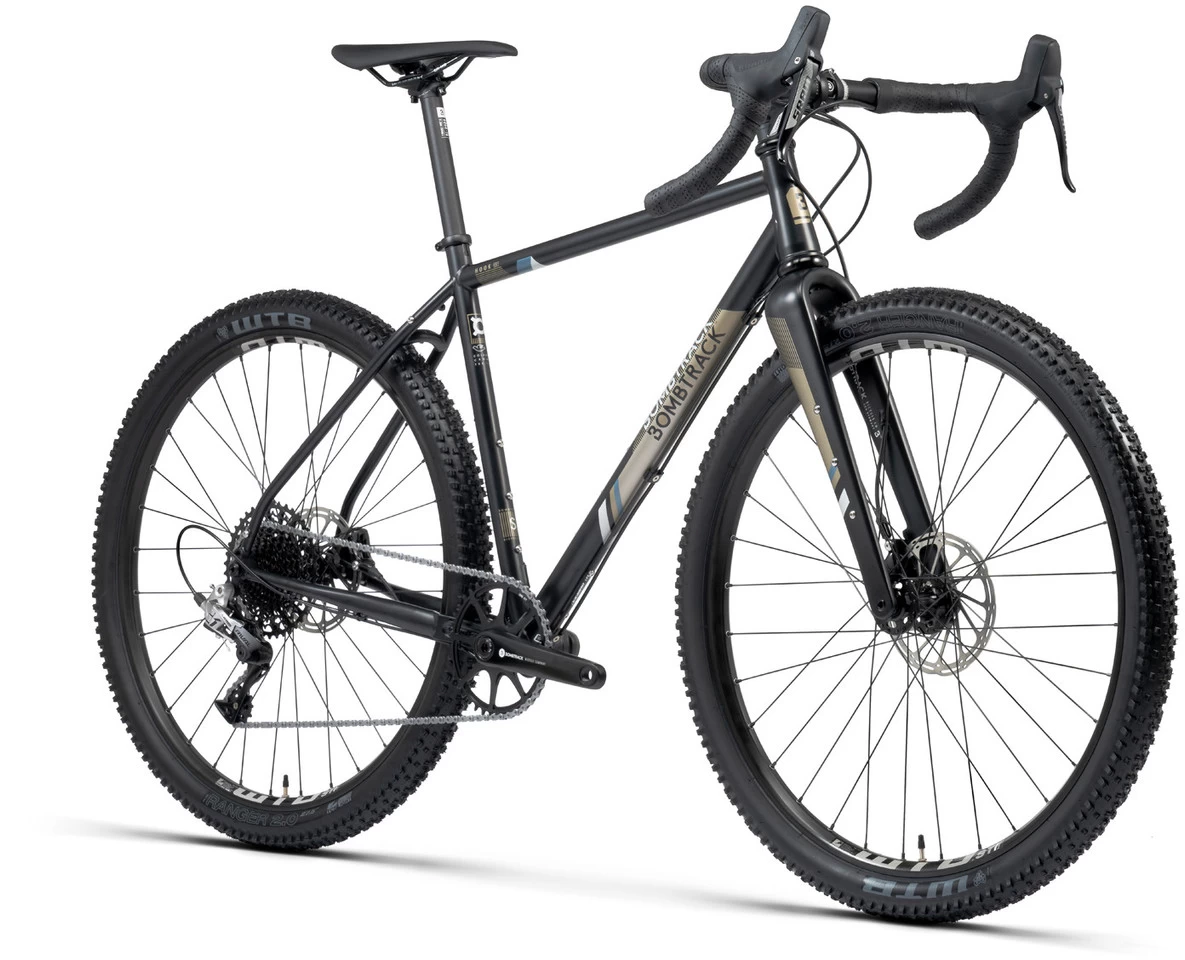

Bombtrack Hook EXT Gravel Bike

Commuting, bikepacking, weekend tours – with the Hook EXT gravel bike from Bombtrack, you’re riding a bike for changing terrain. The steel frame is equipped with a carbon fork, which allows internal cable routing for a dynamo. Disc brakes, 27.5″ tubeless-ready wheels and the SRAM 1 x 11 Rival drivetrain impress with reliability for versatile use. Braze-on eyelets for bags, bottle cages, fenders and mudguards make the bike suitable for everyday use.
Specifications:Application:GravelWheel Size:27.5″ (650B)Sizes:XS, S, M, L, XLFrame Material:steel (CrMo)Fork Material:CarbonComponents:Frame:Columbus Cromor / double buttedFork:Bombtrack EXT V2Stem:Bombtrack Roam / Aluminium, -7°Handlebars:Bombtrack CX-10 / 31.8 mm / 10° flareHeadset:EC34/28,6|EC44/40 / 1.5″ – 1 1/8″ / External Cup / sealedSeatpost:Bombtrack Yew / Aluminium, 27.2 x 300 mmSaddle:Bombtrack CompCrank:Bombtrack Lyer / Aluminium, 40 Tooth / Direct MountPedals:noneBrakes:SRAM Rival / Flat Mount, hydraulic, 160 mmShift/Brake lever:SRAM Rival double tap / hydraulic / 1 x 11Rear Derailleur:SRAM Rival 1 / long cageCassette:SRAM PG-1130 / 11-speed, 11-42 toothChain:KMC XII EPT / 0.5″ x 11/128″ , 114 linksWheels:Front WTB ST Light i25 32mm rim / Rear WTB ST Light i23 32 mm rim / Bombtrack Tau hub, sealed, Front 12 x 100 mm thru-axle, Rear 12 x 142 mm thru-axleTyres:Front WTB Ranger TCS Light 27.5×2″ / Tubeless ReadyApproved For:Weight Limit:130 kg (system weight)Rotor Size (max.):160 mmTyre Size (max.):front 650Bx52C / 700x45C / rear 650Bx42C / 700x40CChainrings:1x, 2xChainring Size (max.):44 tooth (1-speed), 36-50 tooth (2-speed)Features:steel frame made of double butted CrMo steelcarbon forkframe with braze-on eyelets for pannier rack and fenders/mudguardsTriple Cage eyelets on the forkinternal cable routing for dynamo cableGeometry:XS:
Recommended Height:150 – 161 cmStack:554 mmReach:365 mmSeat Tube Length:460 mmEffective Top Tube Length:519 mmHead Tube Length:110 mmChainstay Length:425 mmWheelbase:995 mmBB Drop:75 mmStandover Height:748 mmSeat Tube Angle:74.5°Head Tube Angle:71.5°Stem Length:80 mmHandlebar Width:400 mmCrank Arm Length:165.0 mm
S:
Recommended Height:160 – 171 cmStack:573 mmReach:374 mmSeat Tube Length:500 mmEffective Top Tube Length:533 mmHead Tube Length:130 mmChainstay Length:425 mmWheelbase:1010 mmBB Drop:75 mmStandover Height:776 mmSeat Tube Angle:74.5°Head Tube Angle:71.5°Stem Length:80 mmHandlebar Width:420 mmCrank Arm Length:170.0 mm
M:
Recommended Height:170 – 181 cmStack:589 mmReach:387 mmSeat Tube Length:530 mmEffective Top Tube Length:556 mmHead Tube Length:150 mmChainstay Length:425 mmWheelbase:1025 mmBB Drop:70 mmStandover Height:803 mmSeat Tube Angle:74°Head Tube Angle:72°Stem Length:90 mmHandlebar Width:420 mmCrank Arm Length:170.0 mm
L:
Recommended Height:179 – 190 cmStack:608 mmReach:396 mmSeat Tube Length:570 mmEffective Top Tube Length:570 mmHead Tube Length:170 mmChainstay Length:425 mmWheelbase:1040 mmBB Drop:70 mmStandover Height:831 mmSeat Tube Angle:74°Head Tube Angle:72°Stem Length:100 mmHandlebar Width:440 mmCrank Arm Length:175.0 mm
XL:
Recommended Height:188 – 190 cmStack:627 mmReach:409 mmSeat Tube Length:600 mmEffective Top Tube Length:595 mmHead Tube Length:190 mmChainstay Length:425 mmWheelbase:1060 mmBB Drop:70 mmStandover Height:855 mmSeat Tube Angle:74°Head Tube Angle:72°Stem Length:100 mmHandlebar Width:440 mmCrank Arm Length:175.0 mmManufacturer Numbers:XS:1125070121S:1125070221M:1125070321L:1125070421XL:1125070521Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x Bombtrack Hook EXT Gravel Bike
