Bombtrack Beyond 2 Touring Bike

The Bombtrack Beyond 2 Touring Bike – For long journeys with lots of luggage

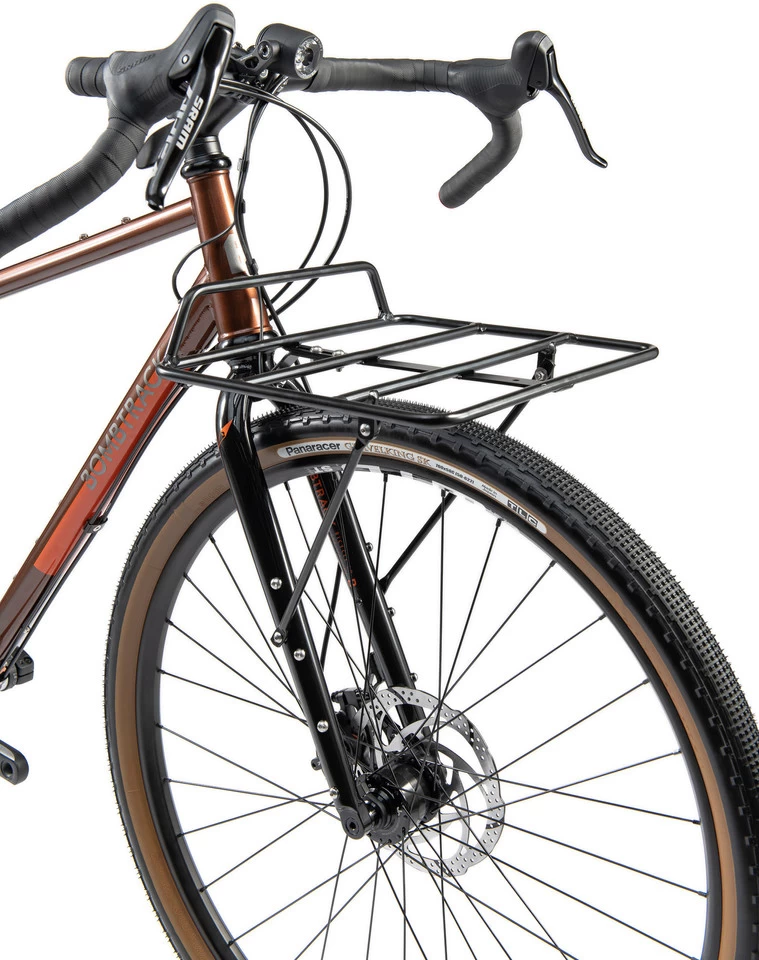

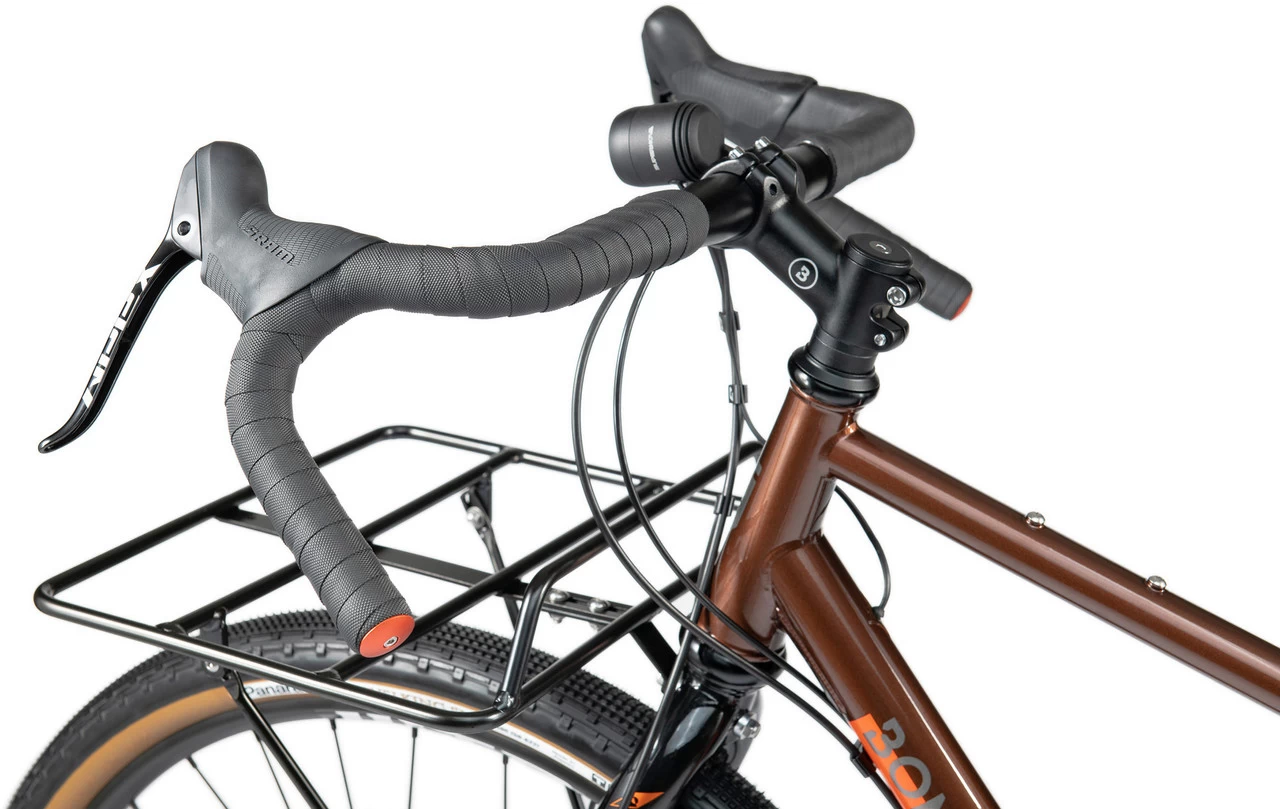

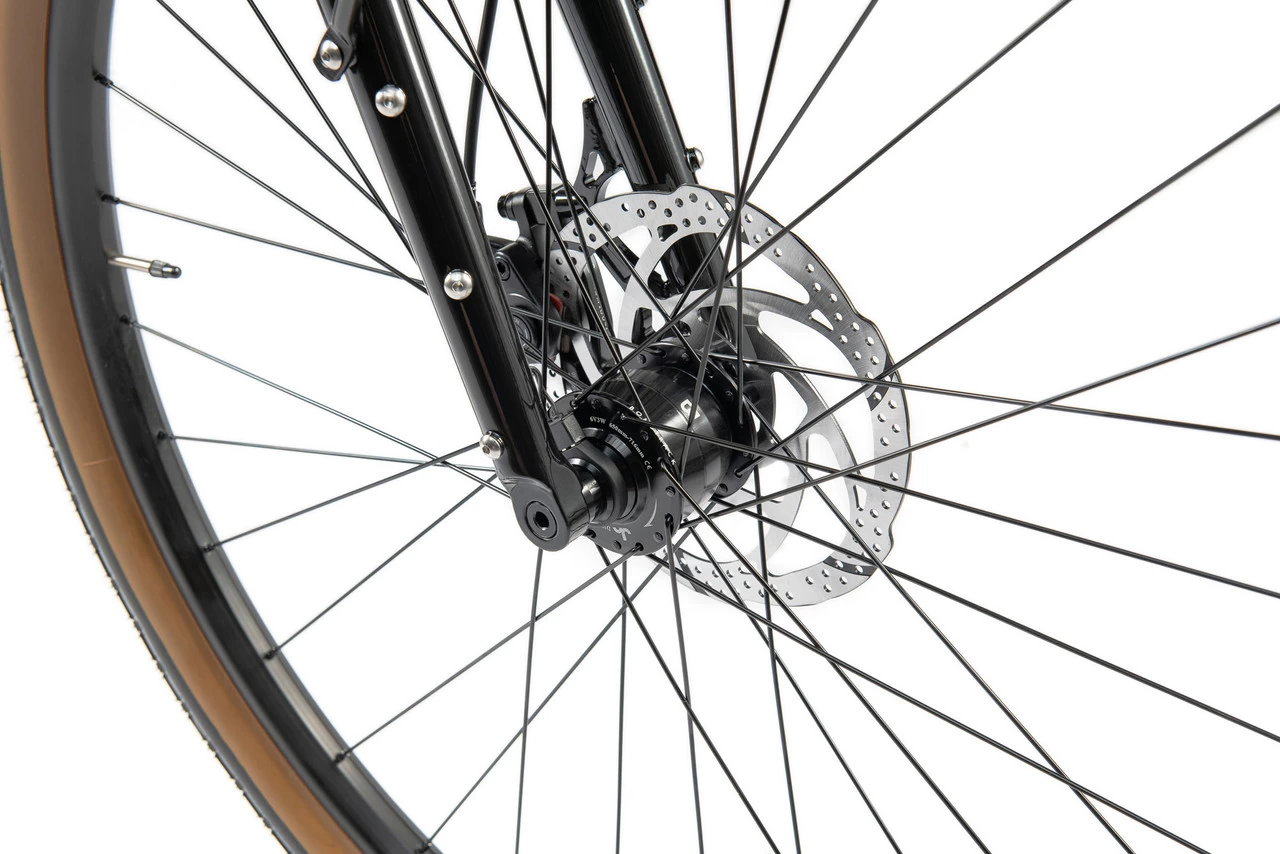

With the Beyond 2 touring bike by Bombtrack you are optimally equipped for travelling with a lot of luggage thanks to the front carrier. The robust steel frame and the steel fork withstand almost all conditions and impress with a pleasant geometry. Long days in the saddle are no problem thanks to the drop bar with 30° flare. If it gets late on your way to your destination, you will always be safe and, above all, clearly visible thanks to the existing lighting system with power supply via hub dynamo. Disc brakes give you the control you need. Tubeless-ready wheels and tyres make the bike more puncture-proof. Braze-on eyelets for bottle cages, fenders, rear racks and bags allow you to carry additional luggage.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of batteries and electrical equipment can be found here.

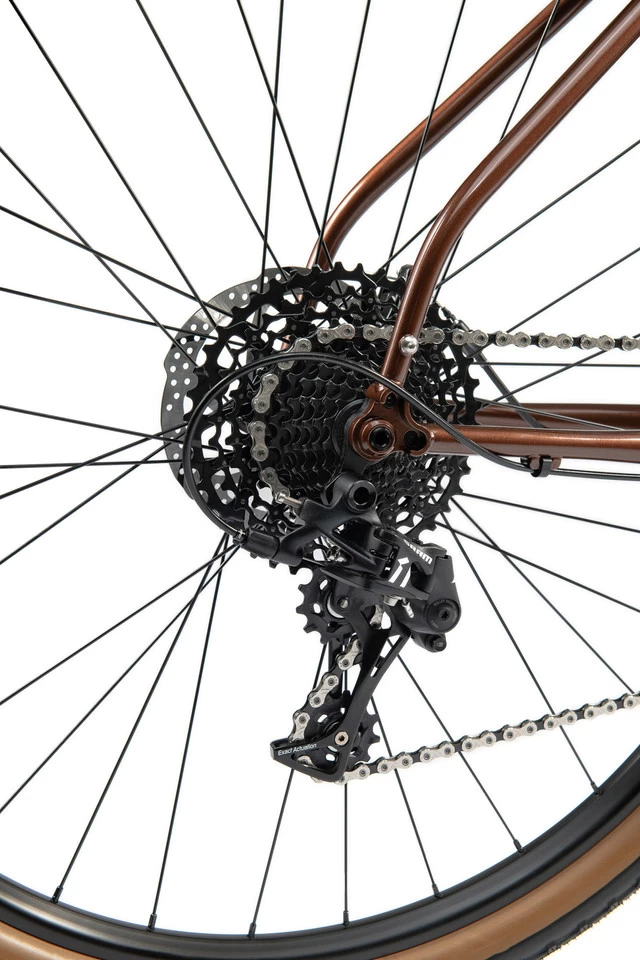

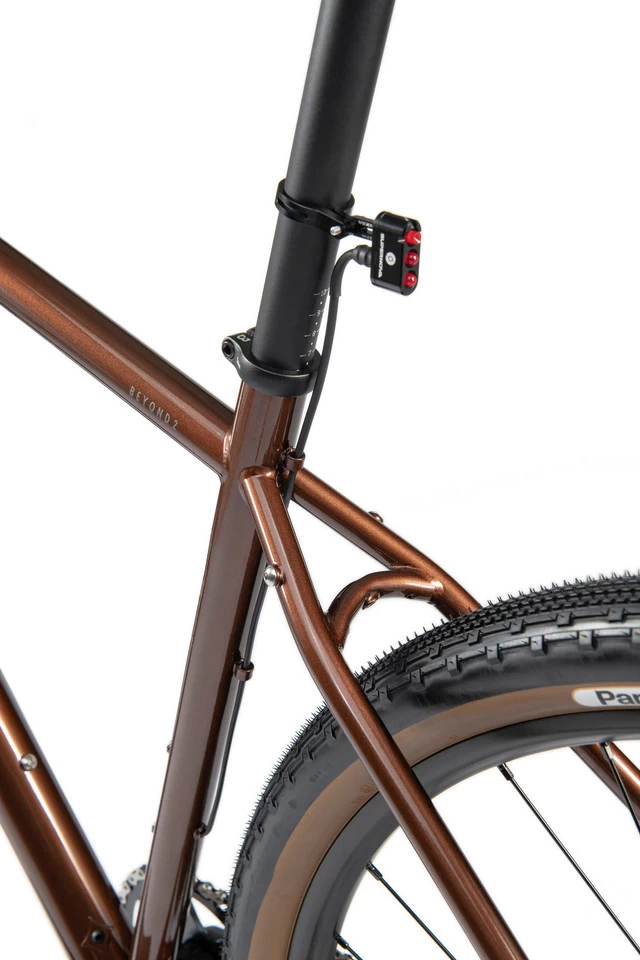

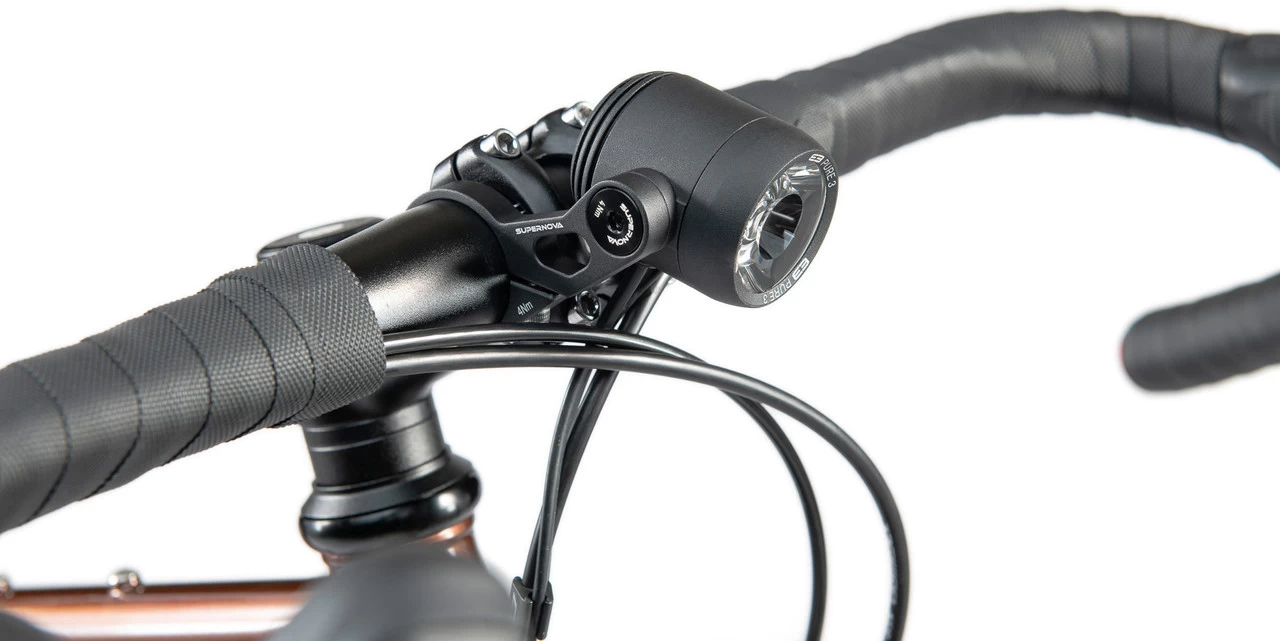

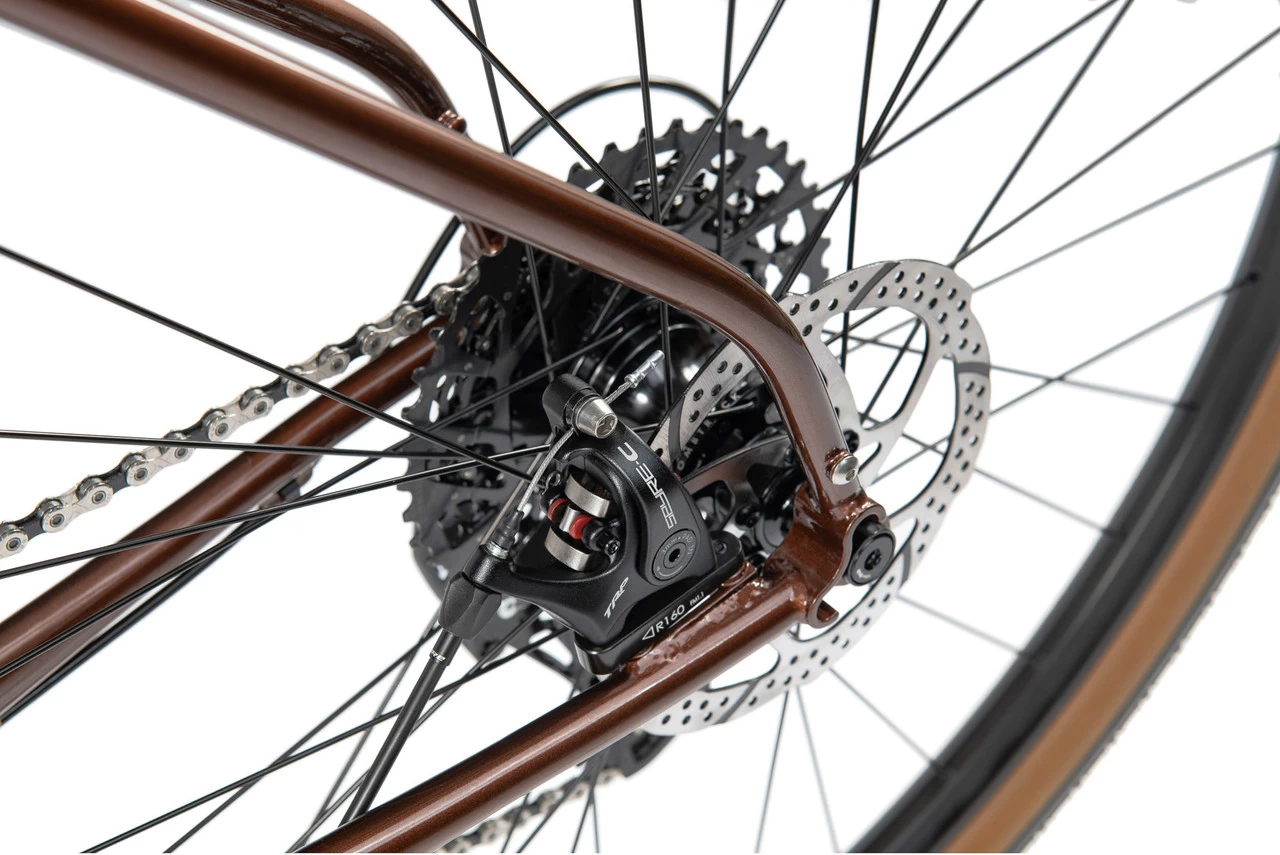

Specifications:Application:City & Touring, GravelWheel Size:27.5″ (650B), 29″Sizes:XS, S, M, L, XLFrame Material:steel (CrMo)Fork Material:steel (CrMo)Components:Frame:Columbus Cromor / double buttedFork:Columbus Cromor / double buttedStem:Bombtrack Wander / Aluminium +17°Handlebars:Bombtrack Beyond / 31.8 mm / 30° flare / 115 mm drop / 85 mm reachHeadset:EC34/28,6|EC44/40 / 1.5″ – 1 1/8″ / External Cup / sealedSeatpost:Bombtrack Beech / 27.2 x 400 mmSaddle:Bombtrack OriginCranks:Bombtrack Ames / Aluminium / 36-toothPedals:noneBrakes:TRP Spyre C / mechanical, 180 (front), 160 mm (rear)Shift/Brake lever:SRAM Apex double tap / hydraulic / 1 x 11Rear Derailleur:SRAM Apex 1, double clutch, long cageCassette:SRAM PG-1130 / 11-speed, 11-42 toothChain:KMC X11 / 0.5″ x 11/128″ , 114 linksFront Light:Supernova E3 Pure 3Rear Light:Supernova E3 Tail Light 2Wheels:WTB STi23, TCS 2.0, 32 mm / rear KT dynamo hub, 6-bolt disc, 15 x 100 mm thru-axle / rear Bombtrack Tau, sealed, 6-bolt disc, 12 x 142 mm thru-axleTyres:Panaracer Gravelking SK / Tubeless Ready / 48-584 (XS, S), 50-622 (M, L, XL)Approved For:Weight Limit:140 kg (system weight)Features:with Bombtrack Deck front racklighting system with hub dynamoSize XS – S with 27.5″ (650B), M – XL with 29″Geometry:XS:
Recommended Height: 150 – 161 cmStack: 538 mmReach: 349 mmSeat Tube Length: 400 mmEffective Top Tube Length: 494 mmHead Tube Length: 100 mmChainstay Length: 425 mmWheelbase: 1000 mmBB Drop: 55 mmStandover Height: 727 mmSeat Tube Angle: 75°Head Tube Angle: 70°Stem Length: 60 mmHandlebar Width: 420 mmCrank Arm Length: 165 mm
S:
Recommended Height: 160 – 171 cmStack: 568 mmReach: 364 mmSeat Tube Length: 440 mmEffective Top Tube Length: 522 mmHead Tube Length: 130 mmChainstay Length: 425 mmWheelbase: 1021 mmBB Drop: 55 mmStandover Height: 761 mmSeat Tube Angle: 74.5°Head Tube Angle: 70.5°Stem Length: 60 mmHandlebar Width: 420 mmCrank Arm Length: 170 mm
M:
Recommended Height: 170 – 181 cmStack: 646 mmReach: 392 mmSeat Tube Length: 480 mmEffective Top Tube Length: 590 mmHead Tube Length: 150 mmChainstay Length: 455 mmWheelbase: 1065 mmBB Drop: 70 mmStandover Height: 802 mmSeat Tube Angle: 73.5°Head Tube Angle: 71°Stem Length: 80 mmHandlebar Width: 440 mmCrank Arm Length: 170 mm
L:
Recommended Height: 179 – 190 cmStack: 604 mmReach: 379 mmSeat Tube Length: 520 mmEffective Top Tube Length: 558 mmHead Tube Length: 190 mmChainstay Length: 455 mmWheelbase: 1082 mmBB Drop: 70 mmStandover Height: 842 mmSeat Tube Angle: 73°Head Tube Angle: 72°Stem Length: 80 mmHandlebar Width: 440 mmCrank Arm Length: 175 mm
XL:
Recommended Height: 188 – 199 cmStack: 646 mmReach: 392 mmSeat Tube Length: 560 mmEffective Top Tube Length: 623 mmHead Tube Length: 220 mmChainstay Length: 455 mmWheelbase: 1109 mmBB Drop: 70 mmStandover Height: 873 mmSeat Tube Angle: 72.5°Head Tube Angle: 72°Stem Length: 90 mmHandlebar Width: 460 mmCrank Arm Length: 175 mmManufacturer Numbers:XS:1125130121S:1125130221M:1125130321L:1125130421XL:1125130521Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x Bombtrack Beyond 2 touring bike
