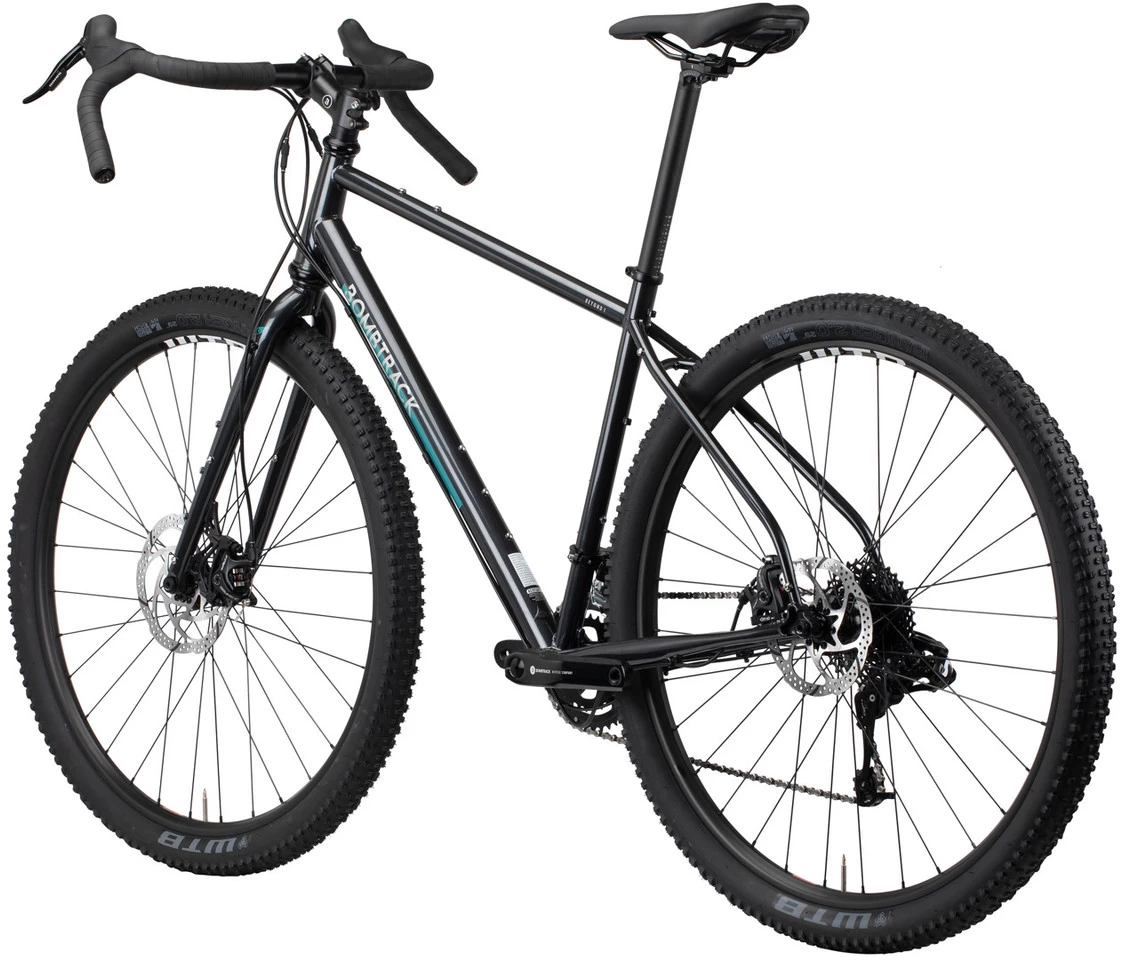

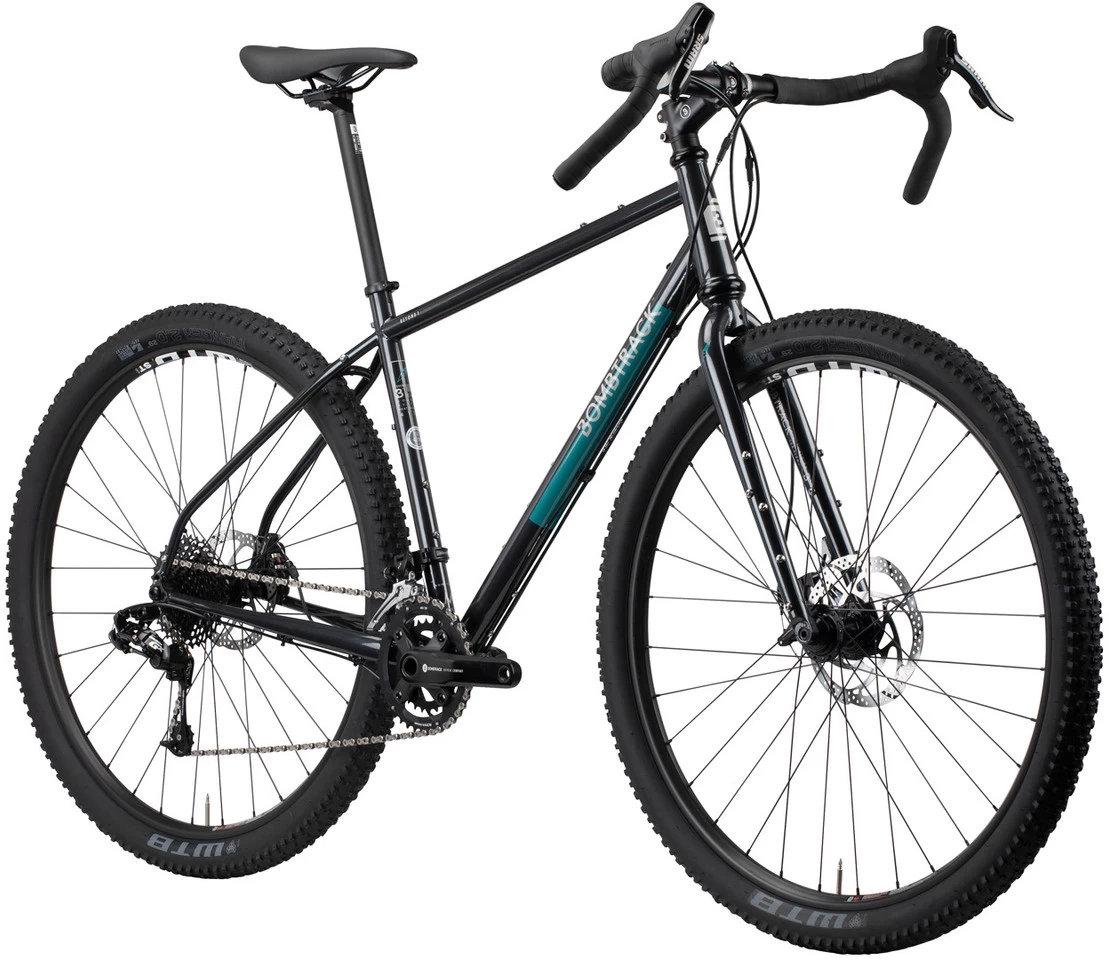

Bombtrack Beyond 1 Touring Bike

The Beyond 1 touring bike from Bombtrack is the ideal vehicle for long tours and bike trips. The robust steel frame can withstand almost any terrain and impresses with a pleasant geometry. Long days in the saddle are no problem. This is in thanks in part to the touring dropbars, which allow you to regularly change your riding and hand position. The SRAM Apex 2 x 10 drivetrain ensures you’ll make quick progress across flat stretches, and have enough support for climbs. Disc brakes give you the control you need. Tubeless-ready wheels and tyres make the bike more puncture-proof. Braze-on eyelets for bottle cages, fenders/mudguards, pannier racks and bags allow you to bring along everything you need.

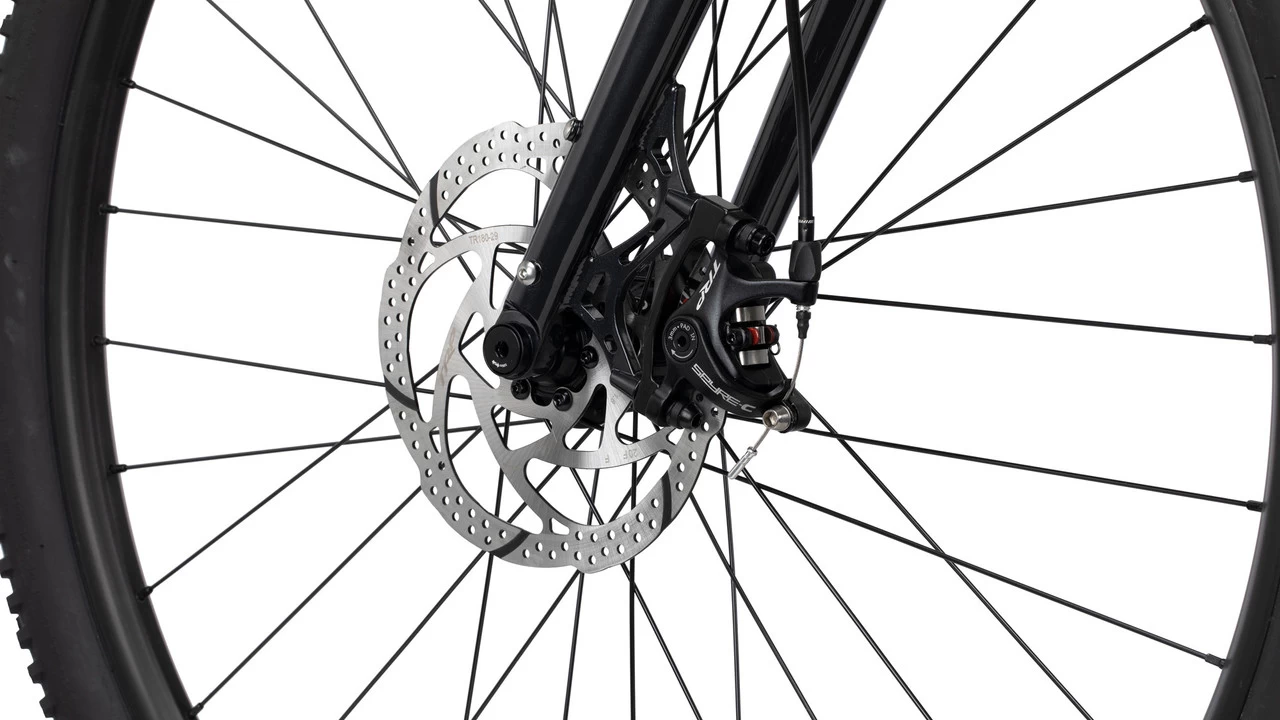

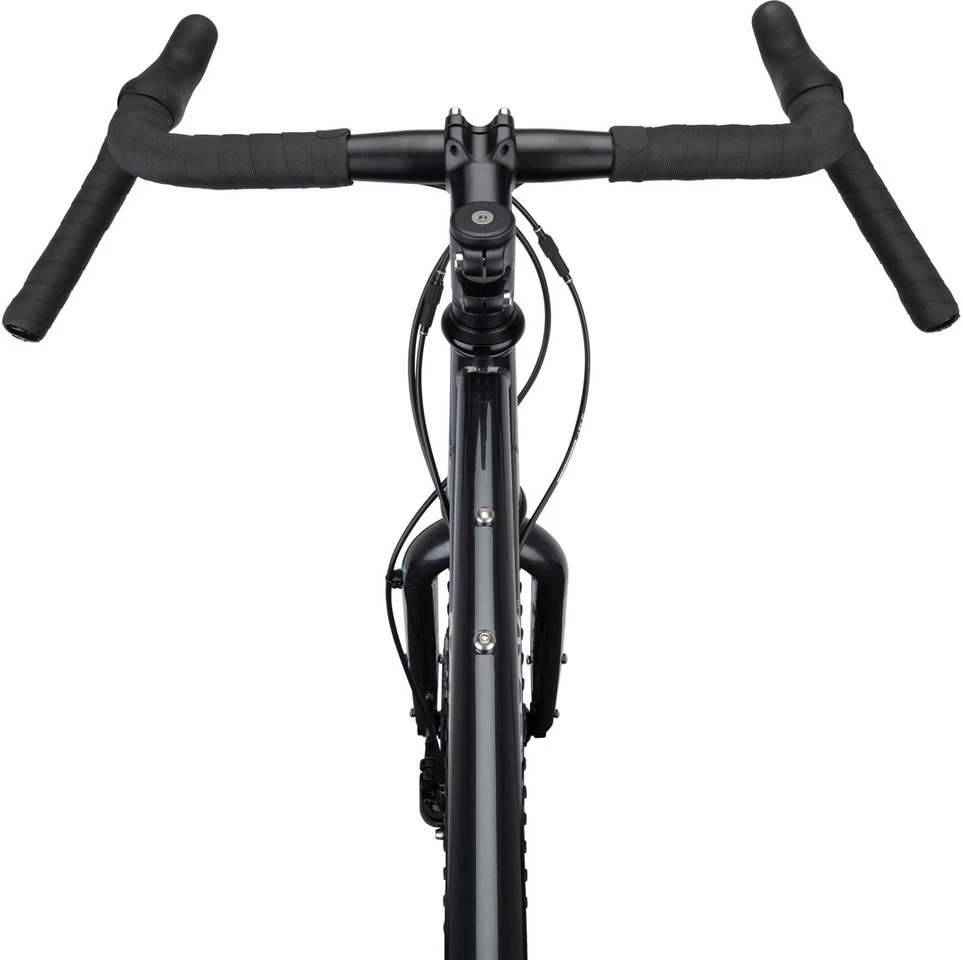

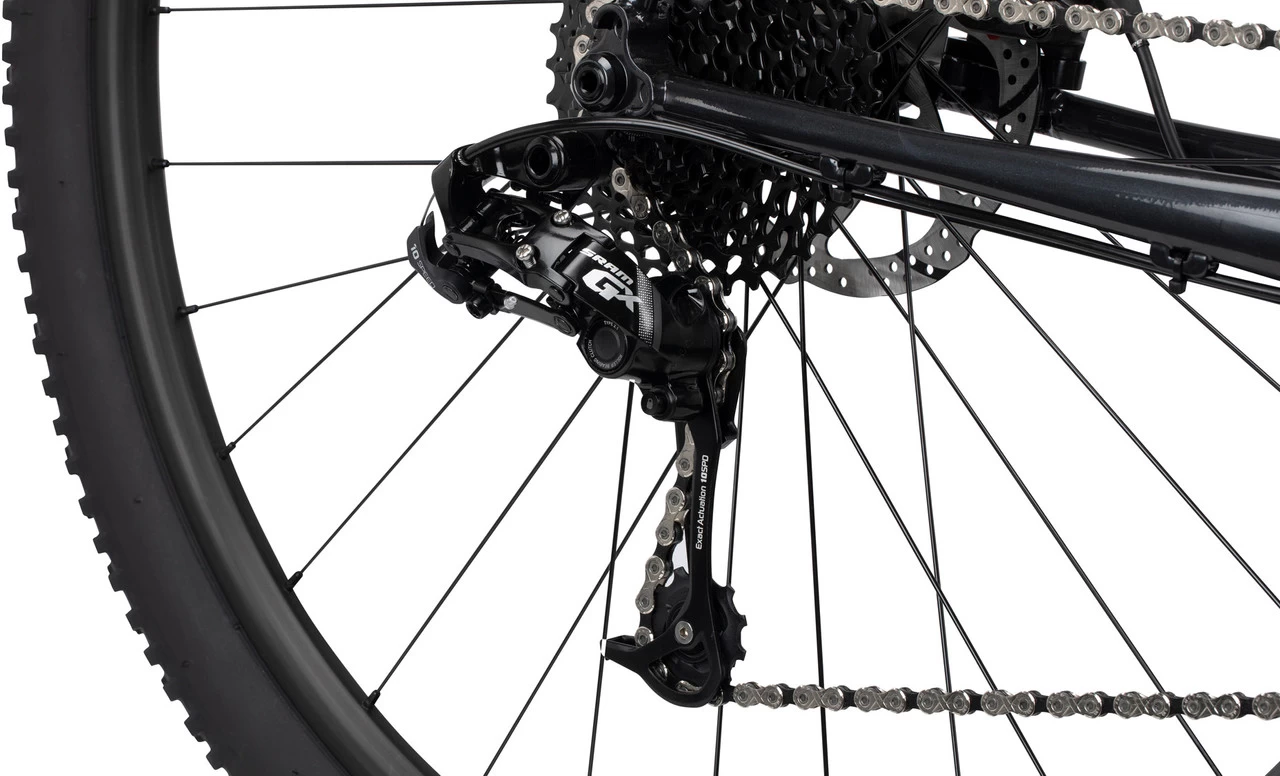

Specifications:Application:City & TouringWheel Size:27.5″ (650B), 29″Sizes:S, M, L, XLFrame Material:steel (CrMo)Fork Material:steel (CrMo)Components:Frame:Columbus Cromor / double buttedFork:Bombtrack BPSStem:Bombtrack Wander / aluminium, +17°Handlebars:Bombtrack Beyond / 31.8 mm / 30° FlareHeadset:EC34/28,6|EC44/40 / 1.5″ – 1 1/8″ / External Cup / sealedSeatpost:Bombtrack Beech / 27.2 x 400 mmSaddle:Bombtrack OriginCrank:Bombtrack Ames / AluminiumPedals:noneBrakes:TRP Spyre C / mechanical, 180 (front), 160 mm (rear)Shift/Brake lever:SRAM Apex double tap / hydraulic / 2 x 10Rear Derailleur:SRAM GX / long cageFront Derailleur:Microshift FD-M612-BCassette:SRAM PG-1020 / 10-speed, 11-36 toothChain:KMC X10 EPT / 0.5″ x 11/128″ , 114 linksWheels:WTB STi23, TCS 2.0, 32 mm / front Bombtrack Grad, sealed, 6-bolt disc, front 15 x 100 mm thru-axle / rear Bombtrack Arc, sealed, rear 12 x 142 mm thru-axleTyres:Front WTB Ranger Light TCS 2.0″ / Tubeless ReadyApproved For:Weight Limit:140 kg (system weight)Rotor Size (max.):Front 203 mm/ Rear 180 mmTyre Size (max.):2.1″Chainrings:1x, 2xChainring Size (max.):36 tooth (1-speed), 28-42 tooth (2-speed)Features:size S with 27.5″ wheels, size M-XL with 29″ wheelssteel frame made of double butted CrMo steelfork made of double butted Cr-Mo steelframe with braze-on eyelets for pannier rack and fenders/mudguardsTriple Cage eyelets on the forkinternal cable routing for dynamo cableGeometry:S:
Recommended Height:160 – 171 cmStack:565 mmReach:366 mmSeat Tube Length:440 mmEffective Top Tube Length:522 mmHead Tube Length:130 mmChainstay Length:425 mmWheelbase:1021 mmBB Drop:55 mmStandover Height:759 mmSeat Tube Angle:74.5°Head Tube Angle:70.5°Stem Length:60 mmHandlebar Width:420 mmCrank Arm Length:170.0 mm
M:
Recommended Height:170 – 181 cmStack:601 mmReach:380 mmSeat Tube Length:480 mmEffective Top Tube Length:558 mmHead Tube Length:150 mmChainstay Length:455 mmWheelbase:1065 mmBB Drop:70 mmStandover Height:800 mmSeat Tube Angle:73.5°Head Tube Angle:71°Stem Length:80 mmHandlebar Width:440 mmCrank Arm Length:170.0 mm
L:
Recommended Height:179 – 190 cmStack:601 mmReach:380 mmSeat Tube Length:520 mmEffective Top Tube Length:590 mmHead Tube Length:190 mmChainstay Length:455 mmWheelbase:1082 mmBB Drop:70 mmStandover Height:840 mmSeat Tube Angle:73°Head Tube Angle:72°Stem Length:80 mmHandlebar Width:440 mmCrank Arm Length:175.0 mm
XL:
Recommended Height:188 – 199 cmStack:671 mmReach:412 mmSeat Tube Length:560 mmEffective Top Tube Length:623 mmHead Tube Length:220 mmChainstay Length:455 mmWheelbase:1109 mmBB Drop:70 mmStandover Height:871 mmSeat Tube Angle:72.5°Head Tube Angle:72°Stem Length:90 mmHandlebar Width:460 mmCrank Arm Length:175.0 mmManufacturer Numbers:S:1125120221M:1125120321L:1125120421XL:1125120521Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x Bombtrack Beyond 1 Touring Bike
