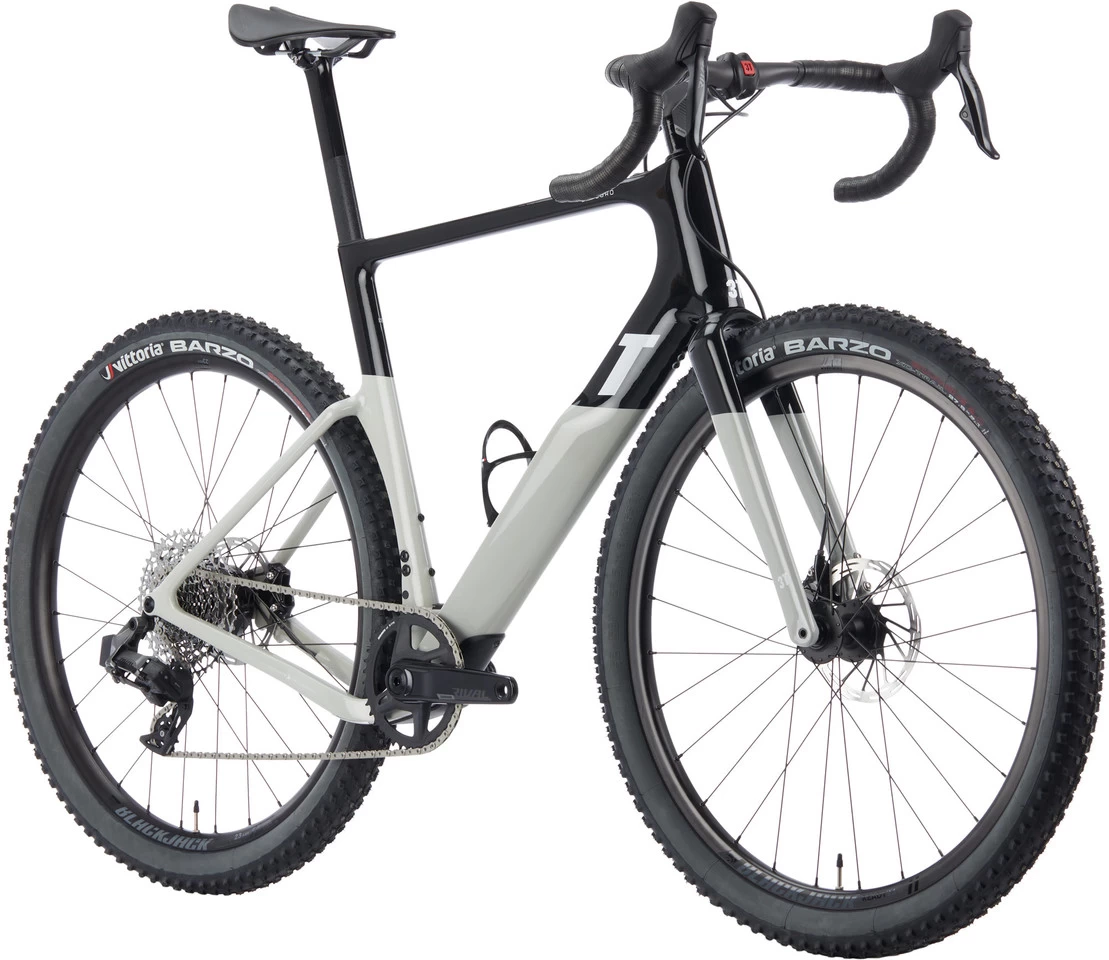

3T Exploro RaceMax Boost Rival XPLR Carbon 27.5″ E-Gravel Bike

The 3T Exploro RaceMax Boost Rival XPLR Carbon 27.5″ e-gravel bike – Powerful on gravel paths

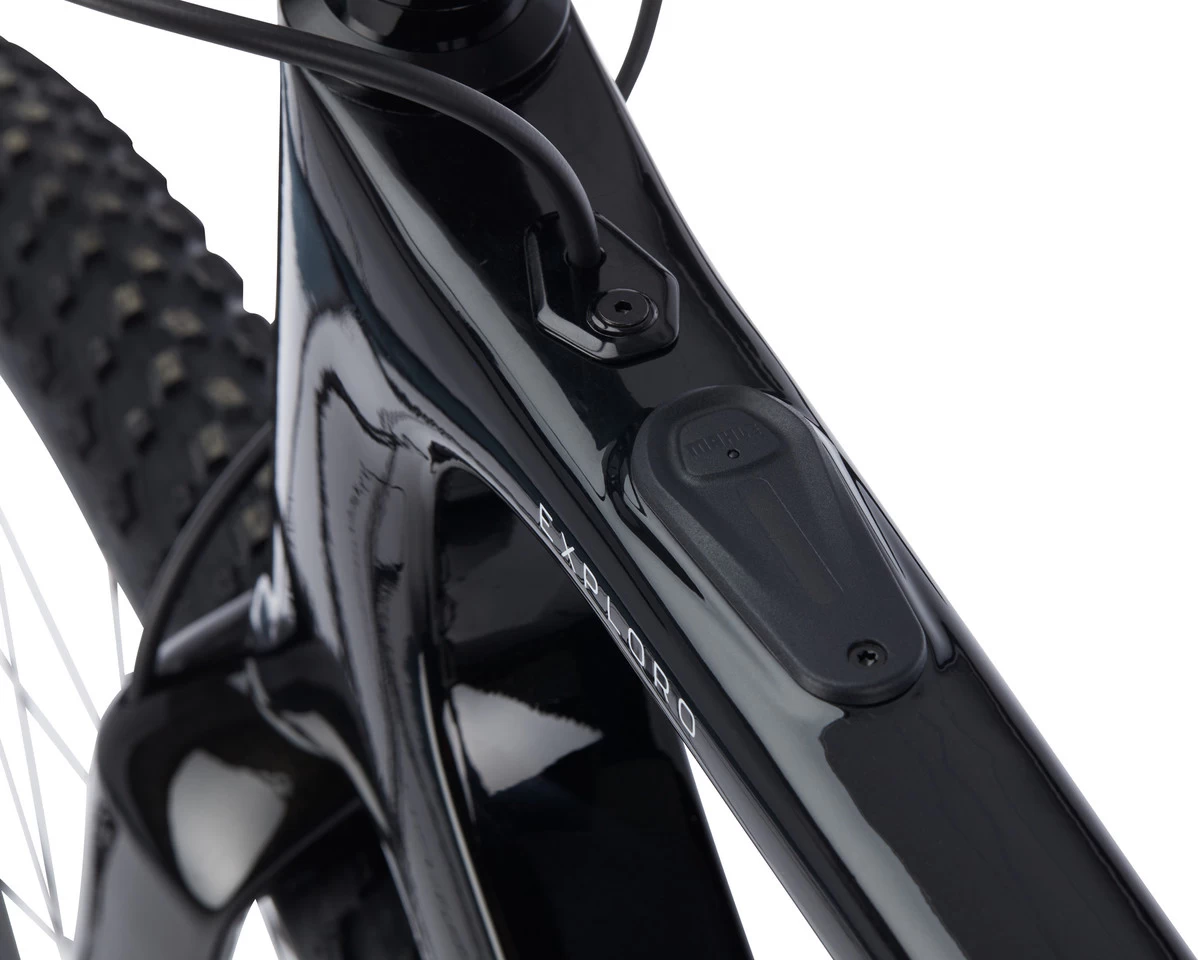

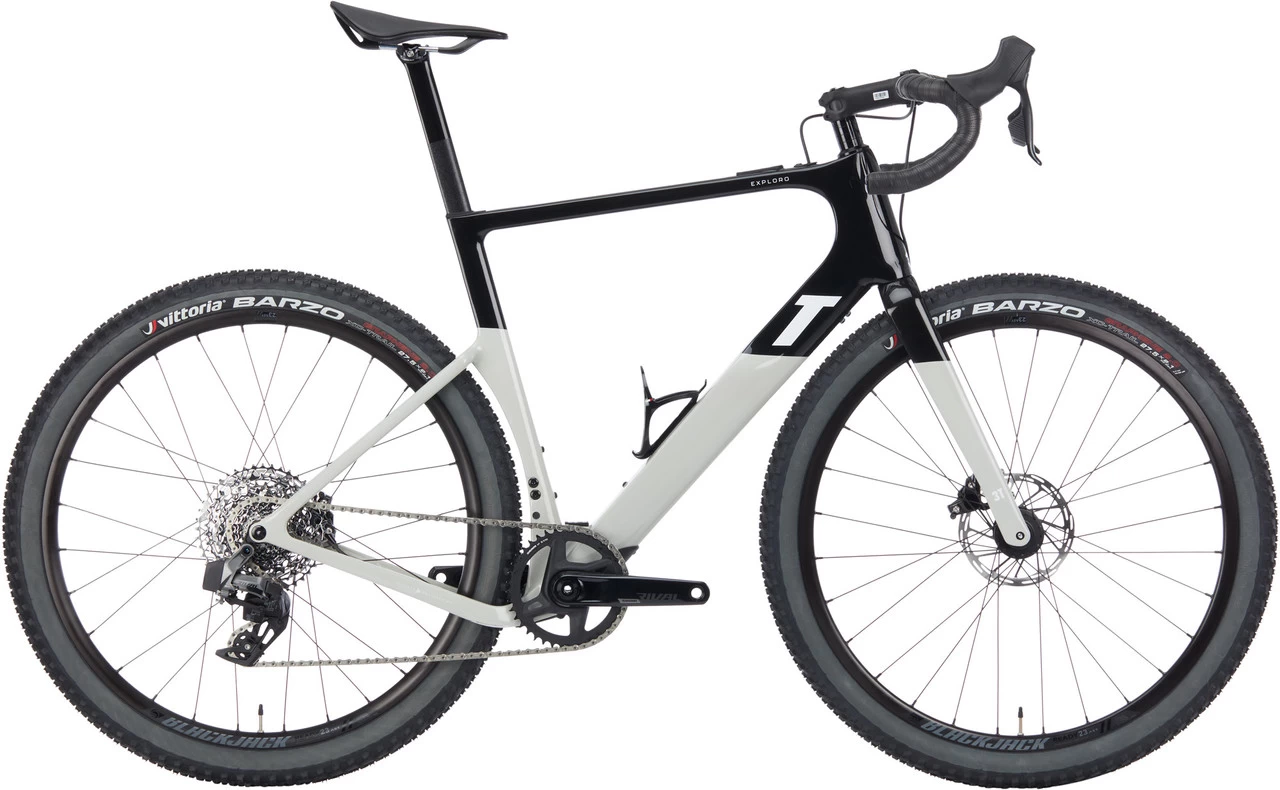

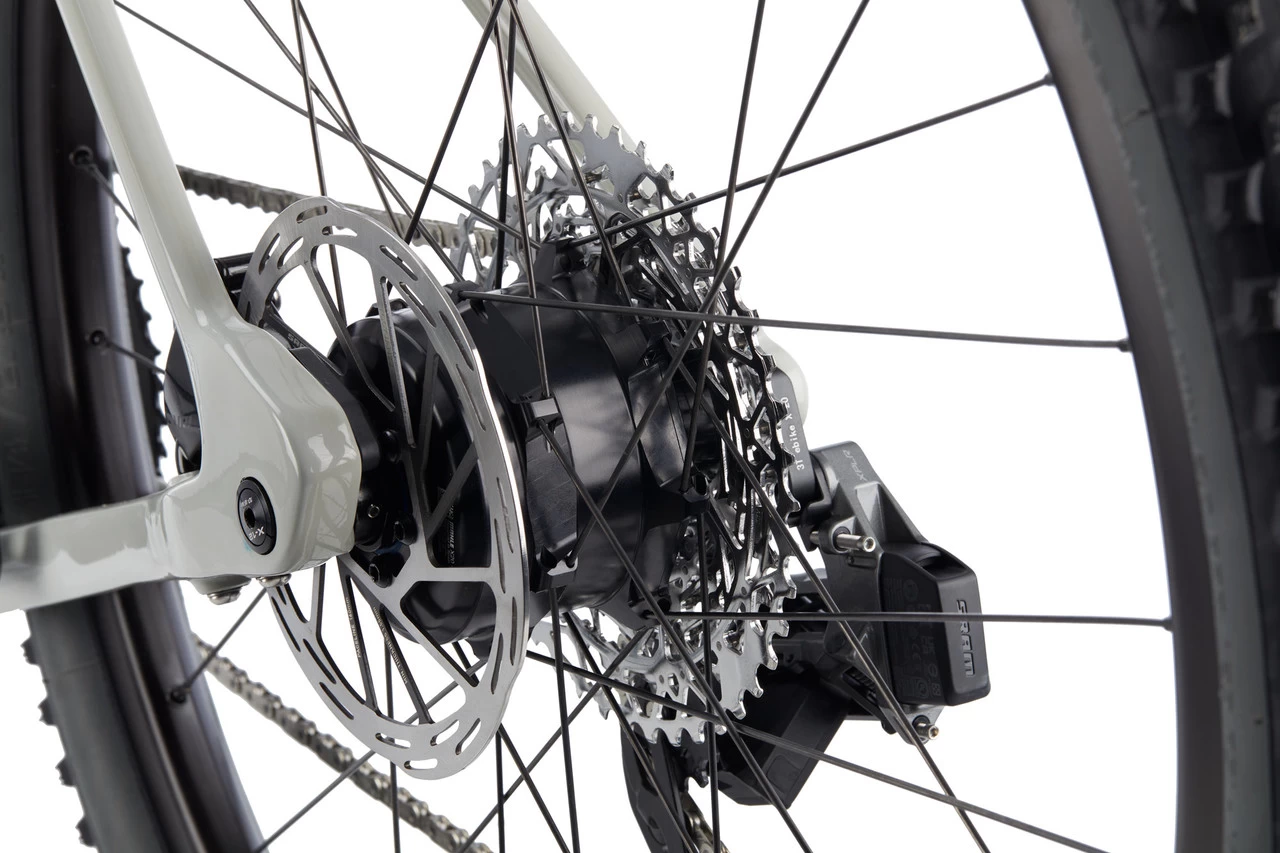

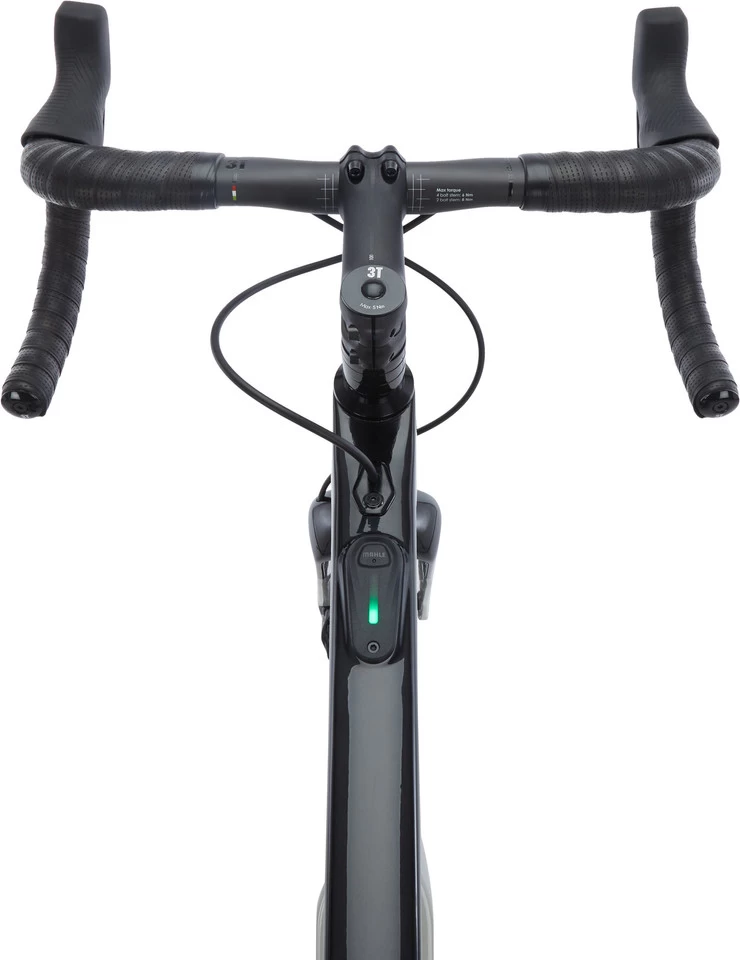

The Exploro RaceMax Boost from 3T is a carbon e-gravel bike with powerful MAHLE X20 rear-wheel drivetrain and electronic SRAM Rival XPLR components. It is also equipped with agile 27.5-inch wheels. The powerful MAHLE e-bike battery, which powers the rear wheel hub motor, disappears into the down tube of the frame. There is an iWOC switch on the top tube with which you can switch the motor on and off and select between the three support levels Eco, Medio and Turbo.

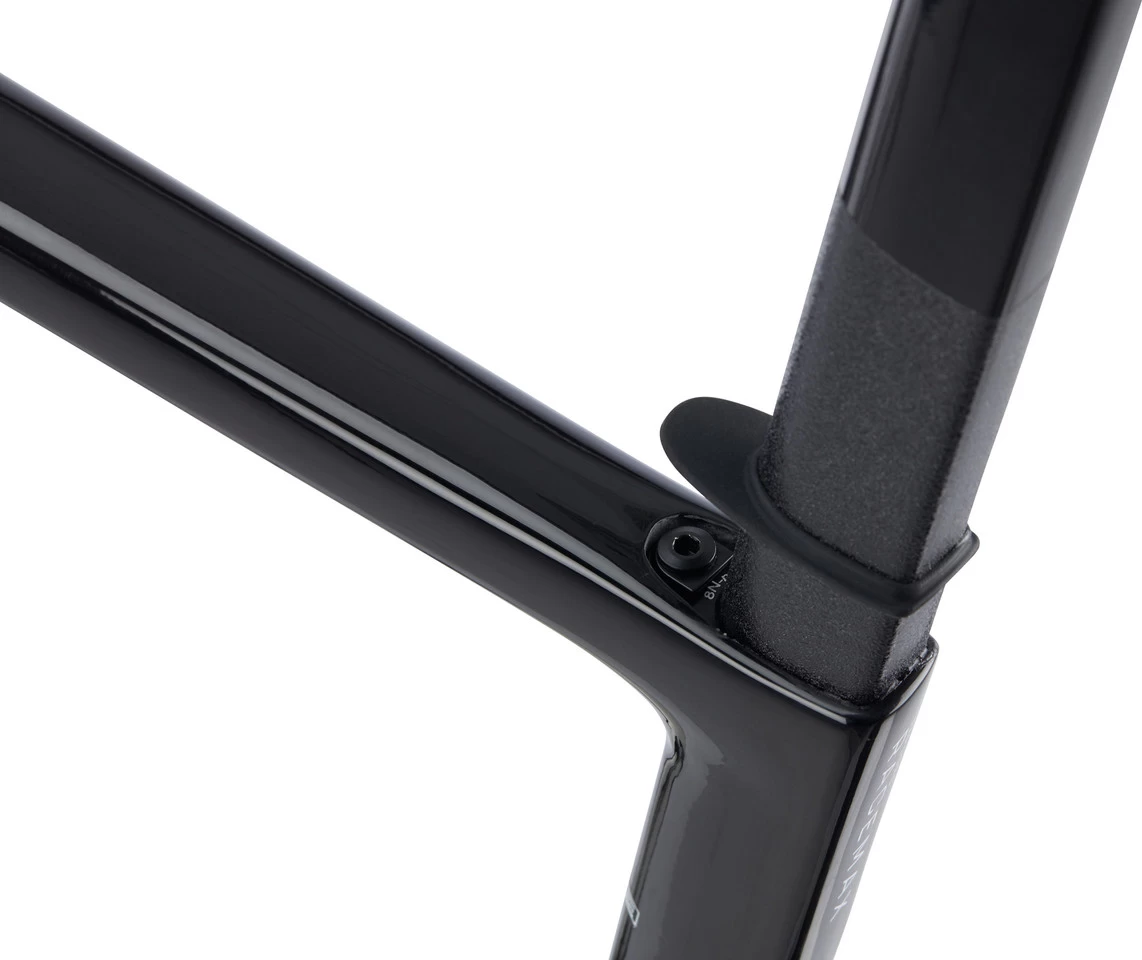

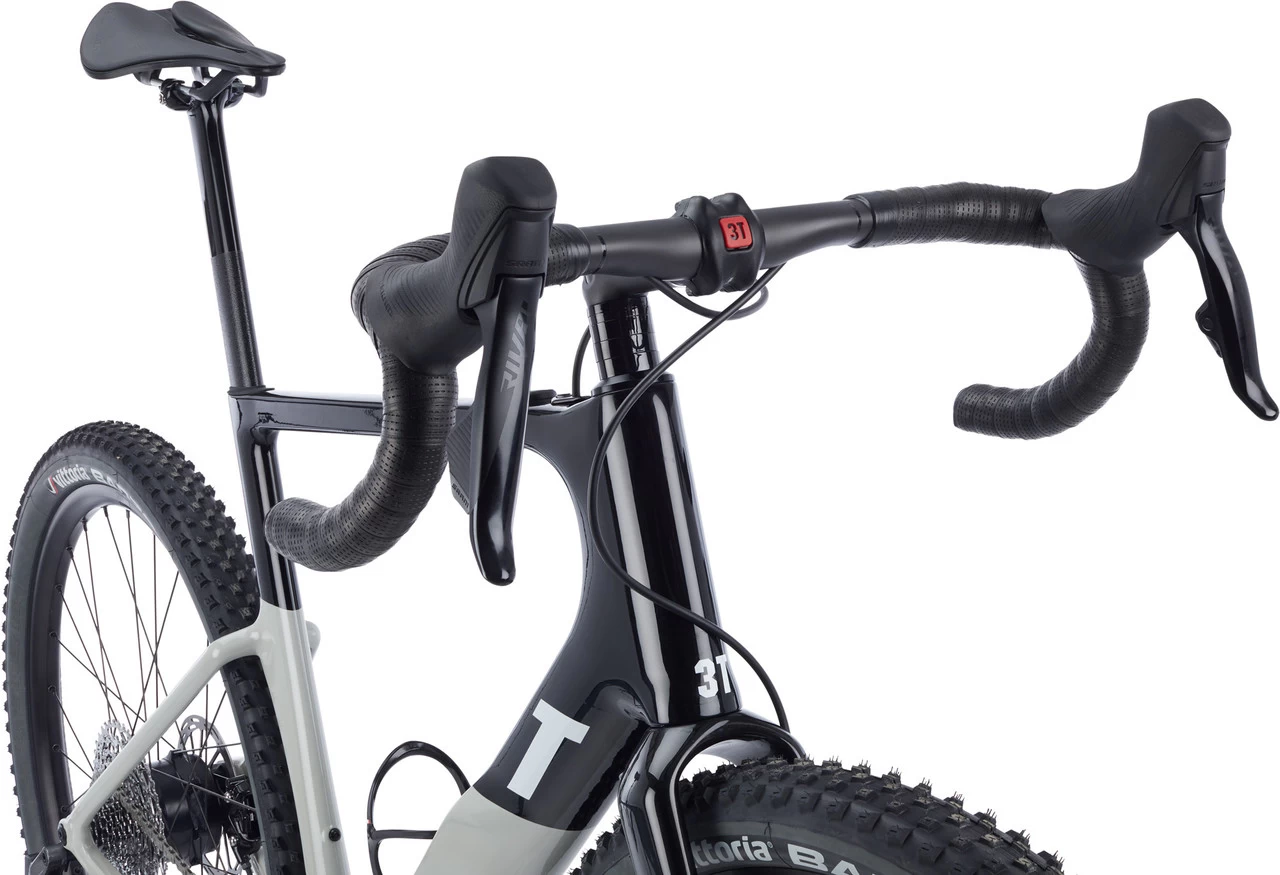

The carbon frame has a particularly slim head tube that nevertheless holds the fork with a sturdy 1.5-inch steerer tube. At the same time, the fork is equipped with a reduced fork crown for better aerodynamics. The lowered chainstays offer space for wide gravel tyres. Like the handlebars, the streamlined Checkpoint Charlie seatpost is made of carbon and is attached with an internal, self-aligning seatpost clamp. For adverse conditions, you will find options for attaching fenders to equip yourself for splashing water or mud if necessary.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of batteries and electrical equipment can be found here.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

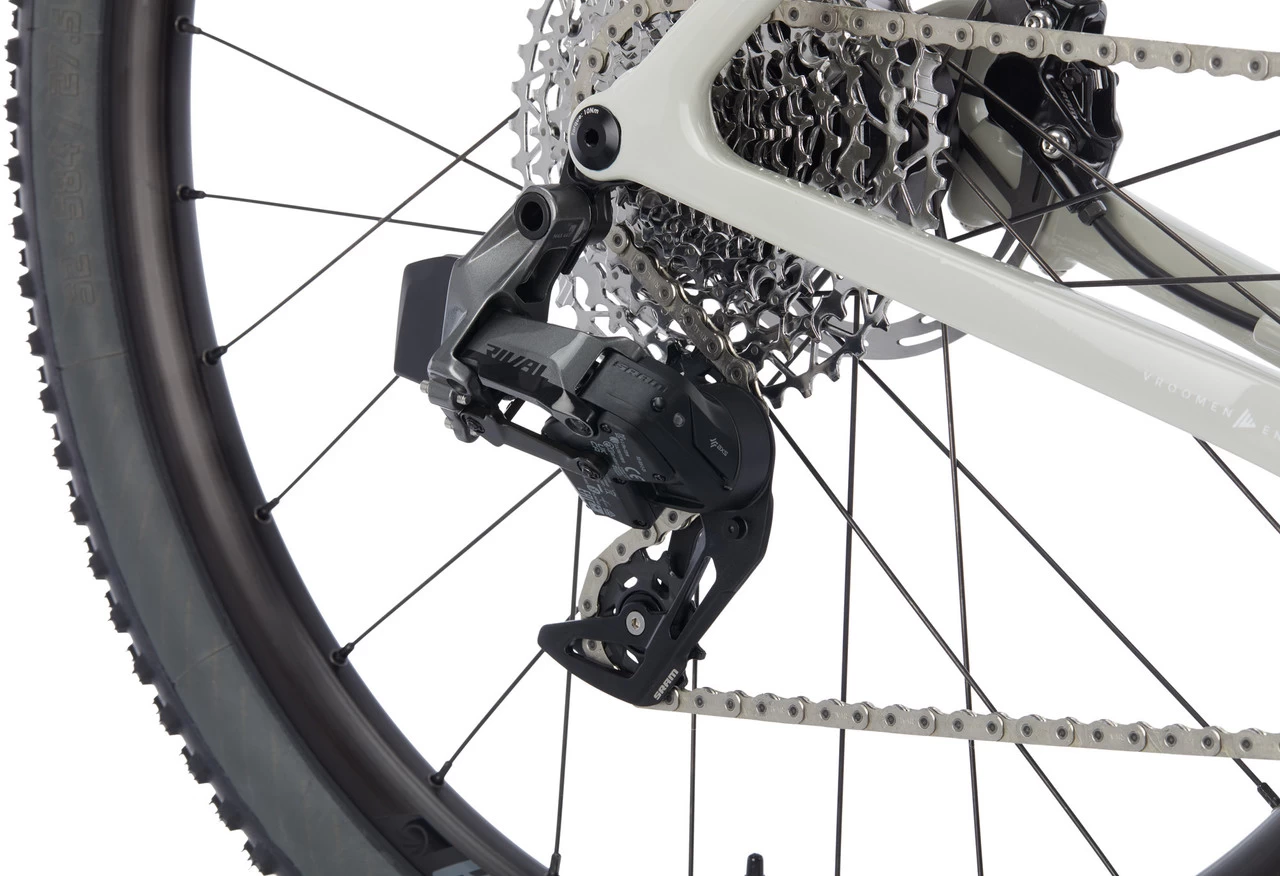

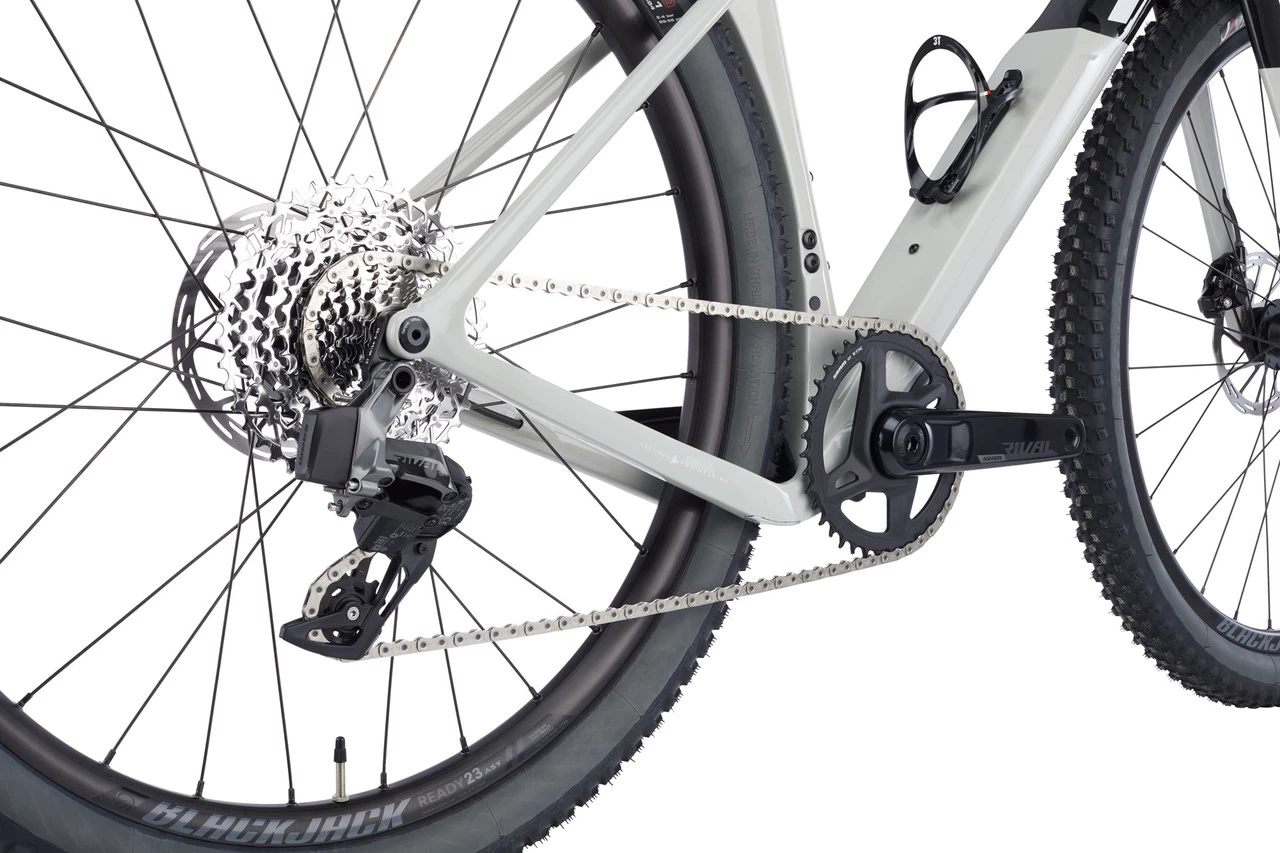

Specifications:Application:GravelWheel Size:27.5″ (650B)Sizes:XS, S, M, L, XLFrame Material:CarbonFork Material:CarbonE-Motor:Type:Rear-wheel driveMotor Type:MAHLE X20Pedal Assist (max.):25 km/hBattery Type:MAHLE iX250Capacity:250 WhDisplay:PulsarONEComponents:Frame:3T Exploro RaceMax BoostFork:3T Fango RaceMaxStem:Apto StealthHandlebars:3T Superergo LTDHeadset:3T MinMax by Cane Creek IS42/28.6 – IS47/38Seatpost:3T Charlie Sqaero TeamSaddle:Selle Italia Model X SuperflowCrank:SRAM Rival 1 Wide DUB, 1×12-speedPedals:noneBrakes:SRAM Rival eTap AXS, Flat Mount, hydraulicShift/Brake lever:SRAM Rival XPLR eTap AXS HRD, 1×12-speedRear Derailleur:SRAM Rival XPLR eTap AXS, 1×12-speedCassette:SRAM XG-1251, 12-speed, 10-44Chain:SRAM Rival 12-speedWheels:Rodi, 650B, aluminiumTyres:Vittoria Barzo, 2.1″Approved For:Weight Limit:110 kg (rider weight)Rotor Size (max.):160 mmFeatures:carbon e-gravel bike with powerful MAHLE X20 rear-wheel drive and SRAM Rival XPLRbattery concealed in the frameiWOC switch on the top tube for switching the e-drive on and off and for selecting the speed levelthree support levels: Eco for light support, Medio for medium support, Turbo for maximum support on challenging terrainnarrow head tube like on road bikes with 1 1/4″ fork stemslarge 1.5″ fork steerer for more stabilityreduced fork crown for less weight and better aerodynamicslowered chainstays for more tyre clearanceintegrated fender mountsself-aligning seatpost clamp2021 Winner of the iF Design Award, the Design & Innovation Award and the Red Dot Design AwardTechnology:Checkpoint Charlie
Optimising the length of the seat tube is just as important as every gram of weight on the strenuous climbs that you will ride on your Exploro. However, ensuring safety is significantly more important. If you want to shorten the tube, use the checkpoint on the seat tube to determine whether the minimum inner length has been reached.
Geometry:XS:
Manufacturer Designation:51Recommended Height:157 – 171 cmStack:542 mmReach:366 mmSeat Tube Length:463 mmEffective Top Tube Length:526 mmHead Tube Length:147 mmChainstay Length:415 mmWheelbase:1008 mmBB Drop:79 mmSeat Tube Angle:74°Head Tube Angle:69.5°Stem Length:80 mmHandlebar Width:40 cmCrank Arm Length:165.0 mm
S:
Manufacturer Designation:54Recommended Height:168 – 180 cmStack:564 mmReach:377 mmSeat Tube Length:490 mmEffective Top Tube Length:546 mmHead Tube Length:161 mmChainstay Length:415 mmWheelbase:1008 mmBB Drop:77 mmSeat Tube Angle:73.5°Head Tube Angle:71°Stem Length:90 mmHandlebar Width:42 cmCrank Arm Length:170.0 mm
M:
Manufacturer Designation:56Recommended Height:176 – 186 cmStack:584 mmReach:385 mmSeat Tube Length:518 mmEffective Top Tube Length:566 mmHead Tube Length:180 mmChainstay Length:415 mmWheelbase:10014 mmBB Drop:77 mmSeat Tube Angle:73°Head Tube Angle:72°Stem Length:100 mmHandlebar Width:42 cmCrank Arm Length:172.5 mm
L:
Manufacturer Designation:58Recommended Height:183 – 195 cmStack:604 mmReach:393 mmSeat Tube Length:545 mmEffective Top Tube Length:586 mmHead Tube Length:201 mmChainstay Length:415 mmWheelbase:1024 mmBB Drop:75 mmSeat Tube Angle:72.5°Head Tube Angle:72°Stem Length:110 mmHandlebar Width:44 cmCrank Arm Length:175.0 mm
XL:
Manufacturer Designation:61Recommended Height:from 192 cmStack:632 mmReach:404 mmSeat Tube Length:572 mmEffective Top Tube Length:606 mmHead Tube Length:232 mmChainstay Length:415 mmWheelbase:10044 mmBB Drop:75 mmSeat Tube Angle:72.5°Head Tube Angle:72°Stem Length:120 mmHandlebar Width:44 cmCrank Arm Le
