3T Exploro Race Ekar 1X Carbon Gravel Bike

The Exploro Race Ekar 1X Carbon Gravel Bike by 3T – All-Italian gravel racing machine

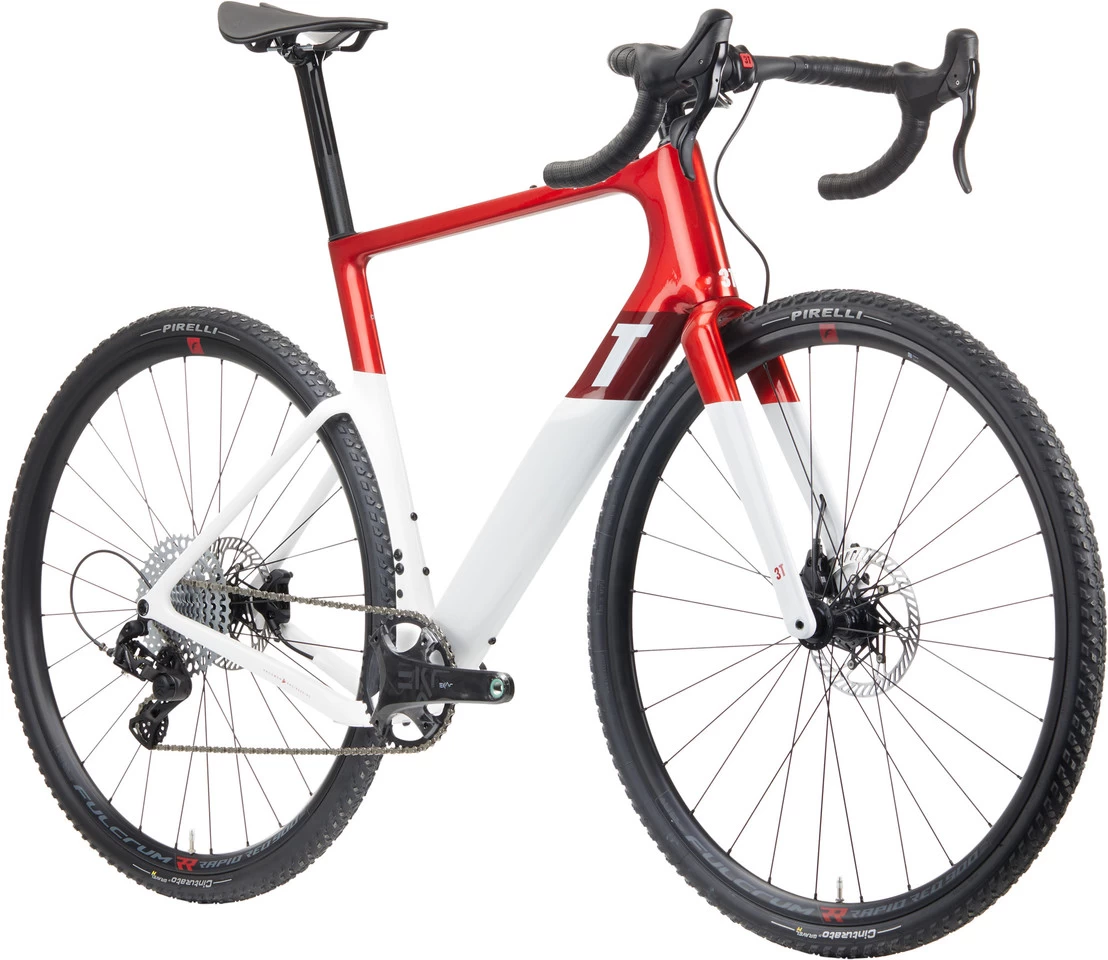

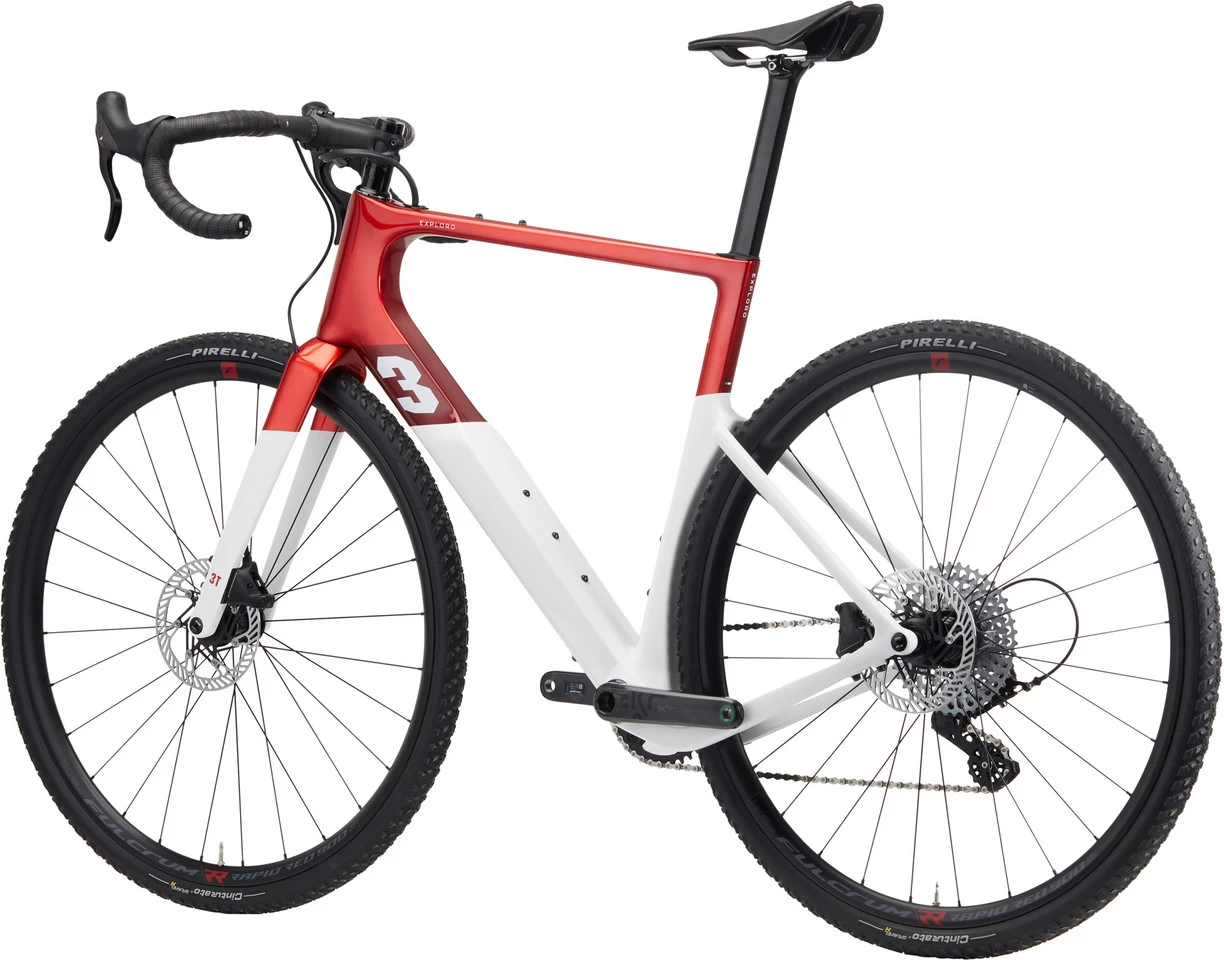

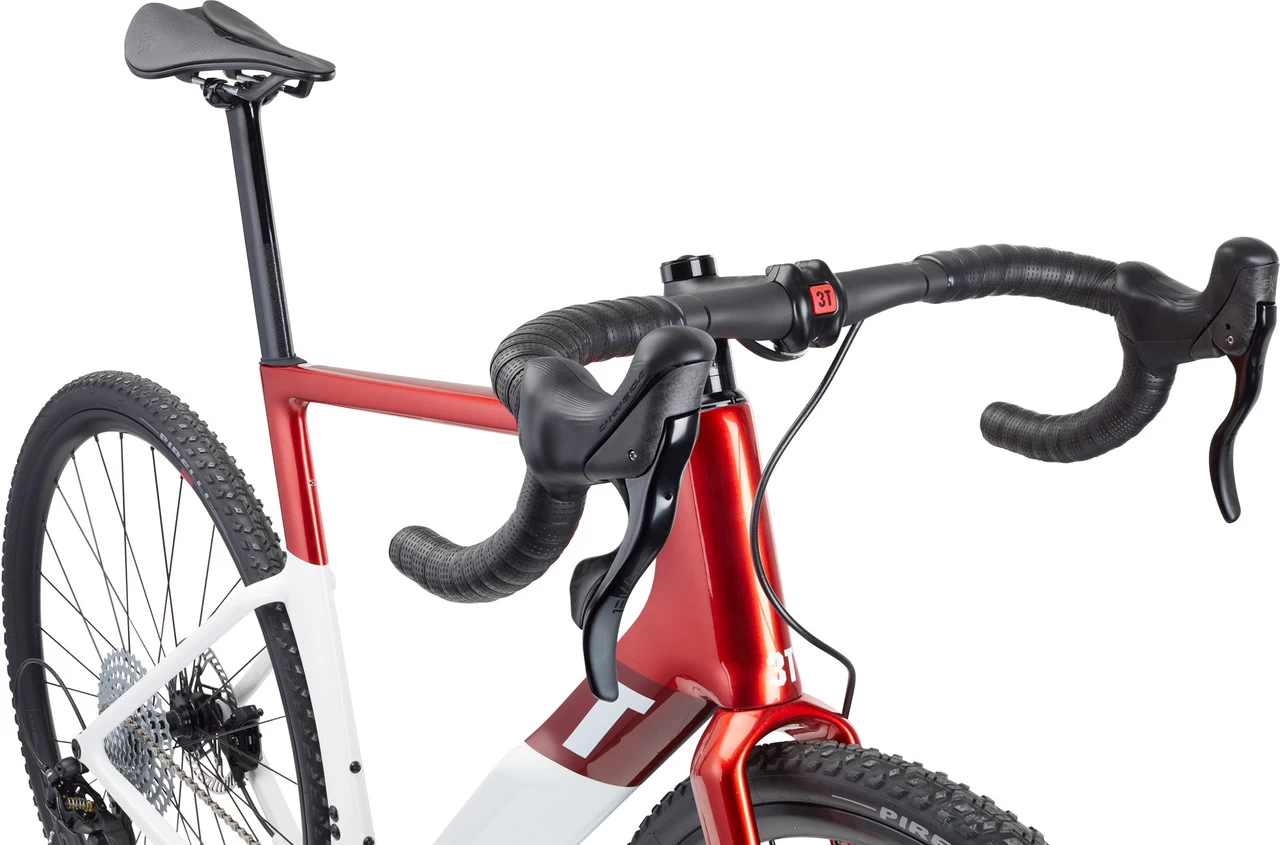

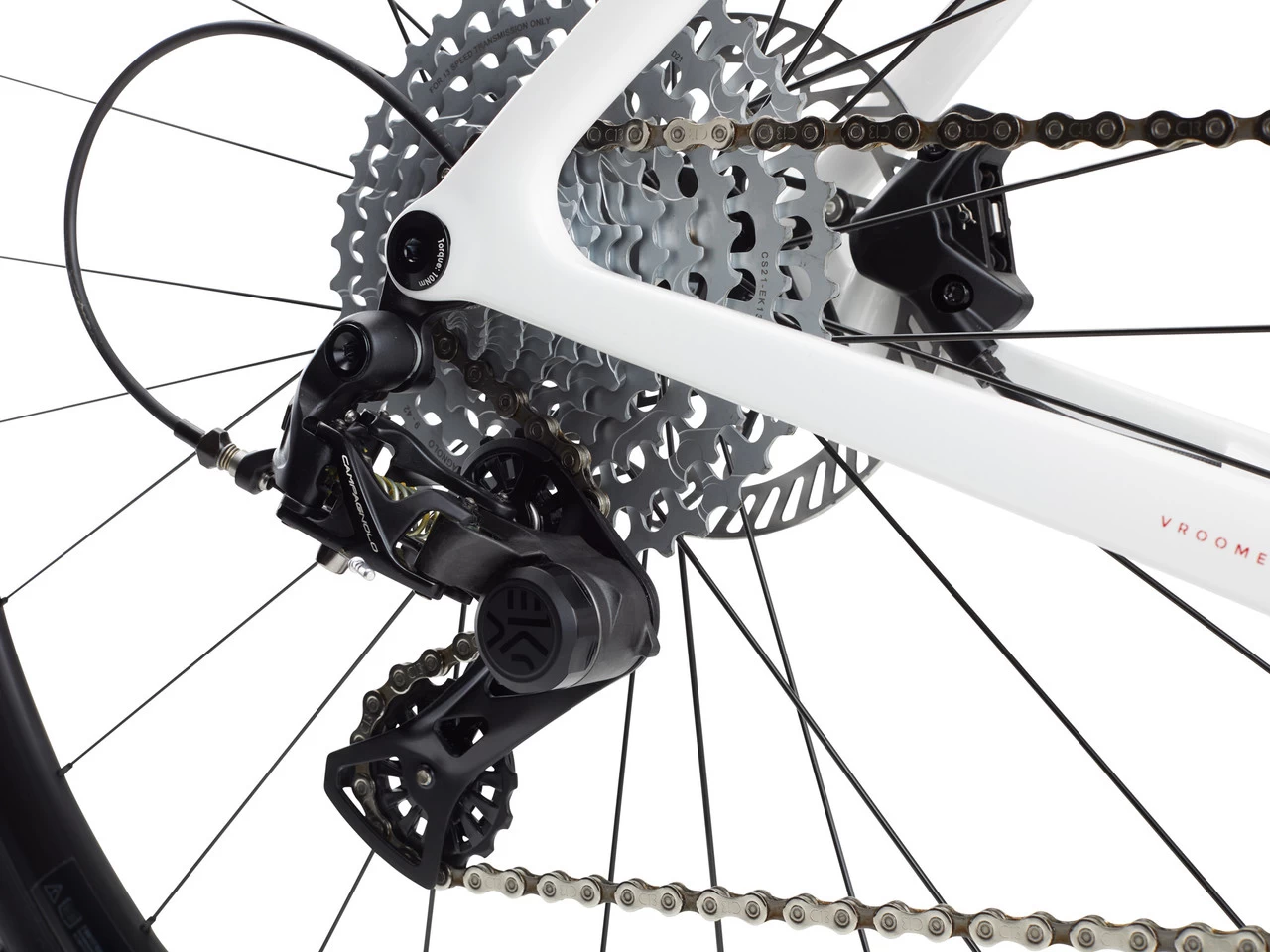

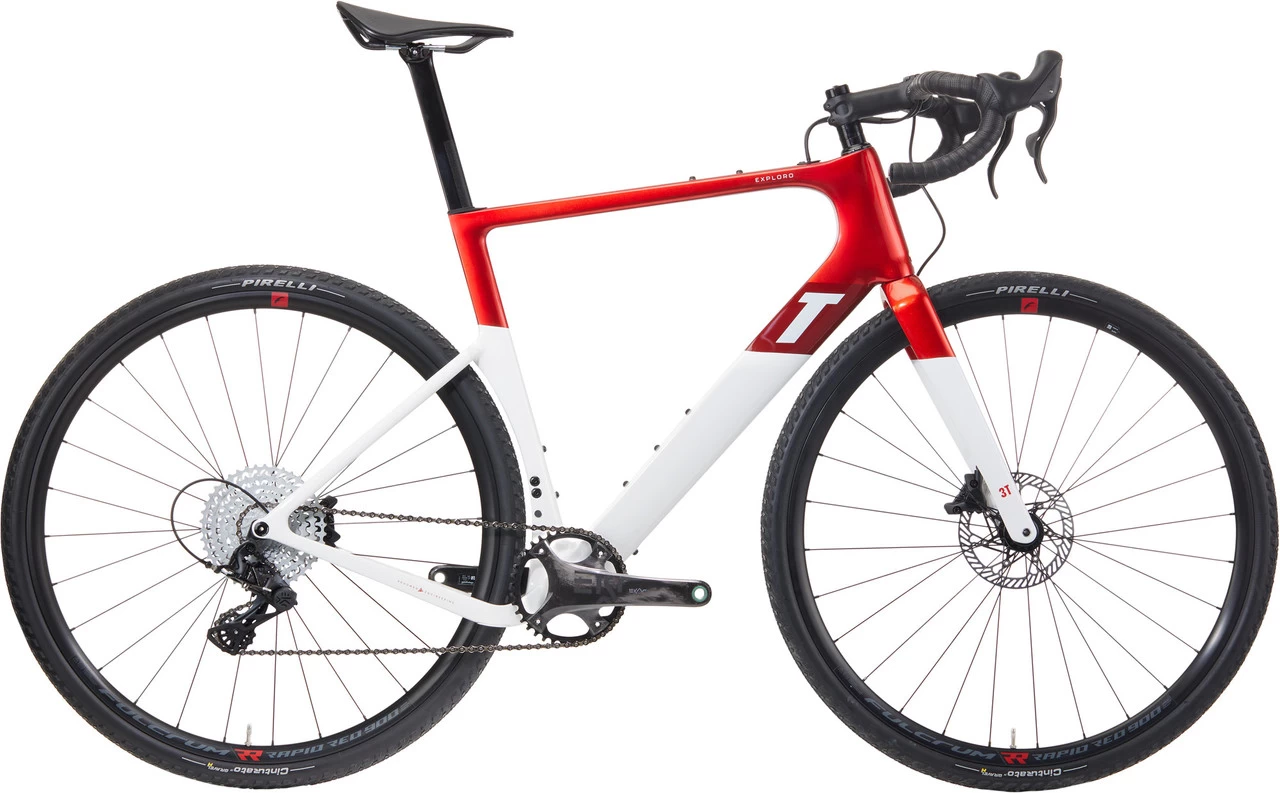

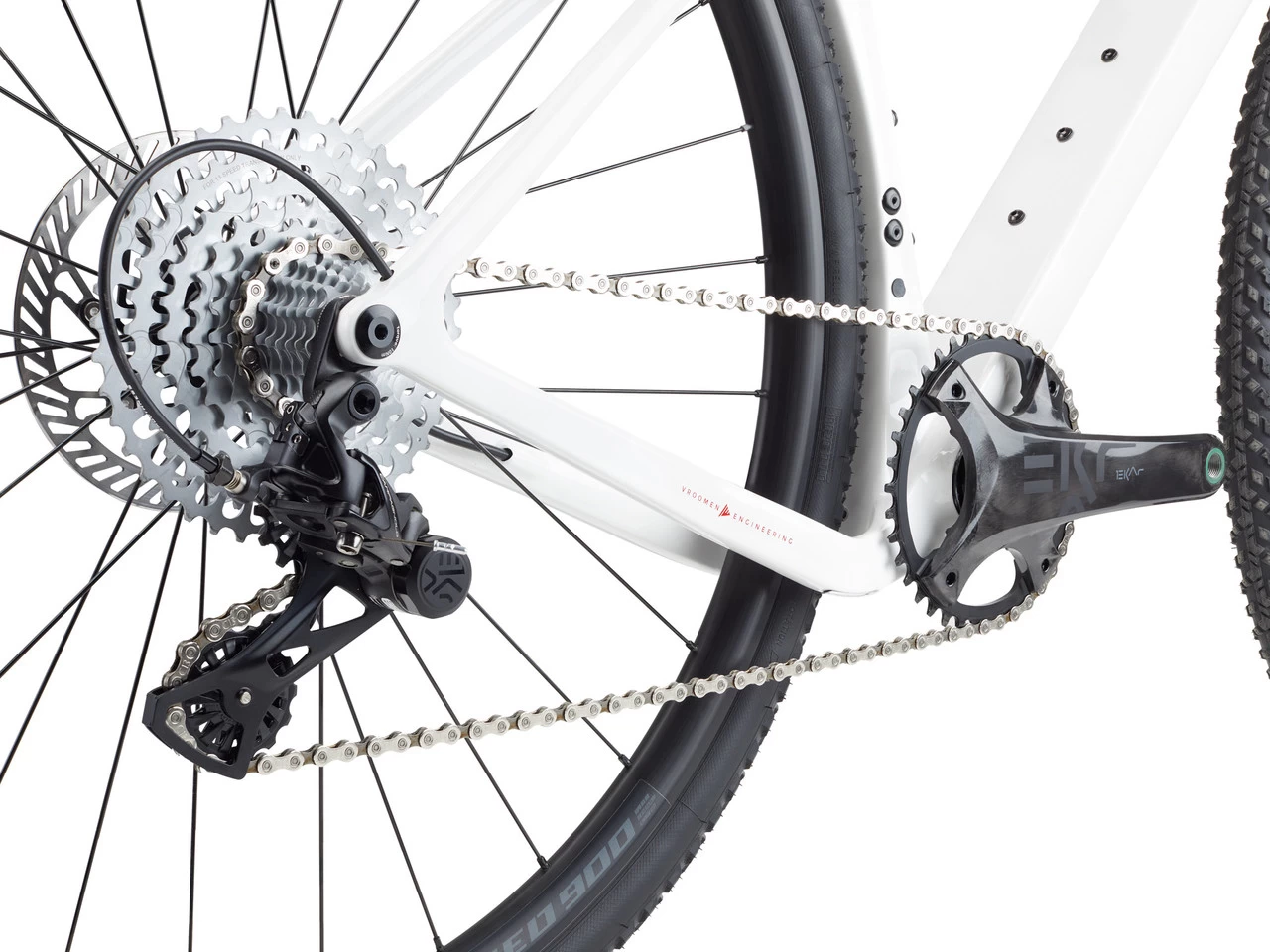

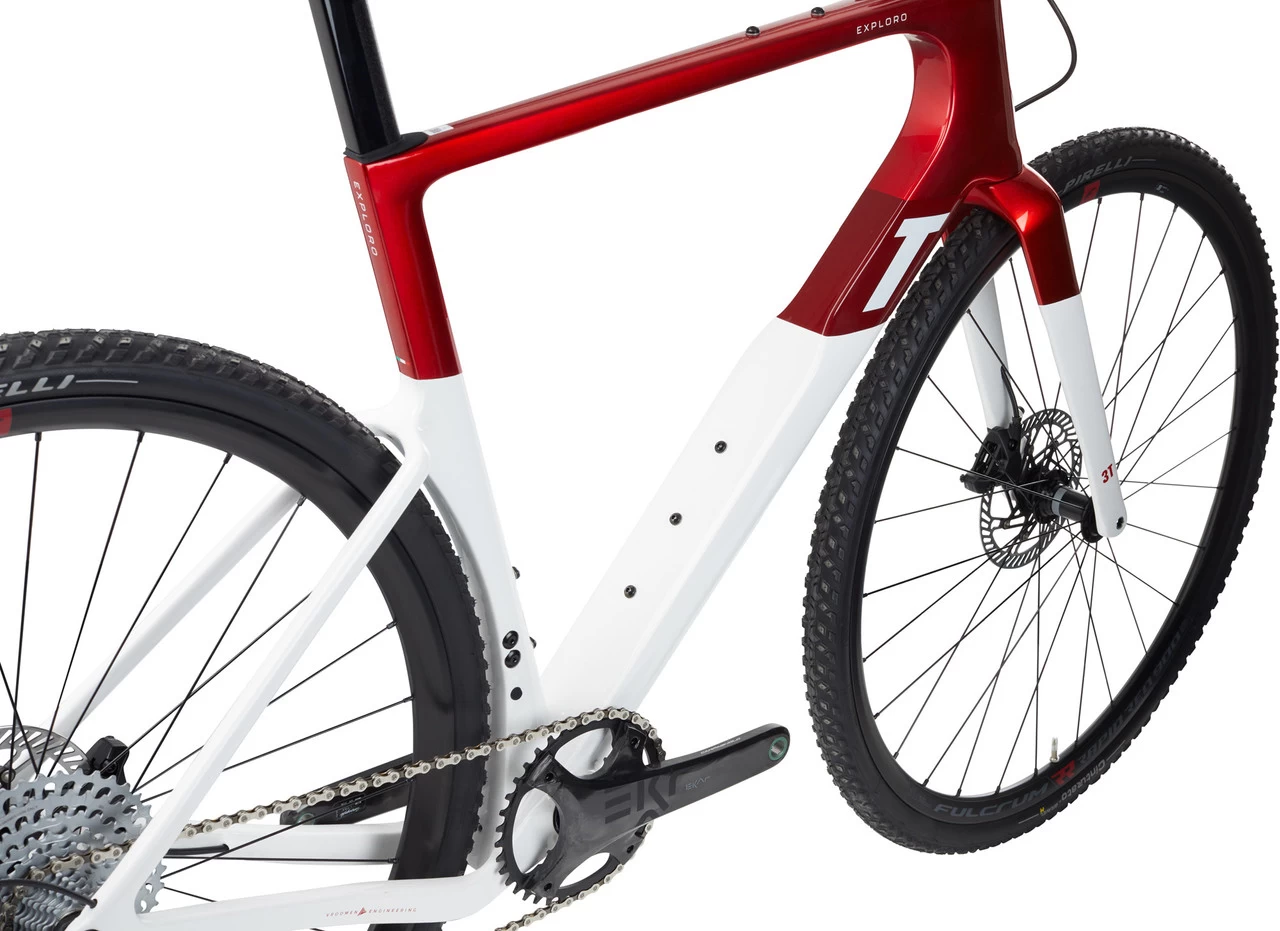

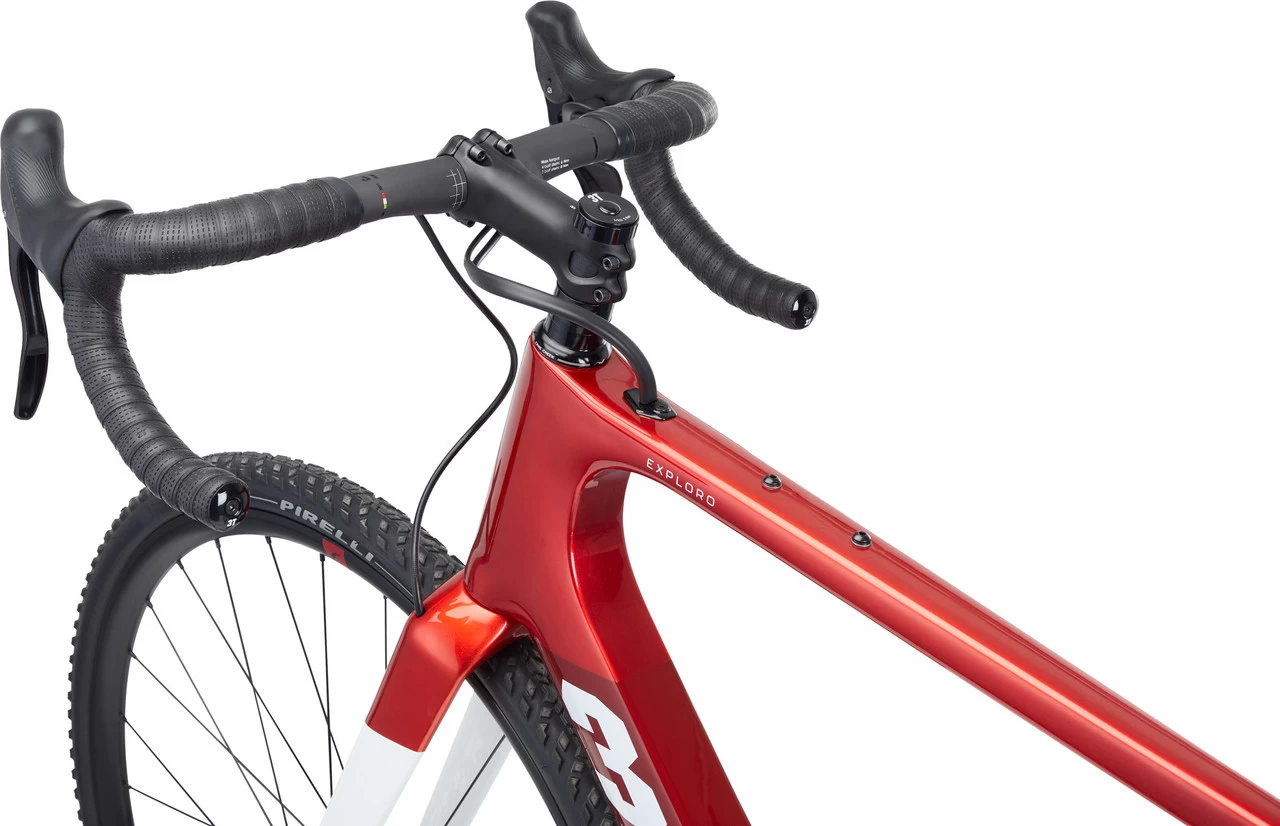

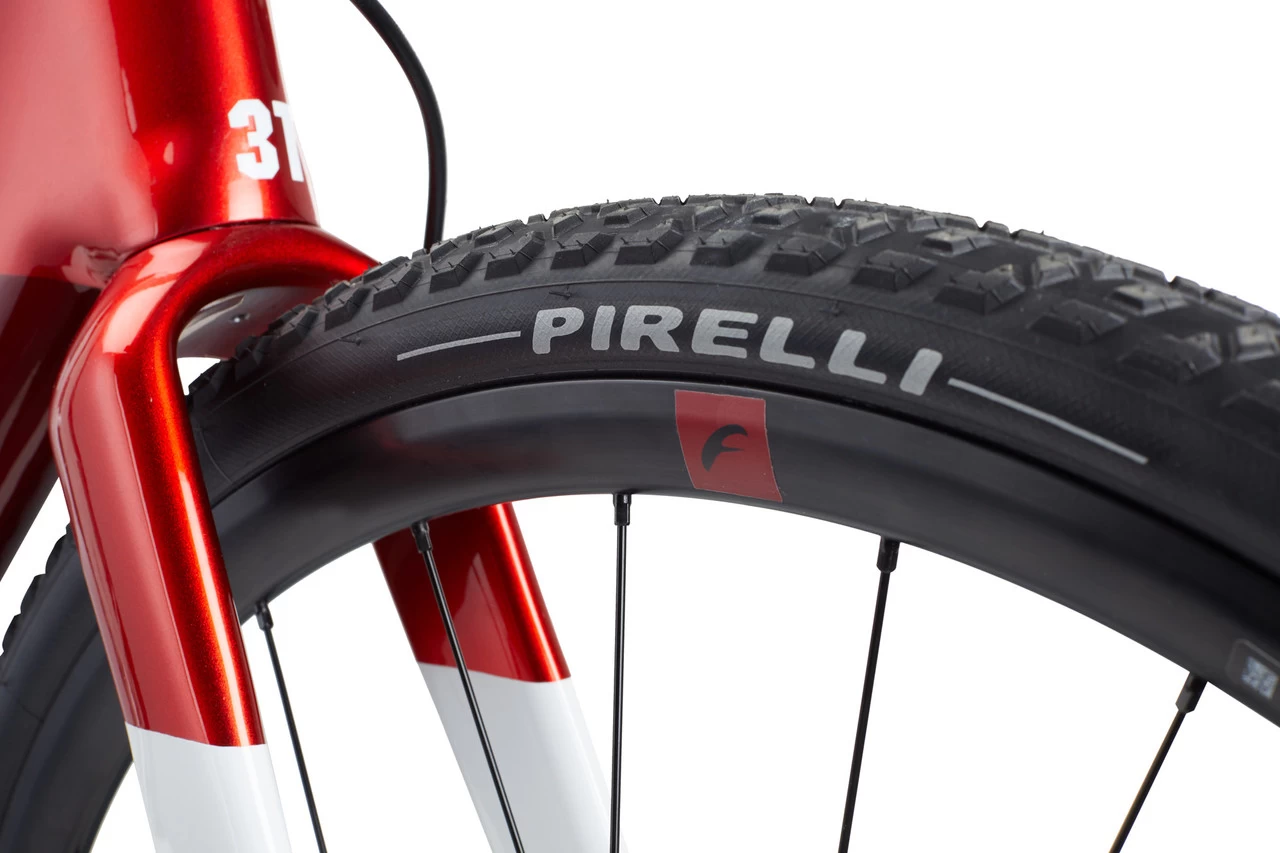

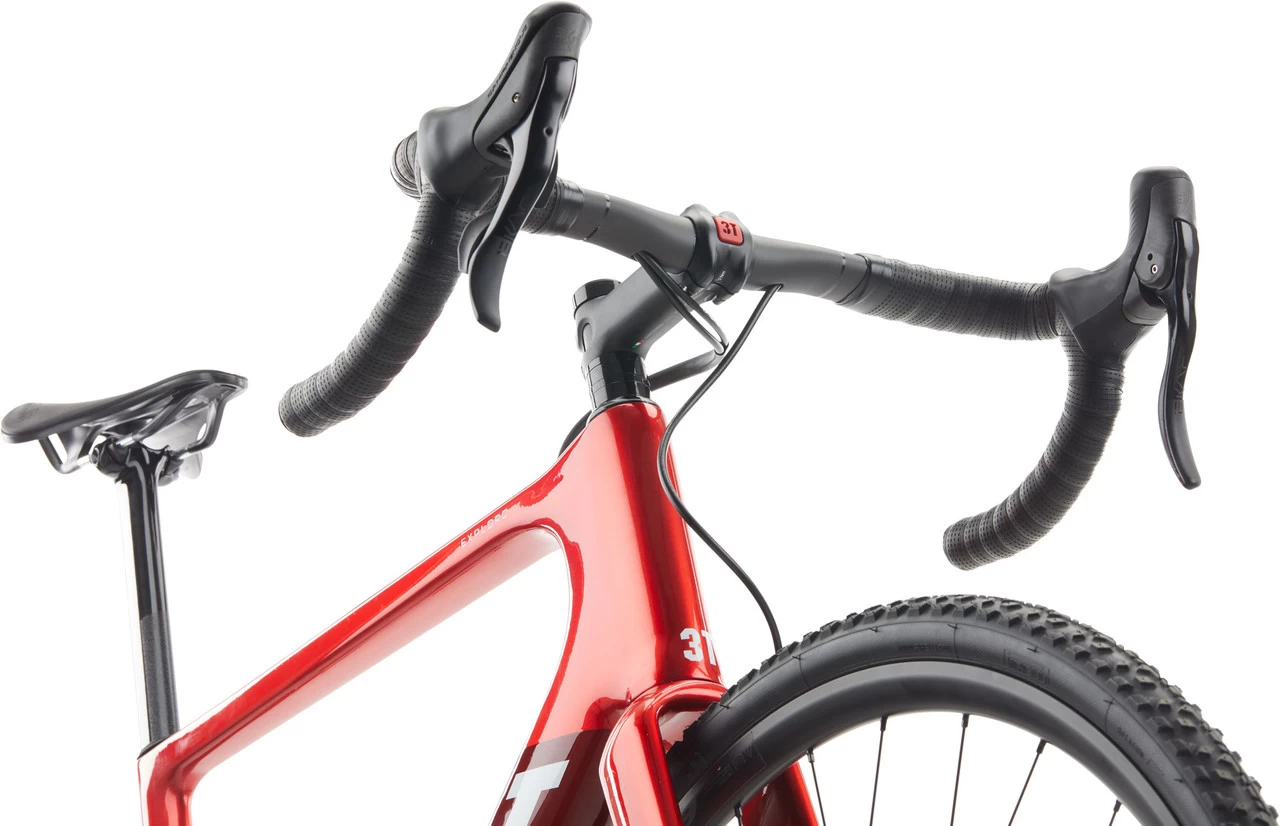

The Exploro Race gravel bike from 3T is made of carbon and is equipped with the Ekar 13-speed drivetrain from Campagnolo and 28″ Fulcrum Rapid Red wheels. It has an extra-wide down tube and an extremely narrow head tube. The aero seatpost and a narrow fork crown provide plenty of aerodynamics. The wide steerer tube and the chainstays lowered on both sides maintain stability. The 35 mm-wide tyres allow you to enjoy fast rides on asphalt as well as dirt roads.
Specifications:Application:GravelWheel Size:28″Sizes:XS, S, M, L, XLFrame Material:CarbonFork Material:CarbonComponents:Frame:3T Exploro RaceMaxFork:3T Fango RaceMaxStem:3T Apto StealthHandlebars:3T Superergo LTDHeadset:3T MinMax by CaneCreek IS42/28.6 – IS47/38Seatpost:3T Charlie TeamSaddle:Fizik Argo Tempo R5Crank:Campagnolo Ekar 38 tPedals:noneBrakes:Campagnolo Ekar Flat Mount, hydraulic, Center Lock Disc, 160 mmShift/Brake lever:Campagnolo EkarRear Derailleur:Campagnolo EkarCassette:Campagnolo Ekar, 13-speed, 9-42 tChain:Campagnolo EkarWheels:Fulcrum Rapid Red 900, 700C, Tubeless Ready, 22 mm jaw widthTyres:Schwalbe G-One Allround Evolution TLE, 35 x 700CApproved For:Weight Limit:110 kg (rider weight)Rotor Size (max.):160 mmFeatures:narrow head tube like on road bikes with 1 1/4″ steerer tubeslarge 1.5″ steerer tube for more stabilityreduced fork crown for less weight and better aerodynamicsintegrated fender mountsself-aligning seatpost clampGeometry:XS:
Manufacturer Designation:51Recommended Height:153 – 167 cmStack:542 mmReach:366 mmSeat Tube Length:463 mmEffective Top Tube Length:526 mmChainstay Length:415 mmWheelbase:1008 mmBB Drop:79 mmSeat Tube Angle:74.0°Head Tube Angle:69.5°Stem Length:80 mmHandlebar Width:380 mmCrank Arm Length:170.0 mm
S:
Manufacturer Designation:54Recommended Height:164 – 177 cmStack:564 mmReach:377 mmSeat Tube Length:490 mmEffective Top Tube Length:546 mmChainstay Length:415 mmWheelbase:1008 mmBB Drop:77 mmSeat Tube Angle:73.5°Head Tube Angle:71.0°Stem Length:90 mmHandlebar Width:400 mmCrank Arm Length:172.5 mm
M:
Manufacturer Designation:56Recommended Height:175 – 185 cmStack:584 mmReach:385 mmSeat Tube Length:518 mmEffective Top Tube Length:566 mmChainstay Length:415 mmWheelbase:1014 mmBB Drop:77 mmSeat Tube Angle:73.0°Head Tube Angle:72.0°Stem Length:100 mmHandlebar Width:420 mmCrank Arm Length:172.5 mm
L:
Manufacturer Designation:58Recommended Height:183 – 196 cmStack:604 mmReach:393 mmSeat Tube Length:545 mmEffective Top Tube Length:586 mmChainstay Length:415 mmWheelbase:1024BB Drop:75 mmSeat Tube Angle:72.5°Head Tube Angle:72.0°Stem Length:110 mmHandlebar Width:420 mmCrank Arm Length:175.0 mm
XL:
Manufacturer Designation:61Recommended Height:from 192 cmStack:632 mmReach:404 mmSeat Tube Length:572 mmEffective Top Tube Length:606 mmChainstay Length:415 mmWheelbase:1044 mmBB Drop:72 mmSeat Tube Angle:72.5°Head Tube Angle:72.0°Stem Length:120 mmHandlebar Width:440 mmCrank Arm Length:175.0 mmTechnology:Checkpoint Charlie:
Optimising the length of the seat tube is just as important as every gram of weight on the strenuous climbs that you will ride on your Exploro. However, ensuring safety is significantly more important. If you want to shorten the tube, use the checkpoint on the seat tube to determine whether the minimum inner length has been reached.
Manufacturer Numbers:XS:9752ESDJ29LS:9752ESDK29LM:9752ESDL29LL:9752ESDM29LXL:9752ESDN29LShipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

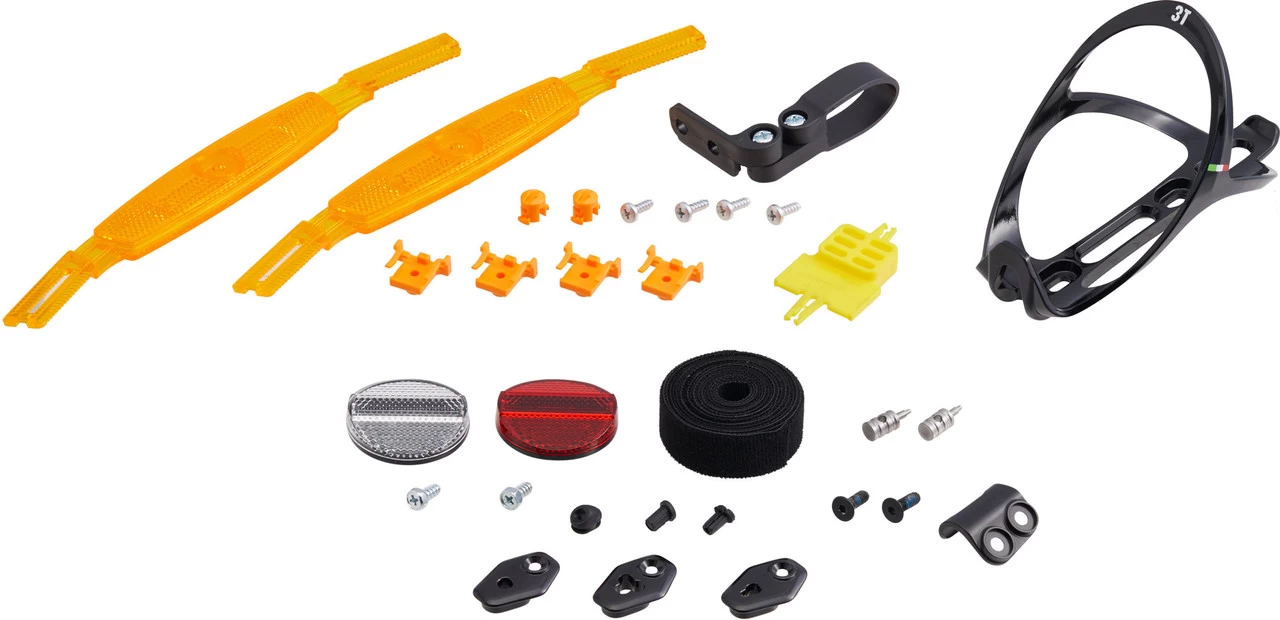

Contents:1 x 3T Exploro Race Ekar Gravel Bike
