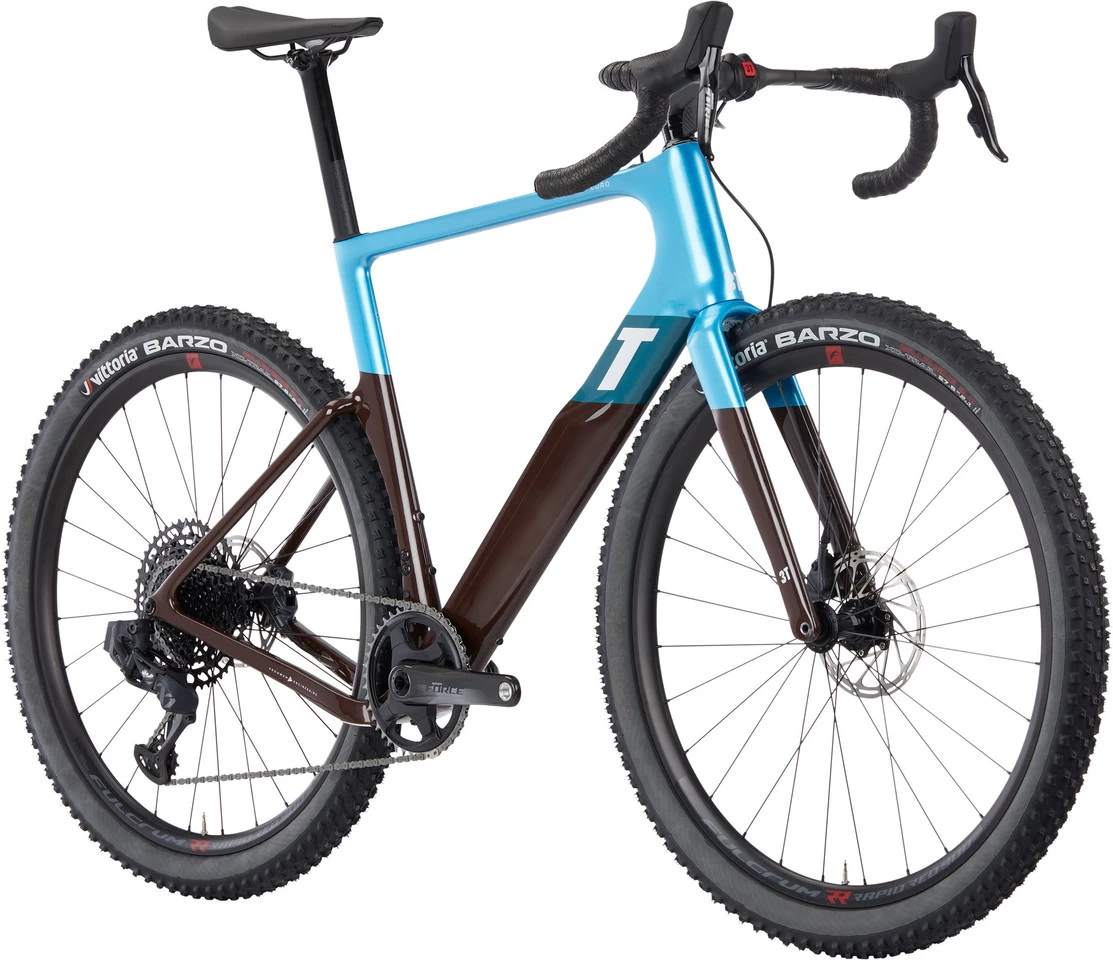

3T Exploro Max Eagle AXS 1X Carbon Gravel Bike

The Exploro Max Eagle AXS 1X Gravel Bike by 3T – High-end gears and extra-wide tyres

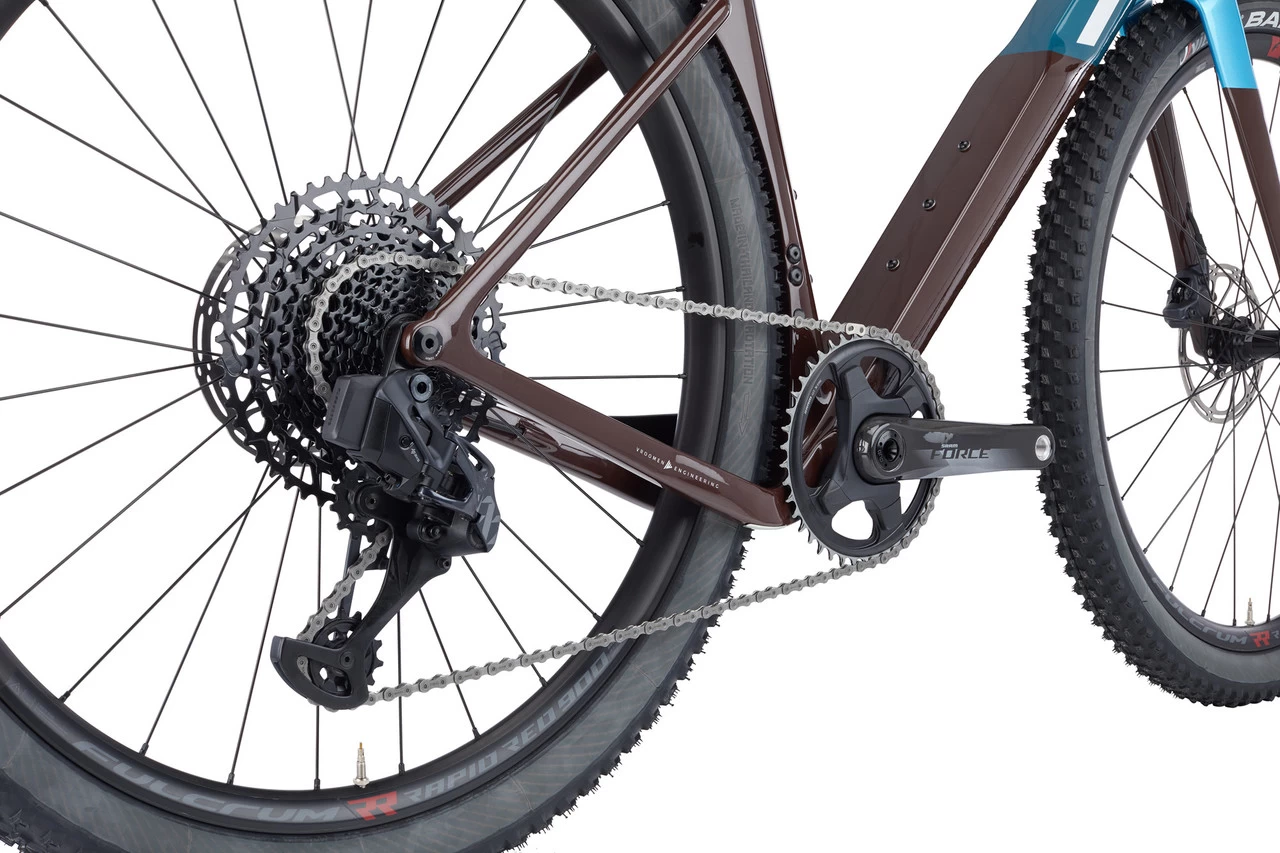

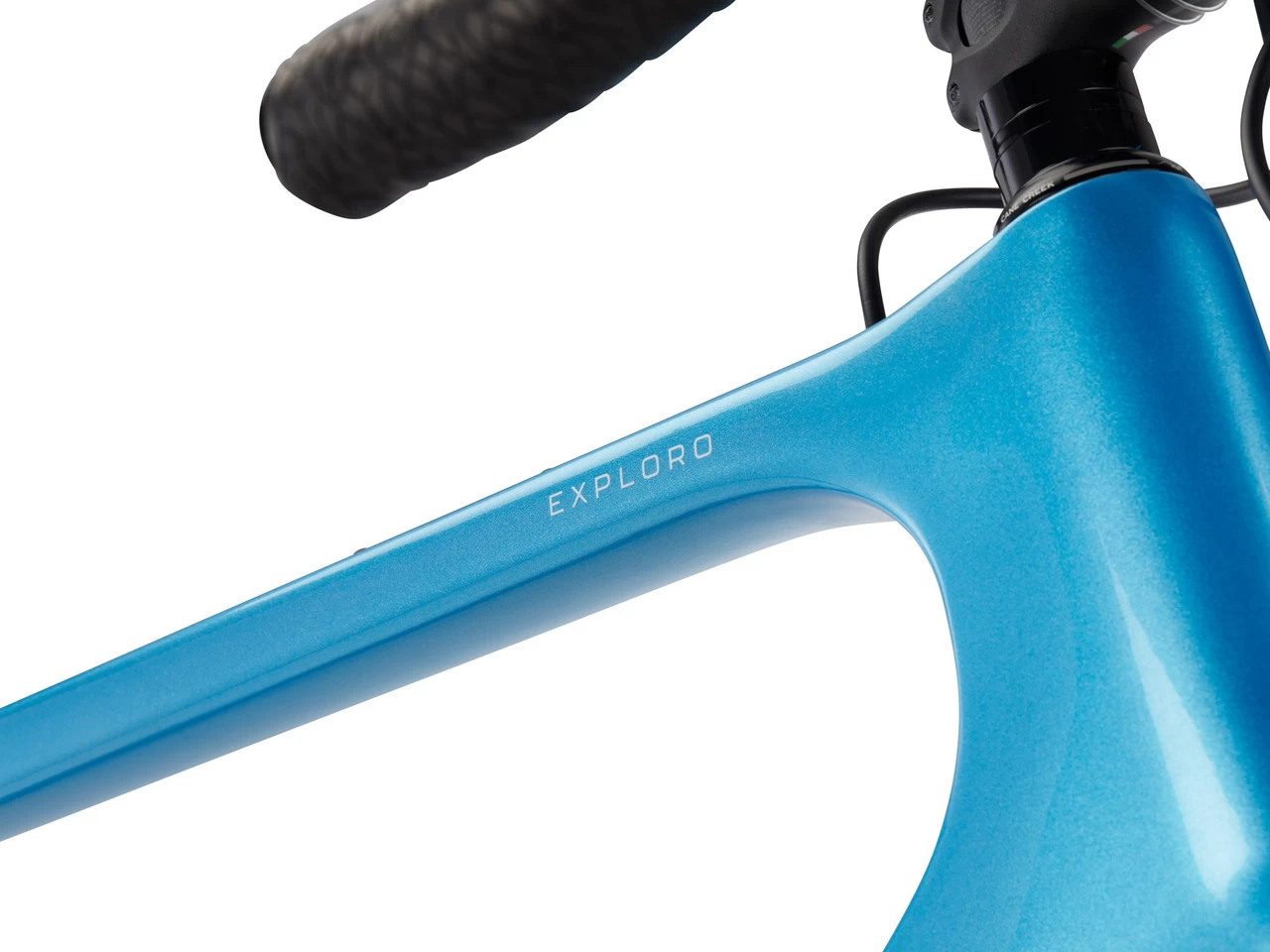

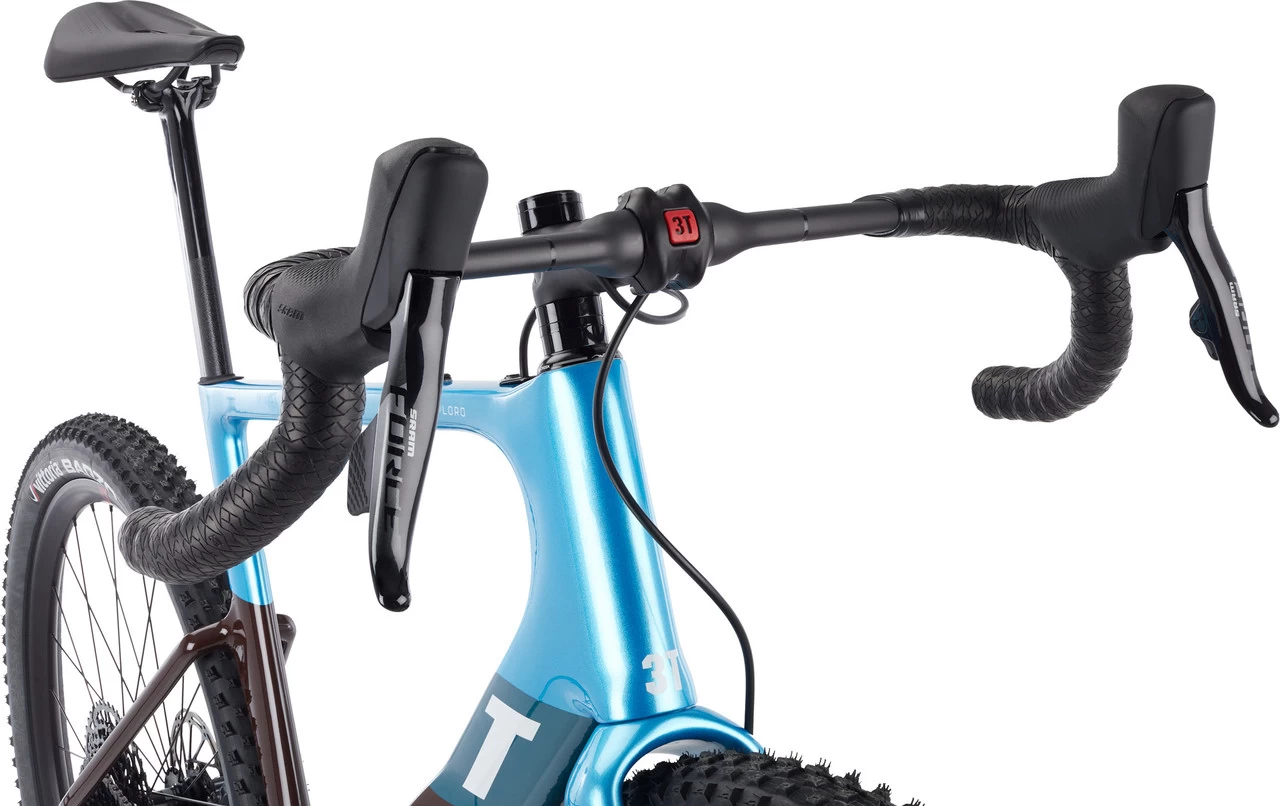

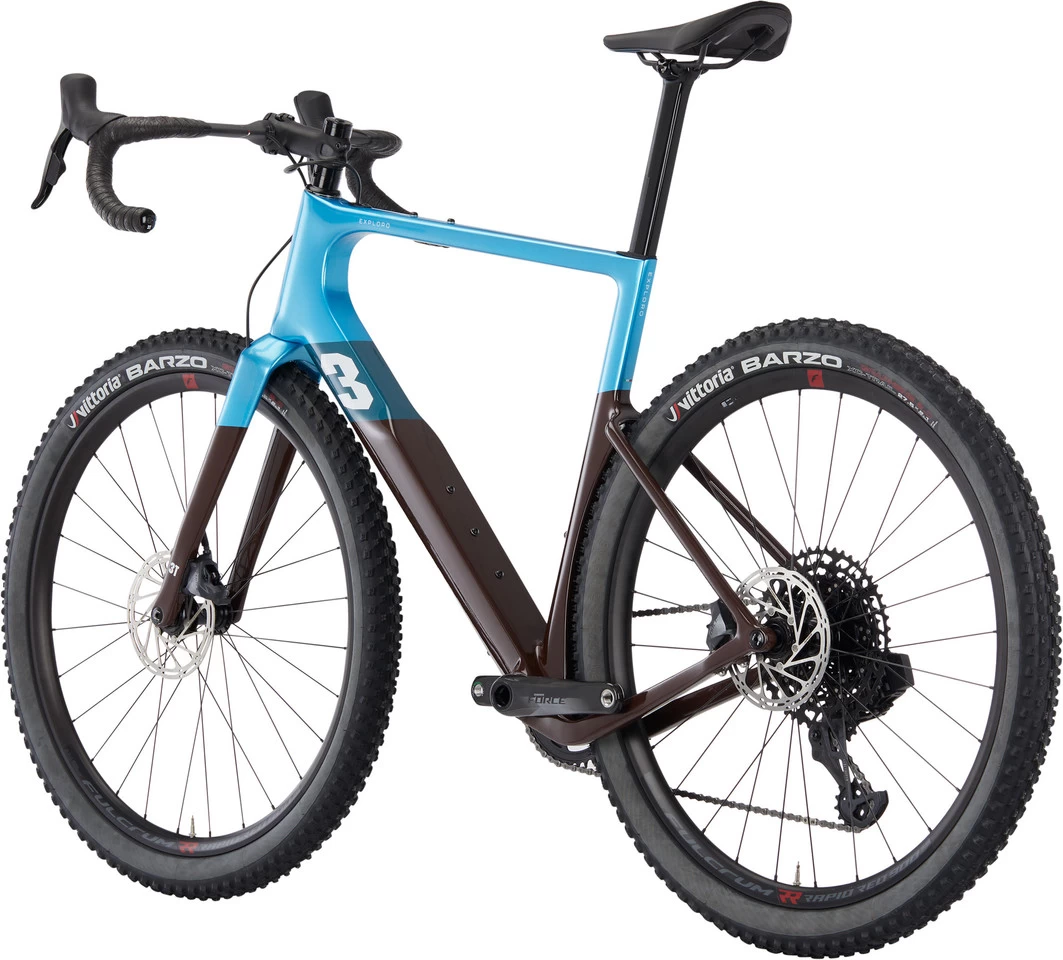

The Exploro Max gravel bike from 3T is made of carbon and is equipped with the SRAM Eagle AXS eTap 1-speed drivetrain. The 57 mm wide 27.5″ tyres deliver maximum grip even on rough terrain. The frame has an extra-wide down tube and an extremely narrow head tube. The aero seatpost and a narrow fork crown provide plenty of aerodynamics. The wide steerer tube and the chain stays, which are lowered on both sides, provide sufficient stability.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of batteries and electrical equipment can be found here.

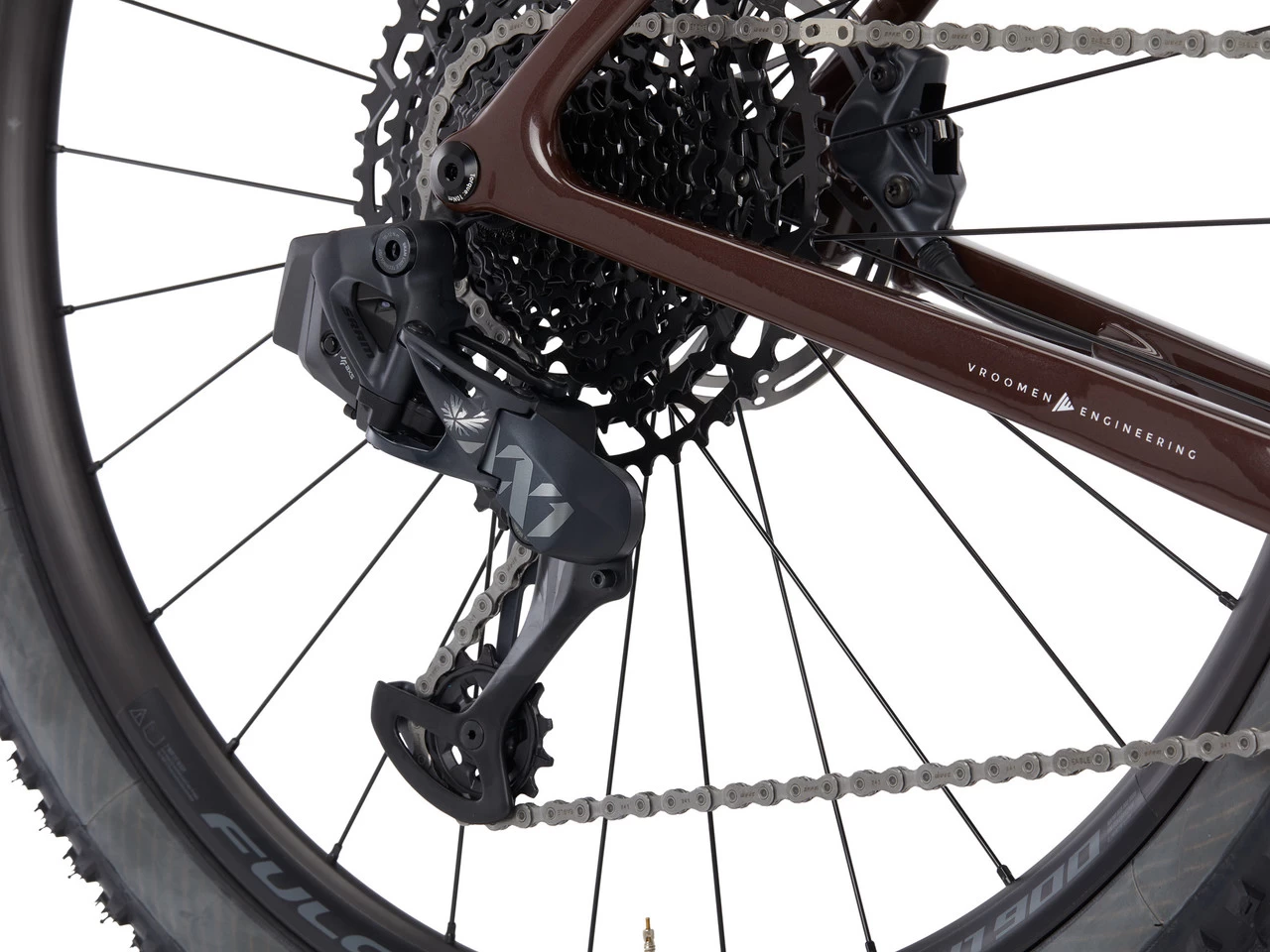

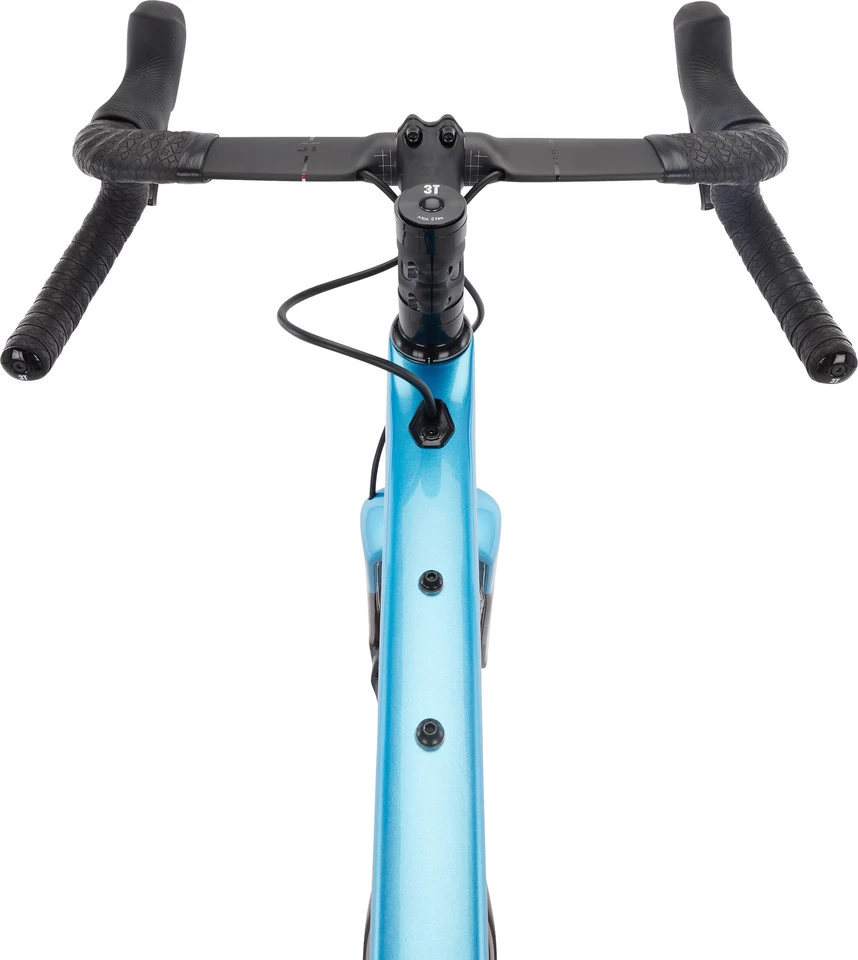

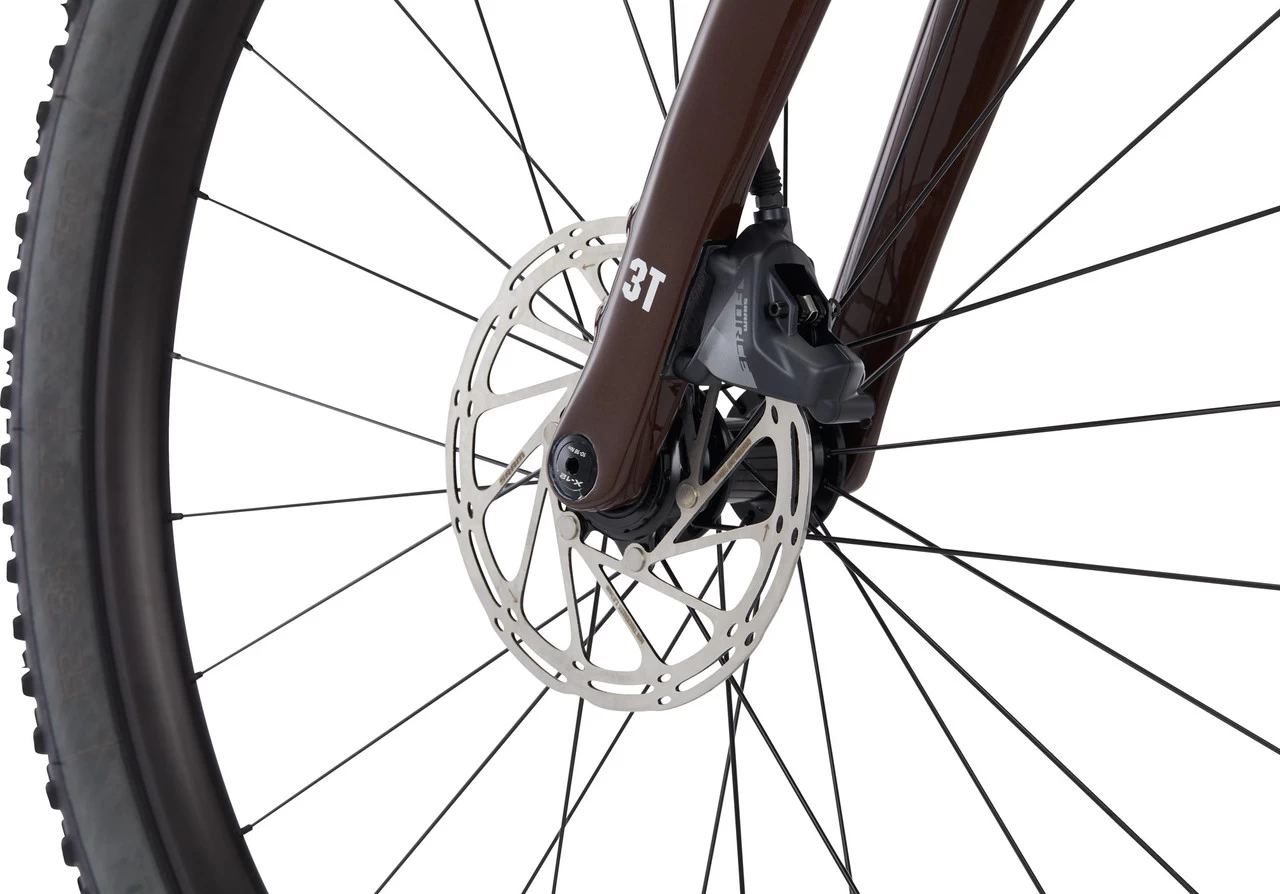

Specifications:Application:GravelWheel Size:27.5″ (650B)Sizes:XS, S, M, L, XLFrame Material:CarbonFork Material:CarbonComponents:Frame:3T Exploro RaceMaxFork:3T Fango RaceMaxStem:3T Apto StealthHandlebars:3T Aeroghiaia LTDHeadset:3T MinMax by CaneCreek IS42/28.6 – IS47/38Seatpost:3T Charlie TeamSaddle:Fizik Argo Tempo R5Crank:SRAM Force AXS, 42 tPedals:noneBrakes:SRAM Force AXS, Flat Mount, hydraulic, Center Lock Disc, 160 mmShift/Brake lever:SRAM Force AXS eTapRear Derailleur:SRAM Eagle XX1, long cageCassette:12-Speed Eagle, 11-50 tChain:SRAM PC-1130Wheels:Fulcrum Racing 7 DB, 650B, Tubeless ReadyTyres:Vittoria Barzo, 650BApproved For:Weight Limit:110 kg (rider weight)Rotor Size (max.):160 mmFeatures:narrow head tube like on road bikes with 1 1/4″ steerer tubeslarge 1.5″ steerer tube for more stabilityreduced fork crown for less weight and better aerodynamicsintegrated fender mountsself-aligning seatpost clampGeometry:XS:
Manufacturer Designation:51Recommended Height:153 – 167 cmStack:542 mmReach:366 mmSeat Tube Length:463 mmEffective Top Tube Length:526 mmChainstay Length:415 mmWheelbase:1008 mmBB Drop:79 mmSeat Tube Angle:74.0°Head Tube Angle:69.5°Stem Length:80 mmHandlebar Width:380 mmCrank Arm Length:170.0 mm
S:
Manufacturer Designation:54Recommended Height:164 – 177 cmStack:564 mmReach:377 mmSeat Tube Length:490 mmEffective Top Tube Length:546 mmChainstay Length:415 mmWheelbase:1008 mmBB Drop:77 mmSeat Tube Angle:73.5°Head Tube Angle:71.0°Stem Length:90 mmHandlebar Width:400 mmCrank Arm Length:172.5 mm
M:
Manufacturer Designation:56Recommended Height:175 – 185 cmStack:584 mmReach:385 mmSeat Tube Length:518 mmEffective Top Tube Length:566 mmChainstay Length:415 mmWheelbase:1014 mmBB Drop:77 mmSeat Tube Angle:73.0°Head Tube Angle:72.0°Stem Length:100 mmHandlebar Width:420 mmCrank Arm Length:172.5 mm
L:
Manufacturer Designation:58Recommended Height:183 – 196 cmStack:604 mmReach:393 mmSeat Tube Length:545 mmEffective Top Tube Length:586 mmChainstay Length:415 mmWheelbase:1024BB Drop:75 mmSeat Tube Angle:72.5°Head Tube Angle:72.0°Stem Length:110 mmHandlebar Width:420 mmCrank Arm Length:175.0 mm
XL:
Manufacturer Designation:61Recommended Height:from 192 cmStack:632 mmReach:404 mmSeat Tube Length:572 mmEffective Top Tube Length:606 mmChainstay Length:415 mmWheelbase:1044 mmBB Drop:72 mmSeat Tube Angle:72.5°Head Tube Angle:72.0°Stem Length:120 mmHandlebar Width:440 mmCrank Arm Length:175.0 mmTechnology:Checkpoint Charlie:
Optimising the length of the seat tube is just as important as every gram of weight on the strenuous climbs that you will ride on your Exploro. However, ensuring safety is significantly more important. If you want to shorten the tube, use the checkpoint on the seat tube to determine whether the minimum inner length has been reached.
Manufacturer Numbers:XS:9752EBDJ17WS:9752EBDK17WM:9752EBDL17WL:9752EBDM17WXL:9752EBDN17WShipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x 3T Exploro Max Eagle gravel bike
