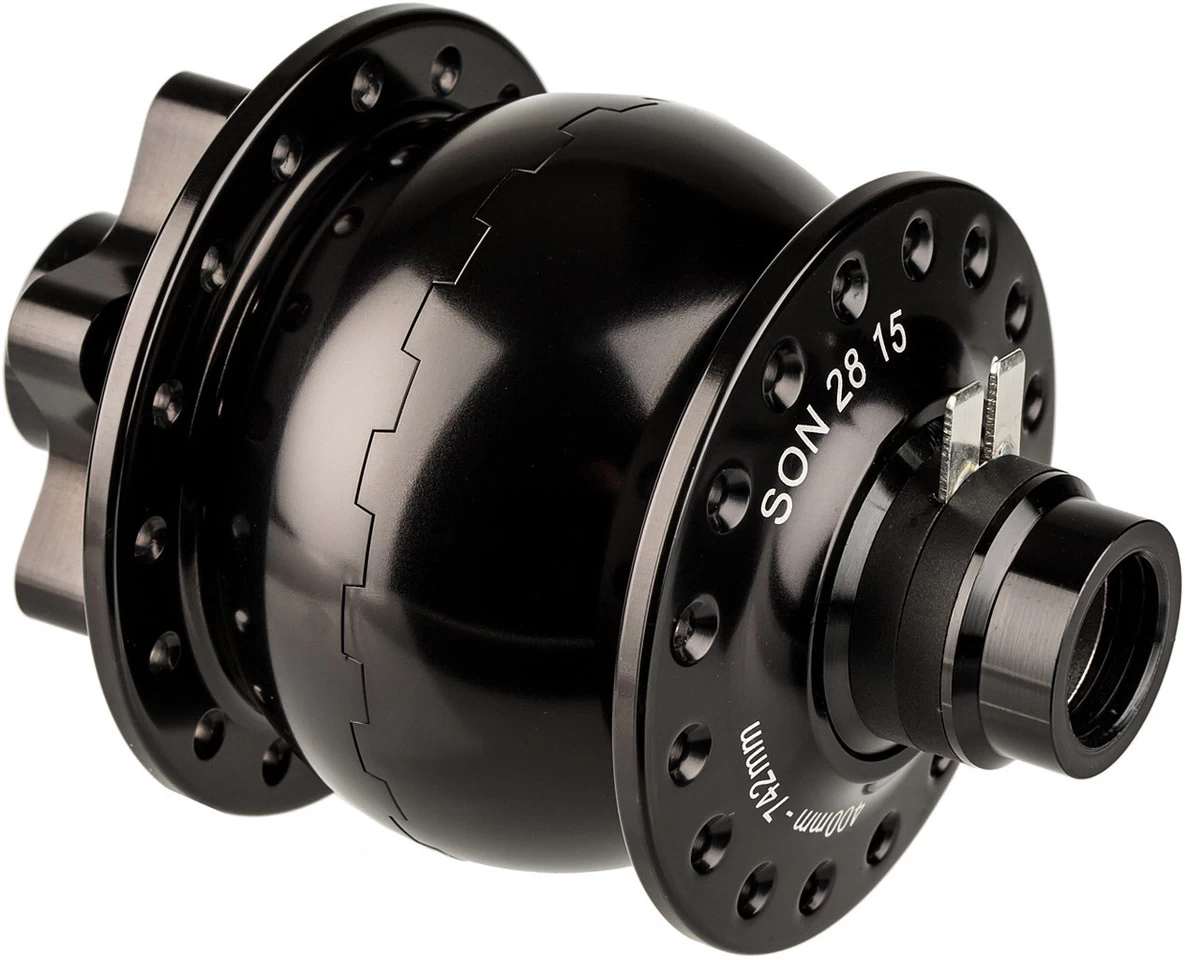

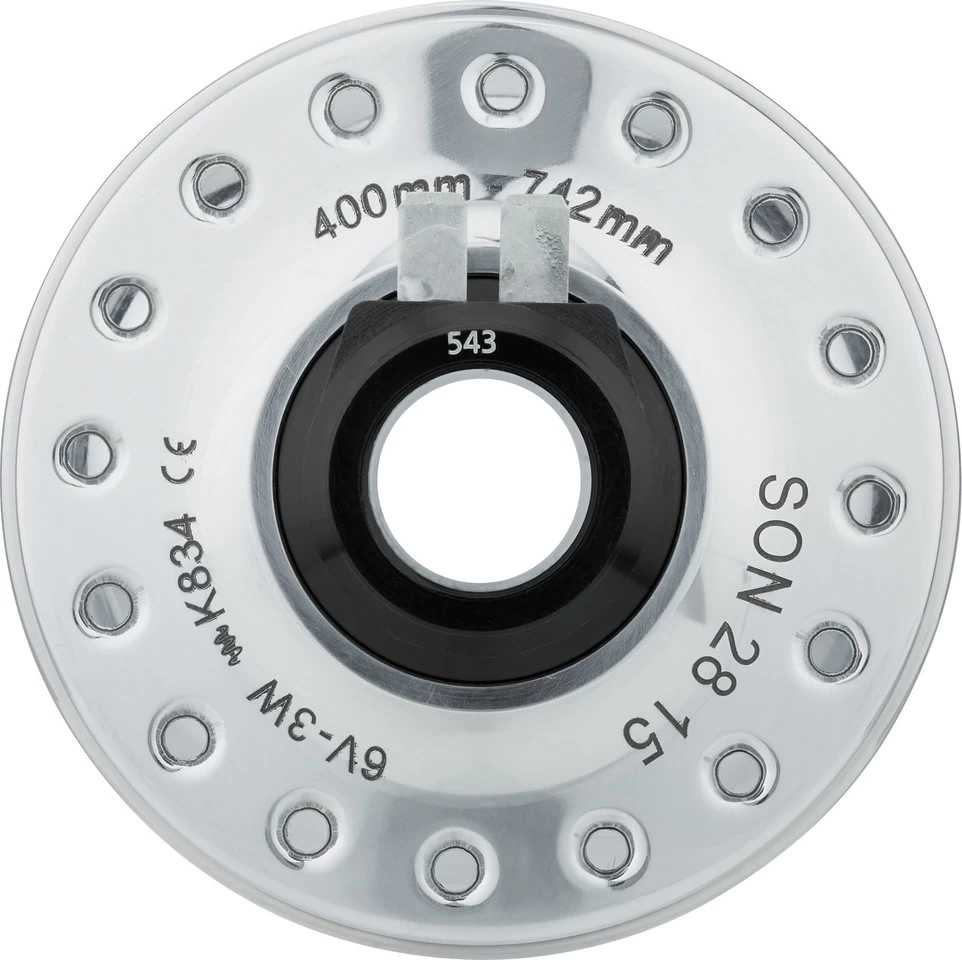

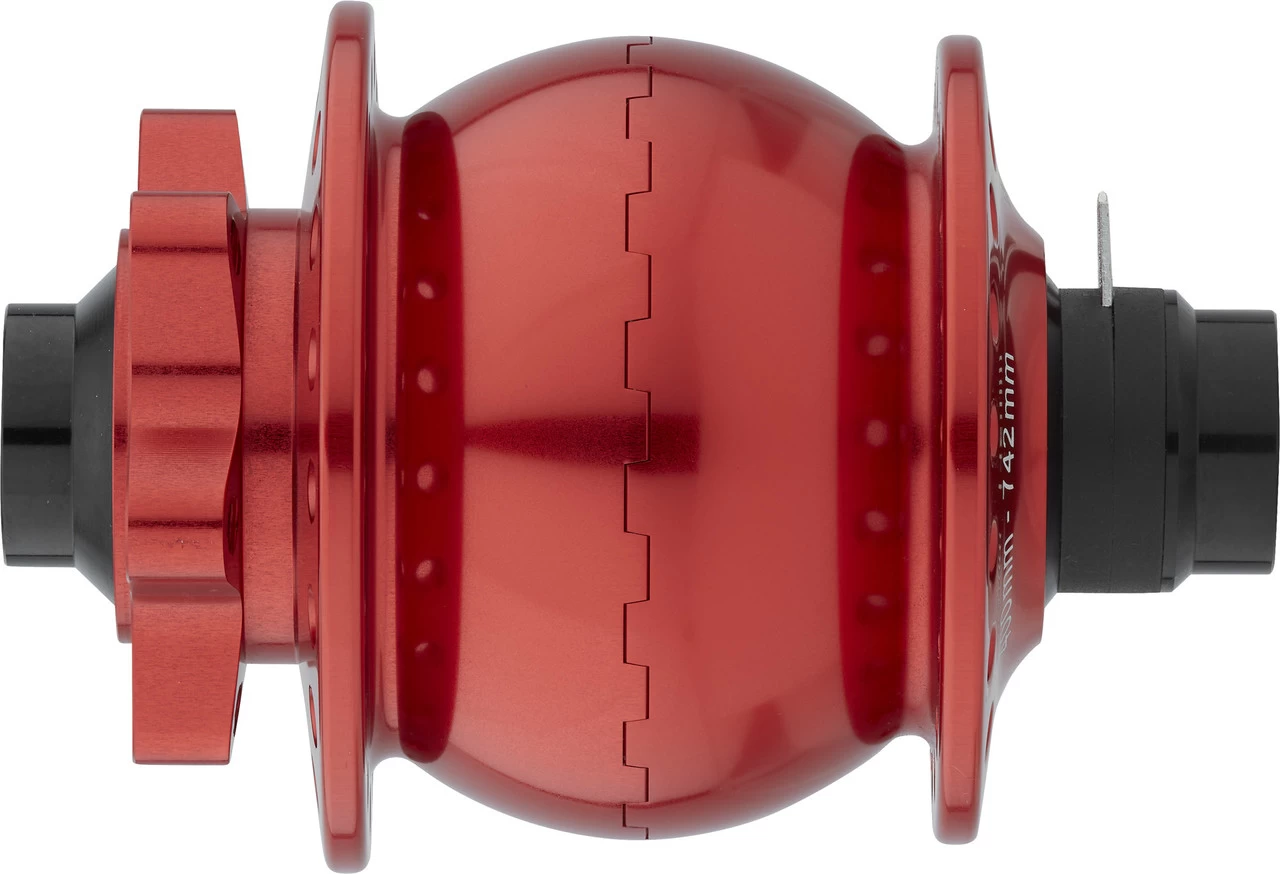

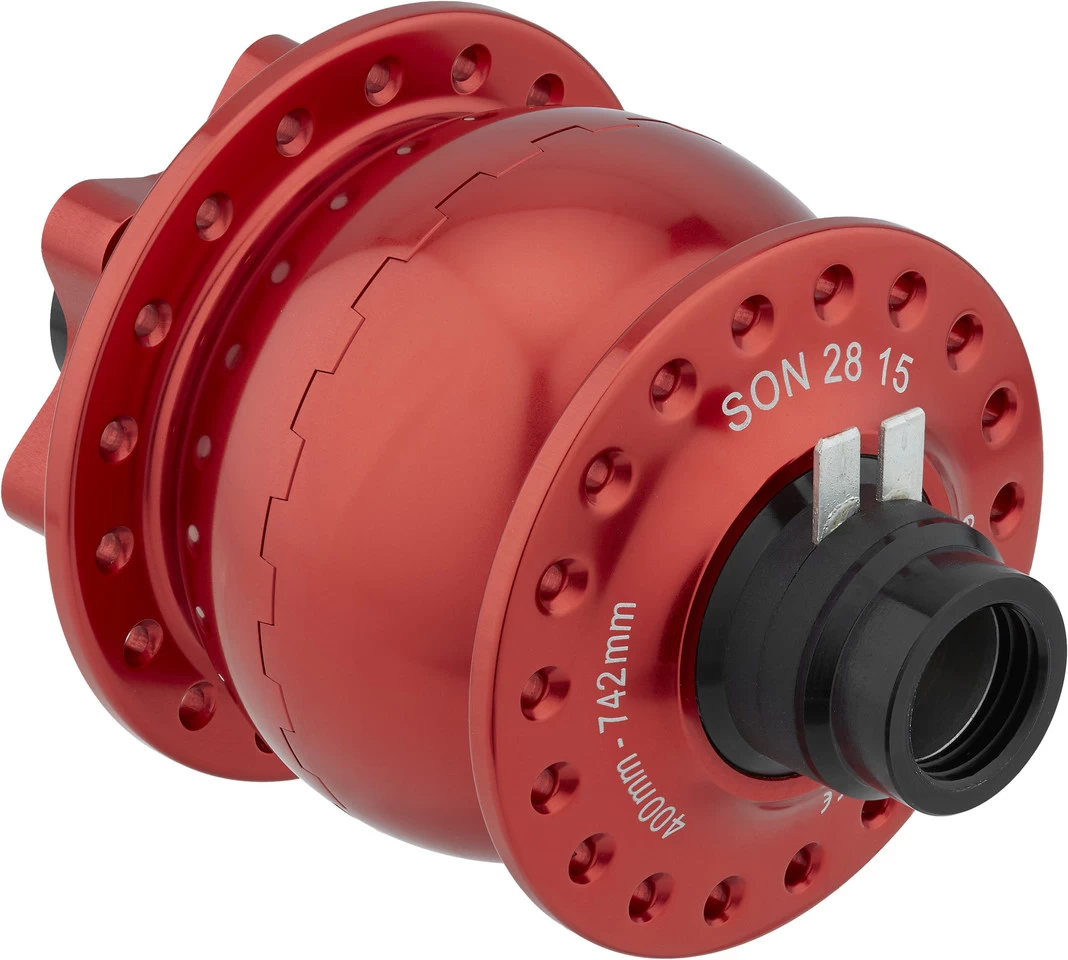

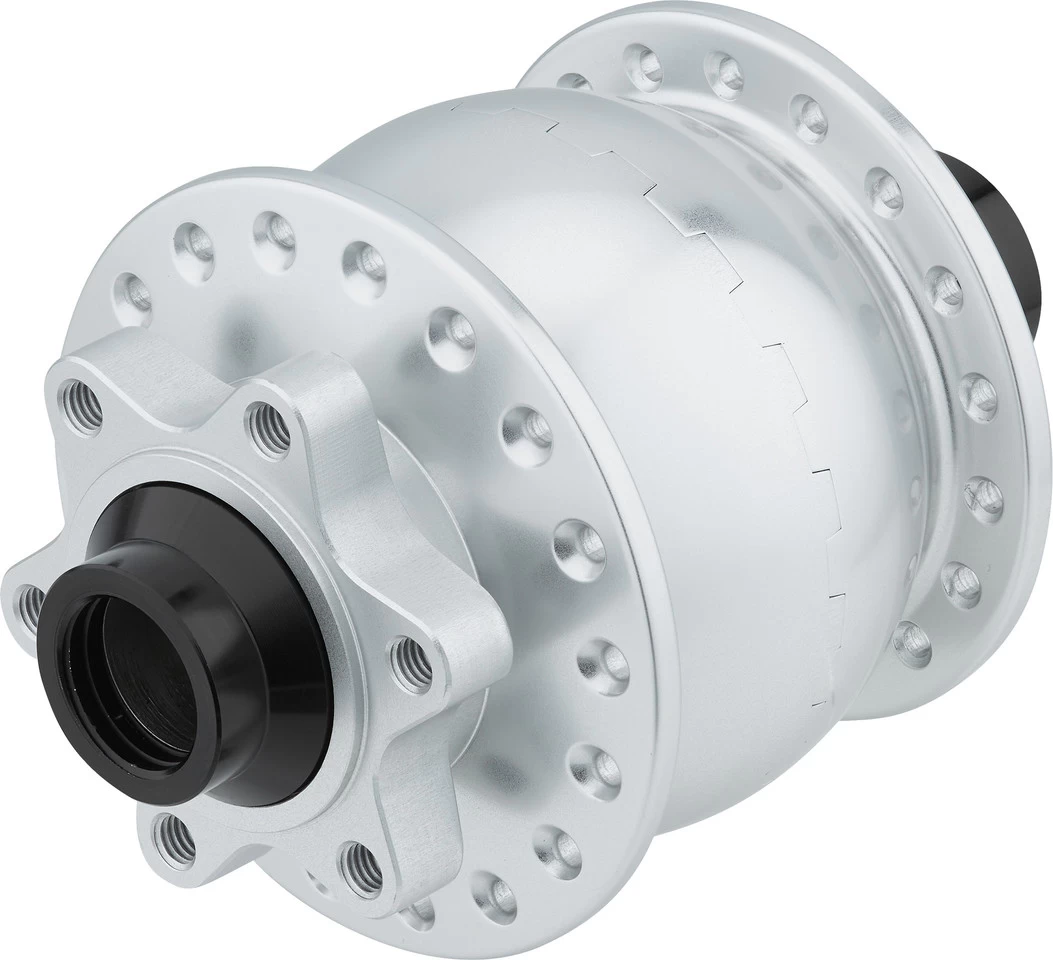

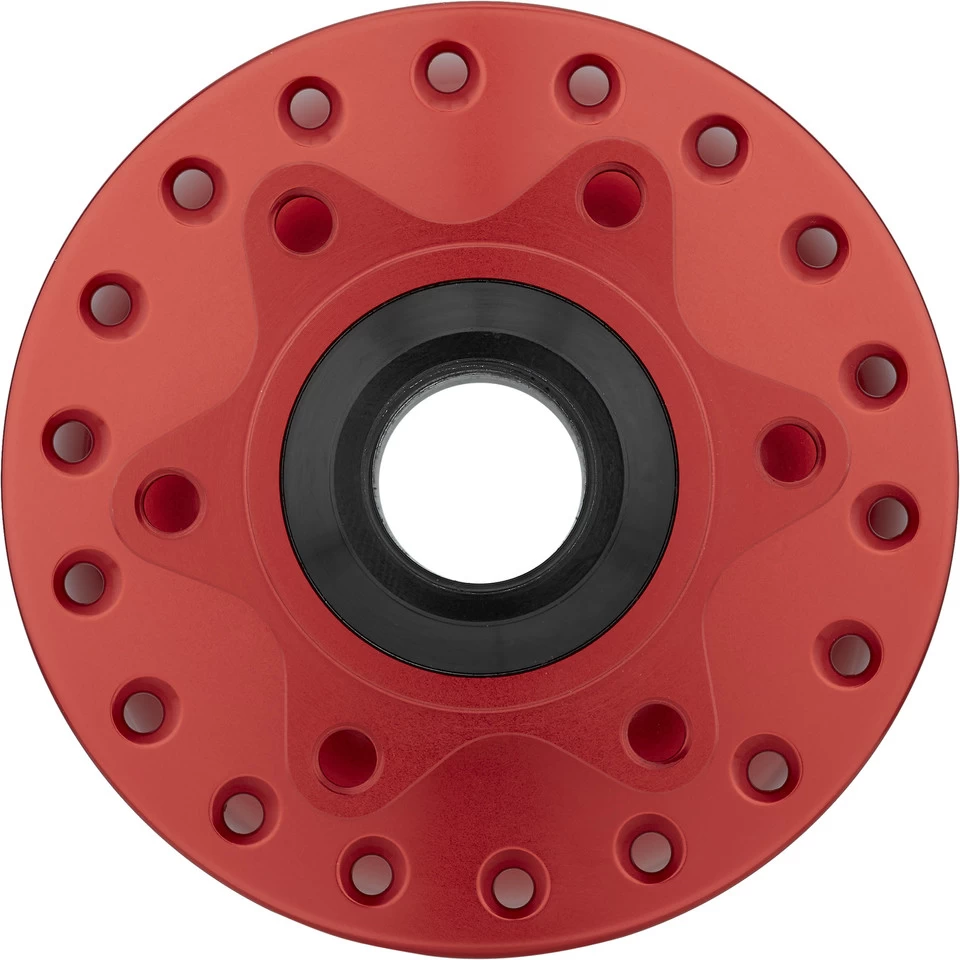

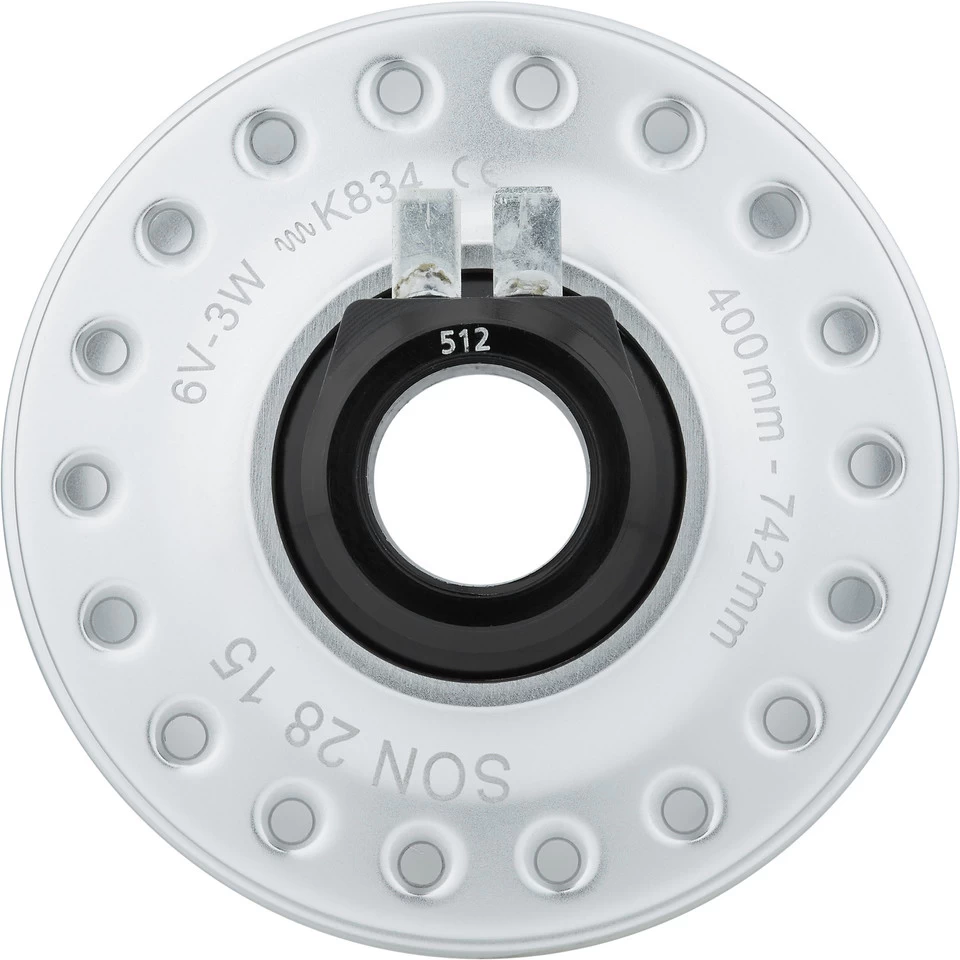

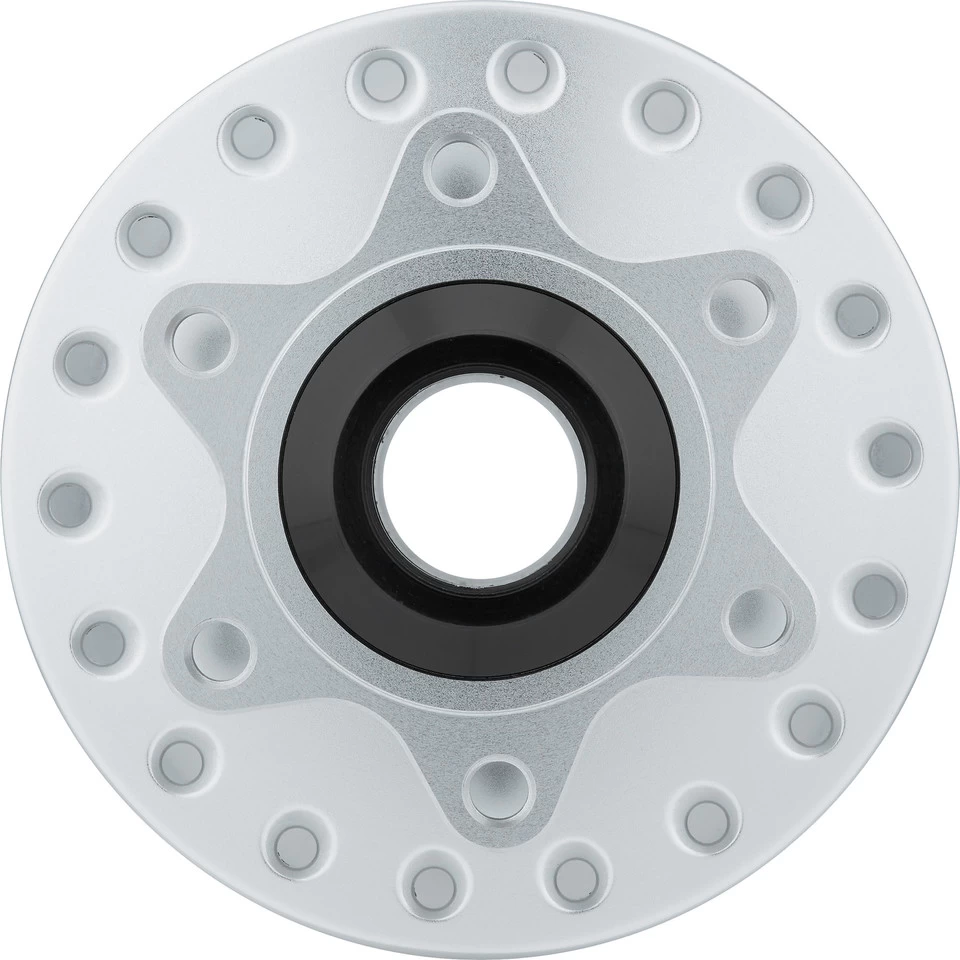

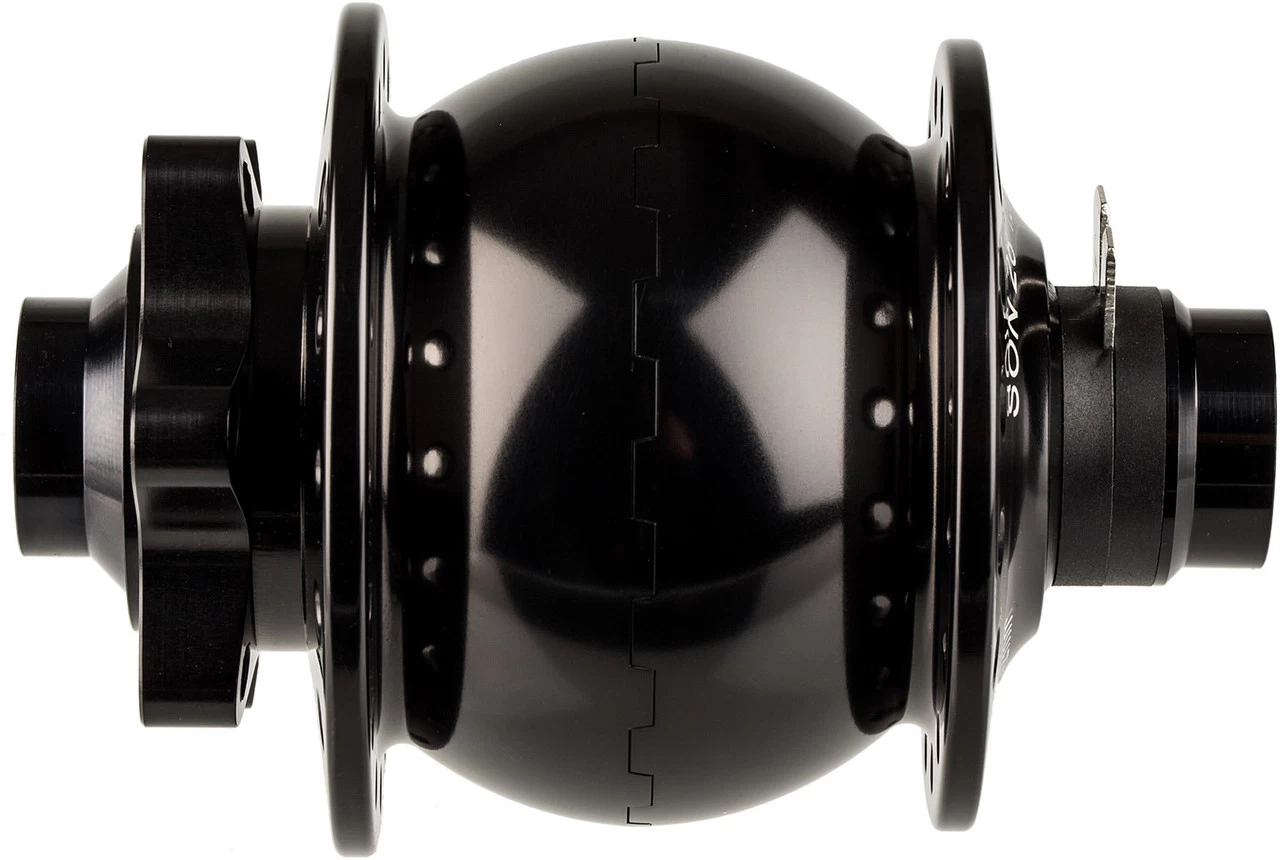

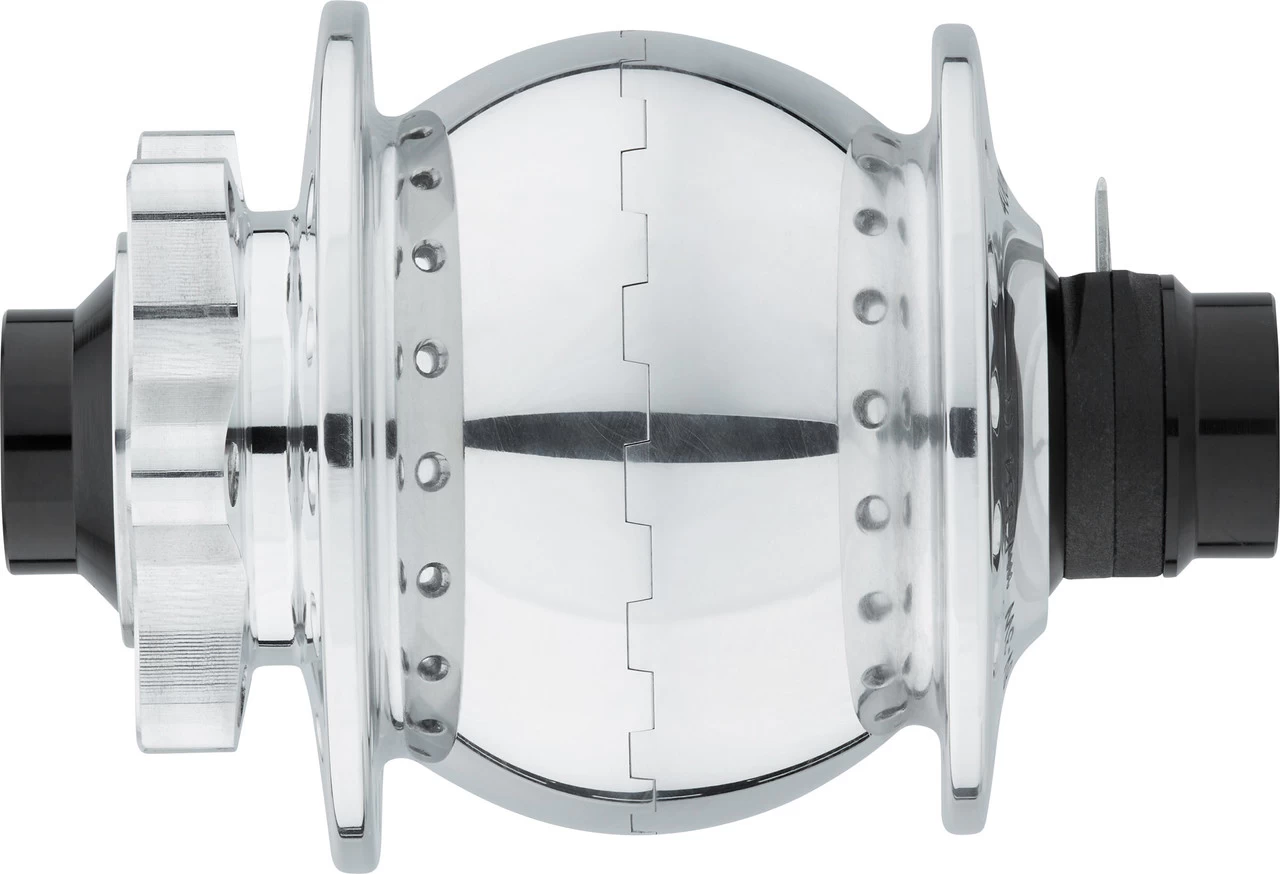

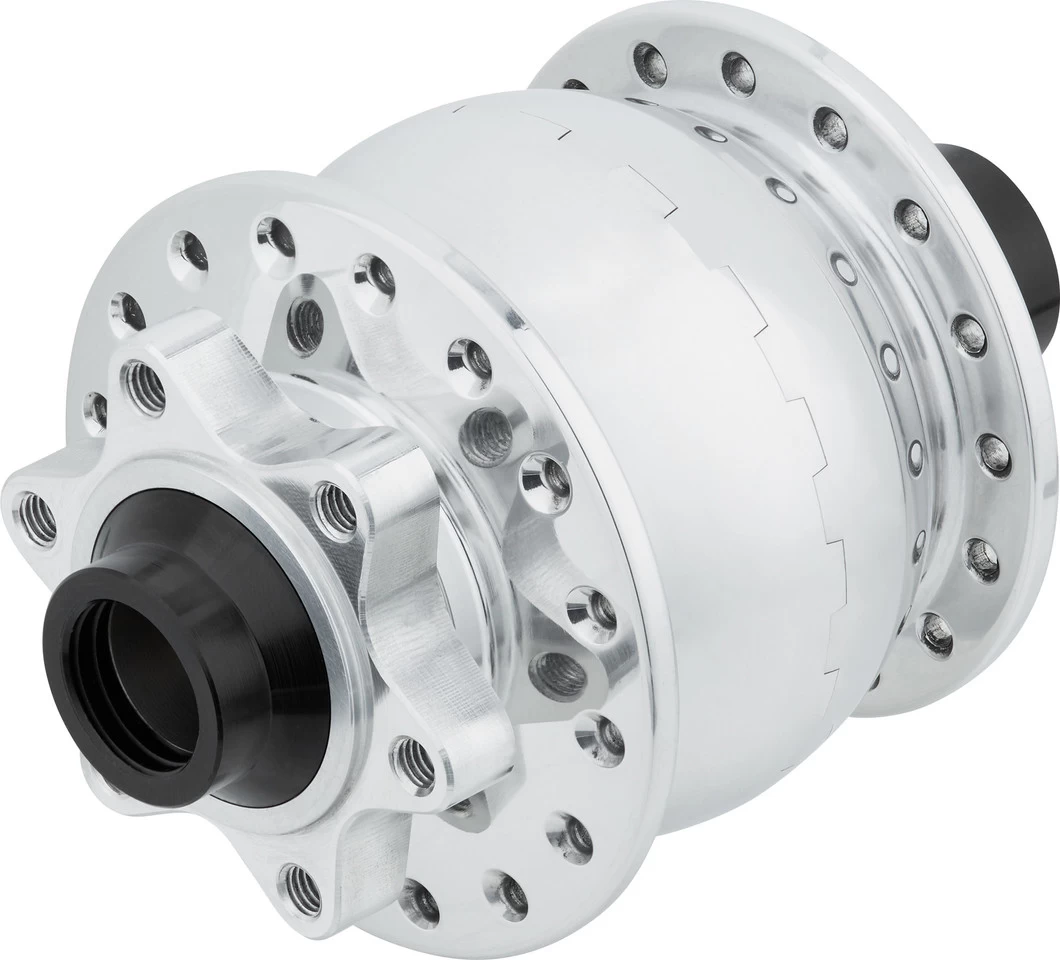

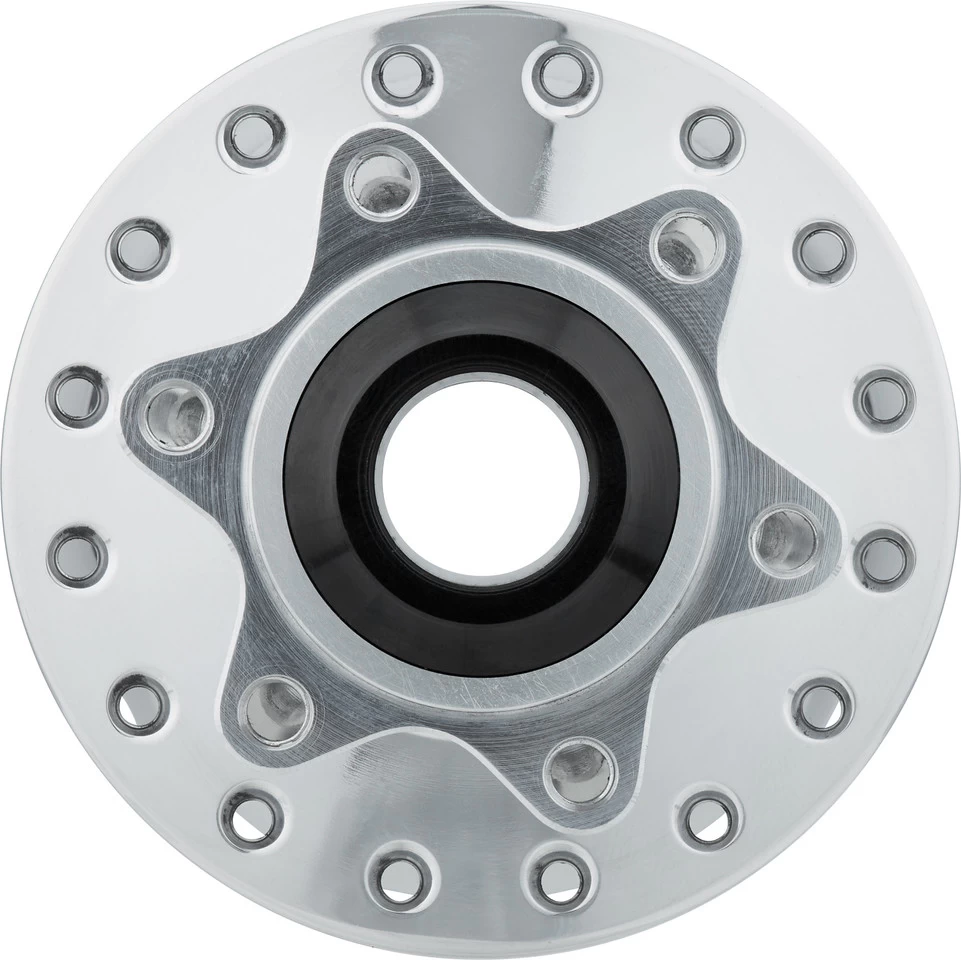

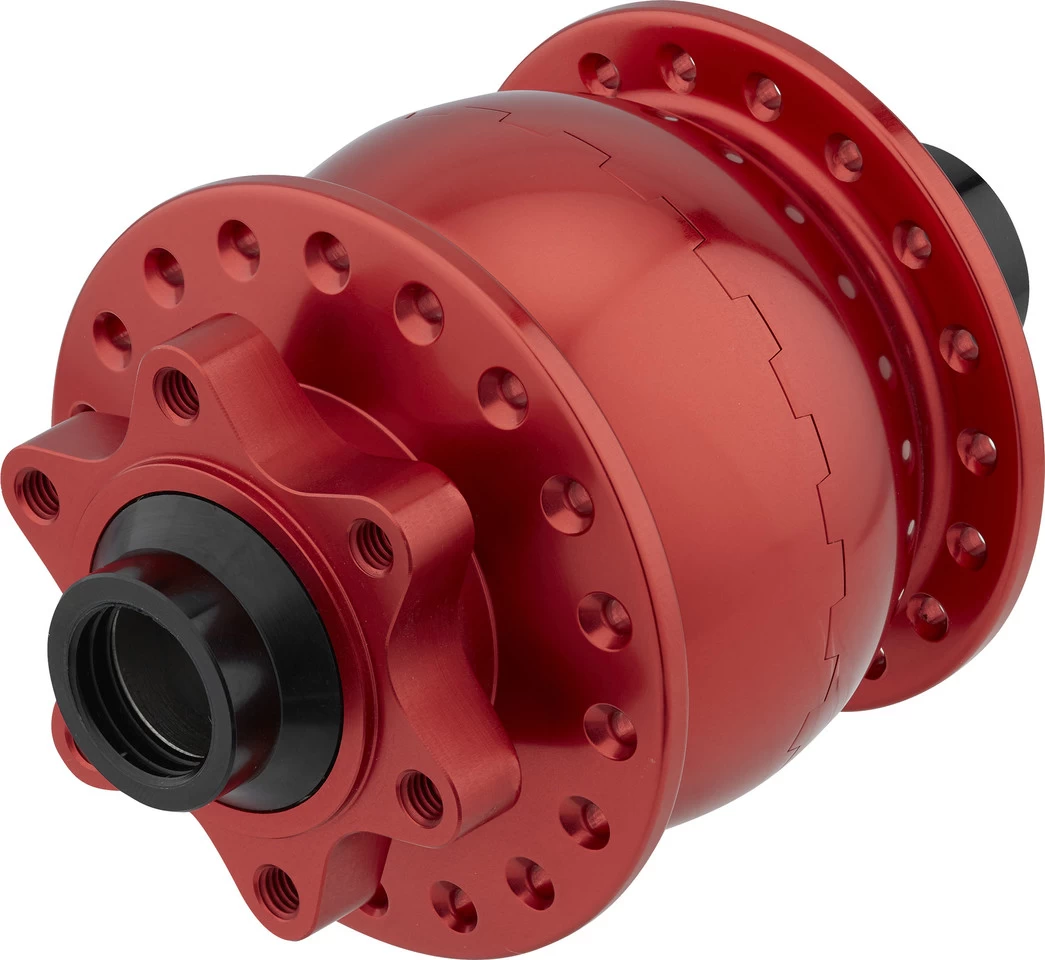

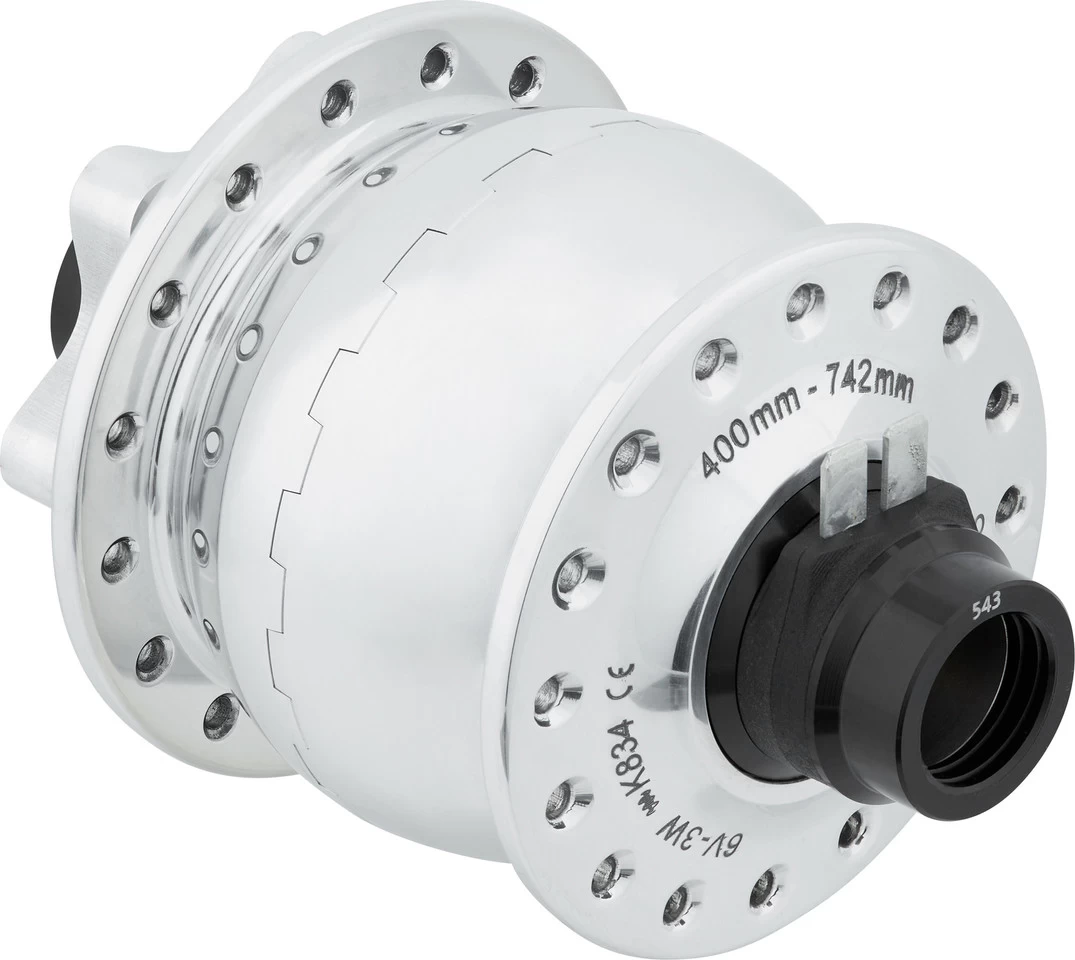

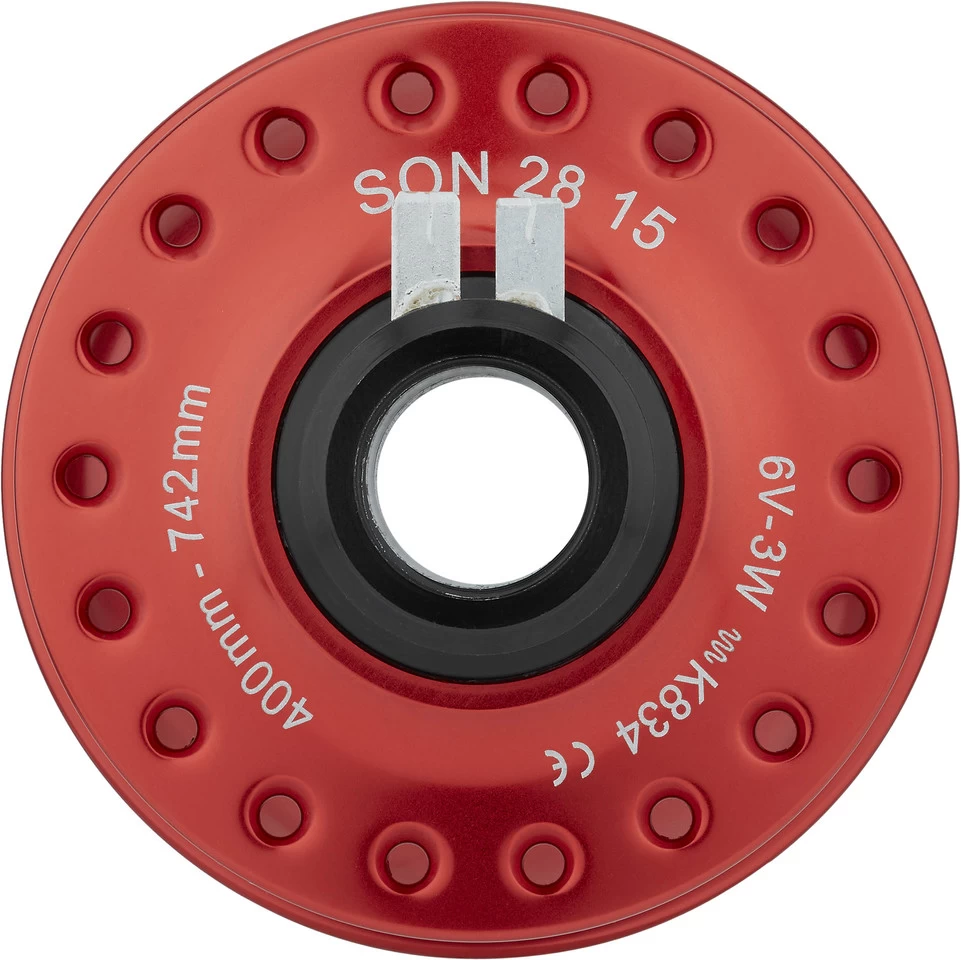

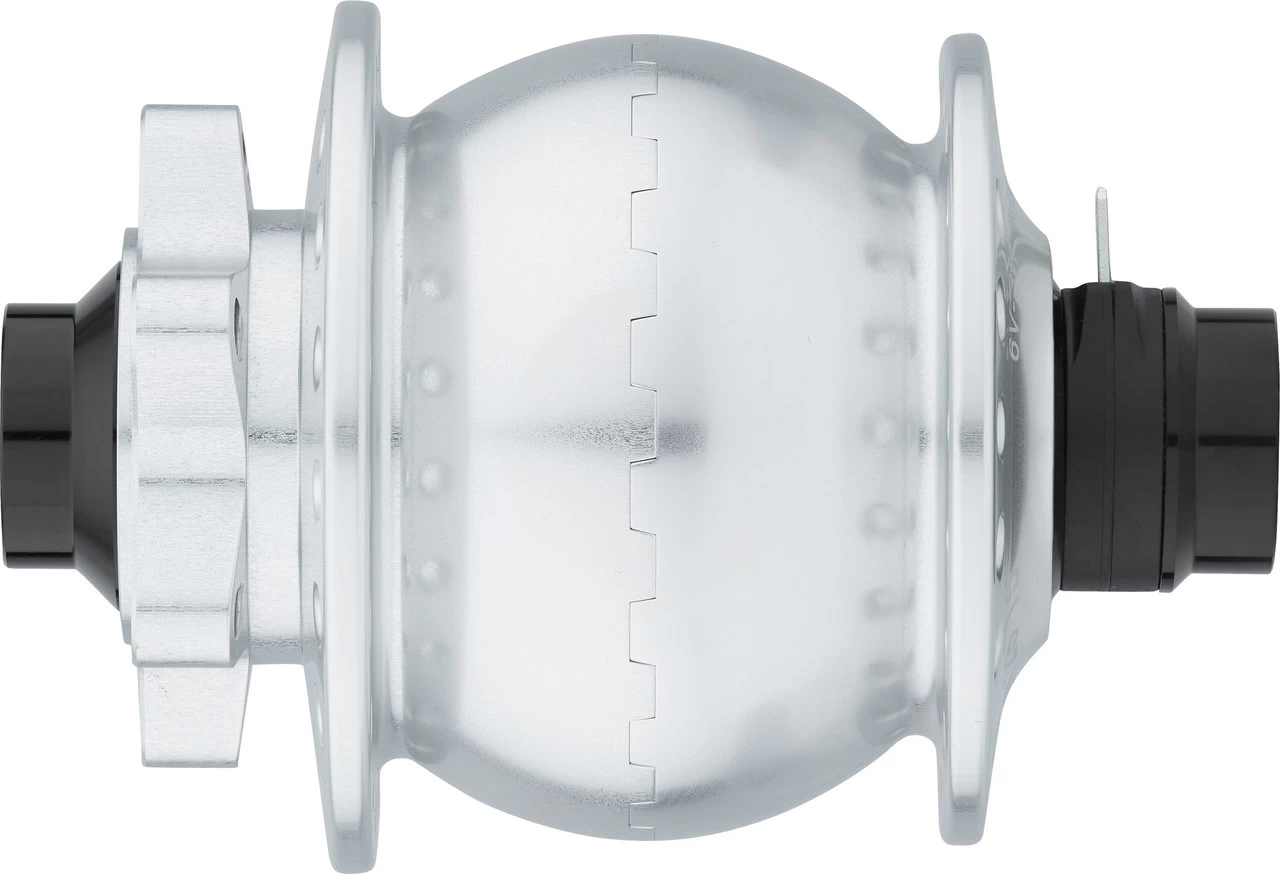

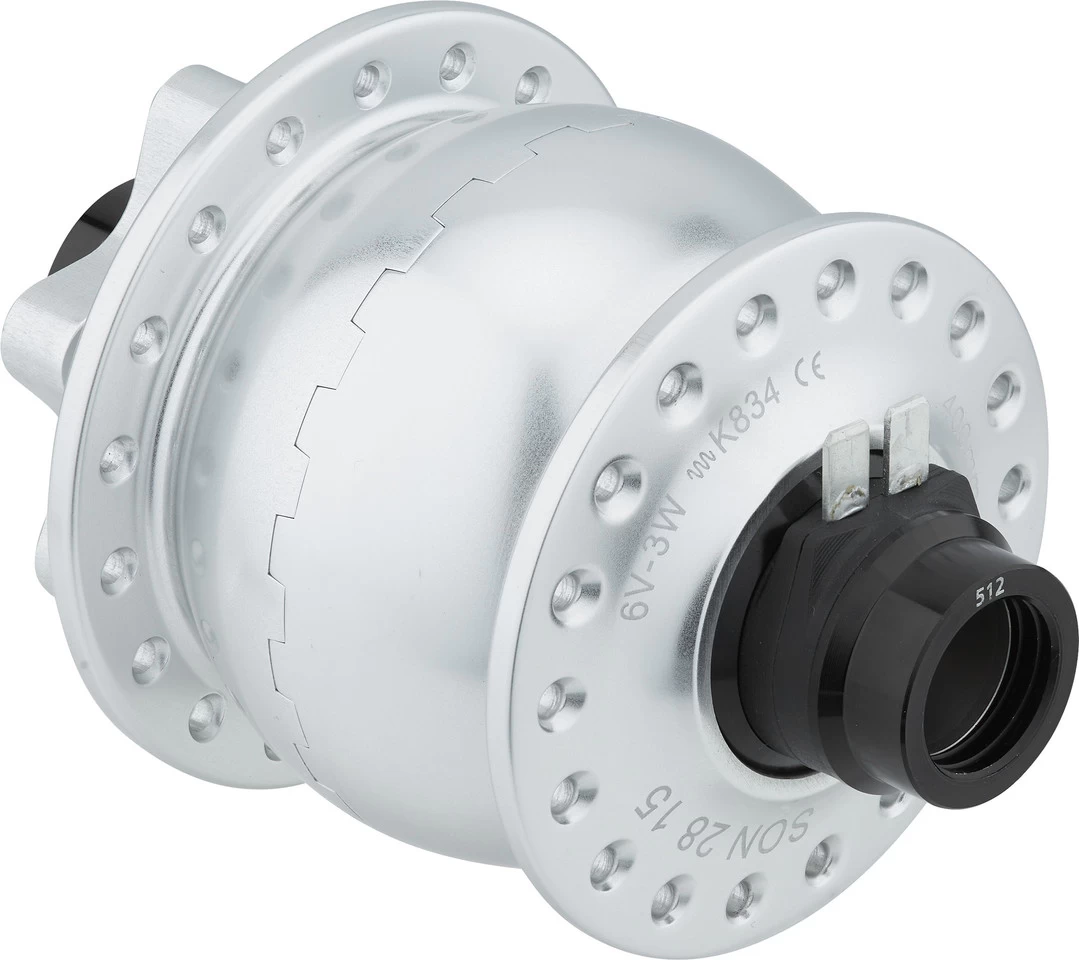

28 15 6-Bolt Disc Hub Dynamo

The first hub dynamo for a 15 mm thru-axle: the Son 28 15 by SON
Hub dynamo or thru-axle? Until now a demanding biker had to do without one of them. The thru-axle stiffens the suspension fork and allows a more precise positioning of the hub, which is particularly useful for disc brakes. More and more mountain bikers want to use the advantages of a hub dynamo light system. No wonder that SON was asked more and more often for a thru-axle hub dynamo. In order to bring both under one roof, SON has not only changed the axle construction, but also essential parts of the generator. The result: A hub dynamo that looks, is equally robust and has the same electrical values as the Son 28 Disc, but with a large ” hole” . Also the weight could be kept surprisingly low with 460 g.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here.
Specifications:Output:6V/3W (according to StVZO)Efficiency:65% at 15 km/h in a 28″ wheelPower Consumption at Idle Speed:0.5 W at 15 km/h in a 28″ wheelOver Locknut Dimension:15 x 100 mm thru-axleSpoke Hole Count:32 hole, 36 holeBrake Type:6-bolt discTechnical Information:Series:Son 28Application:All Mountain, Touring, CityBody Material:aluminium (6082-T6)Bearings:deep groove ball bearingsSeals:labyrinth seal and gasketsFlange Distance (L/R):47.5 mm (22.5 mm/25 mm)Partial Bolt Circle Diameter (L/R):59 mm/54 mmSpoke Hole Diameter:2 mmWire Connector:4.8 mm flat plug, 2-pole, insulated returnApproved For:Street Use in Germany:yesCheck Number:K~~834Compatibility:for 16″ to 29″ wheels (400-742 mm)for 15 mm thru-axlefor 3 mm coaxial cableFeatures:neodymium iron boron magnetic rotor, 26-poleshollow axle made from cold worked, stainless steelManufacturer Numbers:black 28 hole:332812black 32 hole:333212black 36 hole:333612silver-anodised 32 hole:333292silver-anodised 36 hole:333692red 32 hole:333222red 36 hole:333622blue-anodised 32 hole:333242Contents:1 x SON Son 28 15 6-bolt disc dynamo hub1 x flat plug
