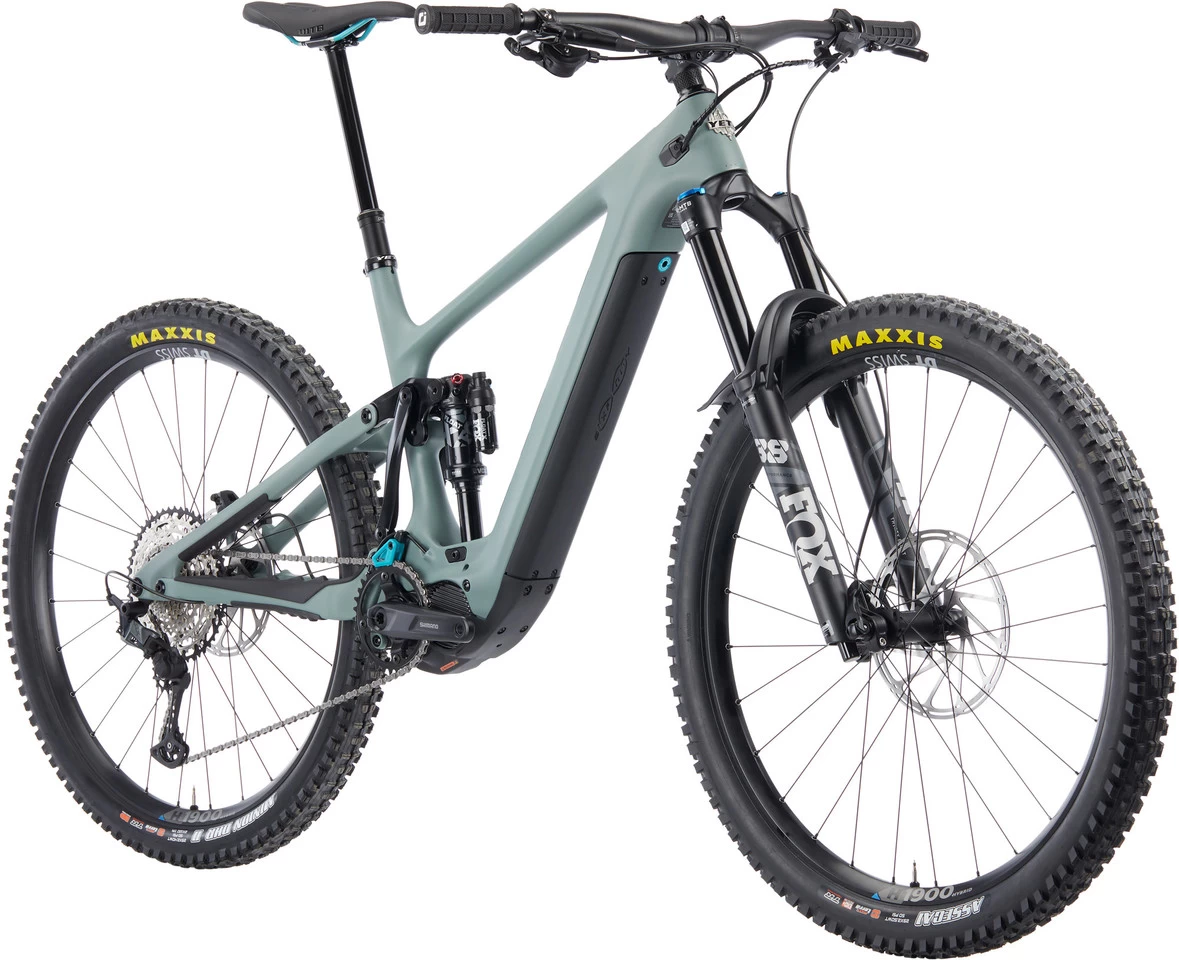

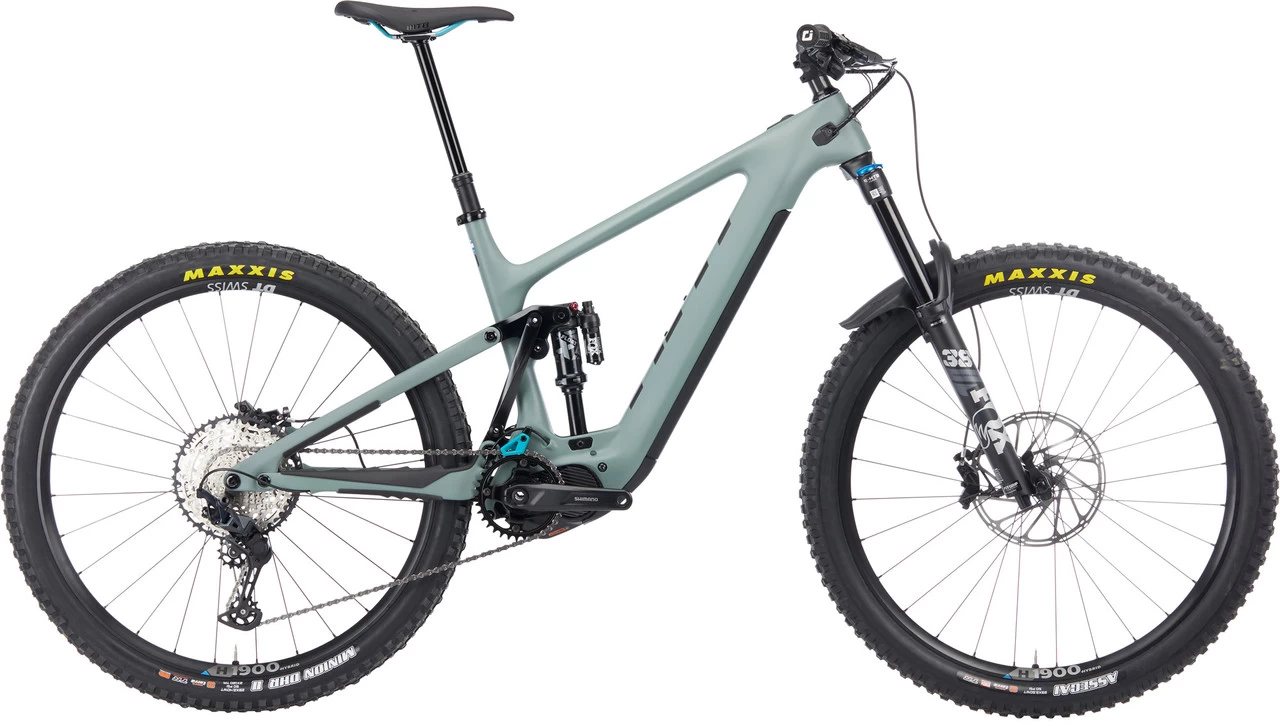

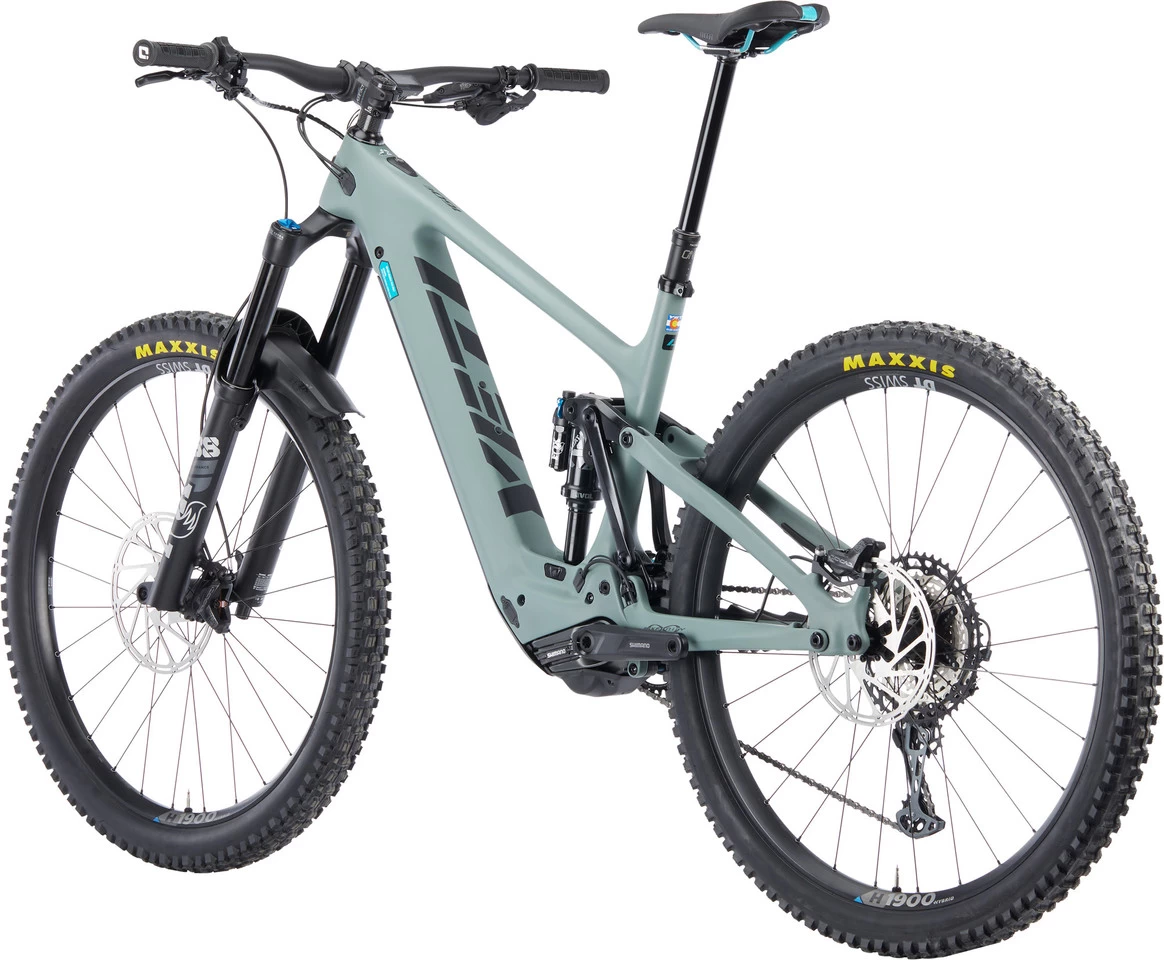

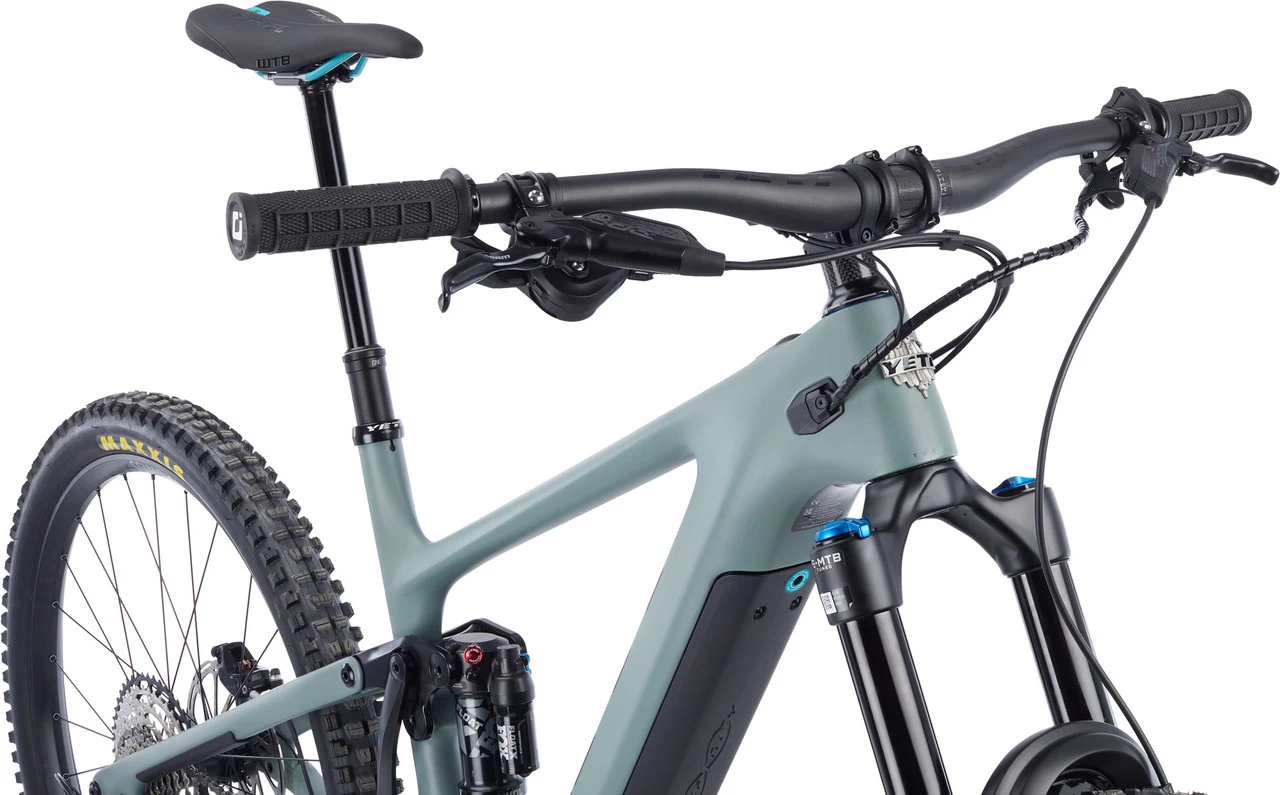

160E C1 C/Series Carbon 29″ E-Mountain Bike

The Yeti Cycles 160E C1 29″ E-Mountain Bike made of carbon for enduro trails
The carbon 160E C1 is an e-mountain bike with 160 mm rear travel from Yeti Cycles with Shimano SLX equipment. Its newly-developed Sixfinity linkage design and high efficiency impress on Enduro race tracks.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

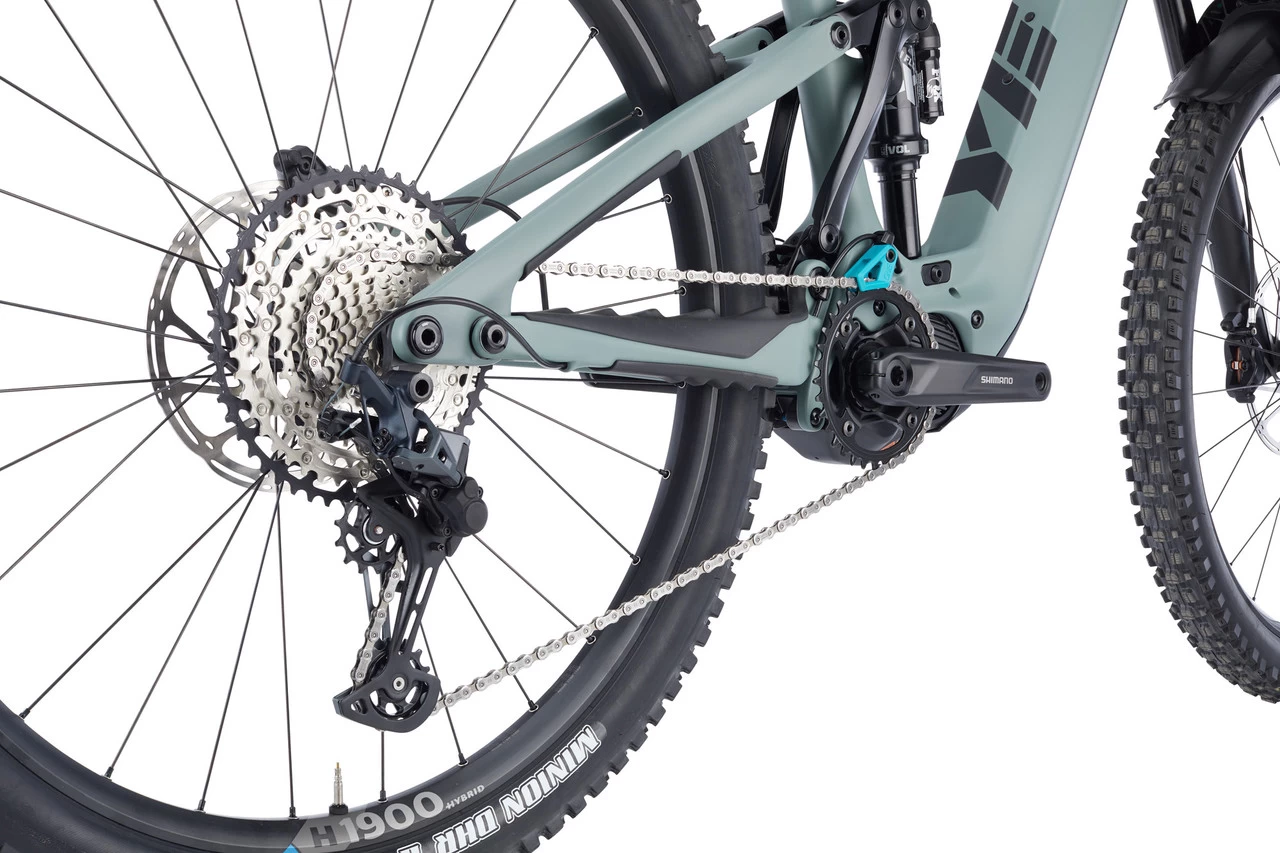

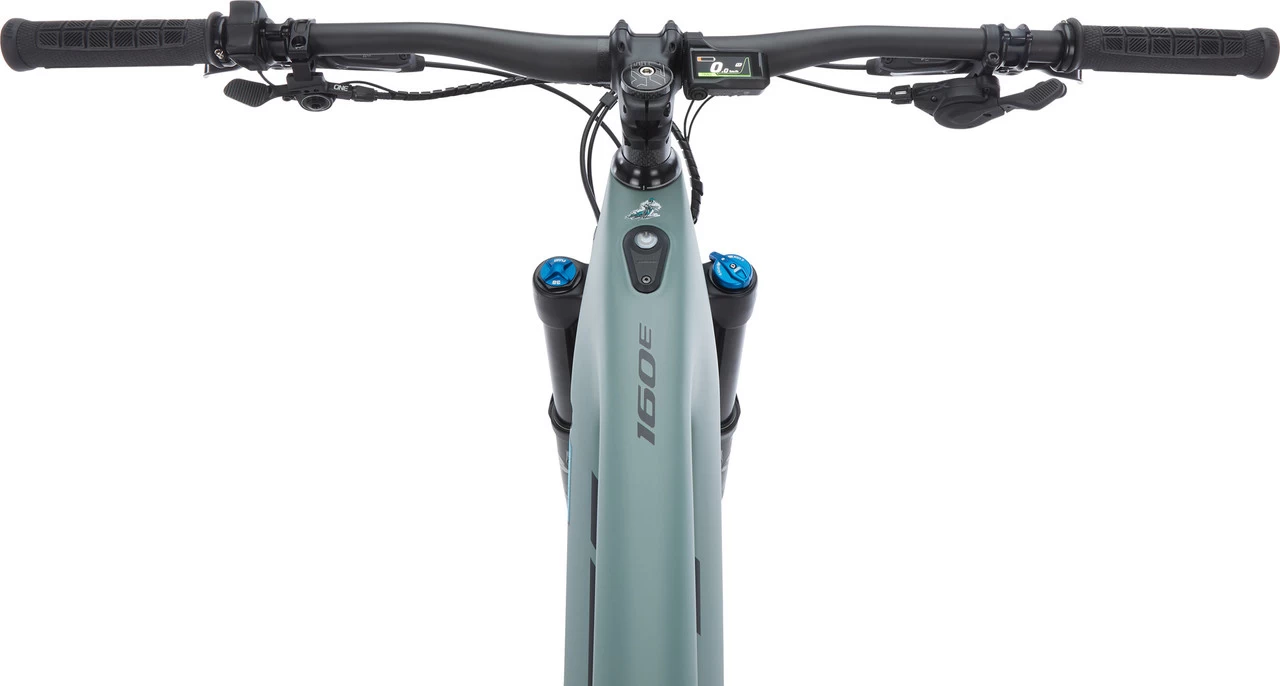

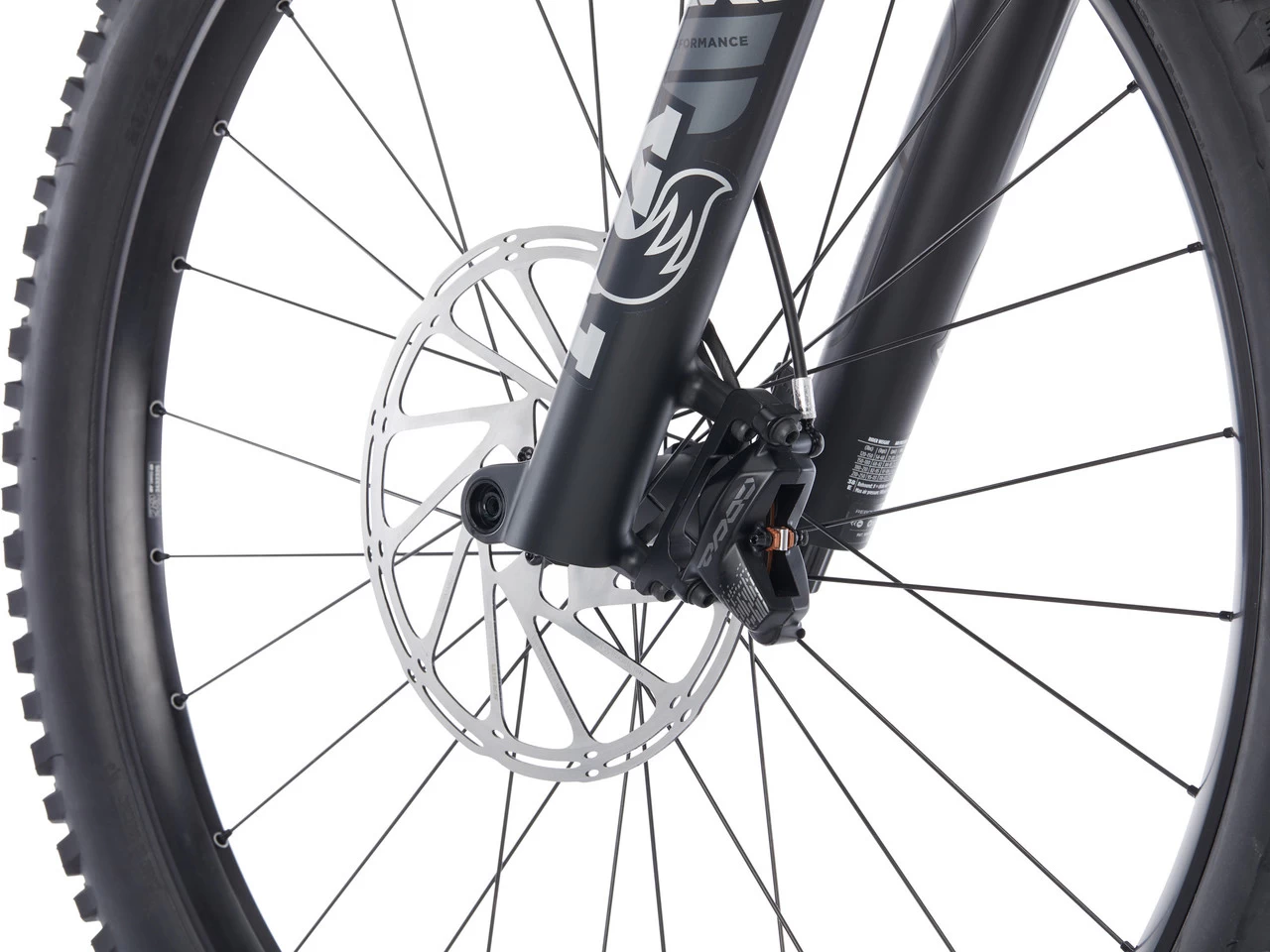

Specifications:Application:EnduroWheel Size:29″Front Travel:170 mmRear Travel:160 mmSizes:M, L, XLFront Triangle Material:Carbon (C/Series)Rear Triangle Material:Carbon (C/Series)E-Motor:Type:mid-drive motorMotor Type:Shimano EP8Pedal Assist (max.):25 km/hPower:250 WBattery Type:Shimano internalCapacity:630 WhDisplay:Shimano EM800Components:Frame:Yeti Cycles 160EFork:Fox Racing Shox 38 Performance E-Tune, GRIP2Stem:Race FaceHandlebars:Yeti Cycles E-Bike Carbon, 35 mm clamp, 800 mm lengthGrips:ODI Elite ProRear Shock:Fox Racing Shox Float X2 PerformanceRemote System:noneHeadset:Cane Creek 40 integratedSeatpost:OneUp Components 31,6 mm, 210 mm (M), 240 mm (L, XL)Saddle:WTB Silverado CustomCrank:Shimano EM600, 160.0 mmPedals:noneBrakes:SRAM Code R, with SRAM Centerline brake rotors 220 mm/200 mmShift Lever:Shimano SLX, 12-speedRear Derailleur:Shimano SLX, 12-speedCassette:Shimano SLX, 12-speed, 10-51 TChain:Shimano SLX, 12-speedRims:DT Swiss H1900, 30 mmSpokes:DT SwissFront Hub:DT SwissRear Hub:DT SwissFront Tyre:Maxxis Assegai EXO+, 29 x 2.5″Rear Tyre:Maxxis Minion DHR II DD, 29 x 2,4″Approved For:Rotor Size (max.):220 mm (rear)Tyre Size (max.):29 x 2.6″Chainrings:1xChainring Size (max.):1x 34-toothFeatures:enduro e-fully made of carbon with Shimano SLX components and a Fox chassisSixfinity suspension newly developed for e-drivetrainsadjustment of the progressivity of the transmission ratio is possiblelittle anti-squat deviation in SAG across the entire cassette for pedalling efficiency in every gearsemi-integrated battery needs approx. 5 hours charging timepossible Bluetooth connection to Shimano E-Tube-Appsstrong, stiff C/Series carbonshort chainstays for traction and agile rear end at high speedhigher bottom bracket and shorter crank than the SB150 for more pedalling freedomFox Float X2 Performance rear shock with custom tune and sensitive responseclever, completely internally routed cable routing and management on the cockpit, without cable hammering at entry and exit openingsstraight, continuous seat tube enables the use of Vario seatposts with a lot of traveloptimised chainstay protection against noise caused by chain slapTechnology:Sixfinity

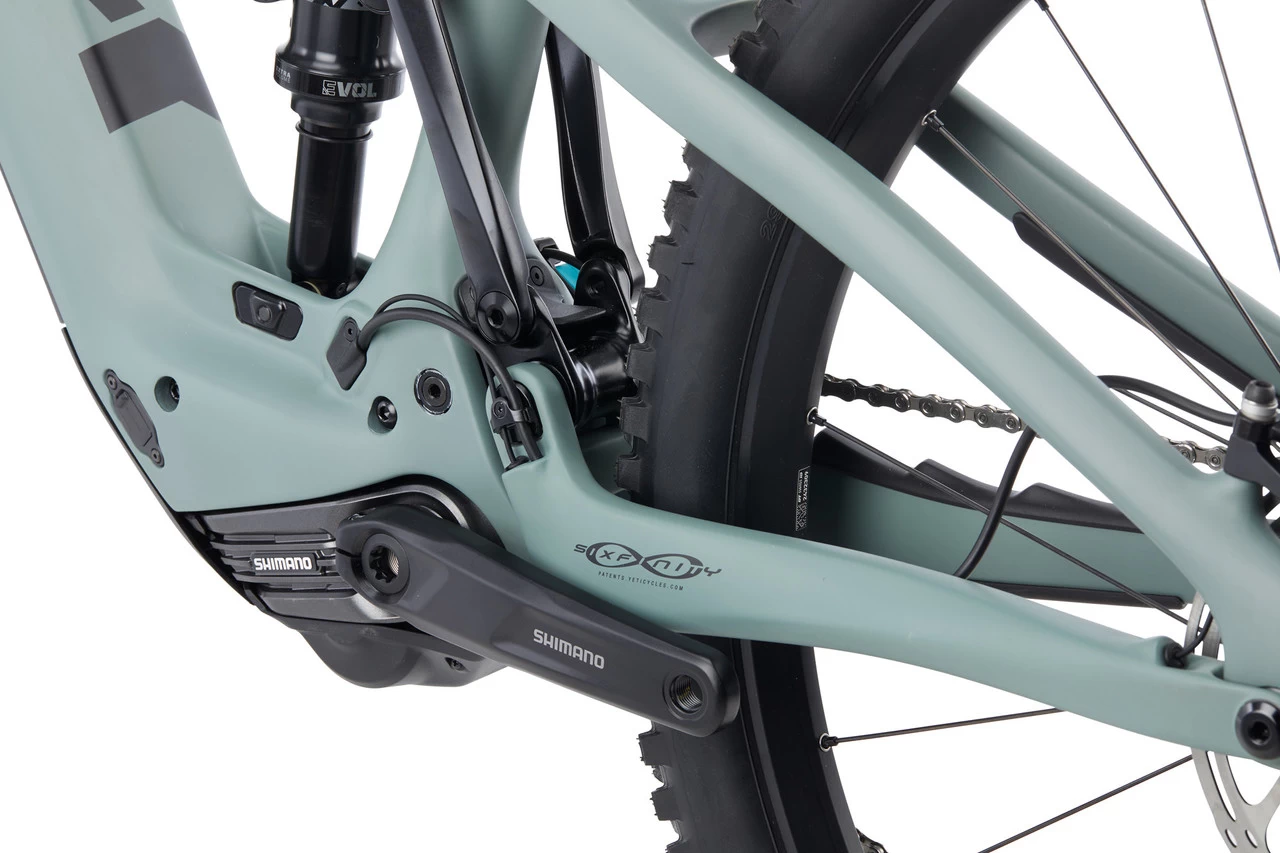

The Sixfinity linkage design was developed specifically for the requirements of e-mountain bikes. At the beginning of the travel, the Switch Link shifts upwards, then as the travel increases, it lowers again from a specific turning point. This creates an anti-squat curve that allows efficient pedalling in any gear, unlike non-motorised bikes where anti-squat has a higher relevance in smaller gears. The Sixfinity construction also allows for three ratio of progression settings without affecting geometry, anti-squat or anti-rise, and with minimal change in travel. So you have the choice between a rather calm, balanced or poppy character.
Geometry:M:
Recommended Height:165 – 180 cmStack:620.0 mmReach:460.0 mmSeat Tube Length:410.0 mmEffective Top Tube Length:591.8 mmHead Tube Length:98.3 mmChainstay Length:446.0 mmWheelbase:1239.7 mmBottom Bracket Height:350.0 mmSeat Tube Angle:78.0°Head Tube Angle:64.5°Standover Height:754.0 mm
L:
Recommended Height:178 – 191 cmStack:625.0 mmReach:480.0 mmSeat Tube Length:450.0 mmEffective Top Tube Length:613.4 mmHead Tube Length:103.8 mmChainstay Length:446.0 mmWheelbase:1262.1 mmBottom Bracket Height:350.0 mmSeat Tube Angle:78.0°Head Tube Angle:64.5°Standover Height:754.0 mm
XL:
Recommended Height:185 – 201 cmStack:635.0 mmReach:505.0 mmSeat Tube Length:495.0 mmEffective Top Tube Length:641.5 mmHead Tube Length:114.9 mmChainstay Length:446.0 mmWheelbase:1291.9 mmBottom Bracket Height:350.0 mmSeat Tube Angle:78.0°Head Tube Angle:64.5°Standover Height:754.0 mmManufacturer Numbers:rhino / M:YCB22160EMDPRIPXC018700rhino / L:YCB22160ELGPRIPXC018700rhino / XL:YCB22160EXLPRIPXC018700Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x Yeti Cycles 160E C1 Carbon 29″ E-Bike
